RQ9BTM012.4GHz Bluetooth Module

BTM01 User Manual Features Ŷ Fully qualified Bluetooth® v2.1 + EDRspecification Ŷ Piconet and scatternet support Ŷ Minimum external components Ŷ UART to 4Mbaud Ŷ SDIO (Bluetooth Type A)/CSPI interface Ŷ Integrated CSR AuriStream® low-power codec for wide-band voice quality General Description BTM01 is a single-chip radio and baseband Module for Bluetooth 2.4GHz systems including EDR to 3Mbps.It is based on CSR BlueCore6-ROM QFN Automotive chip. It provides a fully compliant Bluetooth v2.1 + EDR specification system for data and voice communications. BTM01includes AuriStream, which offers significant power reduction over the CVSD- based system when used at both ends of the link. Applications Ŷ Automotive The device incorporates auto-calibration and BIST routines to simplify development, type approval and production test. All hardware and device firmware is fully compliant with the Bluetooth v2.1 + EDR specification. Electrical parameters VCC=3.3+/-0.3V Operation temperature:-30 to 75 degree Device Pinout 1BT_RST 2PCM_OUT 3PCM_SYNC 4BT_RX 5BT_TX 63.3V 7GND 8BT_RTS 9BT_CTS 10PCM_CLK 11PCM_IN 12GND EC DECLARATION OF CONFORMITY We Yanfeng Visteon Automotive Electronics Co.,Ltd. declared that following designated product: Product Name: Bluetooth Module of R0-13 Model No: BTM01 Complies with the essential protection requirements of the Radio and Telecommunication Terminal Equipment Directive (EC Directive 1999/5/EC) and the Electromagnetic Compatibility Directive(2004/108/EC). This declaration applies to all specimens manufactured identical to the samples submitted for testing/evaluation. Assessment of compliance of the product with the requirements relating to the Radio and Telecommunication Terminal Equipment Directive (EC Directive 1999/5/EC) and the Electromagnetic Compatibility Directive(2004/108/EC) was performed by British Approvals Board for Telecommunications (BABT) (Notified Body No.0168), based on the following standards: Safety: EN 60950-1:2006+ A1:2010+A11:2009+A12:2011 IEC 60950-1:2005+A1:2009 EN 62479:2010 Radio: ETSI EN 300 328 v1.7.1 EMC: ETSI EN 301 489-1 v1.9.2 ETSI EN 301 489-17 v2.2.1 NOTE:This equipment has been tested and found to comply with the limits for a ClassB digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Caution: the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Page 1 of 1 Yanfeng Visteon Automotive Electronics Co.,Ltd 300 Minolta Road Songjiang County Shanghai, China Authorization Letter Date: May 4, 2013 BABT Balfour House Churchfield Road Walton-on-Thames Surrey KT12 2TD Dear Sir or Madam: We, the undersigned, hereby authorize Mr. He Yuanjie from TUV Product Service Limited, Beijing Branch, Unit 918, Landmark Tower 2, 8 North Dongsanhuan Road,100004 Beijing , act on our behalf, as our agent, in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization shall expire 3 months from original date. If you have any question regarding the authorization, please don’t hesitate to contact with me. Sincerely Name: Fan YouXiang Title: System Application Engineer Yanfeng Visteon Automotive Electronics Co.,Ltd. 300 Minolta Road Songjiang County Shanghai, China Date: March 4, 2013

Page 1 of 1 Yanfeng Visteon Automotive Electronics Co.,Ltd 300 Minolta Road Songjiang County Shanghai, China Request of Confidentiality BABT Balfour House Churchfield Road Walton-on-Thames Surrey KT12 2TD Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying of following product: Product Name: Bluetooth Module of R0-13 Product Model: BTM01 FCC ID: RQ9BTM01 The following information should be held confidential: (1) Operational description (2) Tune-up procedure; (3) Circuit Schematics; (4) Block diagram; (5) Components list; The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Name: Fan YouXiang Title: System Application Engineer Yanfeng Visteon Automotive Electronics Co.,Ltd. 300 Minolta Road Songjiang County Shanghai, China

Page 1 of 1 Yanfeng Visteon Automotive Electronics Co.,Ltd 300 Minolta Road Songjiang County Shanghai, China Technical Specification 1.GENERAL SPECIFICATIONS MAIN EUT Manufacture Yanfeng Visteon Automotive Electronics Co.,Ltd. Product NameBluetooth Module of R0-13 Product TypeBTM01 Intended environmentAutomotive Radio Access TechnologyBluetooth Hardware VersionVPDNMF14E115FAA Software VersionA05 Operating Frequency2400MHz to 2483.5MHz Transfer Rate1Mbps, 2Mbps, 3Mbps Number of channel79 Modulation TypeGFSK, ʌ/4DQPSK, 8DPSK Output Power (dBm)4dBm Environment temperature range(s) MinimumMaximum -3585 DC Power source3.3VDC Technical Description (a brief description of the intended use and operation) BTM01 is a Bluetooth. The function of this Module is to establish Blue Tooth communication.

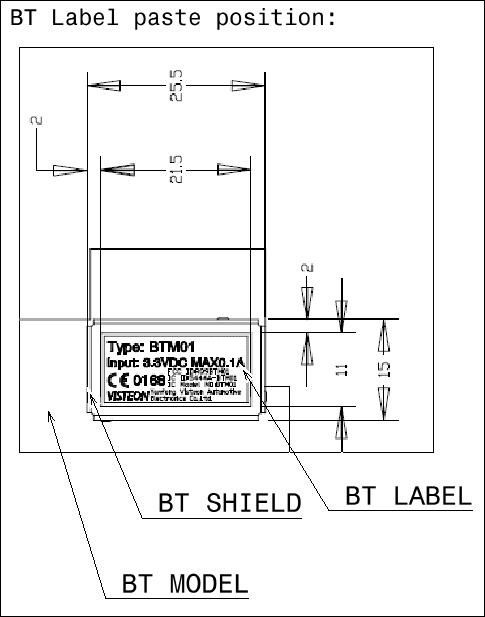

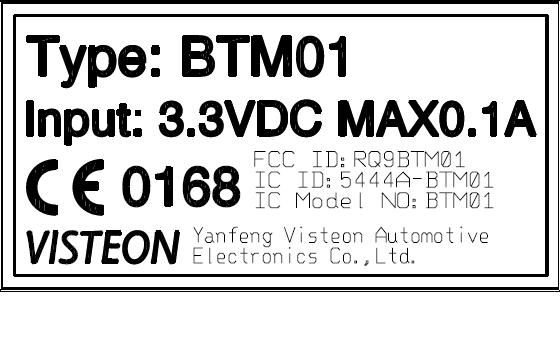

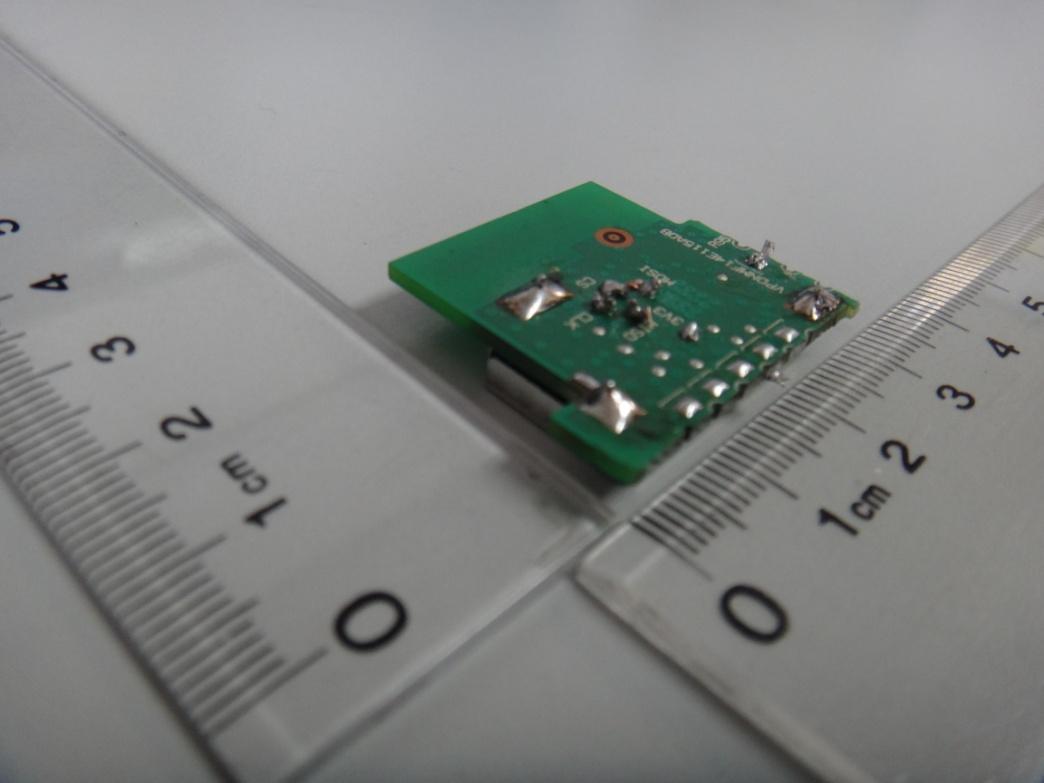

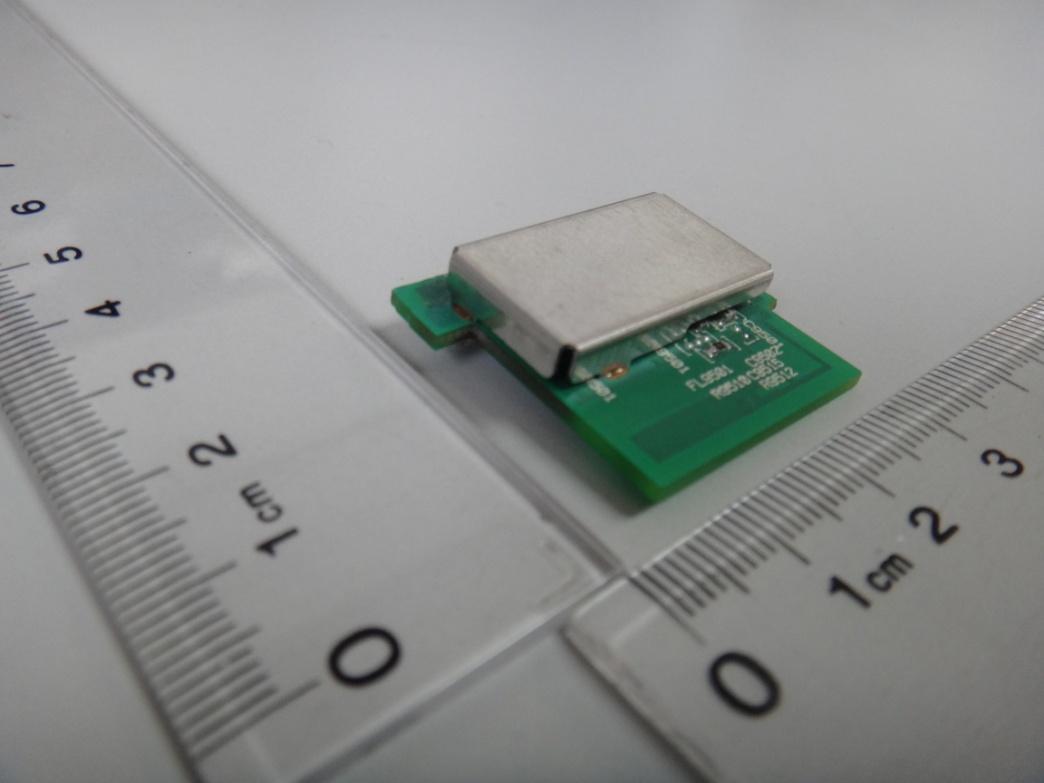

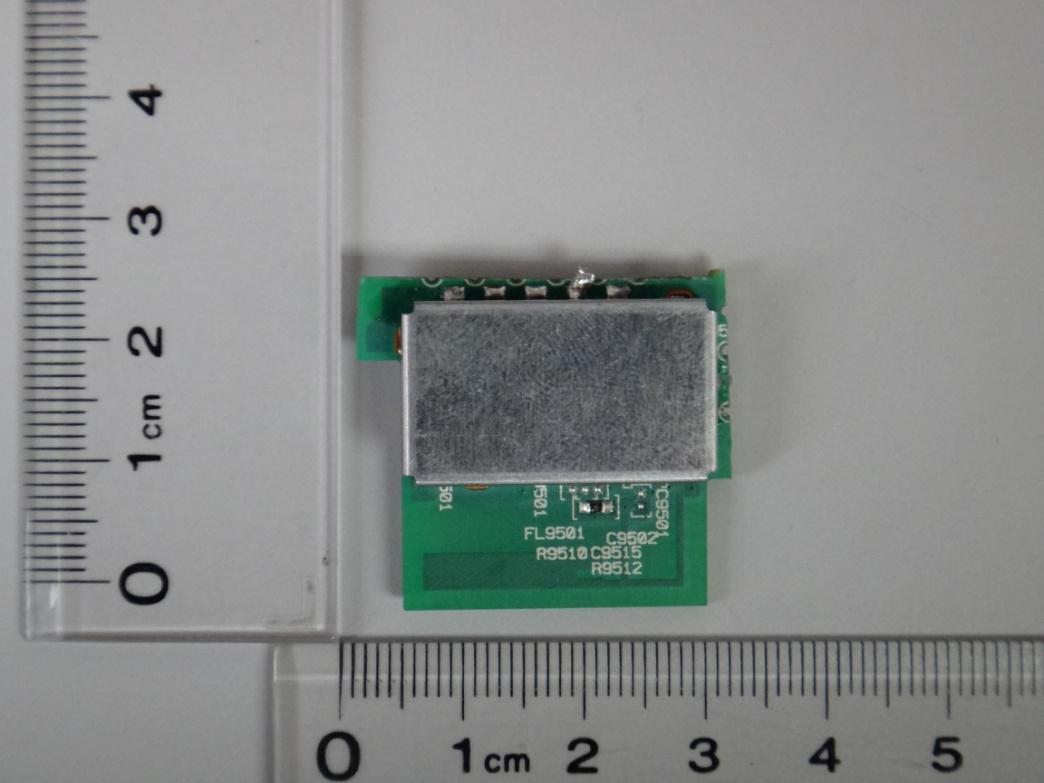

BTM01 Photo BTM01 Front View BTM01 Back View BTM01 Side View 1 BTM01 Side View 2

BTM01 Internal Photo

Document 57013010 Report 01 Issue 1February 2013 Report On RF Exposure Estimation of the Yanfeng Visteon Automotive Electronics Co.,Ltd. Bluetooth Module of R0-13 BTM01 COMMERCIAL-IN-CONFIDENCE FCC ID: RQ9BTM01 IC ID: 5444A-BTM01 TÜV Product Service Ltd, Beijing Branch Unit 918, Landmark Tower 2, No.8 North Dongsanhuan Road, Beijing 100004, P.R. China Tel: +86-10 6590 6186. W ebsite:www.tuv-sud.cn CO MME RCI AL-IN-CO NFI DE NCE Document 57013010 Report 02 Issue 1Page 1 of 3 COMMERCIAL-IN-CONFIDENCE REPORT ONRF Exposure Estimationof the Yanfeng Visteon Automotive Electronics Co.,Ltd. Bluetooth Module of R0-13 BTM01 Document 57013010 Report 02 Issue 1 February 2013 PREPARED FORYanfeng Visteon Automotive Electronics Co.,Ltd. 300 Minolta Road Songjiang County Shanghai, China PREPARED BY Y He Test Engineer APPROVED BY CZhang Test Engineer DATED14 February 2013 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Part 1, 2 and Industry Canada RSS-102. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Y He C Zhang COMMERCIAL-IN-CONFIDENCE Doc Number 57013010 Report 02 Issue 1 Page 2 of 3 RF Exposure Measurement 1Introduction This document was prepared to analyze the expected level of Radiofrequency Radiation Exposure caused by the radio transmission equipment Bluetooth Module of R0-13 BTM01 belonging to Yanfeng Visteon Automotive Electronics Co.,Ltd. 2Limits and Guidelines on Maximum Permissible Exposure (MPE) Based on Section FCC Part 1.1037(b) and Industry Canada RSS-102 requirements for environmental impact of human exposure to radio-frequency (RF) radiation, according to the KBD447498 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies, a device may be used in mobile exposure condition with no restrictions when output power is ” 60/f (GHz) mW as specified in the following table: Limits for Maximum Permissible Exposure Exposure CategoryLimit General Population1.0mW/cm 2 or 10W /m 2 NOTE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. 3Calculation of Output Power threshold for Bluetooth Module of R0-13 BTM01 Below method describes a theoretical approach to compare the output power of the Bluetooth Module of R0-13 BTM01 based on a typical configuration mobile device. In accordance with 47CFR FCC Part 2.1091 and Industry Canada RSS-102, the product was defined as a mobile device. 3.1 Typical Configuration of the Bluetooth Module of R0-13 BTM01 The Bluetooth Module of R0-13 BTM01 supports frequency band of 2400MHz - 2483.5MHz. It supports GFSK, ʌ/4DQPSK and 8PSK modulation with a bandwidth of 1MHz. Doc Number 57013010 Report 02 Issue 1 Page 3 of 3 3.2 Antennas and Technical Description of Bluetooth Module of R0-13 BTM01 Max. output power at antenna connector(dBm) Modulation Type CH Bottom (2402MHz) CH Middle (2441MHz) CH Top (2480MHz) GFSK6.376.777.01 ʌ/4DQPSK5.736.106.25 8PSK5.846.206.37 Transmitter frequency band2400MHz -2483.5MHz Number of antenna ports1 Antenna gain0dBi 3.3 Calculation result This Bluetooth device operate with distance d • 20cm, The maximum measured antenna conducted power, P max =7.01dBm The antenna gain, G=0dBi, So, the maximum EIRP power= P+G=7.01dBm, or 5.02mW The limit for Maximum Permissible Exposure (MPE) for transmitter at 2.4GHz is1.0mW/cm 2 The power density is related to EIRP with the equation: S = EIRP/4ʌD 2 , which equal to 1=0.00502/4ʌD 2 , thus D=0.02cm The minimum safe separation distance D= 0.02cm, which is below 20cm.

Document 57013010 Report 01 Issue 2August 2013 Report On FCC and Industry Canada Testing of the Yanfeng Visteon Automotive Electronics Co.,Ltd. Bluetooth Module of R0-13 BTM01 COMMERCIAL-IN-CONFIDENCE FCC ID: RQ9BTM01 IC ID: 5444A-BTM01 TÜV Product Service Ltd, Beijing Branch Unit 918, Landmark Tower 2, No.8 North Dongsanhuan Road, Beijing 100004, P.R. China Tel: +86-10 6590 6186. W ebsite:www.tuv-sud.cn CO MME RCI AL-IN-CO NFI DE NCE Document 57013010 Report 01 Issue 2Page 1 of 53 COMMERCIAL-IN-CONFIDENCE REPORT ONFCC and Industry Canada Testing of the Yanfeng Visteon Automotive Electronics Co.,Ltd. Bluetooth Module of R0-13 BTM01 Document57013010Report 01Issue 2 August2013 PREPARED FORYanfeng Visteon Automotive Electronics Co.,Ltd. 300 Minolta Road Songjiang County Shanghai, China PREPARED BY Y He Test Engineer APPROVED BY CZhang Test Manager DATED02 August 2013 ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Part 15 and Industry Canada RSS-210. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineer(s); Y He C Zhang COMMERCIAL-IN-CONFIDENCE Document 57013010 Report 01 Issue 2Page 2 of 53 COMMERCIAL-IN-CONFIDENCE CONTENTS SectionPage No 1REPORT SUMMARY .............................................................................................................. 3 1.1Introduction ............................................................................................................................. 4 1.2Brief Summary of Results ........................................................................................................ 5 1.3Declaration of Build Status ....................................................................................................... 6 1.4Product Information ................................................................................................................. 7 1.5Test Conditions........................................................................................................................ 8 1.6Deviations From the Standard.................................................................................................. 8 1.7Modification Record ................................................................................................................. 8 1.8Alternative Test Site................................................................................................................. 8 2TEST DETAILS ....................................................................................................................... 9 2.1Maximum Peak Output Power................................................................................................ 10 2.220dB Bandwidth .................................................................................................................... 12 2.3Band Edge Compliance ......................................................................................................... 18 2.4Spurious Conducted Emissions on Antenna Port ................................................................... 22 2.5Radiated Spurious Emissions ................................................................................................ 33 2.6Channel Dwell Time............................................................................................................... 37 2.7Channel Separation ............................................................................................................... 42 2.8Number of Hopping Channels ................................................................................................ 44 2.9Receiver Spurious Emissions ................................................................................................ 46 3TEST EQUIPMENT USED..................................................................................................... 49 3.1Test Equipment Used ............................................................................................................ 50 3.2Measurement Uncertainty ...................................................................................................... 51 4DISCLAIMERS AND COPYRIGHT ........................................................................................ 52 4.1Disclaimers and Copyright ..................................................................................................... 53 COMMERCIAL-IN-CONFIDENCE Document 57013010 Report 01 Issue 2Page 3 of 53 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY FCC and Industry Canada Testing of the Yanfeng Visteon Automotive Electronics Co.,Ltd. Bluetooth Module of R0-13 BTM01 COMMERCIAL-IN-CONFIDENCE Document 57013010 Report 01 Issue 2Page 4 of 53 COMMERCIAL-IN-CONFIDENCE 1.1INTRODUCTION The information contained in this report is intended to show verification of the Yanfeng Visteon Automotive Electronics Co.,Ltd. Bluetooth Module of R0-13 BTM01 to the requirements of FCC CFR 47 Part 15 and Industry Canada RSS-210. Objective To perform FCC and Industry Canada Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification, for the series of tests carried out. ManufacturerYanfeng Visteon Automotive Electronics Co.,Ltd. Product NameBluetooth Module of R0-13 Product TypeBTM01 Serial Number(s)ENGINEERING SAMPLE Software VersionA05 Hardware VersionVPDNMF14E115FAA Number of Samples Tested1 Test Specification/Issue/DateFCC CFR 47 Part 15: 2012 Industry Canada RSS-210 issue 8: 2010 Incoming Release Date Declaration of Build Status 19 January 2013 Order Number Date PTP 20 January 2013 Start of Test21 January 2013 Finish of Test 28 January 2013 Name of Engineer(s) Y He X Zhang This report has been up-issued to Issue 2 due to amend the incorrect version of the specification using on page 4. COMM…

Text truncated - open the document above for the full version.

FCC ID: RQ9BTM01 IC ID: 5444A-BTM01 Yanfeng Visteon Automotive Electronics Co.,Ltd. Bluetooth Module of R0-13 BTM01 ”2013 Not to be reproduced, except in its entirety,Page 1 of 2 without the Permission of TÜV SÜD Product Service LtdReference: 57013010 PHOTOGRAPHS OF TEST SET UP FCC ID: RQ9BTM01 IC ID: 5444A-BTM01 Yanfeng Visteon Automotive Electronics Co.,Ltd. Bluetooth Module of R0-13 BTM01 ”2013 Not to be reproduced, except in its entirety,Page 2 of 2 without the Permission of TÜV SÜD Product Service LtdReference: 57013010 Radiated Emissions
