RS36518AX4 PORT WIRELESS B/G ADSL2+ MODEM ROUTER

Shanghai DareGlobal Technologies Co., Ltd.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 13, 2011
Application Purpose: Original Equipment
Date of Application: Jul 13, 2011
Equipment Note: 4 PORT WIRELESS B/G ADSL2+ MODEM ROUTER
Frequency Range: 2412.00000000 - 2462.00000000
Company: Shanghai DareGlobal Technologies Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

４ PORTS ＋ 802.11n WIRELESS ADSL MODEM User Manual V 1.1 DSL Gateway/Router — User Manual Page 2 Total 25 Pages CONTENTS 1.OVERVIEW ....................................................................................................................................................... 3 1.1 ABOUT ADSL ...................................................................................................................................... 3 1.2 ABOUT ADSL2/2+ ............................................................................................................................... 3 1.3 FEATURES ........................................................................................................................................... 3 2 SPECIFICATION .............................................................................................................................................. 4 2.1 INTERFACE INTRODUCTION .......................................................................................................... 4 2.1.1 INDICATOR AND INTERFACE .................................................................................................. 4 2.1.2 SPLITTER SPEC ........................................................................................................................... 4 2.2 HARDWARE CONNECTION ............................................................................................................. 5 2.3 LED STATUS INDICATION ................................................................................................................ 5 3. CONFIGURATION .......................................................................................................................................... 6 3.1 DEFAULT CONFIGURATION ............................................................................................................ 6 3.2 COMPUTER CONFIGURATION ........................................................................................................ 6 3.3 ADSL MODEM CONFIGURATION ................................................................................................... 6 3.3.1 LOG IN .......................................................................................................................................... 6 3.3.2 SAVE SETTING ............................................................................................................................ 6 3.4 WAN CONFIGURATION .................................................................................................................... 7 3.4.1 VIew WAN Service........................................................................................................................ 7 3.4.2 RFC1483 BRIDGE ON ATM CONFIGURATION ....................................................................... 7 3.4.3 PPPOE ON ATM CONFIGURATION .......................................................................................... 9 3.4.4 IPOE ON ATM CONFIGURATION ........................................................................................... 13 3.5 WIRELESS CONFIGURATION ................................................................................................................. 15 3.5.1 WIRELESS BASIC SETUP ........................................................................................................ 16 3.5.2 WIRELESS SECURITY ............................................................................................................. 16 3.5.3 WIRELESS MAC Filter .............................................................................................................. 18 3.5.4 WIRELESS ADVANCED SETUp .............................................................................................. 19 4 OTHER CONFIGURATION ......................................................................................................................... 20 4.1 LAN CONFIGURATION ................................................................................................................... 20 4.1.1 Configuration of Modem’s password........................................................................................... 20 4.1.2 CONFIGURATION OF MODEM’S IP ADDRESS .................................................................... 21 4.1.2 DHCP CONFIGURATION.......................................................................................................... 22 5. TROUBLESHOOTING ................................................................................................................................. 22 5.1 UNABLE TO ACCESS INTERNET .................................................................................................. 22 5.1.1 CHECK THE LINE AND THE DEVICE ................................................................................... 22 5.1.2 CHECK YOUR CONFIGURATION .......................................................................................... 23 ANNEX：SHIPPING LIST ............................................................................................................................... 24 DSL Gateway/Router — User Manual Page 3 Total 25 Pages 1.OVERVIEW 1.1 ABOUT ADSL An ADSL MODEM is a broadband Internet access device, which utilizes the high frequency segment of the phone line to transmit high-speed data without affecting the voice transmission. The frequency of the ADSL signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each from the other. ADSL data transfer adapts the asymmetry model. It supports upload transmission speed up to 1Mbps and download speed up to 8 Mbps (24Mbps for ADSL2+). ADSL is an ideal device for broadband access. 1.2 ABOUT ADSL2/2+ Transmission performance of ADSL2 is improved comparing with the first generation of ADSL. These improvements are mainly concerned with long distance, anti-line-loss, anti-noise, etc. By doubling the transmission…

Text truncated - open the document above for the full version.

Block Diagram

%&07)25'/,1. ERP2.VFK7KX0DU

Cover Letter(s)

Shanghai DareGlobal Technologies Co.,Ltd. 22F,Info Tech Building,No.1555,Kongjiang Road,Shanghai Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: July 11, 2010 Subject: FCC Application for FCC ID: RS36518AX To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the declaration of Conformity procedure to the class B computer perpheral portion of this composite filing. Sincerely, Zhaiyingui / Quality Supervisor

External Photos

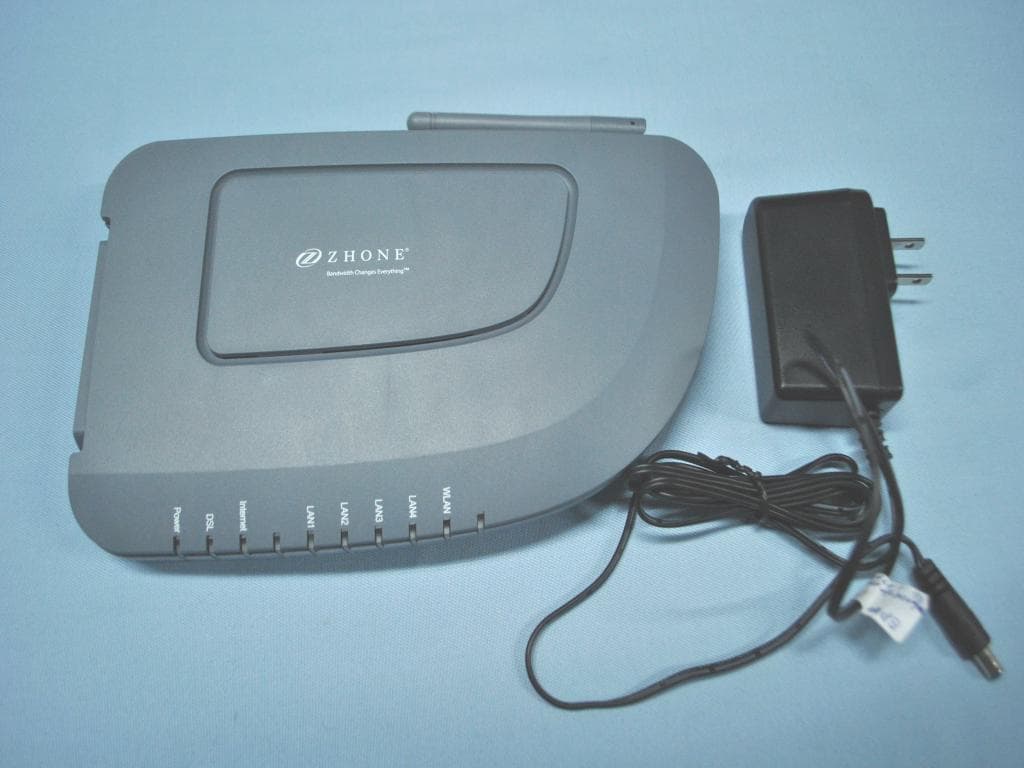

EUT top view EUT bottom view

ID Label/Location Info

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: RS36518AX

Internal Photos

EUT inside whole view Main & RF board component side Main & RF board solder side

Operational Description

Main chip part: The chip U1, supplies the board main voltage +1.2V and U6. The chip U8, DC/DC MPS1482 supplies the board main voltage +3.3V.+3.3V generate +2.5V by an audion Q1, +2.5V These three voltage driver the main chip U1. A 20MHz crystal oscillator provides the clock to the main chip. The main chip provides a 132MHz clock with a DDRAM and provides a 66MHz clock with the flash chip U3. wlan part: The chip U13 , The wlan is BCM4313 driver by +3.3v and 1.2v. DSL part: The AFE chip BCM6301 is driven by +5V voltages. The maximum support rate is 24Mbps/1Mbps. 100M eth port:

Schematics

BCM63281T FOR DLINK(2010.08.19)bom OK.sch-1 - Thu Mar 31 16:26: 42 2011 BCM63281T FOR DLINK(2010.08.19)bom OK.sch-2 - Thu Mar 31 16:26: 42 2011 BCM63281T FOR DLINK(2010.08.19)bom OK.sch-3 - Thu Mar 31 16:26: 43 2011 BCM63281T FOR DLINK(2010.08.19)bom OK.sch-4 - Thu Mar 31 16:26: 45 2011 BCM63281T FOR DLINK(2010.08.19)bom OK.sch-5 - Thu Mar 31 16:27: 11 2011 BCM63281T FOR DLINK(2010.08.19)bom OK.sch-6 - Thu Mar 31 16:27: 14 2011 BCM63281T FOR DLINK(2010.08.19)bom OK.sch-7 - Thu Mar 31 16:27: 14 2011 BCM63281T FOR DLINK(2010.08.19)bom OK.sch-8 - Thu Mar 31 16:27: 15 2011 BCM63281T FOR DLINK(2010.08.19)bom OK.sch-9 - Thu Mar 31 16:27: 16 2011

Test Report

The test report consists 39 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.247 Operating in 2400 ~ 2483.5 MHz Band Prepared For : Shanghai DareGlobal Technologies Co.,Ltd. 22F,Info Tech Building,No.1555,Kongjiang Road,Shanghai FCC ID: RS36518AX EUT: 4 Port Wireless B/G ADSL2+ Modem Router Model: 6518-A1-NA May 25, 2011 Issue Date: Original Report Report Type: Billshi Test Engineer: Bill Shi Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com Shanghai DareGlobal Technologies Co.,Ltd. FCC ID: RS36518AX KMO FCC ID Report Report #: KSZ2011040601J Page 2 of 39 TABLE OF CONTENTS 1. General Information .................................................................................................................................................... 3 1. 1 Notes ...................................................................................................................................................................... 3 1. 2 Testing Laboratory ................................................................................................................................................... 3 1. 3 Details of Applicant ................................................................................................................................................. 3 1. 4 Application Details .................................................................................................................................................. 3 1. 5 Test Item ................................................................................................................................................................. 3 1. 6 Test Standards ......................................................................................................................................................... 3 2. Technical Test ............................................................................................................................................................... 4 2. 1 Summary of Test Results.......................................................................................................................................... 4 2. 2 Antenna Requirement .............................................................................................................................................. 4 3. EUT Modifications ....................................................................................................................................................... 4 4. Conducted Power Line Test.......................................................................................................................................... 5 4. 1 Test Equipment ........................................................................................................................................................ 5 4. 2 Test Procedure ......................................................................................................................................................... 5 4. 3 Test Setup................................................................................................................................................................ 5 4. 4 Configuration of the EUT ........................................................................................................................................ 6 4. 5 EUT Operating Condition ........................................................................................................................................ 8 4. 6 Conducted Power Line Emission Limits ................................................................................................................... 8 4. 7 Conducted Power Line Test Result ........................................................................................................................... 9 5. FCC Part 15.247 Requirements for 802.11b/g/n Systems ........................................................................................... 11 5. 1 Test Equipment ...................................................................................................................................................... 11 5. 2 Test Procedure ....................................................................................................................................................... 11 5. 3 Test Setup.............................................................................................................................................................. 11 5. 4 Configuration of the EUT ...................................................................................................................................... 11 5. 5 EUT Operating Condition ...................................................................................................................................... 11 5. 6 Limit ..................................................................................................................................................................... 11 5. 7 Test Result............................................................................................................................................................. 12 6. Transmitter Spurious Radiated Emission at 3 Meters ............................................................................................... 28 6. 1 Test Equipment ....................................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Conducted emission test view Radiated emission test view

Contact Information

Applicant

Yingui Zhai(Quality Supervisor)

[email protected]021-65635566Fax: 65634703

Test Firm

SinTek Laboratory Co., Ltd.Eric Lin

[email protected]86-755-27608353Fax: 86-755-27608359

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	161.00 mW

Grant Notes

Power listed is conducted. The antenna installation and operating configurations of this transmitter, including any applicable antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of �2.1091. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. Users and installers must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. When operating in 802.11b/g or n mode, the operating frequency segment is limited to 2412 to 2462 MHz.
