RS36519A1NAADSL2+ 4PORT 802.11N ROUTER

ADSL2+ ４PORT 802.11N Router Mode:6519-A1-NA User Manual V 1.1 DSL Gateway/Router — User Manual Page 2 Total 22 Pages CONTENTS 1.OVERVIEW ....................................................................................................................................................... 3 1.1 ABOUT ADSL ...................................................................................................................................... 3 1.2 ABOUT ADSL2/2+ ............................................................................................................................... 3 1.3 FEATURES ........................................................................................................................................... 3 2 SPECIFICATION .............................................................................................................................................. 4 2.1 INTERFACE INTRODUCTION .......................................................................................................... 4 2.1.1 INDICATOR AND INTERFACE .................................................................................................. 4 2.1.2 SPLITTER SPEC ........................................................................................................................... 4 2.2 HARDWARE CONNECTION ............................................................................................................. 5 2.3 LED STATUS INDICATION ................................................................................................................ 5 3. CONFIGURATION .......................................................................................................................................... 6 3.1 DEFAULT CONFIGURATION ............................................................................................................ 6 3.2 COMPUTER CONFIGURATION ........................................................................................................ 6 3.3 ADSL MODEM CONFIGURATION ................................................................................................... 6 3.3.1 LOG IN .......................................................................................................................................... 6 3.3.2 SAVE SETTING ............................................................................................................................ 6 3.4 WAN CONFIGURATION .................................................................................................................... 7 3.4.1 VIew WAN Service........................................................................................................................ 7 3.4.2 RFC1483 BRIDGE ON ATM CONFIGURATION ....................................................................... 7 3.4.3 PPPOE ON ATM CONFIGURATION .......................................................................................... 9 3.4.4 IPOE ON ATM CONFIGURATION ........................................................................................... 12 3.5 WIRELESS CONFIGURATION ................................................................................................................. 14 3.5.1 WIRELESS BASIC SETUP ........................................................................................................ 15 3.5.2 WIRELESS SECURITY ............................................................................................................. 15 3.5.3 WIRELESS MAC Filter .............................................................................................................. 16 3.5.4 WIRELESS ADVANCED SETUp .............................................................................................. 17 4 OTHER CONFIGURATION ......................................................................................................................... 17 4.1 LAN CONFIGURATION ................................................................................................................... 17 4.1.1 Configuration of Modem’s password........................................................................................... 17 4.1.2 CONFIGURATION OF MODEM’S IP ADDRESS .................................................................... 18 4.1.2 DHCP CONFIGURATION ......................................................................................................... 18 5. TROUBLESHOOTING ................................................................................................................................. 19 5.1 UNABLE TO ACCESS INTERNET .................................................................................................. 19 5.1.1 CHECK THE LINE AND THE DEVICE ................................................................................... 19 5.1.2 CHECK YOUR CONFIGURATION .......................................................................................... 19 ANNEX：SHIPPING LIST ............................................................................................................................... 21 DSL Gateway/Router — User Manual Page 3 Total 22 Pages 1.OVERVIEW 1.1 ABOUT ADSL ADSL2+ ４PORT 802.11N Router is a broadband Internet access device, which utilizes the high frequency segment of the phone line to transmit high-speed data without affecting the voice transmission. The frequency of the ADSL signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each from the other. ADSL data transfer adapts the asymmetry model. It supports upload transmission speed up to 1Mbps and download speed up to 8 Mbps (24Mbps for ADSL2+). ADSL is an ideal device for broadband access. 1.2 ABOUT ADSL2/2+ Transmission performance of ADSL2 is improved comparing with the first generation of ADSL. These improvements are mainly concerned with long distance, anti-line-loss, anti-noise, etc. By doubl…

Text truncated - open the document above for the full version.

Shanghai DareGlobal Technologies Co., Ltd. 22F,Info Tech Building,No.1555,Kongjiang Road, Shanghai Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: December 16, 2010 Subject: FCC Application for FCC ID: RS36519A1NA To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the declaration of Conformity procedure to the class B computer perpheral portion of this composite filing. Sincerely, Zhaiyingui / Quality Supervisor

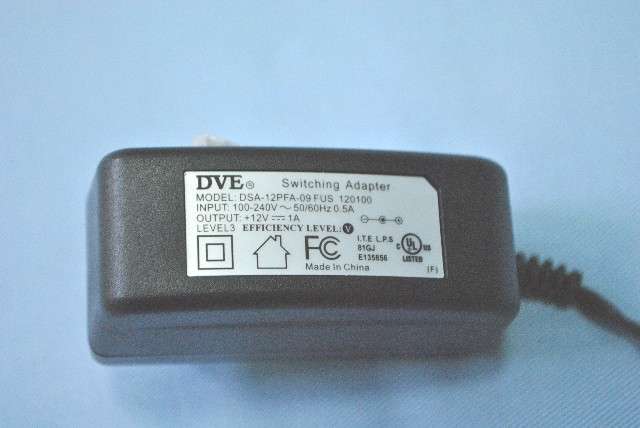

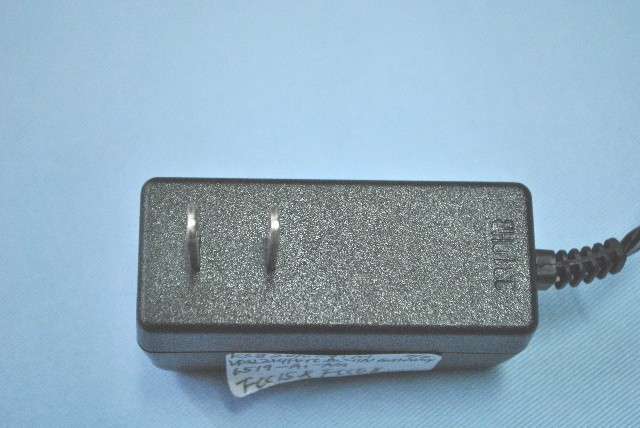

EUT top view EUT bottom view

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: RS36519A1NA

EUT inside whole view Main & RF board component side Main & RF board solder side

Main chip part: The chip MP1482 supplies the board main voltage +3.3V. +3.3V generate +2.5V by an audion Q1, +1.8V by a MOS tube U16,+1.2V by a MOS tube U6. These three voltage driver the main chip BCM63281. A 20MHz crystal oscillator provides the clock to the main chip. The main chip provides a 320MHz clock with DDRII SDRAM and provides a 100MHz PCI-E clock with the BCM43225 and A 100MHz SPI clock with serial flash Wireless part: The BCM43225 wireless chip required 2 voltages. One is the board main voltage +3.3V, the other is a +1.2V alone generated by MP1482. A 20MHz crystal oscillator provides the clock to the wireless chip. The wireless chip provides an 802.11b/g/n wireless solution. The maximum support rate is 270Mbps. The wireless chip and the main chip connection via PCI-E bus, it is a 100MHz clock bus. 100M eth port: BCM63281 support 4 100M Ethernet port. DSL part: The AFE chip BCM6301 is driven by +5V voltages. The maximum support rate is 24Mbps/1Mbps.
