RS3IWI666802.11bgn Router

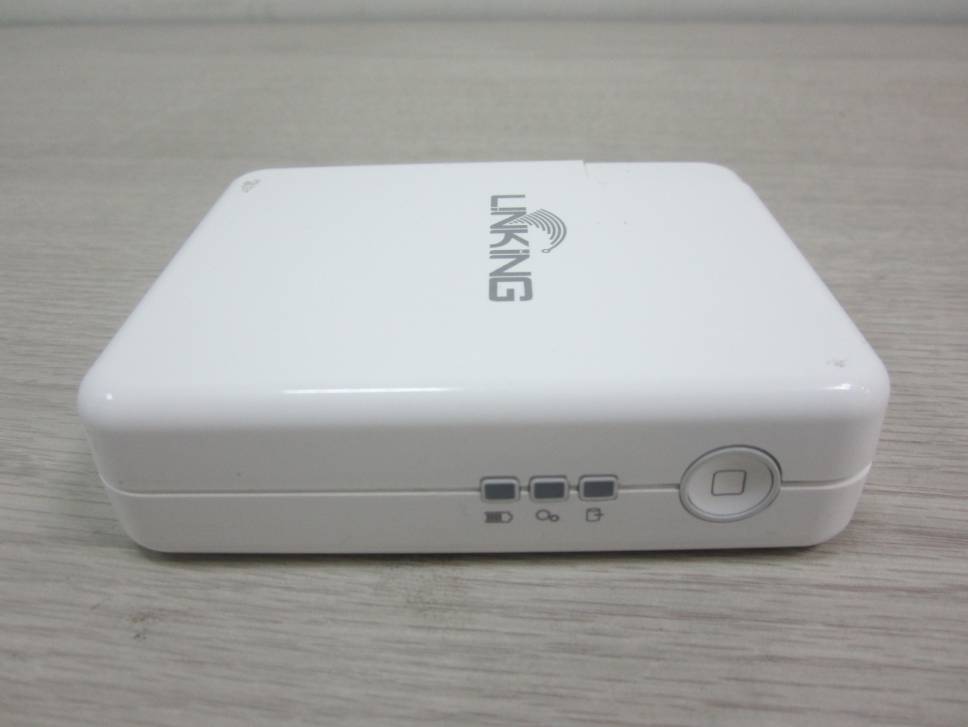

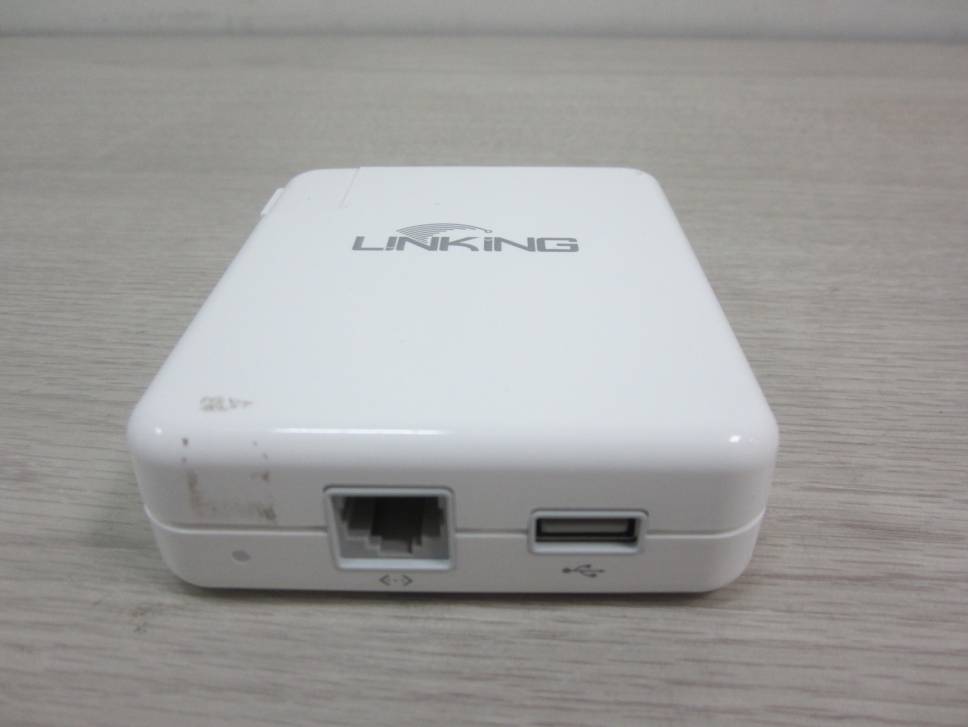

IWI666 802.11n 300M+USB Charge+ Internal Battery+ Internal 16G SSD Wireless Router Shanghai DareGlobal Technologies Co., Ltd TEL：800‐820‐8756 The quick setup wizard of Linking IWI666 Contents The quick setup wizard of Linking IWI666.........................................................................................1 Contents....................................................................................................................................1 The explanation of terms...........................................................................................................1 Chapter 1 Hardware Description and Instructions of Basic Operation.....................................2 1.1 Appearance Instructions .............................................................................................2 Chapter 2 User operation guide.................................................................................................3 2.1 Hardware operations...................................................................................................3 2.1.1 Power switch button.........................................................................................3 2.1.2 The Reset button...............................................................................................4 2.1.3 Restart operation..............................................................................................4 2.2 Network Configuration................................................................................................4 2.2.1 Ethernet Internet configuration........................................................................4 2.2.2 3G/4G Internet configuration &Data flow query.............................................7 2.2.3Wireless parameter settings...............................................................................8 2.3 Battery charging ..........................................................................................................9 2.4 Wireless Hard Disk ....................................................................................................10 2.4.1 Access IWI666 wireless hard disk through device managing page................10 2.4.2 Access through cellphone/tablet PC client.....................................................11 2.4.3 Access through network neighborhood..........................................................12 2.5 IWI666 U disk ............................................................................................................13 2.6 Offline Download ......................................................................................................13 2.7 System Upgrade ........................................................................................................15 2.7.1 Local upgrade Firmware and App Database..................................................15 2.7.2 Remote upgrade Firmware version and Application Database......................16 2.8 Notes .........................................................................................................................19 Chapter 3 Statement...........................................................................................................19 The explanation of terms Power Saving mode: IWI666 is under the condition of just using built-in battery, and wireless Internet is turned off, then battery will exclusively charge peripherals; Fast-Charging mode: IWI66 is under the condition of plugging into power adapter, and wireless Internet is turned off, then it will charge fast the built-in battery, at the same time it can output 5v/2A through USB port (Fast-Charging the tablet PC): IWI666 802.11n 300M+USB Charge+ Internal Battery+ Internal 16G SSD Wireless Router Shanghai DareGlobal Technologies Co., Ltd TEL：800‐820‐8756 Smart Internet Access: In IWI666, wireless Router mode is defaulted; it will access the upper network environment via wired. It can access the upper network environment with dynamic IP or static IP, and memorizes static IP address intelligently which saves your energy to set again: Chapter 1 Hardware Description and Instructions of Basic Operation 1.1 Appearance Instructions ① Product label, Wireless SSID, Wireless key ② Reset button ③ WAN Ethernet Port ④ USB Port ⑤ Power Switch Button ⑥ Power LED ⑦ Wi-Fi LED ⑧ Battery LED — Lights Status Description： Power LED Color Power supply by Plugging into 220V Green IWI666 802.11n 300M+USB Charge+ Internal Battery+ Internal 16G SSD Wireless Router Shanghai DareGlobal Technologies Co., Ltd TEL：800‐820‐8756 Power supply by Built-in battery Red Wi-Fi LED Color Wi-Fi is working and has accessed to Internet Green Wi-Fi is working but hasn’t accessed to Internet Orange Wi-Fi is not working Red Battery LED Color Battery power over 95% Flashing Green Battery power 95%-70% Green Battery power 70%-40% Orange Battery power 40%-5% Red Battery power 5% or less Flashing Red Tips: Under the condition of reset, three lights turn orange. In the process of upgrading, the Wi-Fi LED flash red and green alternately. Chapter 2 User operation guide 2.1 Hardware operations 2.1.1 Power switch button 2.1.1.1 Power on: Mode① While IWI666 is plugged into power adapter, the device starts up automatically； Mode ②Device is supplied by battery, press the switch button 1s before releasing, device performs starting-up operation.； 2.1.1.2 Power off： Mode ①Device is plugged out the power supply, and then the device performs shutdown process. Mode ②The device is working and supplied with battery, press the switch button 1s before releasing, the system performs shutdown process； Notes：Power Saving Mode: During the shutdown process, if there are USB Ports containing mobile phone or some other recharging devices, devices automatically enter power saving mode (power and Wi-Fi lights turn red). Unplugging the recharging devices such as mobile phone, the system automatically shuts down the machine； 2.1.1.3 Launch Fast-Chargin…

Text truncated - open the document above for the full version.

IWI666‐B 802.11n 300M+USB Charge+ Internal Battery+ Internal 16G SSD Wireless Router Shanghai DareGlobal Technologies Co., Ltd TEL：800‐820‐8756 The Quick Setup Wizard of Linking IWI666-B Contents The Quick Setup Wizard of Linking IWI666‐B ...................................................................................1 Contents....................................................................................................................................1 The explanation of terms...........................................................................................................1 Chapter 1 Hardware Description and Instructions of Basic Operation.....................................2 1.1 Appearance Instructions .............................................................................................2 Chapter 2 User operation guide.................................................................................................3 2.1 Hardware operations...................................................................................................3 2.1.1 Power switch button.........................................................................................3 2.1.2 The Reset button...............................................................................................4 2.1.3 Restart operation..............................................................................................4 2.2 Network Configuration................................................................................................4 2.2.1 Ethernet Internet configuration........................................................................4 2.2.2 3G/4G Internet configuration &Data flow query.............................................7 2.2.3Wireless parameter settings...............................................................................8 2.3 Battery charging ..........................................................................................................9 2.4 Wireless Hard Disk ....................................................................................................10 2.4.1 Access IWI666-B wireless hard disk through device managing page............10 2.4.2 Access through cellphone/tablet PC client.....................................................11 2.4.3 Access through network neighborhood..........................................................12 2.5 System Upgrade ........................................................................................................13 2.5.1 Local upgrade Firmware and App Database..................................................13 2.5.2 Remote upgrade Firmware version and Application Database......................15 2.6 Notes .........................................................................................................................17 Chapter 3 Statement................................................................................................................17 The explanation of terms Power Saving mode: IWI666-B is under the condition of just using built-in battery, and wireless Internet is turned off, then battery will exclusively charge peripherals; Fast-Charging mode: IWI666-B is under the condition of plugging into power adapter, and wireless Internet is turned off, then it will charge fast the built-in battery, at the same time it can output 5v/2A through USB port (Fast-Charging the tablet PC): IWI666‐B 802.11n 300M+USB Charge+ Internal Battery+ Internal 16G SSD Wireless Router Shanghai DareGlobal Technologies Co., Ltd TEL：800‐820‐8756 Smart Internet Access: In IWI666-B, wireless Router mode is defaulted; it will access the upper network environment via wired. It can access the upper network environment with dynamic IP or static IP, and memorizes static IP address intelligently which saves your energy to set again: Chapter 1 Hardware Description and Instructions of Basic Operation 1.1 Appearance Instructions ① Product label, Wireless SSID, Wireless key ② Reset button ③ WAN Ethernet Port ④ USB Port ⑤ Power Switch Button ⑥ Power LED ⑦ Wi-Fi LED ⑧ Battery LED — Lights Status Description： Power LED Color Power supply by Plugging into 220V Green IWI666‐B 802.11n 300M+USB Charge+ Internal Battery+ Internal 16G SSD Wireless Router Shanghai DareGlobal Technologies Co., Ltd TEL：800‐820‐8756 Power supply by Built-in battery Red Wi-Fi LED Color Wi-Fi is working and has accessed to Internet Green Wi-Fi is working but hasn’t accessed to Internet Orange Wi-Fi is not working Red Battery LED Color Battery power over 95% Flashing Green Battery power 95%-70% Green Battery power 70%-40% Orange Battery power 40%-5% Red Battery power 5% or less Flashing Red Tips: Under the condition of reset, three lights turn orange. In the process of upgrading, the Wi-Fi LED flash red and green alternately. Chapter 2 User operation guide 2.1 Hardware operations 2.1.1 Power switch button 2.1.1.1 Power on: Mode① While IWI666-B is plugged into power adapter, the device starts up automatically； Mode ②Device is supplied by battery, press the switch button 1s before releasing, device performs starting-up operation.； 2.1.1.2 Power off： Mode ①Device is plugged out the power supply, and then the device performs shutdown process. Mode ②The device is working and supplied with battery, press the switch button 1s before releasing, the system performs shutdown process； Notes：Power Saving Mode: During the shutdown process, if there are USB Ports containing mobile phone or some other recharging devices, devices automatically enter power saving mode (power and Wi-Fi lights turn red). Unplugging the recharging devices such as mobile phone, the system automatically shuts down the machine； 2.1.1.3 Launch Fast-Charging/Power Saving Mode: The Fast-Charging Mode: The machine plug in the power, and the system powered on, press the switch button 1s before releasing. The system enters the fast charging mode (Wi-Fi LED is red), the battery or the USB chargi…

Text truncated - open the document above for the full version.

Shanghai DareGlobal Technologies Co.,Ltd. 021-65635566 Date:Jan 18 th ,2013 FCC ID: RS3IWI666 We hereby declare that our device with the FCC ID above does not initiate and it can not be configured to initiate any transmission on any non-US frequencies or unauthorized frequencies. This includes probes, beacons, and ad-hoc mode transmissions. Our operation is limited to the following frequencies and modes: 802.11b Channel 1 (2412MHz) – Channel 11(2462MHz) 802.11g Channel 1 (2412MHz) – Channel 11(2462MHz) 802.11n (20MHz) Channel 1 (2412MHz) – Channel 11(2462MHz) 802.11n (40MHz) Channel 1 (2422MHz) – Channel 7(2452MHz) Name:zhaiyingui Title :Quality supervisor Signature

Shanghai DareGlobal Technologies Co.,Ltd. 021-65635566 Request for Confidentiality Dec.25,2012 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB One Distribution Center Circle #1 Littleton, MA 01460 Confidentiality Request FCC ID: RS3IWI666 Authorization and Evaluation Division Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely,

Shanghai DareGlobal Technologies Co.,Ltd. 021-65635566 Letter of Agency Dec.25,2012 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB One Distribution Center Circle #1 Littleton, MA 01460 We, the undersigned Shanghai DareGlobal Technologies Co.,Ltd. hereby authorize BV ADT(Shanghai） Corporation to act on our behalf in all matters relating to all processes required for FCC certification of our devices. Any and all acts carried out by the above agent on our behalf shall have the same effects as acts of our own. This authorization is valid for: 6 months If you have any questions regarding this authorization, let us know please. Sincerely, Name，zhaiyingui Title Quality supervisor Signature

Antenna 2 Antenna 1

RF EXPOSURE REPORT REPORT NO.:DRE-12NO0102VNTY-A5 MODEL NO.:iwi666, iwi666-B FCC ID:RS3IWI666 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Shanghai DareGlobal Technologies Co., Ltd. ADDRESS: 22F, Building A, No.1555, Kongjiang Road, Shanghai, 200092, China ISSUED BY: BUREAU VERITAS ADT (Shanghai) Corporation LAB LOCATION: 2F, Building C, No.1618, Yishan Rd., 201103, Shanghai, China Report No: DRE-12NO0102VNTY-A5 Page 1 of 6 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT (SHANGHAI), and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No: DRE-12NO0102VNTY-A5 Page 2 of 6 3. Friis Formula Friis transmission formula: Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. 4. EUT Operating Condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device 6. Test Results 6.1. Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.0dBi or 1.58489 (numeric) For 11n mode, The antenna gain is 2dBi + 10log(2) = 5dBi or 3.16228 (numeric) 6.2. Output Power Into Antenna & RF Exposure value at distance 20cm: Report No: DRE-12NO0102VNTY-A5 Page 3 of 6 For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm2) Limit of Power Density (mW/cm2) 1 2412 27.10 0.0085 1.0 6 2437 27.86 0.0088 1.0 11 2462 27.42 0.0086 1.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm2) Limit of Power Density (mW/cm2) 1 2412 50.35 0.0159 1.0 6 2437 47.64 0.0150 1.0 11 2462 45.60 0.0144 1.0 For Part 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm2) Limit of Power Density (mW/cm2) 1 2412 91.41 0.0575 1.0 6 2437 112.61 0.0708 1.0 11 2462 97.06 0.0611 1.0 For Part 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm2) Limit of Power Density (mW/cm2) 1 2422 93.15 0.0586 1.0 6 2437 88.04 0.0554 1.0 11 2452 85.08 0.0535 1.0 With 3G/4G Dongle: MF112 Worst case list as below. Channel Frequency (MHz) Output Power (mW) (EIRP) Power Density (mW/cm2) Limit of Power Density (mW/cm2) 1880 128.82 0.0256 1 .0 Report No: DRE-12NO0102VNTY-A5 Page 4 of 6 CONCULSION: Both of the WLAN and 3G/4G dongle can transmit simultaneously, the formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.0708 / 1 + 0.0256 / 1 =0.0964, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. Report No: DRE-12NO0102VNTY-A5 Page 5 of 6 APPENDIX - INFORMATION ON THE TESTING LABORATORIES We, BUREAU VERITAS ADT (Shanghai) Corporation, were founded in 2004 to provide our best service in EMC, Radio and Vehicle consultation. Our laboratories are accredited by the following accreditation bodies according to ISO/IEC 17025 (2005). USA A2LA Certificate No.: 2343.01 China CNAS Certificate No.: L2810 Copies of accreditation certificates could be inquired from our office. If you have any comments, please feel free to contact us at the following: EMC / RF / Vehicle Lab: Tel: +86 21 6465 9091 Fax:+86 21 6465 9092 Email: [email protected] --- END --- Report No: DRE-12NO0102VNTY-A5 Page 6 of 6

Report No.: DRE-12NO0102VNTY-A4 Page 1 of 20 FCC VER V1.1 FCC 15B TEST REPORT REPORT NO.:DRE-12NO0102VNTY-A4 MODEL NO.:iwi666, iwi666-B RECEIVED:Dec. 11, 2012 ISSUED:Jan. 24, 2013 APPLICANT: Shanghai DareGlobal Technologies Co., Ltd. ADDRESS: 22F, Building A, No.1555, Kongjiang Road, Shanghai, 200092, China ISSUED BY: BUREAU VERITAS ADT (Shanghai) Corporation LAB LOCATION: 2F, Building C, No.1618, Yishan rd., 201103, Shanghai, China This test report consists of 20 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by A2LA, CNAS, or any government agency. The test results in the report only apply to the tested item. The test results in this report are traceable to the national or international standards. Report No.: DRE-12NO0102VNTY-A4 Page 2 of 20 FCC VER V1.1 Table of Contents 1 CERTIFICATION............................................................................................. 3 2 SUMMARY OF TEST RESULTS .................................................................... 4 2.1 MEASUREMENT UNCERTAINTY...................................................................4 3 GENERAL INFORMATION ............................................................................. 5 3.1 GENERAL DESCRIPTION OF EUT ................................................................5 3.2 DESCRIPTION OF TEST MODES ..................................................................5 3.3 DESCRIPTION OF SUPPORT UNITS ............................................................6 4 EMISSION TEST ............................................................................................ 7 4.1 CONDUCTED EMISSION MEASUREMENT...................................................7 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ................................7 4.1.2 TEST INSTRUMENTS.....................................................................................7 4.1.3 TEST PROCEDURE........................................................................................7 4.1.4 DEVIATION FROM TEST STANDARD............................................................7 4.1.5 TEST SETUP...................................................................................................8 4.1.6 TEST RESULTS ..............................................................................................9 4.2 RADIATED EMISSION MEASUREMENT...................................................... 11 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT ................................... 11 4.2.2 TEST INSTRUMENTS...................................................................................12 4.2.3 TEST PROCEDURE......................................................................................12 4.2.4 DEVIATION FROM TEST STANDARD..........................................................12 4.2.5 TEST SETUP.................................................................................................12 4.2.6 TEST RESULTS ............................................................................................13 5 PHOTOGRAPHS OF THE TEST CONFIGURATION ................................... 17 6 PHOTOGRAPHS OF THE EUT.................................................................... 19 7 APPENDIX - INFORMATION ON THE TESTING LABORATORIES ............ 20 Report No.: DRE-12NO0102VNTY-A4 Page 3 of 20 FCC VER V1.1 1 CERTIFICATION PRODUCT: Linking mobile mate MODEL NO.: iwi666, iwi666-B TEST ITEM: ENGINEERING SAMPLE APPLICANT: Shanghai DareGlobal Technologies Co., Ltd. TESTED: Dec. 18, 2012 STANDARDS: CFR 47 FCC Part 15: 2009 ANSI C63.4-2003 We, BUREAU VERITAS ADT (Shanghai) Corporation, declare that the equipment above has been tested in our facility and found compliance with the requirement limits of applicable standards, except for Radiated Emission test, which was subcontracted to IAC. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate under the standards herein specified. PREPARED BY : , DATE: Jan. 24, 2013 Kevin Jiang Engineer TECHNICAL ACCEPTANCE : , DATE: Jan. 24, 2013 Joy Zhu Lab Manager APPROVED BY : , DATE: Jan. 24, 2013 Zhaoqian Yu Director of Operations Report No.: DRE-12NO0102VNTY-A4 Page 4 of 20 FCC VER V1.1 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: Standard Test Type Result Remarks Conducted Test PASS Meets Class B Limit Minimum passing margin is -19.38dB at 0.15000MHz. FCC Part 15: 2009, Subpart B, Class B Radiated Test PASS Meets Class B Limit Minimum passing margin is -6.25dB at 10263.84MHz. Note1: 10m radiated emission done in this report is subcontracted to IAC Compliance Laboratory, which is accredited by TAF under number”1943”. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2 Ed 1.0. This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. This lab’s measurement uncertainty U Lab , is low than U Cispr , Table 1 – Values of U Cispr of CISPR 16-4-2 Ed. 1.0, therefore compliance is deemed to occur if no measured disturbance exceeds the disturbance limit. Measurement Value Conducted emissions 2.55 dB Radiated emissions 3.22 dB Report No.: DRE-12NO0102VNTY-A4 Page 5 of 20 FCC VER V1.1 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Linking mobile mate MODEL NO. iwi666, iwi666-B POWER SUPPLY100-240VAC 50/60Hz DATA CABLE SUPPLIED N/A Notes: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User’s Manual. 3.2 DESCRIPTION OF TEST MODES Test Item Test ModeDescription Emission 1 Normal work status Report No.: DRE-12NO0102VN…

Text truncated - open the document above for the full version.

FCC ID: RS3IWI666 Report No.: DRE-12NO0102VNTY-A3 Page 1 of 90 Report Format Version 2.1.0 FCC TEST REPORT (15.247) REPORT NO.: DRE-12NO0102VNTY-A3 MODEL NO.: iwi666, iwi666-B RECEIVED: Dec. 11, 2012 TESTED: Dec. 12-Dec. 19, 2012 ISSUED: Jan. 28, 2013 APPLICANT: Shanghai DareGlobal Technologies Co., Ltd. ADDRESS: 22F, Building A, No.1555, Kongjiang Road, Shanghai, 200092, China ISSUED BY: BUREAU VERITAS ADT (Shanghai) Corporation ADDRESS: 2F, Building C, No.1618, Yishan rd., 201103, Shanghai, China This test report consists of 90 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF, A2LA or any government agencies. The test results in the report only apply to the tested sample. FCC ID: RS3IWI666 Report No.: DRE-12NO0102VNTY-A3 Page 2 of 90 Report Format Version 2.1.0 TABLE OF CONTENTS 1. CERTIFICATION ................................................................................................. 3 2. SUMMARY OF TEST RESULTS......................................................................... 4 2.1 MEASUREMENT UNCERTAINTY............................................................................................................. 5 3. GENERAL INFORMATION ................................................................................. 6 3.1 GENERAL DESCRIPTION OF EUT ....................................................................................................... 6 3.2 DESCRIPTION OF TEST MODES .......................................................................................................... 8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................... 13 3.4 DESCRIPTION OF SUPPORT UNITS...................................................................................................13 4. TEST TYPES AND RESULTS .......................................................................... 14 4.1 RADIATED EMISSION MEASUREMENT .......................................................................................... 14 4.2 CONDUCTED EMISSION MEASUREMENT...................................................................................... 48 4.3 6dB BANDWIDTH MEASUREMENT ................................................................................................... 53 4.4 MAXIMUM PEAK OUTPUT POWER .................................................................................................. 67 4.5 POWER SPECTRAL DENSITY MEASUREMENT............................................................................. 71 4.6 BAND EDGES MEASUREMENT ..........................................................................................................75 4.7 ANTENNA REQUIREMENT .................................................................................................................. 89 5. APPENDIX - INFORMATION ON THE TESTING LABORATORIES................ 90 FCC ID: RS3IWI666 Report No.: DRE-12NO0102VNTY-A3 Page 3 of 90 Report Format Version 2.1.0 1. CERTIFICATION PRODUCT: Linking mobile mate MODEL: iwi666, iwi666-B BRAND: NETGEAR APPLICANT: Shanghai DareGlobal Technologies Co., Ltd. TEST SAMPLE: ENGINEERING SAMPLE TESTED: Dec. 12-Dec. 19, 2012 STANDARDS: FCC Part 15, Subpart C (Section 15.247) ANSI C63.4-2003 KDB 558074 D01 DTS Meas Guidance v02 The above equipment (Model: HSS101) has been tested by Bureau Veritas Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Jan. 28, 2013 Kevin Jiang Testing Engineer TECHNICAL ACCEPTANCE : , DATE: Jan. 28, 2013 Joy Zhu Lab Manager APPROVED BY : , DATE: Jan. 28, 2013 Zhaoqian Yu Director of Operations FCC ID: RS3IWI666 Report No.: DRE-12NO0102VNTY-A3 Page 4 of 90 Report Format Version 2.1.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC PART 15, SUBPART C (SECTION 15.247) STANDARD SECTION TEST TYPE AND LIMIT RESULTREMARK 15.207 AC Power Conducted Emission PASS Mee…

Text truncated - open the document above for the full version.
