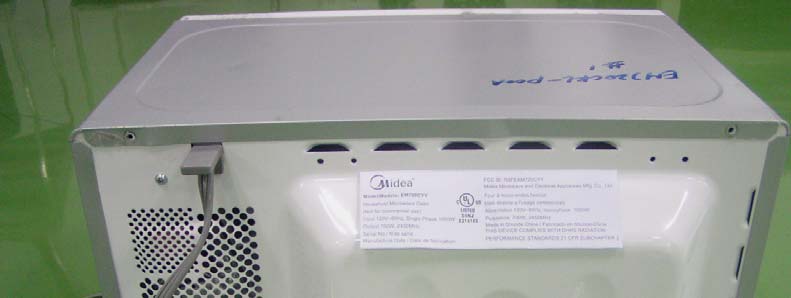

External Photos EUT- Front View EUT- Back View

ID Label/Location FCC ID Label Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. ID Label Location:

Internal Photos EUT – Inside View EUT – Control Panel board Components View EUT - Control Panel board Circuit View EUT –Power Board Components View EUT –Power Board Circuit View EUT –Emitter Front View EUT –Emitter Side View

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratory Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the Federal Government. FCC PART 18 MEASUREMENT AND TEST REPORT For Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. Beijiao, Shunde, Foshan City. Guangdong. P.R of China. FCC ID: RSFEAM720CYY This Report Concerns: Original report Equipment Type: Microwave Oven Test Engineer: Henry Yang Report Number: RSZ07082051 Test Date: 2007-08-27 Report Date: 2007-08-31 Reviewed By: EMC Manager: Boni Baniqued Prepared By: Bay Area Compliance Laboratory Corp. (Shenzhen). 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 Midea Microwave and Electrical Appliances Manufacturing Co., Ltd. FCC ID: RSFEAM720CYY Report No.: RSZ07082051 Page 2 of 22 FCC Part 18 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................8 PLOT(S) OF TEST DATA................................................................................................................................................8 RADIATION HAZARD MEASUREMENT .............................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 RADIATION HAZARD MEASUREMENT........................................................................................................................11 INPUT POWER.............................................................................................................................................................11 LOAD FOR MICROWAVE OVENS.................................................................................................................................12 RF OUTPUT POWER MEASUREMENT..........................................................................................................................12 OPERATING FREQUENCY MEASUREMENT..................................................................................................................14 RADIATED EMISSIONS...........................................................................................................................................18 MEASUREMENT UNCERTAINTY..................................................................................................................................18 EUT SETUP................................................................................................................................................................18 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP..............................…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission - Front View Conducted Emission - Side View 30MHz to 1000MHz: Radiated Emissions - Front View 30MHz to 1000MHz: Radiated Emissions - Rear View Above 1 GHz: Radiated Emissions - Front View Above 1 GHz: Radiated Emissions - Rear View
