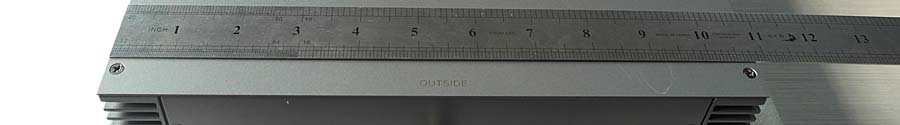

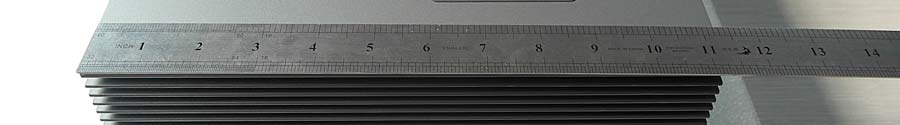

Five-Band Wireless Adjustable Signal Booster / Kit Force-5™ Booster, Force-5 Omni Kit, Force-5 Panel Kits (FORCE-5) User Guide INTRODUCTION 2 THEORY OF OPERATION 2 SURECALL FORCE-5 PACKAGES 3 FORCE-5 BOOSTER HARDWARE 5 INSTALLATION 6 SITE SELECTION 6 INSTALLATION INSTRUCTIONS 7 LEDS 12 AUTOMATIC SHUTDOWN 13 TROUBLESHOOTING 14 FREQUENTLY ASKED QUESTIONS 16 OBTAINING TECHNICAL SUPPORT 16 WARRANTY 17 SPECIFICATIONS 19 SAFETY INFORMATION 20 INTRODUCTION SureCall Force-5 Cellphone-Mate, Inc. Page 2 All rights reserved. Introduction Congratulations on purchasing the SureCall Force-5 , the finest cellular signal booster available! SureCall adjustable cellular signal boosters and kits from Cellphone-Mate remove frustrations over dropped calls, limited range, and slow data rates by amplifying incoming and outgoing cellular signals in buildings, offices, and homes. The Force-5 is designed with leading-edge technologies to detect and amplify weak incoming signals your cellular device would otherwise miss and to broadcast a significantly stronger signal back to the cell tower. This guide contains all the information you need to get your SureCall Force-5 booster system up and running. Theory of Operation The SureCall Force-5 is a high-quality bidirectional signal booster that boosts cellular signals for areas prone to weak or shadowed cellular coverage. The Force-5 works with two antennas : x An i nside antenna that communicates with your cell phone. x An outside antenna that communicates with the cell tower. Signals sent from a cell tower are received by the outside antenna, amplified by the booster and then sent to your phone via t he inside antenna. When your phone transmits, the signal is sent to the inside antenna, and t hen sent to the cell tower via t he outside antenna. Some cell signal is required for the Force-5 to enhance cellular signal coverage. The weakest cell signal for the Force-5 to work is low -100dBm to high -90dBm. dBm is an abbreviation for the power ratio in decibels of the radio power per one milliwatt. To measure your existing cell signal on an Apple iPhone, dial *3001#12345#*and press Call. In the top-left corner, a number appears instead of bars. For Android devices, you can download several apps to measure exact signal st rength. Look up check real signal strength to find a cell signal measurement app. INTRODUCTION SureCall Force-5 Cellphone-Mate, Inc. Page 3 All rights reserved. SureCall Force-5 Packages Force-5 - Antenna Kitting Information Table 1. Force-5 Component Product Number (Description) Gain/Loss Notes LTE-A LTE-V 800 MHz 1900 MHz 1700 MHz\ 2100 MHz Outdoor Antennas* CM288W 3 dBi 3 dBi 3 dBi 4 dBi 4 dBi\4 dBi CM288W-L 5 dBi 5 dBi 6 dBi 8 dBi 8 dBi\8 dBi CM230W 10 dBi 10 dBi 10 dBi 10 dBi 10 dBi \10 dBi CM248W 7 dBi 7 dBi 7 dB i 10 dBi 10 dBi \10 dBi Outdoor Cable* CM400-65NN (65 feet) 3.74 dB 3.74 dB 3.89 dB 5.43 dB 5.11 dB\5.75 dB 65 f eet or longer Indoor Antennas* CM248W 7 dBi 7 dBi 7 dBi 10 dBi 10 dBi \10 dBi CM222W 3 dBi 3 dBi 3 dBi 6 dBi 6 dBi \6 dBi Indoor Cable* CM400-40NN (40 feet) 2.53dB 2.53dB 2.63dB 3.57dB 3.36 dB\3.77 dB 40 feet or longer * All equivalent antennas and cables are suitable for use with the Force-5 booster. Table 2. Dual Indoor Antenna Kit Component Product Number (Description) Quantity Notes Outdoor Antennas* CM230W 1 pcs CM248W 1 pcs Outdoor Cable* CM400-65NN ( 65 f eet ) 1 pcs 65 f eet or longer Indoor Cable* CM400-20NN ( 20 f eet ) 1 pcs 20 f eet or longer Splitter CM-WS-2 1 pcs Cable After Splitting* CM400-40NN (40 feet ) 2 pcs 40 f eet or longer Indoor Antenna* CM248W 2 pcs * All equivalent antennas and cables are suitable for use with the Force-5 booster. INTRODUCTION SureCall Force-5 Cellphone-Mate, Inc. Page 4 All rights reserved. Table 3. Four Indoor Antenna Kit Component Product Number ( Description) Quantity Notes Outdoor Antennas* CM230W 1 pcs CM248W 1 pcs Outdoor Cable* CM400-65NN (65 feet) 1 pcs 65 feet or longer Indoor Cable* CM400-20NN (20 feet) 1 pcs 20 feet or longer Splitter CM-WS-4 1 pcs Cable After Splitting CM400-40NN ( 40 f eet ) 4 pcs 40 f eet or longer Indoor Antenna* CM248W 4 pcs * All equivalent antennas and cables are suitable for use with the Force-5 booster. Note: Multiple indoor antenna kit is also an option. Note: For the signal booster to work, the following items are required: x Outside antenna x Cable for connecting the outside antenna to the booster x Signal booster x Inside antenna x Cable for connecting the inside antenna to the booster x Power supply Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by Cellphone-Mate could void the user’s authority to operate the equipment. INTRODUCTION SureCall Force-5 Cellphone-Mate, Inc. Page 5 All rights reserved. Force-5 Booster Hardware The following figure shows the key hardware components on the SureCall Force-5 cellular signal booster. Refer to this figure as you install your SureCall Force-5 components. Five Warning LEDs Outside Antenna Connector (not shown) Inside Antenna Connector Four Banks of DIP Switches (left to right): •LTE -707 (Verizon, 64dB -34dB) •LTE -781 ( AT&T, 64dB -34dB) •Celllular-800 (65dB-35dB) •PCS -1900 (72-42 dB) •AWS-2100 (64 -34dB) Power LED ON/OFF Switch INSTALLATION SureCall Force-5 Cellphone-Mate, Inc. Page 6 All rights reserved. Installation Unpack all package contents and check for damage. For missing or damaged items, contact your reseller. Keep the carton and packing material to store the product or if you need to return it. Site Selection For optimum performance, select a location for your booster that : x Provides th e best si gnal strength possible. To measure your existing cell signal on an Apple iPhone, dial *3001#12345#*and press Call. In the top- left corner, a number appears instead of bars. For Android devices, you can download several apps to measure exact signal strength.…

Text truncated - open the document above for the full version.

SureCall Force-5 Packages Force-5 - Antenna Kitting Information Table 1. Force-5 Component Product Number (Description) Gain/Loss Notes LTE-A LTE-V 800 MHz 1900 MHz 1700 MHz\ 2100 MHz Outdoor Antennas* CM288W 3 dBi 3 dBi 3 dBi 4 dBi 4 dBi\4 dBi CM288W-L 5 dBi 5 dBi 6 dBi 8 dBi 8 dBi\8 dBi CM230W 10 dBi 10 dBi 10 dBi 10 dBi 10 dBi \10 dBi CM248W 7 dBi 7 dBi 7 dB i 10 dBi 10 dBi \10 dBi Outdoor Cable* CM400-65NN (65 feet) 3.74 dB 3.74 dB 3.89 dB 5.43 dB 5.11 dB\5.75 dB 65 feet or longer Indoor Antennas* CM248W 7 dBi 7 dBi 7 dBi 10 dBi 10 dBi \10 dBi CM222W 3 dBi 3 dBi 3 dBi 6 dBi 6 dBi \6 dBi Indoor Cable* CM400-40NN (40 feet) 2.5 3dB 2.5 3dB 2.63dB 3.57dB 3.36 dB\3.77 dB 40 feet or longer * All equivalent antennas and cables are suitable for use with the Force-5 booster. Table 2. Dual Indoor Antenna Kit Component Product Number (Description) Quantity Notes Outdoor Antennas* CM230W 1 pcs CM248W 1 pcs Outdoor Cable* CM400-65NN (65 feet ) 1 pcs 65 feet or longer Indoor Cable* CM400-20NN (20 feet ) 1 pcs 20 feet or longer Splitter CM -WS- 2 1 pcs Cable After Splitting* CM400-40NN (40 feet ) 2 pcs 40 feet or longer Indoor Antenna* CM248W 2 pcs * All equivalent antennas and cables are suitable for use with the Force-5 booster. Table 3. Four Indoor Antenna Kit Component Product Number ( Description) Quantity Notes Outdoor Antennas* CM230W 1 pcs CM248W 1 pcs Outdoor Cable* CM400-65NN (65 feet) 1 pcs 65 feet or longer Indoor Cable* CM400-20NN (20 feet ) 1 pcs 20 f eet or longer Splitter CM-WS-4 1 pcs Cable After Splitting CM400-40NN (40 feet ) 4 pcs 40 f eet or longer Indoor Antenna* CM248W 4 pcs * All equivalent antennas and cables are suitable for use with the Force-5 booster.
