RTD-G6RTe-Flame

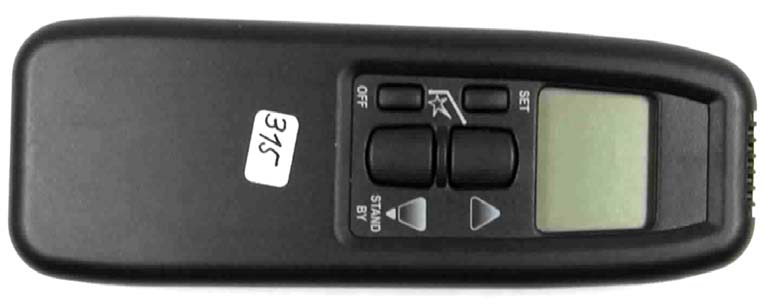

FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page E 1 of E 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 Appendix E1 Remote control (Variant T) for the combination control GV60 T 24275-04-01 XF External Photo Front view External Photo Rear view

FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page E 1 of E 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 Appendix E1 Remote control (Variant T) for the combination control GV60 T 24275-04-01 XF External Photo Front view External Photo Rear view

FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page E 2 of E 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 Appendix E2 Remote control (Variant T) for the combination control GV60 T 24275-04-01 XF Internal Photo Open view FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page E 3 of E 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 Appendix E3 Remote control (Variant T) for the combination control GV60 T 24275-04-01 XF Internal Photo Front view PCB Internal Photo Rear view PCB FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page E 4 of E 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 Appendix E4 Remote control (Variant T) for the combination control GV60 T 24275-04-01 XF Internal Photo Front view PCB (without display) Internal Photo Part view of PCB FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page E 5 of E 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 Appendix E5 Remote control (Variant T) for the combination control GV60 T 24275-04-01 XF Internal Photo Part view of PCB

Licence holder: Mertik Maxitrol GmbH & Co. KG Address: Warnstedter Strasse 3 06502 Thale, Germany Manufacturer: Mertik Maxitrol GmbH & Co. KG Address: Warnstedter Strasse 3 06502 Thale, Germany Type: Remote control Model: e –FLAME (Variant T) Serial-No.: G6RT Operating description The remote control G6R operates a gas control and ignition device which is used in space heaters or decorative gas fires. Pushing 2 buttons at the hand set sends a signal to the receiver which starts the following ignition sequence. • A motorized valve closes the main gas • A capacitor powers a dc magnet which opens the thermo electric safety valve. • At the same time starts the electronic ignition and the pilot gas will be ignited. The pilot flame heats the thermocouple. • Until the thermo element gives enough voltage to hold the safety magnet open (about 10...20 sec), the electronic of the receiver delivers the voltage. • The motorized valve opens the main gas After this ignition the remote control can be used to adjust the flame height by turning the motor of the main gas valve. The signal to turn the motor will be sent manually pushing the up and down button or automatically for versions with a thermostat inbuilt in the hand set. For manual flame height adjustment it takes about 10sec to change from off to maximum flame height. The thermostat compares the room temperature with the set point and if a difference is available between the set point and the room temperature then sends signals to start or stop the turning of the motor. Pressing the off button a signal turns the motor to the off position and interrupts the thermo voltage. Barbara Happe Group leader development gas controls Thale, 2004-04-23

FCC ID: RTD-G6RT DAT - P-011 / 91-02 TTI - P-G 089 / 94-11 File No. T 24275-04-02 XF , Page 1 of 18 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 E M I S S I O N -- T E S T R E P O R T Test Report File No. : T 24275-04-02 XF ________________ Date : April 26, 2004 of issue ________________ Type Designation : e-Flame (Transmitter variant T) ______________________________________________ Kind of Product : Electronic remote ignition and control system ______________________________________________ Applicant : Mertik Maxitrol GmbH & Co. KG ______________________________________________ Manufacturer : Mertik Maxitrol GmbH & Co. KG ______________________________________________ Licence holder : Mertik Maxitrol GmbH & Co. KG ______________________________________________ Address : Warnstedter Strasse 3 ______________________________________________ 06502 Thale, Germany ______________________________________________ Test result accdg. to the regulation(s) at page 3 : Positive This test report with attachment consists of 37 pages. The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page 2 of 18 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 D I R E C T O R Y Page Documentation Directory 2 ________ Test regulations 3 ________ General information 4-5 ________ Discovery of worst case condition -- ________ Equipment under Test 17 ________ Summary 18 ________ Test data Conducted emissions 10/150 kHz - 30 MHz 6 ________ Spurious emissions (magnetic field) 9 kHz - 30 MHz 7-8 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz 9 ________ Spurious emissions (electric field) 1 GHz - 18 GHz 10 ________ Radiated power of the fundamental wave 11 ________ Conducted power of the fundamental wave measured on 12 the antenna terminals ________ Correction for Pulse operation (Duty Cycle) 13 ________ Emission Bandwidth 14 ________ Signal deactivation 15 ________ Effect of Supply Voltage variation 16 ________ Attachment A) Test data A1-A5 ________ B) List of Test Equipment B1 ________ C) Photos of the test setup C1-C5 ________ D) Technical description of the test sample D1-D3 (e.g. CDF, Declaration) ________ E) Photos of the EuT E1-E5 ________ F) Measurement Protocol for FCC, VCCI and AUSTEL -- ________ FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page 3 of 18 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o - EN 50081-1 / 2.1991 o - EN 50081-2 / 7.1993 -------------------------------------------------------------------------------- o - EN 55011 / 3.1991 o - Group 1 o - Group 2 o - class A o - class B o - EN 55014 / 4.1993 o - Household appliances and similar o - tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55104 / 5.1995 Category: o - EN 55015 / A1:1990 o - EN 55015 / 12.1993 o - EN 55022 / 5.1995 o - class A o - class B o - prEN 55103-1 / 3.1995 o - prEN 50121-3-2 / 3.1995 o - EN 60601-1-2 / 4.1994 o - VCCI o - class 1 o - class 2 o - Part 15 Subpart C (15.209) „ - Part 15 Subpart C (15.231) FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page 4 of 18 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 A D D R E S S O F T H E T E S T L A B O R A T O R Y - MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen E N V I R O N M E N T A L C O N D I T I O N S Temperature: 15-35 ° C ____________ Humidity 45-60 % ____________ Atmospheric pressure 860-1060 mbar ____________ POWER SUPPLY SYSTEM UTILIZED Power supply system Transmitter: „ 9,0 V DC STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report accdg. to UKAS LAB34 and is documented in the MIKES BABT Product Service quality system accdg. to EN ISO/IEC 17025:2000. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EuT) The EuT is a transmitter for electronic remote ignition and control system. It is designed for gas appliances with pilot burners including ODS. Number of received/tested samples: 1 / 1 Serial Number: G6R DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT „ The black square indicates that the listed condition, standard or equipment is applicable for this report. o Blank box indicates that the listed condition, standard or equipment was not applicable for this report. FCC ID: RTD-G6RT File No. T 24275-04-02 XF , Page 5 of 18 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporat…

Text truncated - open the document above for the full version.

FCC ID: RTD-G6RT Attachment C: Photos of the test setup File No. T 24275-04-02 XF , Page C 1 of C 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 SPURIOUS EMISSIONS (electric field) 30 MHz - 1000 MHz (front view) FCC ID: RTD-G6RT Attachment C: Photos of the test setup File No. T 24275-04-02 XF , Page C 2 of C 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 SPURIOUS EMISSIONS (electric field) 30 MHz - 1000 MHz (rear view) FCC ID: RTD-G6RT Attachment C: Photos of the test setup File No. T 24275-04-02 XF , Page C 3 of C 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 SPURIOUS EMISSIONS (electric field) 1000MHz – 10-harmonics (front view) FCC ID: RTD-G6RT Attachment C: Photos of the test setup File No. T 24275-04-02 XF , Page C 4 of C 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 SPURIOUS EMISSIONS (electric field) 1000MHz – 10-harmonics (rear view) FCC ID: RTD-G6RT Attachment C: Photos of the test setup File No. T 24275-04-02 XF , Page C 5 of C 5 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+9424-9407-0 Fax:+9424-9407-60 Rev. No. 9.3 Correction for Pulse Operation (Duty Cycle) Emission Bandwidth Signal Deactivation Effect of Supply Voltage Variation
