RU5AWBC1DBluetooth USB Dongle

1 IVT BlueSoleil™ User Manual Model No.: AWBC1D Version: 1.4.9/1.6.X 2 FCC DoC Labeling FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Prohibition of co-location Tested to Comply FOR HOME OR OFFICE V1.2 Bluetooth Dongle 3 This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter Content 1 Introduction to BlueSoleil™................................................................5 1.1 Bluetooth Functions ......................................................................5 1.2 Main Window ...............................................................................6 2 Basic Operations ................................................................................8 2.1 Insert Adapter .............................................................................8 2.2 Install the Software ......................................................................8 2.3 Start BlueSoleil ............................................................................8 2.4 Search for Other Bluetooth Enabled Devices .....................................9 2.5 Establish Connection................................................................... 10 2.6 Bluetooth Security ...................................................................... 11 3 Getting Started.................................................................................13 3.1 AV Headphone ........................................................................... 13 3.2 Basic Imaging ............................................................................ 13 3.3 Dial-up Networking..................................................................... 14 3.4 FAX .......................................................................................... 16 3.5 File Transfer .............................................................................. 16 3.6 Headset .................................................................................... 18 3.7 Human Interface Device .............................................................. 18 3.8 LAN Access................................................................................ 19 3.9 Object Push ............................................................................... 21 3.10 Personal Area Networking ......................................................... 23 3.11 Printer ................................................................................... 27 3.12 Serial Port .............................................................................. 28 3.13 Bluetooth Synchronization ........................................................ 28 4 BlueSoleil User Guides......................................................................30 4.1 BlueSoleil Environment ............................................................... 30 4.1.1 Main Window ..................................................................... 30 4 4.1.2 Service Window ................................................................. 32 4.1.3 Menus .............................................................................. 33 4.2 Device Configurations ................................................................. 36 4.2.1 Hardware Configuration ...................................................... 36 4.2.2 Properties Configuration ...................................................... 36 4.3 Security Configuration................................................................. 38 4.3.1 Pair / Un-pair Devices ......................................................... 38 4.3.2 General Security ................................................................ 38 4.3.3 Managing Device Pairings .................................................... 39 4.3.4 Local Services Security ....................................................... 40 5 1 Introduction to BlueSoleil™ BlueSoleil is a Windows-based software from IVT that allows your Bluetooth® enabled desktop or notebook computer to wirelessly connect to other Bluetooth enabled devices. BlueSoleil allows MS Windows users to wirelessly access a wide variety of Bluetooth enabled digital devices, such as cameras, mobile phones, headsets, printers, and GPS receivers. You can also form networks and exchange data with other Bluetooth enabled computers or PDAs. Platforms supported by BlueSoleil include: Windo…

Text truncated - open the document above for the full version.

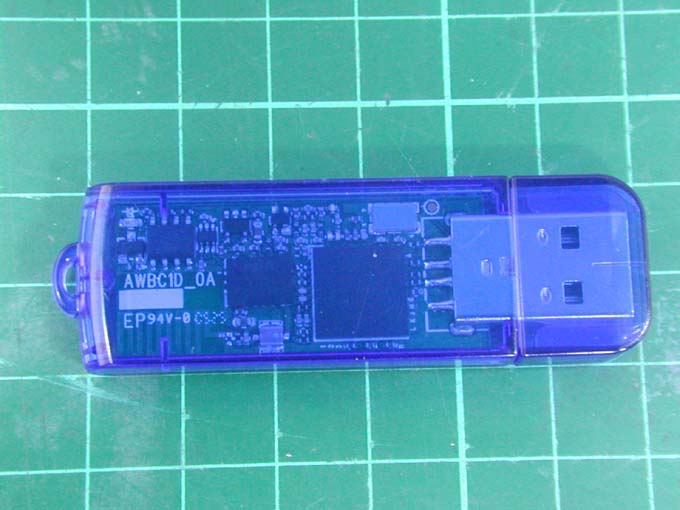

Photo 1: External photo of EUT AW B C 1 D Photo 2: External photo of EUT AW B C 1 D

Bluetooth Dongle FCC ID Label Location FCC ID: RU5AWBC1D 0011F6054BE6 8mm 11mm

Photo 1: Internal photo of EUT AW B C 1 D Photo 2: Internal photo of EUT AW B C 1 D

FCC ID.: RU5AWBC1D Report No.: EME-050742 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-050742 Model No. : AWBC1D Issued Date : Oct. 18, 2005 Applicant : Asia Pacific Microsystems, Inc. No. 2, R&D Road 6, Science-Based Industrial Park, Hsinchu, Taiwan. Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 5 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID.: RU5AWBC1D Report No.: EME-050742 Page 2 of 5 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 5 FCC ID.: RU5AWBC1D Report No.: EME-050742 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Bluetooth V.1.2 Class1 USB Dongle-Model: AWBC1D FCC ID: RU5AWBC1D Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID.: RU5AWBC1D Report No.: EME-050742 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is near by the human body (assume 0.1cm), the EUT was defined as a Portable Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited distance from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID.: RU5AWBC1D Report No.: EME-050742 Page 5 of 5 3. RF Exposure calculations From §FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a portable device operates at 2412MHz and its maximum output power is 20mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (20 * 1)/4*π*(0.1) 2 = (mW/cm 2 ) 4. Test results Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2402 1.67 8.18 0.002181374 1.0 40 2441 1.67 7.31 0.001785378 1.0 79 2480 1.67 6.53 0.001491867 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID.: RU5AWBC1D Report No.: EME-050742 Page 1 of 36 EMC TEST REPORT Report No. : EME-050742 Model No. : AWBC1D Issued Date : Oct. 18, 2005 Applicant : Asia Pacific Microsystems, Inc. No. 2, R&D Road 6, Science-Based Industrial Park, Hsinchu, Taiwan. Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 36 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Kevin Chen Project Engineer Reviewed By Jerry Liu FCC ID.: RU5AWBC1D Report No.: EME-050742 Page 2 of 36 Table of Contents Summary of Tests ..............................................................................................................4 1. General information ......................................................................................................5 1.1 Identification of the EUT ........................................................................................5 1.2 Additional information about the EUT....................................................................5 1.3 Antenna description.................................................................................................6 1.4 Peripherals equipment .............................................................................................6 2. Test specifications .........................................................................................................7 2.1 Test standard............................................................................................................7 2.2 Operation mode .......................................................................................................7 2.3 Test equipment ........................................................................................................8 3. 20dB Bandwidth test .....................................................................................................9 3.1 Operating environment............................................................................................9 3.2 Test setup & procedure ............................................................................................9 3.3 Measured data of modulated bandwidth test results ...............................................9 4. Carrier Frequency Separation test ...............................................................................11 4.1 Operating environment..........................................................................................11 4.2 Test setup & procedure ..........................................................................................11 4.3 Measured data of Carrier Frequency Separation test result ..................................11 5. Number of hopping frequencies test ...........................................................................13 5.1 Operating environment..........................................................................................13 5.2 Test setup & procedure ..........................................................................................13 5.3 Measured data of number of hopping frequencies test result................................13 6. Time of Occupancy (dwell time) test ..........................................................................15 6.1 Operating environment..........................................................................................15 6.2 Test setup & procedure ..........................................................................................15 7. Maximum Output Power test ......................................................................................19 7.1 Operating environment..........................................................................................19 7.2 Test setup & procedure ..........................................................................................19 7.3 Measured data of Maximum Output Power test results ........................................19 8. Radiated Emission test ................................................................................................20 8.1 Operating environment..........................................................................................20 8.2 Test setup & procedure ..........................................................................................20 FCC ID.: RU5AWBC1D Report No.: EME-050742 Page 3 of 36 8.3 Emission limits ......................................................................................................21 8.4 Radiated spurious emission test data.....................................................................22 8.4.1 Measurement results: frequencies equal to or less than 1 GHz..........................22 8.4.2 Measurement results: frequency above 1GHz ...................................................23 9. Emission on the band edge §FCC 15.247(C) ..............................................................26 9.1 Band-edge (Conducted method)............................................................................27 9.2 Band-edge (Radiated method)...............................................................................29 10. Power Line Conducted Emission test §FCC 15.207 .................................................33 10.1 Operating environment........................................................................................33 10.2 Test setup & procedure ........................................................................................33 10.3 Emission limit .....................................................................................................34 10.4 Uncertainty of Conducted Emission ...................................................................34 10.5 Powe…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo AW B C 1 D Photo 2: Conducted Emission Test Set-up photo AW B C 1 D

Photo 1: Radiated Emission Test set-up photo AW B C 1 D Photo 2: Radiated Emission Test set-up photo AW B C 1 D
