RU7-EMME-SS-01SS-01

Start Here Quick Setup Guide Wireless Temperature Sensor Quick Setup Guide ©2010 EmmePN#100.0072 VER1.1 JUN2011 Important Notices The contents of this document are subject to change without prior notice. • Although the contents of this document have been carefully checked to avoid errors, • some may still occur. If you have a question about this manual please contact us. No part of this publication may be reproduced or reprinted except for personal use • without prior written permission from Emme. WARNING: • This product contains small parts. Please keep away from children. Radio and Television Interference This Wireless Temperature Sensor has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The Wireless Temperature Sensor generates and radiates radio frequency energy and if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the Wireless Temperature Sensor does cause harmful interference to radio or television reception, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. • Increase the separation between the Wireless Temperature Sensor and the receiver. • Consult the dealer that installed the Wireless Temperature Sensor for help. • In order to maintain compliance with FCC regulations, the Wireless Temperature Sensor must not be modifi ed in any way and only approved batteries must be used. The user is cautioned that changes and modifi cations made to this Wireless Temperature Sensor could void the user’s authority to operate this equipment. Declaration of Conformity Model Number: SS-01 Trade Name: Emme Responsible Party: Home Comfort Zones Inc. Address: 8239 SW Cirrus Drive, Beaverton, Oregon 97008 U.S.A. Telephone: 1-800-396-0523 This devices complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and1. This device must accept any interference2. Frequency: 418MHz Install the battery Install the battery when you are prompted on screen. Name the sensor When Emme Core receives the learn packet it will prompt you with a keyboard to name the sensor. This could take up to 10 sec. Name the sensor and press ok Press the setup button Press the setup button on the Emme Core Display and Control Unit. Press the sensors button From the setup screen, press the sensors button. Press the Add button From the sensors screen press Add . Remove the back plate Place a fi nger over the opening on the sensor back plate; hold the sensor at the top and pry apart slowly from the bottom. If needed, place a small fl at-head screw driver in the slot at the bottom of the sensor and twist gently. 1 56 23 4 (+) positive side Continued on back Continue Here Attach the cover When the back plate is mounted carefully attach the sensor cover to the back plate; attach the top of the cover fi rst and gently push the bottom until it locks into place. ©2010 EmmePN#100.0072 VER1.1 JUN2011 9 Wireless Temperature Sensor Quick Setup Guide Verify Emme Core is still receiving the Wireless Temperature Sensor After you mount the Wireless Temperature Sensor, return to the Emme Core display and make sure it still has at least two bars of reception and is displaying a temperature. 10 OR Choose a mounting method There are two basic techniques for affi xing a Wireless Temperature Sensor to the wall: A using a screw or nail; or B , the preferred method, using a Poster Strip Command™ Adhesive (included). Command is a trademark of 3M and is not affi liated with Emme. Verify all the information is correct Select and remove if necessary. 87 Using a screw or nail (not included) Use a screw or nail appropriate for mounting the back plate; the head diameter may be no larger than 0.35” and the shaft diameter may be no larger than 0.16” . Place the screw/ nail through the mounting hole on the back plate and carefully attach to a smooth, clean mounting surface. A Using a Poster Strip Command™ Adhesive (included) Using a two sided Poster Strip Command™ Adhesive, attach one side to the back plate, make sure the WALL side is toward the mounting surface and the removal tab is accessible through the opening on the back plate. Press the back plate against the mounting surface for ten seconds. Using the locking screw to prevent tampering Every Wireless Temperature Sensor includes a locking screw attached to the interior of the back plate. Using the locking screw will prevent the sensor from being opened and removed from the mounting location. Ensure removal tab is accessible when placed against mounting surface Place Command™ Adhesive in the recess on the back of the back plate. Ensure WALL side is toward the mounting surface. B NOTE: The Wireless Temperature Sensor should always be installed and set up by an HVAC service professional. In order for the Wireless Temperature Sensor to function properly, correct placement is crucial. You should help the customer to determine the proper location for each Wireless Temperature Sensor so that they are in a convenient location away from sources that could artifi cially infl uence room temperature. Do not remove Wireless Temperature Sensors from their assigned areas. Do not place Wireless Temperature Sensors: Behind doors, in corners, or in other dead-air spaces. • In direct sunlight or near lamps, appliances, or other sources of radiant heat. • On outside walls or walls exposed to unconditioned spaces such as garages. • In the fl ow path of a supply register, in stairways, or near outside doors. • On walls where concealed pipes or ductwork can aff ect the sensor. • Near sources of electrical interferen…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 12/08/09 HOCZ0020 Information about the Applicant Grantee (Company Name) Home Comforts Zones, Inc. FCC Contact Person Harold Alles Address 8239 SW Cirrus Dr. City, State, Zip Beaverton, OR, 97008 Job Number HOCZ0020 Model SS-01 FCC ID RU7-EMME-SS-01 Agent Zachary Wheeler Approval Type Original Equipment Class DSC Part 15, Security/Remote Control Transmitter Rule Part 15 C (15.231) Overview The model SS-01, FCC ID: RU7-EMME-SS-01, is a wireless temperature sensor, operating at 418 MHz under FCC 47 Cfr 15.231. The device transmits temperature data and the state of a magnetic reed switch to a control unit. The device is used to control the temperature of an individual room. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 6/9/2011

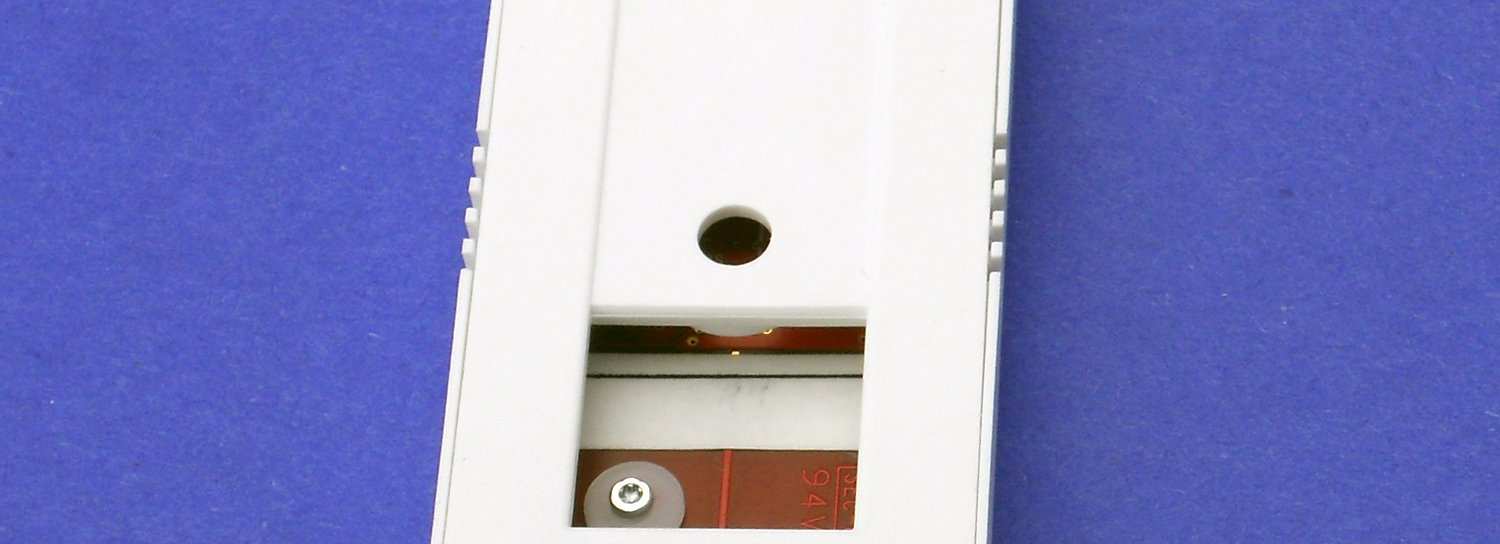

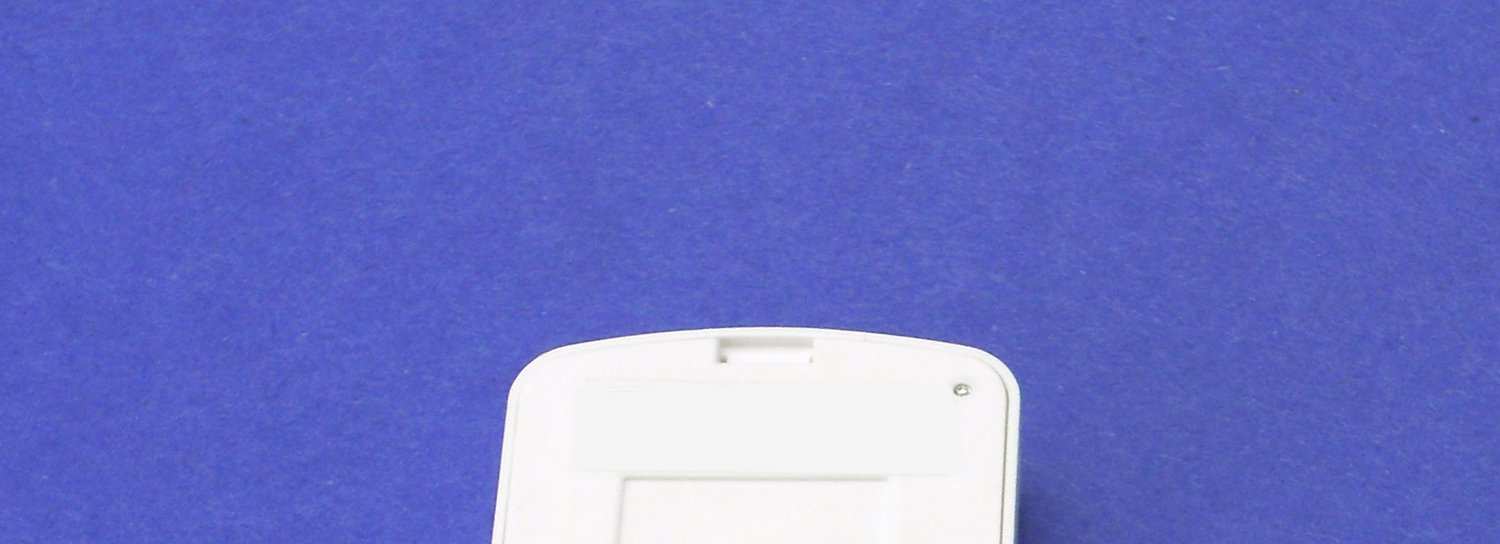

External View, Front External View, Rear External View, Side

FCC ID Label Location on PCB Silkscreen (viewable with battery cover removed) FCC ID Label Location

Back Side Front Side

Compliance with CFR Title 47, Paragraph 15.203 The SmartSensor model SS-01 complies with the requirements of paragraph 15.203 because the antenna is permanently attached to the circuitry as a part of the printed circuit board. It is not accessible from outside the enclosure.

RF Exposure The SmartSensor model SS-01 qualifies as a mobile device under CFR 4 Paragraph 2.1091. It is designed to be installed on the wall of a room or placed on a flat surface so it can accurately sense the temperature of that room. It is not subject to routine environmental evaluation for RF exposure because it is a mobile device certified under Part 15.231(e) and as such is categorically excluded from such evaluation per Part 2.1091(c). The maximum output power of the transmitter is 8 dBm when connected to an optimal antenna impedance in the frequency range used. It is operated 6 dBm lower than the maximum power via software settings. The printed circuit board trace serving as a loop antenna has a gain of approximately -9 dB. Due to its lower power RF output and status as a mobile transmitter, the SmartSensor is not a cause for worry and thus no cautionary statements are provided in device documentation.

Home Comfort Zones, Inc. 418 MHz transmitter Report No. HOCZ0020 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2010 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: November 17, 2010 Home Comfort Zones, Inc. Model: 418 MHz transmitter Emissions Test Description Specification Test Method Pass/Fail Occupied Bandwidth FCC 15.231:2010 ANSI C63.10:2009 Pass Field Strength of Fundamental FCC 15.231:2010 ANSI C63.10:2009 Pass Duty Cycle FCC 15.231:2010 ANSI C63.10:2009 Pass Spurious Radiated Emissions FCC 15.231:2010 ANSI C63.10:2009 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834D-1). Approved By: Tim O’Shea, Operations Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 NVLAP LAB CODE 200761-0 NVLAP LAB CODE 200881-0 Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. NEMKO Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Accreditations and Authorizations Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T-1658, and R-2318, Irvine: R-1943, G-85, C- 2766, and T-1659, Sultan: R-871, G-83, C-1784, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). License No.SL2-IN-E-1017. GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and…

Text truncated - open the document above for the full version.

NORTHWEST EMC OBW 001.jpg OBW 002.jpg OCCUPIED BANDWIDTH XMit 2010.11.03 NORTHWEST EMC Field Strength of Fundamental PSA 2008.07.21 NORTHWEST EMC Field Strength of Fundamental PSA 2008.07.21 NORTHWEST EMC Field Strength of Fundamental PSA 2008.07.21 NORTHWEST EMC Field Strength of Fundamental PSA 2008.07.21 NORTHWEST EMC Field Strength of Fundamental PSA 2008.07.21 NORTHWEST EMC Duty Cycle 004.jpg Duty Cycle 002.jpg DUTY CYCLE XMit 2010.11.03 NORTHWEST EMC Spurious Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Spurious Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Spurious Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Spurious Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Spurious Radiated Emissions PSA 2008.07.21
