RU7-HCZ-SC-02Smart Controller Transmitter

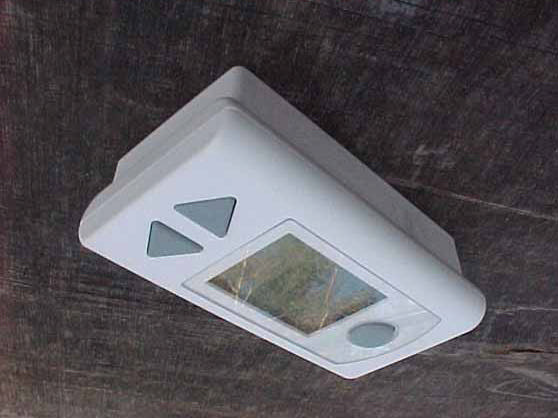

User Manual Comfort in Every Room ™ www.homecomfortzones.com Smart Controller 2 We l c o m e ! Your new Smart Controller is a climate control break through! The Smart Controller is your key to ultimate comfort. When used in conjunction with the rest of the Home Comfort Zones system it will allow you to individually control rooms in your home, creating ideal microclimates for your complete comfort and enjoyment. Copyright © Copyright 2004. Home Comfort Zones Inc., All rights reserved. Important Notices Legal and other notices • The contents of this document are subject to change without prior notice. • Although the contents of this document have been carefully checked to avoid errors, some may still occur. If you have a question about this manual or if you find an error please contact us. • No part of this publication may be reproduced or reprinted except for personal use without prior written permission from Home Comfort Zones. Radio and Television Interference This Smart Controller has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The Smart Controller generates and radiates radio frequency energy and if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the Smart Controller does cause harmful interference to radio or television reception, which can be determined by pressing any button on the Smart Controller, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the Smart Controller and the receiver. • Consult the dealer that installed the Smart Controller for help. In order to maintain compliance with FCC regulations, the Smart Controller must not be modified in any way and only approved batteries must be used. The user is cautioned that changes and modifications made to this Smart Controller could void the user's authority to operate this equipment. 3 Battery Replacement - Alkaline AA When the “Low Bat” symbol appears on the Smart Controller display you should replace the batteries. Remove the Smart Controller from the wall by lifting the main body of the Smart Controller up. The battery cover / mounting bracket will remain attached to the wall. Turn the Smart Controller over and remove the old batteries. Please discard the batteries properly. NEVER discard the old batteries into a fire. Replace the batteries with two new AA batteries of the same type and manufacturer. Home Comfort Zones recommends using alkaline batteries. Please ensure that the batteries are correctly inserted into the Smart Controller. Match the polarity of the battery with the label inside the Smart Controller battery case. Declaration of Conformity Model Number: SC-02 Trade Name: Home Comfort Zones Responsible Party: Home Comfort Zones Inc. Address: 8239 SW Cirrus Drive, Beaverton, Oregon 97008 U.S.A. Telephone: (503) 626-2797 This devices complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. 4 Quick Start - Using your Smart Controller On / Saver - Enables conditioning to the room, or places the room in “saver” mode. Increase Temperature - Up arrow will temporarily increase the temperature in the room. Decrease Temperature - Down arrow will temporarily decrease the temperature in the room. Battery cover / mounting bracket - The Smart Controller can be mounted on a wall by using 3M Command Adhesive™ or by using two 6x1 inch drywall screws. Product Label Smart Controller ID Label - Each Smart Controller requires a unique identification number. Your dealer will program this ID at installation and record the number on this label. 5 ON SET 72° SAVER LOW BAT Conditioning is “On” for the room. Indicates that a temporary temperature is set. Conditioning is in “saver” mode for the room 1 . 1. The system default for “saver” mode is 60° for heating / 90° for air conditioning. Circulation will occur periodically to avoid stale air. Indicates that the Smart Controller needs new batteries. Placement of your Smart Controller The key to your comfort is the proper placement of the Smart Controller. The Smart Controller is more than a thermostat, it is your local interface to your Home Comfort Zones climate control system. The Smart Controller contains a very accurate temperature sensor. In order for the Smart Controller to function properly you will need to consider several factors. DO NOT place the Smart Controller: • Behind doors, in corners or other dead air spaces. • In direct sunlight or near lamps, appliances or other sources of radiant heat. • On an outside wall or wall exposed to an unconditioned space (i.e. garage, etc.). • In the flow path of a supply register, in stairways or near outside doors. • On a wall where concealed pipes and/or ductwork will affect the thermostat. • Near sources of electrical interference such as arcing relay contacts. Your installer will work with you to determine the proper location in each room. Although the Smart Controller can be placed anywhere, we recommend that you mount it to the wall to ensure it stays in the room it is controlling and does not get lost. (If the Smart Controller is removed from the room it is assigned to, your system will not function properly.) 6 Using Your Smart Controller The Smart Controller is just one part of your new Home Comfort Zones climate con- trol system. In order for the Smart Controller to function properly, your entire system should be installed and set up by a professional Home Comfo…

Text truncated - open the document above for the full version.

8239 S.W.Cirrus Drive Beaverton, OR 97008 Phone: (503) 626.626.2797 Fax: (503) 626.2688 www.homecomfortzones.com March 2, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Modifications to the EUT Gentlemen: To successfully meet the radiated emission requirement of FCC Part 15.231 (e), it was necessary to do the following: 1. Reduce the number of coils of the antenna from seven to three. 2. Change R7 from 100 ohms to 180 ohms The exact modifications will be implemented and will be contained in production devices that are released and sold. If you have any questions, please do not hesitate to contact us at (503) 626-2797 ext 16. Sincerely, Hal Alles CEO Home Comfort Zones

8239 S.W.Cirrus Drive Beaverton, OR 97008 Phone: (503) 626.626.2797 Fax: (503) 626.2688 www.homecomfortzones.com March 2, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 FRN: 0010221661 Gentlemen: Pursuant to 47 CFR 0.457(d) of the FCC Rules, please accept this letter requesting confidentiality treatment of the following exhibits: 1. Schematic diagrams; 2. Detailed block diagrams; and 3. Parts lists The products submitted for certification were internally designed at great cost and effort and are trade secrets of Home Comfort Zones, Inc. The information presented in the exhibits listed above is not available publicly anywhere else, and publication on the Commission’s web site would adversely impact Home Comfort Zones competitive advantage in the marketplace. I appreciate the Commissions consideration in this matter. If you have any further questions or need additional information, please feel free to call me at (503) 626-2797 x16. Sincerely, Harold G. Alles President

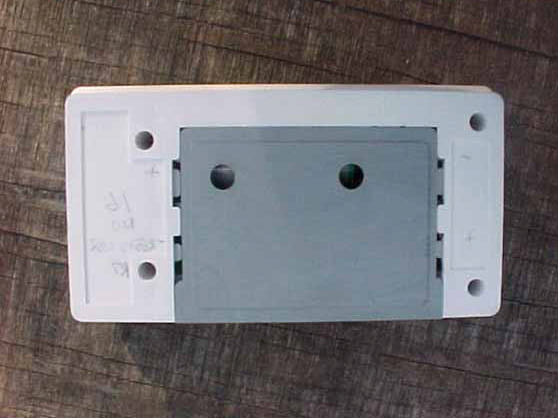

ID # BATTERY SIZE: AA ALKALINE RECOMMENDED PLEASE INSTALL BATTERIES IN CORRECT POLARITY DIRECTION AS SHOWN FCC ID: RU7-HCZ-SC-02 FOR MORE INFORMATION ON FCC COMPLIANCE SEE OPERATORS MANUAL PATENT PENDING HOME COMFORT ZONES, INC. MADE IN THE USA LABELS FOR THE HOME COMFORT ZONES SMART CONTROLLER Battery Label Smart Controller ID Label FCC, Manufacturing Origin, and Information Label FCC LABEL PLACEMENT ON THE HOME COMFORT ZONES SMART CONTROLLER ACTUAL SIZE AND TEXT OF PROPOSED LABEL FCC LABEL SMART CONTROLLER FCC ID: RU7-HCZ-SC-02 FOR MORE INFORMATION ON FCC COMPLIANCE SEE OPERATORS MANUAL HOME COMFORT ZONES, INC. MADE IN THE USA

Report Number: B40227D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Smart Controller Transmitter Model: SC-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 14 FCC PART 15, SUBPART B and C TEST REPORT for SMART CONTROLLER TRANSMITTER MODEL: SC-02 Prepared for HOME COMFORT ZONES, INC. 8239 S.W. CIRRUS DRIVE BEAVERTON, OREGON 97008-5995 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MARCH 18, 2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 14 2 2 2 12 8 40 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B40227D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Smart Controller Transmitter Model: SC-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 14 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 8. CONCLUSIONS 14 Report Number: B40227D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Smart Controller Transmitter Model: SC-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 14 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B40227D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Smart Controller Transmitter Model: SC-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 14 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Smart Controller Transmitter Model: SC-02 S/N: N/A Product Description: See Expository Statement Modifications: The EUT was modified in order to meet the specifications. Please see the list located in Appendix B. Manufacturer: Home Comfort Zones, Inc. 8239 S.W. Cirrus Drive Beaverton, Oregon 97008-5995 Test Date: February 27, 2004 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209 and 15.231(e) Test Procedure: ANSI C63.4: 2001 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT operates on battery power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4200 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231(e). Report Number: B40227D1 FCC Part 15 Subpart B and FCC Section 15.231(e) Test Report Smart Controller Transmitter Model: SC-02 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 14 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Smart Controller Transmitter Model: SC-02. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 2001. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231(e). Report Num…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V P0 SWT 500 ms Center 418 MHz50 ms/ 2VIEW D1 5 2AP 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] 0.73 dB 286.573146 ms D1 54 dB  V Date: 27.FEB.2004 08:36:40 Total Pulse Width – Worst Case will be first 100 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V P0 TRG 2AP SGL SWT 150 ms Center 418 MHz15 ms/ * 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] 31.33 dB 100.701403 ms D1 54 dB  V Date: 27.FEB.2004 08:44:48 The worst 100 mS (shown by the delta markers) Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V P0 TRG 2AP SGL SWT 150 ms Center 418 MHz15 ms/ * 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] 31.05 dB 2.104208 ms 1 [T2] 34.46 dB  V 5.123870 ms 1 [T2] 31.05 dB 2.104208 ms D1 54 dB  V Date: 27.FEB.2004 08:51:31 Time of Small Pulse = 2.1042 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V P0 TRG 2AP SGL SWT 150 ms Center 418 MHz15 ms/ * 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] 32.06 dB 6.012024 ms 1 [T2] 33.26 dB  V 42.999622 ms 1 [T2] 32.06 dB 6.012024 ms D1 54 dB  V Date: 27.FEB.2004 08:54:05 Time of Large Pulse = 6.012 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RBW 1 MHz VBW 1 MHz RF Att 20 dB A IN1 Unit dB  V P0 TRG 2AP SGL SWT 150 ms Center 418 MHz15 ms/ * 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T2] 30.87 dB 3.607214 ms 1 [T2] 34.56 dB  V 70.354331 ms 1 [T2] 30.87 dB 3.607214 ms D1 54 dB  V Date: 27.FEB.2004 08:54:50 Time of Medium Pulse = 3.6072 mS Over the worst case 100 mS span of the pulse train. Small Pulses (24) * Time of Small Pulse (2.1042 mS) = 50.5008 mS Large Pulse (1) * Time of Large Pulse (6.012 mS) = 6.012 mS Medium Pulses (3) * Time of Medium Pulse (3.6072 mS) = 10.8216 mS 50.5008 + 6.012 +10.8216 = 67.3344% duty cycle
