RU7-HCZ-SC-03SC-03

User Manual Comfort in Every Room ™ www.homecomfortzones.com Smart Controller 2 We l c o m e ! Your new Smart Controller is a climate control break through! The Smart Controller is your key to ultimate comfort. When used in conjunction with the rest of the Home Comfort Zones system it will allow you to individually control rooms in your home, creating ideal microclimates for your complete comfort and enjoyment. Copyright © Copyright 2004. Home Comfort Zones Inc., All rights reserved. Important Notices Legal and other notices • The contents of this document are subject to change without prior notice. • Although the contents of this document have been carefully checked to avoid errors, some may still occur. If you have a question about this manual or if you find an error please contact us. • No part of this publication may be reproduced or reprinted except for personal use without prior written permission from Home Comfort Zones. Radio and Television Interference This Smart Controller has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The Smart Controller generates and radiates radio frequency energy and if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the Smart Controller does cause harmful interference to radio or television reception, which can be determined by pressing any button on the Smart Controller, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the Smart Controller and the receiver. • Consult the dealer that installed the Smart Controller for help. In order to maintain compliance with FCC regulations, the Smart Controller must not be modified in any way and only approved batteries must be used. The user is cautioned that changes and modifications made to this Smart Controller could void the user's authority to operate this equipment. 3 Battery Replacement - Alkaline AA When the “Low Bat” symbol appears on the Smart Controller display you should replace the batteries. Remove the Smart Controller from the wall by lifting the main body of the Smart Controller up. The battery cover / mounting bracket will remain attached to the wall. Turn the Smart Controller over and remove the old batteries. Please discard the batteries properly. NEVER discard the old batteries into a fire. Replace the batteries with two new AA batteries of the same type and manufacturer. Home Comfort Zones recommends using alkaline batteries. Please ensure that the batteries are correctly inserted into the Smart Controller. Match the polarity of the battery with the label inside the Smart Controller battery case. Declaration of Conformity Model Number: SC-02 Trade Name: Home Comfort Zones Responsible Party: Home Comfort Zones Inc. Address: 8239 SW Cirrus Drive, Beaverton, Oregon 97008 U.S.A. Telephone: (503) 626-2797 This devices complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. 4 Quick Start - Using your Smart Controller On / Saver - Enables conditioning to the room, or places the room in “saver” mode. Increase Temperature - Up arrow will temporarily increase the temperature in the room. Decrease Temperature - Down arrow will temporarily decrease the temperature in the room. Battery cover / mounting bracket - The Smart Controller can be mounted on a wall by using 3M Command Adhesive™ or by using two 6x1 inch drywall screws. Product Label Smart Controller ID Label - Each Smart Controller requires a unique identification number. Your dealer will program this ID at installation and record the number on this label. 5 ON SET 72° SAVER LOW BAT Conditioning is “On” for the room. Indicates that a temporary temperature is set. Conditioning is in “saver” mode for the room 1 . 1. The system default for “saver” mode is 60° for heating / 90° for air conditioning. Circulation will occur periodically to avoid stale air. Indicates that the Smart Controller needs new batteries. Placement of your Smart Controller The key to your comfort is the proper placement of the Smart Controller. The Smart Controller is more than a thermostat, it is your local interface to your Home Comfort Zones climate control system. The Smart Controller contains a very accurate temperature sensor. In order for the Smart Controller to function properly you will need to consider several factors. DO NOT place the Smart Controller: • Behind doors, in corners or other dead air spaces. • In direct sunlight or near lamps, appliances or other sources of radiant heat. • On an outside wall or wall exposed to an unconditioned space (i.e. garage, etc.). • In the flow path of a supply register, in stairways or near outside doors. • On a wall where concealed pipes and/or ductwork will affect the thermostat. • Near sources of electrical interference such as arcing relay contacts. Your installer will work with you to determine the proper location in each room. Although the Smart Controller can be placed anywhere, we recommend that you mount it to the wall to ensure it stays in the room it is controlling and does not get lost. (If the Smart Controller is removed from the room it is assigned to, your system will not function properly.) 6 Using Your Smart Controller The Smart Controller is just one part of your new Home Comfort Zones climate con- trol system. In order for the Smart Controller to function properly, your entire system should be installed and set up by a professional Home Comfo…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 HOCZ0013 Information about the Applicant Company Name Home Comfort Zone Grantee Harold G. Alles Address 8239 Cirrus Drive City, State, Zip Beaverton, OR 97008 Job Number HOCZ0013 Model Smart Controller SC-03 FCC ID RU7-HCZ-SC-03 Agent Northwest EMC Approval Type Original Equipment Class DSC Part 15, Remote Control Transmitter Rule Part 15.231 Overview The device is a low-power transmitter designed to facilitate the control of individual room temperature. It uses an amplitude-shift-keying modulation technique and transmits at 418 MHz. Categorically excluded from RF exposure evaluation. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 5/11/2007

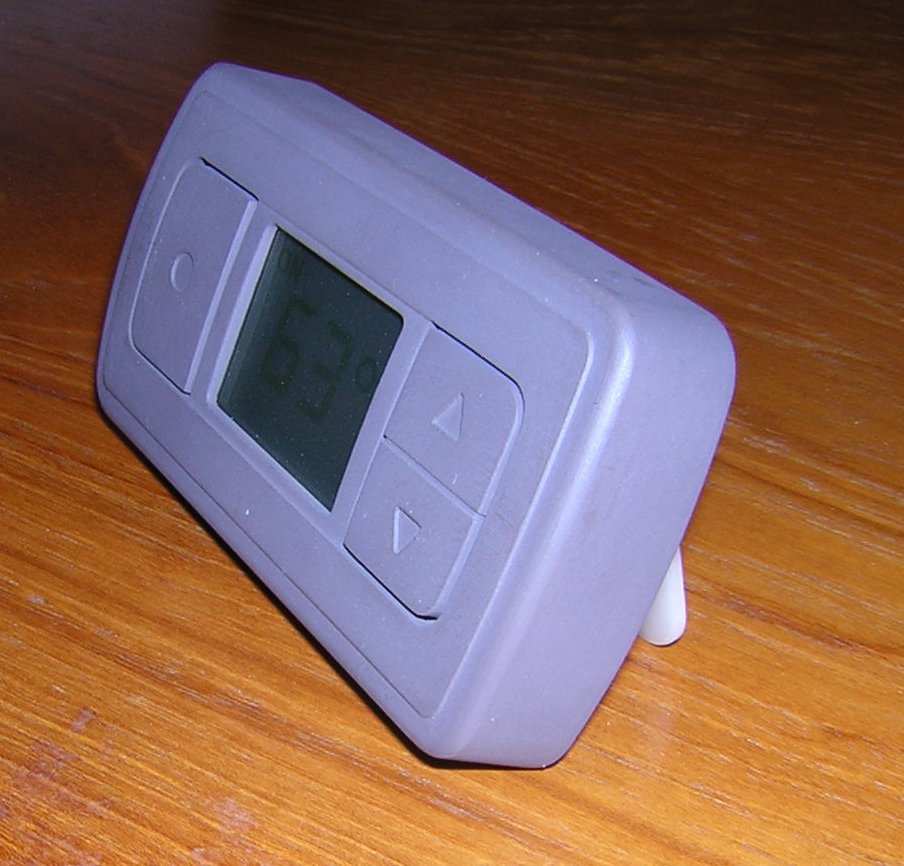

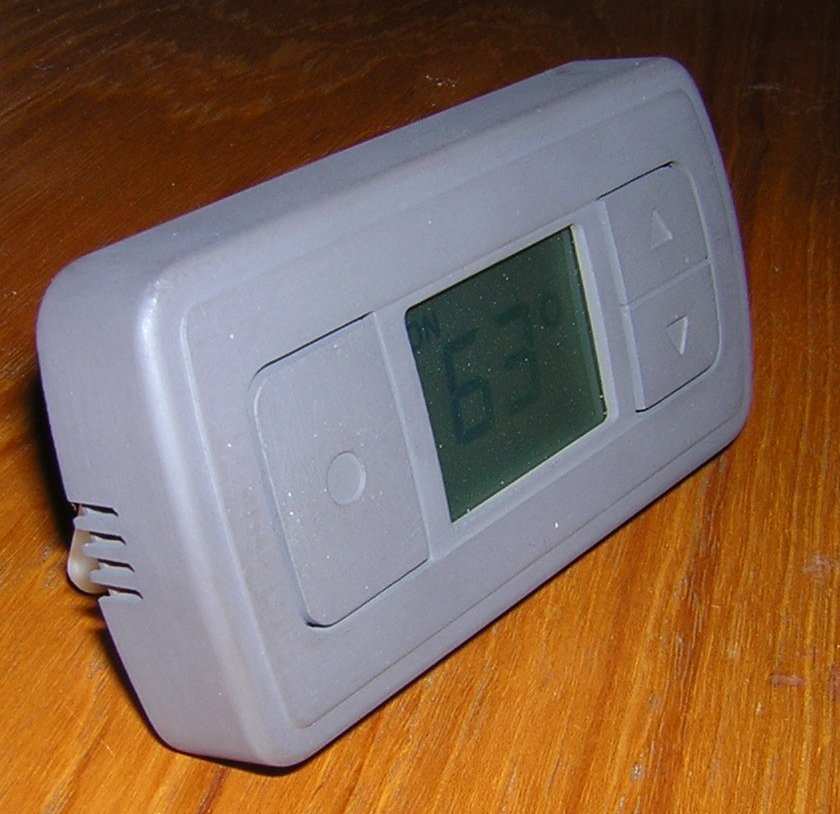

External View, Front External View, Rear External View, Right External View, Left

FCC ID Label Location

Component Side Component Side, LCD Removed Bottom Side (No Components)

Compliance with CFR Title 47, Paragraph 15.203 The Smart Controller model SC-03 complies with the requirements of paragraph 15.203 because the antenna is permanently attached to the circuitry as a part of the printed circuit board. It is not accessible from outside the enclosure.

RF Exposure The Smart Controller mode SC-03 qualifies as a mobile device under CFR 4 Paragraph 2.1091. It is designed to be installed on the wall of a room or placed on a flat surface so it can accurately sense the temperature of that room. It is not subject to routine environmental evaluation for RF exposure because it is a mobile device certified under Part 15.231(e) and as such is categorically excluded from such evaluation per Part 2.1091(c). The maximum output power of the transmitter is 8 dBm when connected to an optimal antenna impedance in the frequency range used. It is operated 6 dBm lower than the maximum power via software settings. The printed circuit board trace serving as a loop antenna has a gain of approximately -9 dB. Due to its lower power RF output and status as a mobile transmitter, the Smart Controller is not a cause for worry and thus no cautionary statements are provided in device documentation.

Home Comfort Zone Smart Controller SC-03 May 03, 2007 Report No. HOCZ0013 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2007 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: May 03, 2007 Home Comfort Zone Model: Smart Controller SC-03 Emissions Test Description Specification Test Method Pass Fail Field Strength of Fundamental FCC 15.231:2006 ANSI C63.4:2003 Spurious Radiated Emissions FCC 15.231:2006 ANSI C63.4:2003 Occupied Bandwidth FCC 15.231:2006 ANSI C63.4:2003 Duty Cycle FCC 15.231:2006 ANSI C63.4:2003 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Ethan Schoonover, Sultan Lab Manager This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 NVLAP LAB CODE 200761-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0604C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI: Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, C- 2687, T-289, and R-2318, Irvine: R-1943, C-2766, and T-298, Sultan: R-871, C-1784, and T- 294). BSMI: …

Text truncated - open the document above for the full version.

NORTHWEST EMC DUTY CYCLE XMit 2006.11.13 NORTHWEST EMC FIELD STRENGTH OF FUNDAMENTAL PSA 2007.01.31 NORTHWEST EMC FIELD STRENGTH OF FUNDAMENTAL PSA 2007.01.31 NORTHWEST EMC OCCUPIED BANDWIDTH XMit 2007.03.30 NORTHWEST EMC FIELD STRENGTH OF SPURIOUS EMISSIONS PSA 2007.01.31 NORTHWEST EMC FIELD STRENGTH OF SPURIOUS EMISSIONS PSA 2007.01.31
