RUNMC33493MOD868ERF MODULE 315MHz DEVELOPER KIT

MC33493MODxxx Quick Start Guide Laurent GAUTHIER-TSPG-MCD-ARC Page 1 Last update: February 5, 2007 MC33493MODxxx KIT Quick Start User Guide This document provides first information to use MC33696 tools. Last update: V1.1: Note for FCC Important: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 1 OVERVIEW MC33493MODxxx operation requires: ƒ An MC33493MODxxx RF Module with attached Printed antenna ƒ A DEMO9S08RG60 MCU board ƒ An RS232 cable ƒ A PC with RS232 port, CD player and Hyper Terminal. ƒ A 9V Battery The operation of MC33493 is done by sending with Hyper Terminal a script to the MCU board that will configure MC33493 in a defined configuration. MC33493MODxxx Quick Start Guide Laurent GAUTHIER-TSPG-MCD-ARC Page 2 Available script files: ƒ standby configuration ƒ continuous CW transmission ƒ continuous 4.8kHz OOK transmission ƒ continuous 4.8kHz FSK transmission 2 LAUNCHING THE KIT ƒ Plug the RF Module on the MCU board ƒ Connect the MCU board to the PC using the RS232 cable ƒ Launch HyperTerminal using the proper xxx.ht file according to available COM port ƒ Connect the 9V battery ƒ Screen on HyperTerminal receives status of MC33493 Registers and Pin levels 3 SENDING A SCRIPT FILE 3.1 Configuration in Receive mode ƒ With the mouse, click on “Transfer/Send text file” ƒ Select the xxx.txt Script file corresponding to the wanted configuration ƒ For exemple :“TX OOK 433.92MHz Square 4800bps.txt” will configure the kit in Teceive mode at 433.92MHz to send a modulated signal at 4800bps. ƒ At the end: “Sending square wave” indicates that the kit is sending a continuous modulation

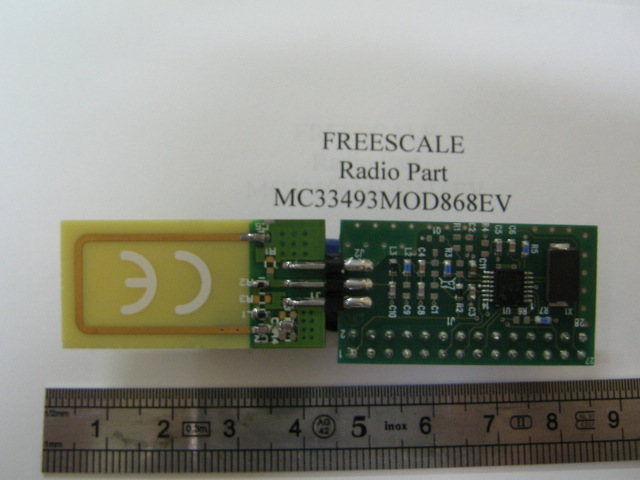

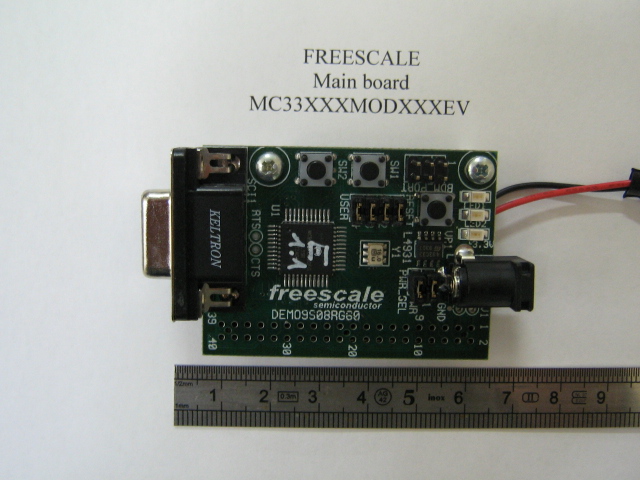

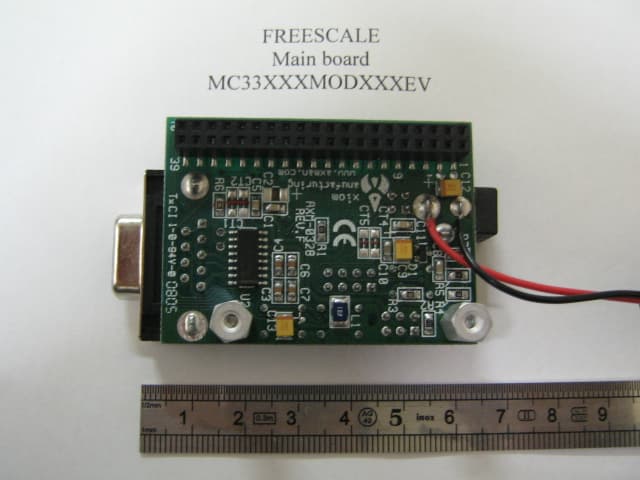

MCU Board MCU Board RS232 Port MCU Regulator RF Module RF Module MC33493 Transmitter Printed Antenna 9V Battery To PC MCU clock : 16MHz RS232 : 38kbps Crystal : 13.567188MHz RF : 868MHz MC33493MOD868EV

EMITECH GRAND SUD 145, rue du Massacan – BP 25 – Z.I. « vallée du Salaison » - 34741 VENDARGUES CEDEX – Tél. 04 67 87 11 02 – Fax : 04 67 70 94 55 S.A. au capital de 480 000 € - R.C. Versailles B 344 545 645 00063 – APE 742 C February 15, 2007 TIMCO ENGINEERING INC. P O BOX 370 849 N.W. STATE ROAD 45 NEWBERRY, FLORIDA USA, 32669 COVER LETTER Subject: FCC Certification Application under FCC PART 15, Subpart C, Product: Valuation tool demonstration Model No.: MC33493MOD868E FCC ID: RUNMC33493MOD868E Question: 1. Part 15.231(a): Noted the “Ed. 2” additional note on page 5/10 of test report. Part 15.231(a) allows data to be sent only with a control signal. Part 15.231(e) does not have such restriction. In order to comply with 15.231 (a), it is required that the device sends periodic (not continuous) data with a control signal . Also, the control signal must be described. Please provide additional information on the control signal. Alternatively, according to the maximum radiated emissions reported, this device appears to also comply with the limit of 15.231(e). However the 15.231(e) has a silent period requirement between transmissions. Please confirm whether you are applying for 15.231(e) or 15.231(a)? Answer: To send a word thanks to this equipment, it is necessary to use HyperTerminal software. The product only accepts to send one word of 128 bits maximum length and then gets in sleeping mode. It is a manual operation. In addition, maximum transmission speed is 2400 bits per second. Then, product will come in sleeping mode at most after 54 ms Transmitted information is fixed (for example "0110101010100”) and defined by user. The receiver will read it as an ON/OFF signal for example (remote control application). For this application (valuation tool demonstration) transmitted data is simply displayed on a screen. We then confirm that we are applying 15.231(a) Olivier HEYER Centre Manager

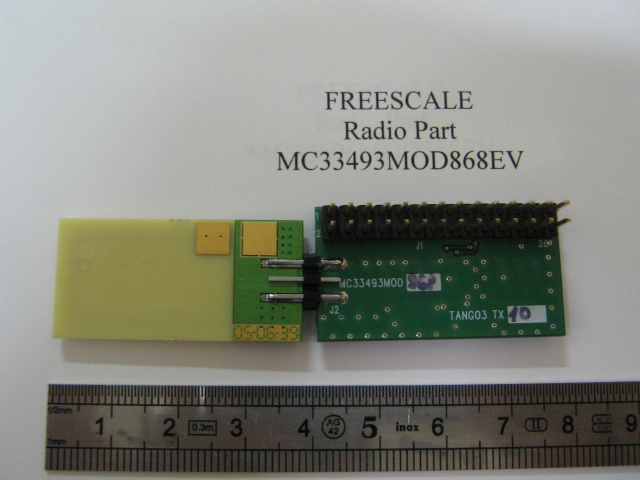

FCC ID: RUNMC33493MOD868E MC33493MOD868EV 30mm 13mm

None : No enclosure See (Model) ExtPho.pdf

MC33493MOD868EV WEB Module referenceMC33493MOD868EV BOM versionV2.1 Frequency868.3MHz Ref.PackageSupplier R10603anynot equiped R20603anyreplaced by L4 R30603any0R R40603anynot equiped R50603any12k R60603anynot equiped R70603any0R R8 (may replace L2)0603any0R C10603anynot equiped C20603anynot equiped C30603any100pF C40603any100pF C50603any4.7pF C60603any10pF C70603anynot equiped C80603any1pF C90603anynot equiped C100603any4.7pF C110603any22nF L10603TDK (MLG1608)not equiped L20603TDK (MLG1608)replaced by R8 L30603TDK (MLG1608)5.6nH L4 (may replace R2)0603TDK (MLG1608)47nH Q1SOT23Philipsnot equiped U1TSSOP14FreescaleMC33493DTBE X1NX8045GBNDK13.567188MHz J1DIL2x14 Pin length 8mm MINDIL 2x14-2.54mm J2SMAJohnson Componentsreplaced by ANT868 LABELMC33493MOD868EV label Change Log V1.0 V2.0ref update for indus V2.1J2 ref changed V2.1remove SMA ANT868 CAD Module referenceANT868 BOM versionV1.0 Frequency868.3MHz ReferencePackageSupplier C10603anynot equiped C20603any3.3pF C30603any3.3pF C50603any0.47pF J1DIL2x3 Pin length 6mm MAXDIL 2x3-2.54mm L10603any12nH R10603anynot equiped R20603any0R R30603anynot equiped R40603anynot equiped R5 (may replace C2)0603anynot equiped Change Log V1.0first release

MC33493MOD868EV WEB Module referenceMC33493MOD868EV BOM versionV2.1 Frequency868.3MHz Ref.PackageSupplier R10603anynot equiped R20603anyreplaced by L4 R30603any0R R40603anynot equiped R50603any12k R60603anynot equiped R70603any0R R8 (may replace L2)0603any0R C10603anynot equiped C20603anynot equiped C30603any100pF C40603any100pF C50603any4.7pF C60603any10pF C70603anynot equiped C80603any1pF C90603anynot equiped C100603any4.7pF C110603any22nF L10603TDK (MLG1608)not equiped L20603TDK (MLG1608)replaced by R8 L30603TDK (MLG1608)5.6nH L4 (may replace R2)0603TDK (MLG1608)47nH Q1SOT23Philipsnot equiped U1TSSOP14FreescaleMC33493DTBE X1NX8045GBNDK13.567188MHz J1DIL2x14 Pin length 8mm MINDIL 2x14-2.54mm J2SMAJohnson Componentsreplaced by ANT868 LABELMC33493MOD868EV label Change Log V1.0 V2.0ref update for indus V2.1J2 ref changed V2.1remove SMA ANT868 CAD Module referenceANT868 BOM versionV1.0 Frequency868.3MHz ReferencePackageSupplier C10603anynot equiped C20603any3.3pF C30603any3.3pF C50603any0.47pF J1DIL2x3 Pin length 6mm MAXDIL 2x3-2.54mm L10603any12nH R10603anynot equiped R20603any0R R30603anynot equiped R40603anynot equiped R5 (may replace C2)0603anynot equiped Change Log V1.0first release

None : No tunable single frequency

None : No tunable single frequency

Not applicable: No RF exposure risk (Very low power)

55 44 33 22 11 D D C C B B A A GND 16 1 26 Connector seen from component side 521 ENABLEPA ENABLE 3 1412228 VCC 6 11 8 271517 22 DATA 2325 MODE 19 4202410 1379 18 DATACLK MODE VCC ENABLE GND DATA DATACLK MC33493MOD868EV V2.0 Tango3 RF Module - 868.3MHz A4 1 5 Friday, October 21, 2005 Title Size Document Number Rev Date: Sheet of VCC R60 J2 SMA vert L447nH C610pF C54.7pF L35.6nH R512pF C81pF C10 4.7pF R30 C322nF X1 13.567188MHz U1 MC33493 1234567 891011121314 DATACLKDATA BAND GND XTAL1 XTAL0 REXT CFSK VCC RFOUT GNDRF VCC ENABLE MODE J1-15 15 C4100pF J1-13 13 C11 100pF J1-1 1 J1-3 3 J1-25 25 R70 J1-11 11 55 44 33 22 11 D D C C B B A A Printed Loop antenna MC33493MOD868EV This antenna is suitable for : xxxxx V1.0 868MHz Printed Circuit Antenna A4 1 1 Tuesday, September 05, 2006 Title Size Document Number Rev Date: Sheet of R162 Ohms R2 248 Ohms R362 Ohms C11pF J1 SMA vert no connected C51pF C33.3pF L18.2nH C21pF R4330 Ohms

EMITECH GRAND SUD 145, rue du Massacan – BP 25 – Z.I. « vallée du Salaison » - 34741 VENDARGUES CEDEX – Tél. 04 67 87 11 02 – Fax : 04 67 70 94 55 S.A. au capital de 480 000 € - R.C. Versailles B 344 545 645 00063 – APE 742 C RG-06-91113- 5A - DM/ JG This report cancels and replaces RG-06-91113-5A Ed. 1 RADIO TESTS REPORT According to standard: FCC Part. 15 subpart C, 15.231 Equipment under test: RF Module 868MHz MC33493MOD868EV (Tango3) FCC ID: RUNMC33493MOD868E Company: FREESCALE Diffusion: Mr GAUTHIER (Company: FREESCALE) Number of pages: 10 including 1 annex Ed. Date Modified page(s) Written by Name Visa Technical verification Name Visa Quality approval Name Visa 2 05-Feb-07 5 David MONTAULON Régis GONZALEZ Olivier HEYER Duplication of this report is only permitted for an integral photographic facsimile. It includes the number of pages referenced above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole production of the item tested. EMITECH RG-06-91113-5A Ed.2 PAGE : 2 NAME OF THE EQUIPMENT UNDER TEST (E.U.T) : RF Module 868MHz - MC33493MOD868EV (Tango3) Serial number : None Part number : None Software Version : None MANUFACTURER'S NAME : FREESCALE APPLICANT’S ADRESS: Company : FREESCALE Adress : Semiconducteurs France SAS - Centre Electronique de Toulouse 134 avenue General Eisenhower BP 72329 31023 TOULOUSE CEDEX 1 FRANCE Person(s) present during the tests : Mr GAUTHIER Responsible : Mr GAUTHIER DATES OF TESTS : July, 4 th 5 th 6 th 7 th 10 th 11 th and 12 th of 2006, and November, the 15 th of 2006 TESTS LOCATION : Emitech Grand Sud Laboratory in Vendargues (34) Open area test site in Salinelles (30) Registration number 8127-19 TESTS SUPERVISOR : Nobody TESTS OPERATOR : David MONTAULON EMITECH RG-06-91113-5A Ed.2 PAGE : 3 CONTENTS 1. INTRODUCTION................................................................................................................................4 2. REFERENCE DOCUMENT................................................................................................................4 3. EQUIPMENT UNDER TEST CONFIGURATION AND DESCRIPTION .............................................4 4. SUMMARY OF TEST RESULTS .......................................................................................................5 5. RADIATED ELECTRIC EMISSION ...................................................................................................6 ANNEX: PHOTOGRAPHS ........................................................................................................................8 EMITECH RG-06-91113-5A Ed.2 PAGE : 4 1. INTRODUCTION This document submits the results of Electromagnetic Compatibility tests performed on the equipment RF Module 868MHz - MC33493MOD868EV (Tango3) according to the document listed below. 2. REFERENCE DOCUMENT FCC Part 15 (February 2006) Code of Federal Regulations Title 47 – Telecommunications Chapter 1 – Federal Communications Commision Part 15 – Radio frequency devices Subpart C – Intentional Radiators ANSI C 63.4 (2003) American National Standard for Methods of measurement of Radio- Noise from low-voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 3. EQUIPMENT UNDER TEST CONFIGURATION AND DESCRIPTION Product description : FCC ID: RUNMC33493MOD868E ITU emission code: 16K3A1DAN Utilization: RF transmitter module used for customer evaluation of ISM band transceiver at lab. Antenna type: Incorporated antenna Antenna gain: Unknown Operating frequency range: 868.30 MHz Number of channels: 1 Channel spacing: - Frequency generation: P.L.L. synthesizer Modulation: ASK 100 % with Manchester code at 4800 bit per second Power source: 9 V battery Power level and frequency range are not user adjustable Cycle and operating mode during emission tests : Permanent emission Equipment modifications applied before tests : No CPU BOARD RF Module Antenna RS232 9V Battery EMITECH RG-06-91113-5A Ed.2 PAGE : 5 4. SUMMARY OF TEST RESULTS Tests designation or section Results satisfying? Comments 15.33 Frequency range of radiated measurement - Considered 15.35 Measurement detector functions and bandwidths - Considered 15.203 Antenna requirement YES Nota 1 15.205 Restricted bands of operation YES 15.207 Conducted limits N.A. Powered by internal batteries 15.209 Radiated emission limits, general requirements N.A. Transmitter only 15.231 Periodic operation in the band 40.66 40.70 MHz and above 70 MHz a) Transmission requirements YES Nota 2 b) Radiated emission YES c) Occupied bandwidth YES Nota 3 d) Frequency tolerance N.A. E.U.T. does not transmit in the band 40.60 – 40.70 MHz e) Periodic alternate field strength measurement N.A. Requirements of b) are considered N.P.: Not Performed. N.A.: Not Applicable. Sample submitted to the tests complies with the regulations of the standard FCC part 15 (02/2006) according to limits specified in this tests report. Nota 1: Internal antenna without connector Nota 2: (1) of the 15.231(a) is considered Each time order is done by user, product sends a word. This word can’t be bigger than 128 bits and transmission speed can’t be lower than 2400 bits per second. Then TX time can’t be longer than 54 ms between each manually operation. Nota 3: The bandwidth of the emission at 20 dBc is less than 20 kHz (see Photo in annex), less than 0.25 % of the center frequency (2170.75 kHz) Ed. 2 EMITECH RG-06-91113-5A Ed.2 PAGE : 6 5. RADIATED ELECTRIC EMISSION Standard : FCC Part. 15 subparts C (06), 15.231 (b) Test method : ANSI C64-3 (03) Resolution bandwidth and test configuration : Frequency band Resolution Bandwidth Detection mode 25MHz-1GHz 120kHz Quasi-peak 1GHz-10GHz 1MHz Average Measure applies on open area test site (registration number 8127-19). Test antenna is oriented in vertical and horizontal polarization. Product is rotated through 360° in the horizontal plane only. Highest levels are recorded in the wors…
