RUNMC33696MOD434ERF MODULE 434MHz DEVELOPER KIT

MC33696MODxxx Quick Start Guide Laurent GAUTHIER-TSPG-MCD-ARC Page 1 Last update: February 5, 2007 MC33696MODxxx KIT Quick Start User Guide This document provides first information to use MC33696 tools. Last update: V1.1: Note for FCC Important: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. 1 OVERVIEW MC33696MODxxx operation requires: ƒ An MC33696xxx RF Module with attached Printed antenna ƒ A DEMO9S08RG60-SP MCU board ƒ An RS232 cable ƒ A PC with RS232 port, CD player and Hyper Terminal. ƒ A 9V Battery The operation of MC33696 is done by sending with Hyper Terminal a script to the MCU board that will configure MC33696 in a defined configuration. MC33696MODxxx Quick Start Guide Laurent GAUTHIER-TSPG-MCD-ARC Page 2 Available script files: ƒ standby configuration ƒ continuous CW transmission ƒ continuous 4.8kHz OOK transmission ƒ continuous 4.8kHz FSK transmission ƒ 1 frame transmission using ID and HD ƒ 1 frame reception using ID and HD 2 LAUNCHING THE KIT ƒ Plug the RF Module on the MCU board ƒ Connect the MCU board to the PC using the RS232 cable ƒ Launch HyperTerminal using the proper xxx.ht file according to available COM port ƒ Connect the 9V battery ƒ Screen on HyperTerminal receives status of MC33696 Registers and Pin levels 3 SENDING A SCRIPT FILE 3.1 Configuration in Receive mode ƒ With the mouse, click on “Transfer/Send text file” ƒ Select the xxx.txt Script file corresponding to the wanted configuration ƒ For exemple :“RX OOK 433.92MHz IDHD00.txt” will configure the kit in receive mode at 433.92MHz to receive any Square modulated signal at 4800bps : ƒ 433.92MHz, OOK ƒ Receive with Data Manager ƒ ID=00h, ID length=2 bits ƒ HD=00h, HD length=1 bit MC33696MODxxx Quick Start Guide Laurent GAUTHIER-TSPG-MCD-ARC Page 3 ƒ At the end: “Receive Mode Active” indicates that the kit is waiting for data. If an RF signal is transmitted using another kit or an RF generator properly configured (433,92MHz, Pulse modulation at 4800bps), then the screen will be filled with received data: 3.2 Configuration in Transmit mode ƒ With the mouse, click on “Transfer/Send text file” ƒ Select the xxx.txt Script file corresponding to the wanted configuration ƒ For exemple :“TX OOK 433.92MHz Square 4800bps.txt” will configure the kit in Transmit mode at 433.92MHz to send a modulated signal at 4800bps. MC33696MODxxx Quick Start Guide Laurent GAUTHIER-TSPG-MCD-ARC Page 4 ƒ At the end: “Sending square wave” indicates that the kit is sending a continuous modulation

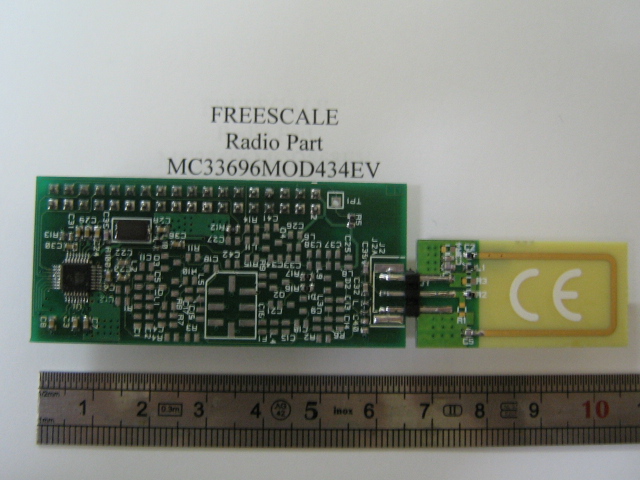

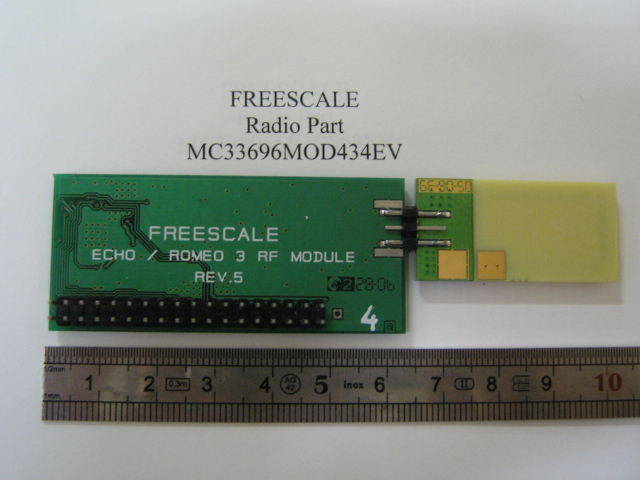

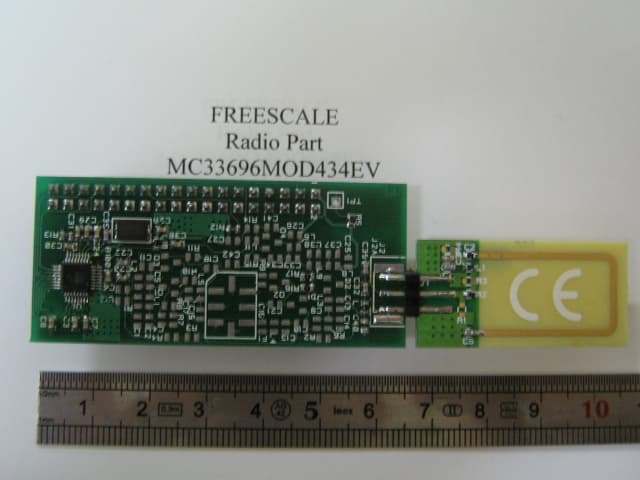

MCU Board MCU Board RS232 Port MCU Regulator RF Module RF Module MC33696 Transceiver Printed Antenna 9V Battery To PC MCU clock : 16MHz RS232 : 38kbps Crystal : 24.19066MHz RF : 433.92MHz MC33696MOD434EV

EMITECH GRAND SUD 145, rue du Massacan – BP 25 – Z.I. « vallée du Salaison » - 34741 VENDARGUES CEDEX – Tél. 04 67 87 11 02 – Fax : 04 67 70 94 55 S.A. au capital de 480 000 € - R.C. Versailles B 344 545 645 00063 – APE 742 C February 15, 2007 TIMCO ENGINEERING INC. P O BOX 370 849 N.W. STATE ROAD 45 NEWBERRY, FLORIDA USA, 32669 COVER LETTER Subject: FCC Certification Application under FCC PART 15, Subpart C, Product: Valuation tool demonstration Model No.: MC33696MOD434E FCC ID: RUNMC33696MOD434E Question: 1. Part 15.231(a): Noted the “Ed. 2” additional note on page 5/10 of test report. Part 15.231(a) allows data to be sent only with a control signal. Part 15.231(e) does not have such restriction. In order to comply with 15.231 (a), it is required that the device sends periodic (not continuous) data with a control signal . Also, the control signal must be described. Please provide additional information on the control signal. Alternatively, according to the maximum radiated emissions reported, this device appears to also comply with the limit of 15.231(e). However the 15.231(e) has a silent period requirement between transmissions. Please confirm whether you are applying for 15.231(e) or 15.231(a)? Answer: To send a word thanks to this equipment, it is necessary to use HyperTerminal software. The product only accepts to send one word of 128 bits maximum length and then gets in sleeping mode. It is a manual operation. In addition, maximum transmission speed is 2400 bits per second. Then, product will come in sleeping mode at most after 54 ms Transmitted information is fixed (for example "0110101010100”) and defined by user. The receiver will read it as an ON/OFF signal for example (remote control application). For this application (valuation tool demonstration) transmitted data is simply displayed on a screen. We then confirm that we are applying 15.231(a) Olivier HEYER Centre Manager

FCC ID: RUNMC33696MOD434E MC33696MOD434EV 30mm 13mm

None : No enclosure See (Model) ExtPho.pdf

MC33696MODxxx Operational Description Laurent GAUTHIER-TSPG-MCD-ARC Page 1 Last update: January 3, 2007 MC33696MODxxx KIT Operational Description This document provides informations on MC33696 tools. Last update: V1.0: first release V1.1: add frame duration in chapter 3.1 1 OVERVIEW MC33696MODxxx tools are designed for customer evaluation of MC33696 integrated circuit. MC33496MODxxx tool can be used to send or receive an RF signal. Some configuration files (“script”) are provided to allow one frame transmission or reception to make a link between two MC33696MODxxx kits. Each transmission or reception is under user control. MC33696MODxxx operation requires:
An MC33696MODxxx RF Module : it contains all RF components including MC33696 IC, crystal, and a printed antenna

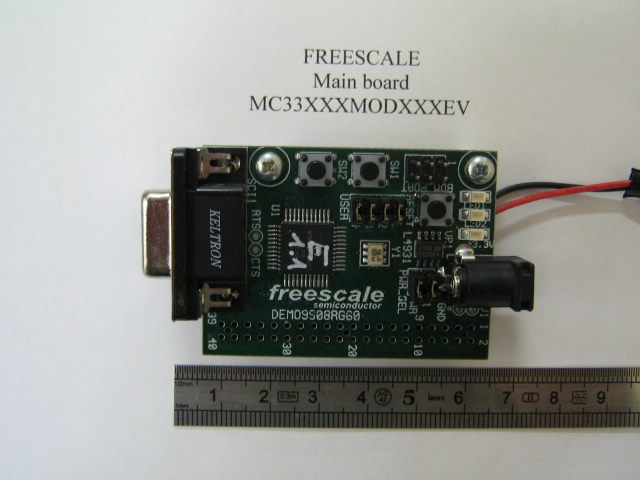

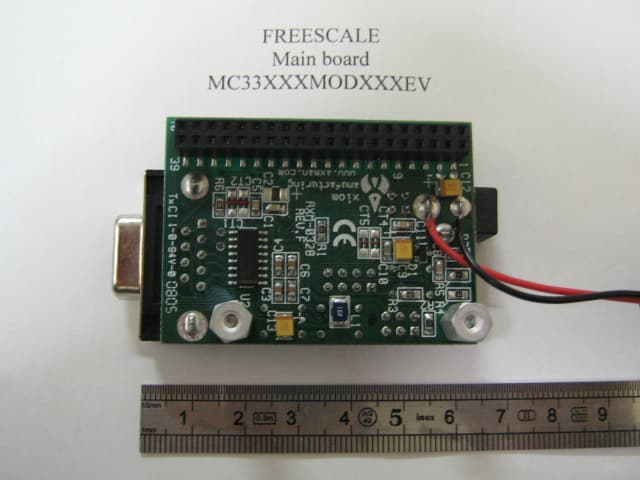

A DEMO9S08RG60 MCU board : it contains MCU, a power supply regulator to provide a 3V voltage from the 9V battery and an RS232 connector
An RS232 cable
A PC with RS232 port, CD player and Hyper Terminal.
A 9V Battery MC33696MODxxx Operational Description Laurent GAUTHIER-TSPG-MCD-ARC Page 2 MCU Board MCU Board MC33696 RF Module MC33696 RF Module RS232 SPI+Pin control Registers, pin controls and frame commands send in ASCII Script HyperTerminal or Windows interface PC The operation of MC33696 is done by sending with Hyper Terminal a script to the MCU board that will configure MC33696 in a defined configuration. 2 MC33696 PRESENTATION 2.1 Main Features MC33696 is a highly integrated RF transceiver designed for low voltage application using half duplex communication in the UHF ISM bands 1 . It includes a programmable PLL for multichannel application, a RSSI circuit that provides both analog and digital results, a Strobe Oscillator that wakes up periodically the receiver while a Data Manager checks the content of incoming message to reduces CPU load and system consumption. Receiver: Frequency: 304MHz, 315MHz, 433MHz, 868MHz and 915MHz bands Sensitivity: -104dBm to -72dBm typ in 4 steps at 4.8kbps Modulation: OOK and FSK Data rate: up to 19.2kbps with Data Manager Data Manager with clock recovery for Manchester coded signals RSSI range: 72dB digital and 42dB analog Receiver bandwidth: 380kHz Current consumption: 9.5mA typ Transmitter: Frequency: 315 to 915MHz Output power: +5dBm to -19dBm in 4 steps at 434MHz 1 ISM bands : Industrial, Scientific and Medical bands. Transmission is allowed on those bands without any license. MC33696MODxxx Operational Description Laurent GAUTHIER-TSPG-MCD-ARC Page 3 Modulation: OOK and FSK Data rate: up to 19.2kbps FSK frequency deviation: programmable from 6kHz to 192kHz Current consumption: 12.5mA typ Other: Package: LQFP32 and LQFN32 Temperature range: -40 to+85°C Supply voltage: 2.1V-3.6V IF Filter IF Filter Fractionnal PLL Fractionnal PLL RF Amplifier RF Amplifier Mixer Mixer IF Amplifier IF Amplifier FSK/OOK demodulator FSK/OOK demodulator Data Filter Data Filter Data slicer Data slicer Strobe Oscillator Strobe Oscillator IF AGC SPI to MCU RF Amplifier RF Amplifier Logic control Logic control RF+IF RSSI RF+IF RSSI Frequency settings TX OOK RX Data Log Amplifier Log Amplifier RF AGC RSSI value Run/Sleep control RFIN RFOUT Data Manager Data Manager RF AGC RF AGC 3 LAUNCHING THE KIT
Plug the RF Module on the MCU board
Connect the MCU board to the PC using the RS232 cable
Launch HyperTerminal using the proper xxx.ht file according to available COM port
Connect the 9V battery
Screen on HyperTerminal receives status of MC33696 Registers and Pin levels
With the mouse, click on “Transfer/Send text file”
Select the xxx.txt Script file corresponding to the wanted configuration MC33696MODxxx Operational Description Laurent GAUTHIER-TSPG-MCD-ARC Page 4
For exemple :“RX OOK 433.92MHz IDHD00.txt” will configure the kit in receive mode at 433.92MHz to receive any RF signal with following paramaters : :
433.92MHz, OOK
Receive with Data Manager
ID=00h, ID length=2 bits
HD=00h, HD length=1 bit
At the end : “Receive Mode Active” indicates that the kit is waiting for datas.
If a frame is received, it is printed on the screen : 3.1 Configuration in Transmit mode
With the mouse, click on “Transfer/Send text file” MC33696MODxxx Operational Description Laurent GAUTHIER-TSPG-MCD-ARC Page 5
Select the xxx.txt Script file corresponding to the wanted configuration
For exemple :“TX OOK 433.92MHz Frame.txt” will configure the kit in Transmit mode at 433.92MHz to send a 28 bits frame at 4800bps (5.8ms frame duration):
At the end : OK indicates that transmission is finished, MC33696 goes back in sleep mode.

MC33696MOD434EV WEB Module referenceMC33696MOD434EV BOM versionV3.1 Frequency433.92MHz ReferencePackageSupplier C10603anynot equiped C100603anynot equiped C100 (may replace R10) 0603anynot equiped C101 (may replace L5)0603anynot equiped C102 (may replace L4)0603anynot equiped C103 (may replace R100)0603any100pF C110603anynot equiped C120603anynot equiped C130603anynot equiped C140603anynot equiped C150603anynot equiped C160603anynot equiped C170603anynot equiped C180603anynot equiped C190603anynot equiped C20603anynot equiped C200603any100nF C210603anynot equiped C220603any100pF C240603any1nF C250603anynot equiped C260603anynot equiped C270603anynot equiped C280603any1nF C290603any1nF C30603any1nF C300603any10nF C310603any10nF C320603any120pF C330603anynot equiped C340603anynot equiped C350603any6.8pF C360603any1nF C370603anynot equiped C380603anynot equiped C390603any5.6pF C40603anynot equiped C400603anynot equiped C410603anynot equiped C420603anynot equiped C50603anynot equiped C60603anynot equiped C70603any100pF C80603any100nF C90603anynot equiped D1SOT23Agilentnot equiped D2SOT23Agilentnot equiped F1SM8558-8RFMnot equiped J1DIL2x18Pin length 8mm MINDIL 2x18-2.54mm J2SMAJohnson Componentsreplaced by ANT434 L10603TDK (MLG1608)not equiped L100603TDK (MLG1608)100nH L100 (may replace C18)0603TDK (MLG1608)not equiped L101 (may replace C16)0603TDK (MLG1608)not equiped L110603TDK (MLG1608)not equiped L20603TDK (MLG1608)not equiped L30603TDK (MLG1608)not equiped L40603TDK (MLG1608)not equiped L50603TDK (MLG1608)not equiped L60603TDK (MLG1608)not equiped L70603TDK (MLG1608)15nH L80603TDK (MLG1608)not equiped L90603TDK (MLG1608)not equiped Q1SOT23Philipsnot equiped Q2SOT23Fairchildnot equiped Q3SOT23Fairchildnot equiped Q4SOT23Philipsnot equiped R10603anynot equiped R110603anynot equiped R100603anynot equiped R1000603anynot equiped R101 (may replace L4)0603anynot equiped R102 (may replace C36) 0603anynot equiped R120603any10k R130603any470k 1% R140603anynot equiped R150603anynot equiped R160603any0R R170603any0R R20603anynot equiped R30603anynot equiped R40603anynot equiped R50603any0R R60603anynot equiped R70603anynot equiped R80603anynot equiped R90603anynot equiped U1LQFP32 5x5FreescalePC33696FCE X1NX5032GANDK24.19066MHz LABELMC33696MO434EV label Change Log V1.0first release V1.1no change V2.0ref update for indus V2.1J2 ref changed V3.0update for ES4.1 V3.1error on J1 corrected ANT434 CAD Module referenceANT434 BOM versionV1.0 Frequency433.92MHz ReferencePackageSupplier C10603any3.9pF C20603anynot equiped C30603any12pF C50603any2.7pF J1DIL2x3 Pin length 6mm MAXDIL 2x3-2.54mm L10603any22nH R10603anynot equiped R20603any0R R30603anynot equiped R40603anynot equiped R5 (may replace C2)0603any0R Change Log V1.0first release

55 44 33 22 11 D D C C B B A A V1.0 : first scheme J1 seen from components side V1.1 : new scheme after tuning 3127713293519171211533232539511 36348222662420321816142304281210 GND DATACLK MISO SCLK VCC LVD SEB STROBE RSSIC CONFB RSSIOUT /SS SEB MOSI CONFB STROBE VCC LVD /SSSCLK GND RSSIOUT ENABLELNA DATACLKMISO RSSIC ENABLEPA ENABLEPA TX DATA MOSI TX DATA DOCUMENT VERSION ENABLELNA V1.2 : C29, C30 and C31 changed to 100nF V2.0 : changes for MC33696 MC33696MOD434EV V2.0 Echo RF Module - 433.92MHz A4 1 12 Friday, August 25, 2006 Title Size Document Number Rev Date: Sheet of VCC VCC SWITCH VCC2 VCC2 ENABLEPAVCC ENABLELNA VCC VCC2VCC2 J1-15 15 TP1VCCIO L718nH C24 1nF C7100pF C36 1nF C30 100nF C39 3.3pF C31 100nF C8100nF J1-3 3 L10100nH J1-17 17 J1-21 21 J1-25 25 J1-13 13 J1-19 19 J1-1 1 J1-31 31 X1 24.19066MHz J1-11 11 J1-33 33 J1-27 27 J1-18 18 J1-23 23 J1-29 29 C32 33pF R16 0 J1-35 35 R50R C31nF R12 10k C40 6.8pF J2 SMA vert C35 6.8pF C29 100nF R13 470k 1% C28 1nF R17 0 C20 100nF R100 0 U2 MC33696 123456 9 10 11 12 13 14 16 1718192021222324 78 15 25 26 27 28 29 30 31 32 RSSIOUT VCC2RF RFIN GNDLNA VCC2VCO GNDPA1 XTALIN XTALOUT VCCINOUT VCC2OUT VCCDIG VCCDIG2 GND GNDDIG RSSIC DATACLK CONFB MISO MOSI SCLK SEB RFOUT GNDPA2 RBGAP GNDIO VCCIN LVD STROBE GNDSUBD VCC2IN SWITCH GND C22 100pF 55 44 33 22 11 D D C C B B A A Printed Loop antenna This antenna is suitable for : MC33696MOD434EV MC33591MOD434EV xxxxx V1.0 434MHz Printed Circuit Antenna A4 1 1 Tuesday, September 05, 2006 Title Size Document Number Rev Date: Sheet of R1nc R2 0 Ohms R3nc C115pF J1 SMA vert no connected C55.6pF C3nc L122nH C25.6pF R4330 Ohms

EMITECH GRAND SUD 145, rue du Massacan – BP 25 – Z.I. « vallée du Salaison » - 34741 VENDARGUES CEDEX – Tél. 04 67 87 11 02 – Fax : 04 67 70 94 55 S.A. au capital de 480 000 € - R.C. Versailles B 344 545 645 00063 – APE 742 C RG-06-91111-6A - DM / CHB This report cancels and replaces RG-06-91111-6A Ed. 1 RADIO TESTS REPORT According to standard: FCC Part. 15 subpart C, 15.231 Equipment under test: RF Module 434MHz MC33696MOD434EV (Echo) FCC ID: RUNMC33696MOD434E Company: FREESCALE Diffusion: Mr GAUTHIER (Company: FREESCALE) Number of pages: 10 including 1 annex Ed. Date Modified page(s) Written by Name Visa Technical verification Name Visa Quality approval Name Visa 2 05-Feb-07 5 David MONTAULON Régis GONZALEZ Olivier HEYER Duplication of this report is only permitted for an integral photographic facsimile. It includes the number of pages referenced above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole production of the item tested. EMITECH RG-06-91111-6A Ed.2 PAGE : 2 NAME OF THE EQUIPMENT UNDER TEST (E.U.T) : RF Module 434MHz - MC33696MOD434EV (Echo) Serial number : None Part number : None Software Version : None MANUFACTURER'S NAME : FREESCALE APPLICANT’S ADRESS: Company : FREESCALE Adress : Semiconducteurs France SAS - Centre Electronique de Toulouse 134 Avenue General Eisenhower BP 72329 31023 TOULOUSE CEDEX 1 FRANCE Person(s) present during the tests : Mr GAUTHIER Responsible : Mr GAUTHIER DATE(S) OF TEST(S) : July, 4 th 5 th 6 th 7 th 10 th 11 th and 12 th of 2006 and November, the 15 th of 2006 TESTS LOCATION : Emitech Grand Sud Laboratory in Vendargues (34) Open area test site in Salinelles (30) Registration number 8127-19 TEST(S) SUPERVISOR : Nobody TEST(S) OPERATOR(S) : David MONTAULON EMITECH RG-06-91111-6A Ed.2 PAGE : 3 CONTENTS 1. INTRODUCTION................................................................................................................................4 2. REFERENCE DOCUMENT................................................................................................................4 3. EQUIPMENT UNDER TEST CONFIGURATION AND DESCRIPTION .............................................4 4. SUMMARY OF TEST RESULTS .......................................................................................................5 5. RADIATED ELECTRIC EMISSION ...................................................................................................6 ANNEX : PHOTOGRAPHS .......................................................................................................................8 EMITECH RG-06-91111-6A Ed.2 PAGE : 4 1. INTRODUCTION This document submits the results of Electromagnetic Compatibility tests performed on the equipment RF Module 434MHz - MC33696MOD434EV (Echo) according to the document(s) listed below. 2. REFERENCE DOCUMENT FCC Part 15 (February 2006) Code of Federal Regulations Title 47 – Telecommunications Chapter 1 – Federal Communications Commision Part 15 – Radio frequency devices Subpart C – Intentional Radiators ANSI C 63.4 (2003) American National Standard for Methods of measurement of Radio-Noise from low-voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 3. EQUIPMENT UNDER TEST CONFIGURATION AND DESCRIPTION Product description : FCC ID: RUNMC33696MOD434E ITU emission code: 14K3A1DAN Utilization: RF transceiver module used for customer evaluation of ISM band transceiver at lab. Antenna type: Incorporated antenna Antenna gain: Unknown Operating frequency range: 433.92 MHz Number of channels: 1 Channel spacing: - Frequency generation: P.L.L. synthesizer Modulation: ASK 100 % with Manchester code at 4800 bit per second Power source: 9 V battery Power level and frequency range are not user adjustable Cycle and operating mode during emission tests : Permanent emission/reception Equipment modifications applied before tests : No CPU BOARD RF Module Antenna RS232 9V Battery EMITECH RG-06-91111-6A Ed.2 PAGE : 5 4. SUMMARY OF TEST RESULTS Tests designation or section Results satisfying? Comments 15.33 Frequency range of radiated measurement - Considered 15.35 Measurement detector functions and bandwidths - Considered 15.203 Antenna requirement YES Nota 1 15.205 Restricted bands of operation YES 15.207 Conducted limits N.A. Powered by internal batteries 15.209 Radiated emission limits, general requirements YES Considered 15.231 Periodic operation in the band 40.66 40.70 MHz and above 70 MHz a) Transmission requirements YES Nota 2 b) Radiated emission YES c) Occupied bandwidth YES Nota 3 d) Frequency tolerance N.A. E.U.T. does not transmit in the band 40.60 – 40.70 MHz e) Periodic alternate field strength measurement N.A. Requirements of b) are considered N.P.: Not Performed. N.A.: Not Applicable. Sample submitted to the tests complies with the regulations of the standard FCC part 15 (02/2006) according to limits specified in this tests report. Nota 1: Internal antenna without connector Nota 2: (1) of the 15.231(a) is considered Each time order is done by user, product sends a word. This word can’t be bigger than 128 bits and transmission speed can’t be lower than 2400 bits per second. Then TX time can’t be longer than 54 ms between each manually operation. Nota 3: The bandwidth of the emission at 20 dBc is less than 15 kHz (see Photo in annex), less than 0.25 % of the center frequency (1084.75 kHz) Ed. 2 EMITECH RG-06-91111-6A Ed.2 PAGE : 6 5. RADIATED ELECTRIC EMISSION Standard : FCC Part. 15 subpart C (06), 15.231 (b) and 15.209 (a) Test method : ANSI C64-3 (03) Resolution bandwidth and test configuration : Frequency band Resolution Bandwidth Detection mode 25MHz-1GHz 120kHz Quasi-peak 1GHz-5GHz 1MHz Average Measure applies on open area test site (registration number 8127-19). Test antenna is oriented in vertical and horizontal poloarisation. Product is rotated through 360° in the horizontal plane only. Highest levels …
