RV4SDD-2301TFT LCD TV Monitor

Television/Moniter TFT LCD Model: SDD-2301N User’s Manual VOLSELECTMENUCH Achom_cover_eng 4/6/04 4:39 PM Page 1 2 Warning! Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has been included with this product. Note to CATV system installer: This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical. Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it. Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug. Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond. Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in part may be in violation of these rights. To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. ENG 4/6/04 4:39 PM Page 2 3 •Always be careful when using your TV receiver. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine. •Read all safety and operating instructions before operating your TV. •Keep the safety and operating instructions for future reference. •Heed all warnings on the TV receiver and in the operating instructions. •Follow all operating and use instructions. •Unplug the TV receiver from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners. •Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury. •Do not use the TV receiver where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc. •Do not place the TV on an unstable cart, stand, tripod, bracket, or table where it can fall. A falling TV can cause serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the TV. Follow the manufacturer’s instructions when mounting the unit, and use a mounting accessory recommended by the manufacturer. Move the TV and cart with care. Quick stops, excessive force, and uneven surfaces can make the unit and cart unsteady and likely to overturn. •Provide ventilation for the TV receiver. The unit is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, and do not place the TV receiver on a bed, sofa, rug, or other similar surface. Do not place it near a radiator or heat register. If you place the TV receiver on a rack or bookcase, ensure that there is adequate ventilation and that you’ve followed the manufacturer’s instructions for mounting. •Operate your TV receiver only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company. •Use only a grounded or polarized outlet. For your safety, this TV is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet. •Protect the power cord. Power supply cords should be routed so that they won’t be walked on or pinched by objects placed on or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit. Important Safety Information ENG 4/6/04 4:39 PM Page 3 4 •Unplug the TV from the wall outlet and disconnect the antenna or cable system during a lightning storm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-line surges. •Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of overhead power lines or other electric light or power circuits or where it can fall into such power lines or circuits. When installing an outside antenna system, be extremely careful to keep from touching the power lines or circuits. Contact with such lines can be fatal. •Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock. •Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. Never spill liquid of any kind on the TV. •Ground outdoor antennas. If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No.70-1984, provides information about proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna…

Text truncated - open the document above for the full version.

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 1 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N

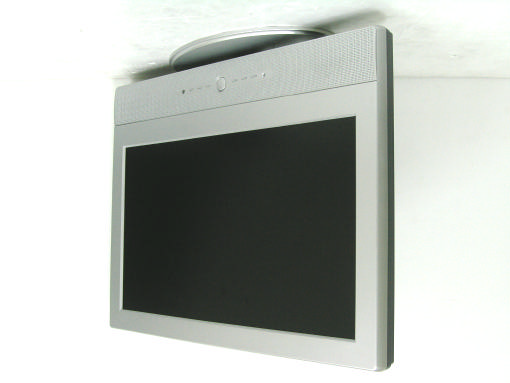

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 1 SODIFF E&T Co., Ltd. LCD TV Monitor Model : SDD-2301N Front View of EUT Rear View of EUT

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 SODIFF E&T Co., Ltd. LCD TV Monitor Model : SDD-2301N Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. SODIFF E&T Co., Ltd. LCD TV Monitor FCC ID : RV4SDD-2301 Model NO : SDD-2301N POWER : Input : AC 100~240, 50~60Hz, 2.0A Output : DC 24V, 5.42A Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufactured : SODIFF E&T Co., Ltd. Made in Korea Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 SODIFF E&T Co., Ltd. LCD TV Monitor Model : SDD-2301N Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N View of Inside I Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N View of Inside II Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 3 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Component side view of Main board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 4 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Solder side view of Main board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Component side view of Tuner board Solder side view of Tuner board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 6 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Component side view of OSD board Solder side view of OSD board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 7 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Component side view of Adapter Solder side view of Adapter Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 8 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N View of Adapter Label View of Inside Adapter I Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 9 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N View of Inside Adapter II View of Inside Adapter III Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 10 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Component side view of Power board Solder side view of Power board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 11 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Component side view of LCD Panel Solder side view of LCD Panel Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 12 of 12 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N View of LCD Panel Label

ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 16 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N 2.1 Equipment Description The Equipment Under Test (EUT) is the SODIFF E&T Co., Ltd. LCD TV Monitor, SDD-2301N. 2.2 General Specification Model Name SDD-2301N Active Area 23.01 inches (584.40mm) diagonal Outline Dimension [mm] 528.0 (H) * 326.0 (V) * 34.5 (D) Resolution 1280 *768 (WXGA) Aspect Ratio 15 : 9 Pixel Pitch [mm] 0.1305 * 0.3915 * RGB Number of Colors 16.7M (8bit) Luminance 450 Contrast Ratio 400 : 1 Typical Interface LVDS Viewing Angel (CR>10) View angle free (176/176) Response Time [ms] 25 Dimension Set Size 580 * 490 * 210 (W * H * D) Box Size 660 * 584 * 280 (W * H * D) Net Weight 11.0kg

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This LCD TV Monitor, Model SDD-2301N has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea PRODUCT : LCD TV Monitor MODEL/TYPE NO : SDD-2301N APPLICANT : SODIFF E&T Co., Ltd. #678-7, Changman-Ri, Gwangtan-Myeon, Paju-Si, Gyeonggi-Do, 413-850, Korea / Attn. : Gyoung-Gi, An // Technical Team / Deputy General Manager FCC CLASSIFICATION : Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : SODIFF TEST REPORT No. : E04.0403.FCC.202N DATES OF TEST : April 01 ~ 02, 2004 DATES OF ISSUE : April 03, 2004 TEST LABORATORY : ETL Inc (FCC Registration Number: 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea Tel: (031) 885-0072 Fax: (031) 885-0074 ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 16 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3.Description of Tests 4.Test Condition 5.Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 3 of 16 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : LCD TV Monitor l Model Number : SDD-2301N l FCC ID : RV4SDD-2301 l S/N : N/A l FCC Rule Part(s) : FCC Part 15 Subpart B l Test Procedure : ANSI C63.4-1992 l FCC Classification : Class B personal computers and peripherals l Dates of Tests : April 03, 2004 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E04.0403.FCC.202N Applicant Name : SODIFF E&T Co., Ltd. Address : 678-7, Changman-Ri, Gwangtan-Myeon, Paju-Si, Gyeonggi-Do, 413-850 Korea Attention : Gyoung-Gi, An // Technical Team / Deputy General Manager ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 4 of 16 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the SODIFF E&T Co., Ltd. Model : SDD-2301N ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 16 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N 2.1 Equipment Description The Equipment Under Test (EUT) is the SODIFF E&T Co., Ltd. LCD TV Monitor, SDD-2301N. 2.2 General Specification Model Name SDD-2301N Active Area 23.01 inches (584.40mm) diagonal Outline Dimension [mm] 528.0 (H) * 326.0 (V) * 34.5 (D) Resolution 1280 *768 (WXGA) Aspect Ratio 15 : 9 Pixel Pitch [mm] 0.1305 * 0.3915 * RGB Number of Colors 16.7M (8bit) Luminance 450 Contrast Ratio 400 : 1 Typical Interface LVDS Viewing Angel (CR>10) View angle free (176/176) Response Time [ms] 25 Dimension Set Size 580 * 490 * 210 (W * H * D) Box Size 660 * 584 * 280 (W * H * D) Net Weight 11.0kg ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 6 of 16 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N 3.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance with § 12.2 in ANSI C63.4-1992 "Measurement of Information Technology Equipment ". The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of …

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 SODIFF E&T Co., Ltd. LCD TV Monitor Model: SDD-2301N Conducted Emission Test Setup
