RV4SDM-1901LCD Monitor

BEFORE USING PACKAGE ITEMS MONITOR INSTALLATION ADJUSTMENT OF YOUR LCD MONITOR STAND ALTERATION APPENDIX Safety Precautions ..........................................2~3 Contents of Box ..................................................4 Environment ........................................................5 Monitor’s Tilt Adjustment.................................5 Signal Connection...............................................6 Plug and Play .......................................................6 Adjust Explanation .............................................7 Button Position ....................................................7 Auto Save.............................................................8 OSD/Menu-Analog ............................................8 OSD/Menu-Digital .............................................9 OSD Function ...................................................10 How to use as the wall tapestry.......................11 Resolution and Frequency ................................12 Specification of Monitor..................................13 Inconvenience of Using ...................................14 FCC Information to User..................................14 SDM1901S(¿ „fi ) 2004.2.25 4:51 PM ̆`1 2 Safety Precautions Before connecting the AC power cord, make sure the voltage rating of the electrical supply. Never insert anything metallic into the cabinet openings of the liquid crystal display (LCD) monitor; doing so may create the danger of electric shock. To avoid electric shock, never touch the inside of the LCD monitor. Only a Qualified technician should open the case of the LCD monitor. Never use your LCD monitor if the power cord has been damaged. Do not allow anything to rest on the power cord, and keep the cord away from areas where people can trip over it. Opened ventilation of monitor cabinet is Provided for heated air to prevent overheating, these openings should not be blocked or covered. SDM-1701/1901 Place the LCD monitor on a solid surface And treat it carefully. The screen is made of thin glass with a plastic front surface and can be damaged if dropped, hit or scratched. SDM1901S(¿ „fi ) 2004.2.25 4:51 PM ̆`2 3 High temperature can cause problems. Donifl t use your LCD monitor in direct sunlight, and keep it away from heaters, stoves, fireplaces, and other sources of heat. Unplug the LCD monitor when it is going to be left unused for an extended period of time Do not expose the LCD monitor to rain or use it near water(in kitchens, near swimming pools, etc.). If the LCD monitor accidentally gets wet, unplug it and contact an authorized dealer immediately Do not clean the front panel with Kenton-type materials (e.g., acetone), ethyl alcohol, toluene, ethyl acid, methyl, or chloride - these may damage the panel. SDM1901S(¿„fi) 2004.2.25 4:51 PM ̆`3 4 Contents of Box User ManualMonitor Power CordD-SUB Signal Cable DVI Signal Cable Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. TFT-LCD Monitor SDM-1701/SDM-1901 »¿º...‡‚...› Sound Cable TFT-LCD Moniteur LCD17ANM GUIDE UTILISATEUR SDM1901S(¿„fi) 2004.2.25 4:51 PM ̆`4 5 Install the Monitor Setting up an Ergonomic Working Environment Place the LCD monitor on a solid and level surface and treat it carefully. Monitor’s Tilt Adjustment Tilt the screen so as you feel comfortable working with your monitor. If you want to fold stand, Please operate the lever at the rear of your monitor stand. Lever SDM1901S(¿„fi) 2004.2.25 4:51 PM ̆`5 6 Connecting Your LCD Monitor How to connect the monitor with the power supply and the signal cable. Cable connections 1. Power is supplied by connecting power cord to ’s direction on the rear of your monitor. 2. You can see analog display by connecting D-SUB signal cable to ’s direction on the rear of your monitor. 3. You can see digital display by connecting DVI signal cable to ’s direction on the rear of your monitor. 4. Connect the cable to computer’s sound output after connecting sound cable to ’s direction on the rear of your monitor, then you can listen through the speaker inside monitor. 5. If you want to listen by using not speaker inside monitor but earphone or headphone, , connect earphone or headphone to ’s direction Plug and Play The adoption of the new VESA Plug and Play solution eliminates complicated and time consuming setup. It allows you to install your monitor in a Plug and Play compatible system without the usual hassles and confusion. Your PC system can easily identify and configure itself for use with your display. This monitor automatically tells the PC system its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the PC system can automatically configure itself to use the flat panel display. If your PC system needs a video driver, set to XGA(1024x768)@75Hz monitor as default or Flat panel.(1024x768) SDM1901S(¿„fi) 2004.2.25 4:51 PM ̆`6 7 Adjust Explanation Buttons for function controls of monitor are under the monitor . Adjust your monitor picture, after reading the button explanation correctly. Button Position Nom POWER Power ON/OFF the monitor MENU OSD(On Screen Display) On/OFF Sub menu EXIT Main menu EXIT (DOWN) Brightness control OSD Main menu right direction OSD Sub menu down direction Adjustment of select menu Descriptions (UP) Volume control Mute will be stopped by pressing this key on mute status. OSD Main menu left direction OSD Sub menu up direction Adjustment of select menu SELECT AUTO ADJ SOURCE OSD menu select Press this key after pressing (UP) key, and then this key works as mute. Position auto adjustment Select Analog/Digital LED GREEN : Normal Operation OFF : Turns off the monitor Orange : Power saving mode or no signals SDM-1901S No. model Monitor Function SDM1901S(¿„fi) 2004.2.25 4:51 PM ̆`7 8 Auto Adjustment Whenever you open the on-screen menu and allow an adjustment window to remain active for about 10 seconds without pressing ot…

Text truncated - open the document above for the full version.

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 1 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004

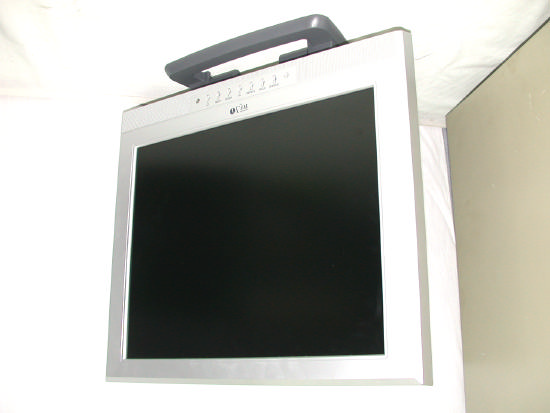

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 1 SODIFF E&T Co., Ltd. LCD Monitor Model : SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 View of Front View of Rear

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model : SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. SODIFF E&T Co., Ltd. LCD Monitor FCC ID : RV4SDM-1901 Model NO : SDM-1901S POWER : AC 100-240V~, 50/60Hz (Adapter) DC 12V, 3.5A (Monitor) Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufactured : SODIFF E&T Co., Ltd. Made in Korea Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model : SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 View of Inside I Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 View of Inside II Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 3 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Component side view of Main board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 4 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Solder side view of Main board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Component side view of Power board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 6 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Solder side view of Power board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 7 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Component side view of Sound board Solder side view of Inverter board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 8 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Component side view of OSD board Solder side view of OSD board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 9 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Component side view of LCD Panel Solder side view of LCD Panel Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 10 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 View of LCD Panel Label

ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 16 FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S 2.1 Equipment Description The Equipment Under Test(EUT) is the SODIFF E&T Co., Ltd. LCD Monitor, SDM-1901S. 2.2 General Specification Panel Size : ½ Display Size : (H) × (V) Max Resolution : SXGA 1280 ×1024 Luminance : 250 cd/ Contrast ratio : Pixel Pitch : × LCD Module Interface Type : LVDS Horizontal : 30 ~ 80KHz Input Frequency Vertical : 56 ~ 75Hz Input Signal : D-SUB, DVI, SOUND Audio Output : 3W + 3W : Brightness/Contrast, Color Setting, Position, OSD (On Screen Display) Clock/Phase, OSD Control Power : AC 100 ~ 240V, ~ 50 / 60 Hz, 1A Net : 7.2Kg Weight Gross : 8.7Kg Dimension : 460 * 445 * 170(W * H * D) List of Each OSC. Or X-Tal. Freq. (>=1MHz) : OSC ‡ 14.3181MHz, 24.00MHz

www.etl.re.kr ETL Inc. This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This LCD Monitor, Model SDM-1901S has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea PRODUCT : LCD Monitor MODEL/TYPE NO : SDM-1901S FCC ID : RV4SDM-1901 APPLICANT : SODIFF E&T Co., Ltd. #678-7, Changman-Ri, Gwangtan-Myeon, Paju-Si, Gyeonggi-Do, 413-850, Korea Attn. : Gyoung-Gi, An // Technical Team / Deputy General Manager FCC CLASSIFICATION : Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : SODIFF TEST REPORT No. : E04.0224.FCC.129N DATES OF TEST : February 23 ~ 24, 2004 DATES OF ISSUE : February 24, 2004 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 16 FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3.Description of Tests 4.Test Condition 5.Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 3 of 16 FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : LCD Monitor l Model Number : SDM-1901S l FCC ID : RV4SDM-1901 l S/N : N/A l FCC Rule Part(s) : FCC Part 15 Subpart B l Test Procedure : ANSI C63.4-1992 l FCC Classification : Class B personal computers and peripherals l Dates of Tests : February 24, 2004 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E04.0224.FCC.129N Applicant Name : SODIFF E&T Co., Ltd. Address : 678-7, Changman-Ri, Gwangtan-Myeon, Paju-Si, Gyeonggi-Do, 413-850 Korea Attention : Gyoung-Gi, An // Technical Team / Deputy General Manager ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 4 of 16 FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the SODIFF E&T Co., Ltd. Model : SDM-1901S ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 16 FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S 2.1 Equipment Description The Equipment Under Test(EUT) is the SODIFF E&T Co., Ltd. LCD Monitor, SDM-1901S. 2.2 General Specification Panel Size : ½ Display Size : (H) × (V) Max Resolution : SXGA 1280 ×1024 Luminance : 250 cd/ Contrast ratio : Pixel Pitch : × LCD Module Interface Type : LVDS Horizontal : 30 ~ 80KHz Input Frequency Vertical : 56 ~ 75Hz Input Signal : D-SUB, DVI, SOUND Audio Output : 3W + 3W : Brightness/Contrast, Color Setting, Position, OSD (On Screen Display) Clock/Phase, OSD Control Power : AC 100 ~ 240V, ~ 50 / 60 Hz, 1A Net : 7.2Kg Weight Gross : 8.7Kg Dimension : 460 * 445 * 170(W * H * D) List of Each OSC. Or X-Tal. Freq. (>=1MHz) : OSC ‡ 14.3181MHz, 24.00MHz ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 6 of 16 FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N …

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1901S FCC ID: RV4SDM-1901 Report No: E04.0224.FCC.129N Date of issue: February 24, 2004 Conducted Emission Test Setup
