RV4SDM-1503LCD Monitor

USER MANUAL PC„ ̄' » ¿º...‡‚ ...› 2004.2.25 7:34 PM ̆`1 USER MANUAL PC„ ̄' » ¿º...‡‚ ...› 2004.2.25 7:34 PM ̆`2 Congratulations On your new TFT LCD monitor Introduction TFT LCD monitor does not only emit harmful electromagnetic waves but also saves installation space by 70% with respect to CRT monitors. It satisfies VSEA DPMS requirements and consumes quite small amount of energy unlikely to CRT monitors. As an example, the actual power consumption of LCD monitor during operation is less than 30 Watt while CRT is over 100 Watt. LCD Monitor is safe, easy to use, and enviornment-friendly device. AS LCD monitor satisfies VESA DDC 1/2 requirements, Plug&Play is supported as well. It is not needed of additional installation of hardware or software. Only you have to do is to plug out the VGA cable from your old CRT monitor and plug in to it. About User's manual This will guide you to install LCD monitor with ease and offer additional warranty terms. PC„ ̄' » ¿º...‡‚ ...› 2004.2.25 7:34 PM ̆`3 1. Safety Instructions ...............................4 2. Installation ............................................6 3. Using Function.....................................7 4. Warranty.............................................10 5. Service ................................................11 6. Applicable Timing.............................12 7. Specification.......................................13 8. General Information ..........................14 PC„ ̄' » ¿º...‡‚ ...› 2004.2.25 7:34 PM ̆`4 1. Safety Instructions This product is designed under strict safety policies. Please read the following safety instructions carefully to prevent damage to property and harm to users. -Do Not Place any heavy or wet objects on the power cable. -Keep away from small metal or inflammable objects on the monitor. -Do not cover the vents on monitor case. -Avoid using in high heat, moisture or dust condition. Optimal Operating Condition Temperature: 5~35 Centigrade Degree Moisture: 30~80 RH -Turn off the monitor and check all the cables connected right before you plug in outlet. -Do not use loose or damaged plug. In this case, please contact dealer for exchanging it. -Avoid using sharp tools near monitor. This can damage your monitor. -Do not use benzene to clean. Contents 4 SDM-1503A 15" TFT LCD Monitor with built-in speaker 15 Pin D-Sub VGA Signal Cable AC Power Plug Speaker Cable User's Manual AC/DC Power Adaptor Please make sure the above items are included. If any items are missing, please contact our dealer. In case of repacking for moving, we suggest you to keep the box. The box is specially designed to protect the monitor properly. PC„ ̄' » ¿º...‡‚ ...› 2004.2.25 7:34 PM ̆`5 Illustration of monitor 5 Front Rear PC„ ̄' » ¿º...‡‚ ...› 2004.2.25 7:34 PM ̆`6 2. Installation A. Turn off your monitor and computer. B. Connect the Power Cable and D-Sub Analog Cable to your TFT LCD monitor and Computer. C. Turn on the Monitor and Computer. As a result of successful installation, you can see Green Led Light and Image Display on your monitor. D. Tune the image. Note 1. TFT Monitor is set to be factory setting as default. Due to various VGA Cards existent, occasionally, the signal of VGA out does not correspond to VESA standard correctly. This results in slightly tilted image and noise. If this happens, adjust the image by using OSD Control Button. 6 Fcc Information to User Note: This equipment has been tested and found to comply with limit for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential Installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. May cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. IF this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to try to correct the interrence by one or the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experience radio TV technician for help Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment PC„ ̄' » ¿º...‡‚ ...› 2004.2.25 7:34 PM ̆`7 3. Using Function Function Buttons 7 No. LED Indicator MENU EXIT POWER NameLegends Green: Indicate Normal Operation Red: Power Saving Mode/No Input Signal No light: Power Out Open OSD (On-Screen Display) and activate the Menu Exit the active Menu or OSD Shift left in OSD Menu Adjust value of the selected menu Direct Access for Brightness (Only when OSD is turned off) Shift right in OSD Menu Adjust value of the selected menu Direct Access for Sound On/Off (Only when OSD is turned off) Miscellaneous Auto Adjust Turn On/Off Introduction Function buttons are located on the front. Read the following descriptions of the buttons carefully before you use. PC„ ̄' » ¿º...‡‚ ...› 2004.2.25 7:34 PM ̆`8 AutoSave Any changes done in OSD Menu is automatically saved at once and OSD menu will be inactive after 40 seconds of no touching. To adjust of this inactive time, you can do following steps that allow adjustment from 10 seconds to 40 seconds. Press Button 5 for Miscellaneous OSD Time. The factory settings are consisted of 14 basic modes regarding supported refreshing rate and resolution. These values can be set by manual adjustment OSD (On Screen Display) Adjust Function 8 OSD will be displayed active like the above figure by pressing No.2 Menu Button while it is inactive. Throughout Using the Button, you can choose different Function and the d…

Text truncated - open the document above for the full version.

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 1 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A 24MHz

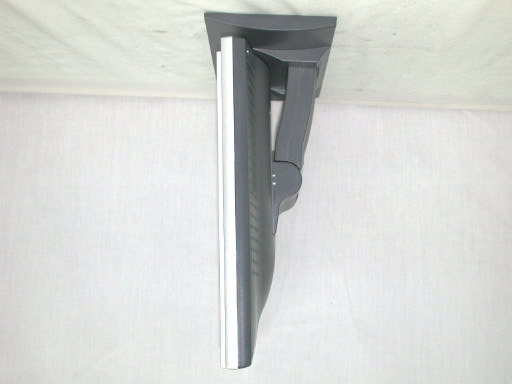

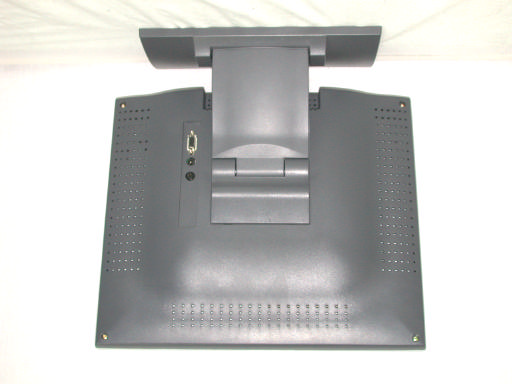

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model : SDM-1503A Front View of EUT Rear View of EUT Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model : SDM-1503A Right View of EUT Left side View of EUT

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model : SDM-1503A Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. SODIFF E&T Co., Ltd. LCD Monitor FCC ID : RV4SDM-1503 Model NO : SDM-1503A POWER : DC 12V, 3.0A, 50/60Hz Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufactured : SODIFF E&T Co., Ltd. Made in Korea Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model : SDM-1503A Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A View of Inside I View of Inside II Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A View of Case I View of Case II Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 3 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Component side view of Main board Solder side view of Main board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 4 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Component side view of Adapter Solder side view of Adapter Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A View of Adapter Label View of Inside Adapter I Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 6 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A View of Inside Adapter II Component side view of Power board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 7 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Solder side view of Power board Component side view of Inverter board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 8 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Solder side view of Inverter board Component side view of OSD board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 9 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Solder side view of OSD board Component side view of LCD Panel Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 10 of 10 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Solder side view of LCD Panel View of LCD Panel Label

ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 16 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A 2.1 Equipment Description The Equipment Under Test(EUT) is the SODIFF E&T Co., Ltd. LCD Monitor, SDM-1503A. 2.2 General Specification Function Monitor Type SDM-1503A Display area 307.2mm * 230.4mm Display color 262.144 Pixel pitch 0.297mm * 0.297mm Max. resolution XGA 1024 * 768 (@ 75Hz) Interface TTL, LVDS Viewing angle 60 degrees horizontal / 45 degrees vertical Contrast ratio 300 : 1 (typical Brightness 250cd / m Physical rotation +30 degrees, -5 degrees Up / Down Horizontal frequency 31 ~ 69 kHz Vertical frequency 56 ~ 85 Hz LCD panel Dimension 383 (W)mm * 363 (H)mm * 165 (D)mm Video Input PC Analog RGB Option Audio Input Audio (L, R) Power Stand – by : watt / Operation : 30 watt Speaker output 2 watt / CH X 2EA Plug & Play level DDC 1/2 B Weight Net 5.13 kg / Gross 6.86 kg Others Power Supply DC 12V, 3.0A, 50/60 Hz

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This LCD Monitor, Model SDM-1701S has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea PRODUCT : LCD Monitor MODEL/TYPE NO : SDM-1503A FCC ID : RV4SDM-1503 APPLICANT : SODIFF E&T Co., Ltd. #678-7, Changman-Ri, Gwangtan-Myeon, Paju-Si, Gyeonggi-Do, 413-850, Korea Attn. : Gyoung-Gi, An // Technical Team / Deputy General Manager FCC CLASSIFICATION : Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : SODIFF TEST REPORT No. : E04.0310.FCC.147N DATES OF TEST : March 8~9, 2004 DATES OF ISSUE : March 10, 2004 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 16 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3.Description of Tests 4.Test Condition 5.Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 3 of 16 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : LCD Monitor l Model Number : SDM-1503A l FCC ID : RV4SDM-1503A l S/N : N/A l FCC Rule Part(s) : FCC Part 15 Subpart B l Test Procedure : ANSI C63.4-1992 l FCC Classification : Class B personal computers and peripherals l Dates of Tests : March 10, 2004 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E04.0310.FCC.147N Applicant Name : SODIFF E&T Co., Ltd. Address : 678-7, Changman-Ri, Gwangtan-Myeon, Paju-Si, Gyeonggi-Do, 413-850 Korea Attention : Gyoung-Gi, An // Technical Team / Deputy General Manager ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 4 of 16 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the SODIFF E&T Co., Ltd. Model : SDM-1503A ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 5 of 16 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A 2.1 Equipment Description The Equipment Under Test(EUT) is the SODIFF E&T Co., Ltd. LCD Monitor, SDM-1503A. 2.2 General Specification Function Monitor Type SDM-1503A Display area 307.2mm * 230.4mm Display color 262.144 Pixel pitch 0.297mm * 0.297mm Max. resolution XGA 1024 * 768 (@ 75Hz) Interface TTL, LVDS Viewing angle 60 degrees horizontal / 45 degrees vertical Contrast ratio 300 : 1 (typical Brightness 250cd / m Physical rotation +30 degrees, -5 degrees Up / Down Horizontal frequency 31 ~ 69 kHz Vertical frequency 56 ~ 85 Hz LCD panel Dimension 383 (W)mm * 363 (H)mm * 165 (D)mm Video Input PC Analog RGB Option Audio Input Audio (L, R) Power Stand – by : watt / Operation : 30 watt Speaker output 2 watt / CH X 2EA Plug & Play level DDC 1/2 B Weight Net 5.13 kg / Gross 6.86 kg Others Power Supply DC 12V, 3.0A, 50/60 Hz ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 6 of 16 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A 3.1 Conducted Emission Measurement Conducted emissions measurements were made in accordance with § 12.2 in ANSI C63.4-1992 "Measurement of Information Technology Equipment ". The measurement were performed over the freque…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 1 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea 2 of 2 SODIFF E&T Co., Ltd. LCD Monitor Model: SDM-1503A Conducted Emission Test Setup
