SkyPilot SkyExtender DualBand Installation and Setup Guide FCC Radio Frequency Interference Statement SkyExtender DualBand FCC Number: RV7-DBE1010 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 90 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed, and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and the receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. Maximum Permissible Exposure In order to meet Industry Canada, FCC and other regulatory requirements for RF Exposure, the SkyGateway and SkyExtender units must be located a minimum of 21 cm (8 inches) from all persons. This distance is determined based upon the aforementioned 1 mW/cm2 limit, measured data, and the following far-field peak power density equation: [] S d GP)20/)(( 10282.0 + = where: d = MPE distance in cm P = Power in dBm (peak) G = Antenna Gain in dBi S = Power Density Limit in mW/cm 2 (1 mW/cm 2 ) Certified laboratory measurements indicate that the FCC’s Power Density Limit of 1 mW/cm2 is met at a distance of much less than 20 cm (8 inches). However the minimum distance for fixed or mobile transmitters is 20 cm even if calculations indicate the MPE distance is much less. FCC 15.203 statement Because this device uses standard RF connectors for the external removable antennas, professional installation is required. IC RSS-210 statement This device has been designed to operate with the external antennas for the 2.4 GHz band listed below, and having a maximum gain of 7.4 dBi. Antennas not included in this list or having a gain greater than 7.4 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. Approved antennas: Manufacturer Model Comet SF245 Comet SF245+12 Comet SF245+12x C o n t e n t s About This Guide 5 1 Overview 7 2 Your SkyExtender DualBand kit 9 3 Installing SkyExtender DualBand 11 4 Configuring SkyExtender DualBand 15 5 Configuration Tool Reference 45 A Connecting to the Access Point Command-Line Interface 73 B Manually Updating Access Point Software 79 C WLAN Configuration Types 81 A b o u t T h i s G u i d e This guide provides directions for installing and setting up a SkyPilot™ SkyExtender™ DualBand, which can provide access point services for users of 802.1x wireless (Wi-Fi) networks. This guide assumes administrator-level knowledge of IP networks and a familiarity with configuring wireless devices. SkyPilot SkyExtender DualBand Installation and Setup Guide 6 SkyPilot SkyExtender DualBand Installation and Setup Guide 7 O v e r v i e w SkyExtender DualBand is a dual-radio solution that combines SkyPilot’s long- range, high-capacity 5 GHz mesh backhaul with a high-powered 802.11b/g access point that lets service providers and municipalities offer standard Wi-Fi services over great distances, for targeted hot zones or dense, ubiquitous coverage patterns. Features and benefits With the ability to create multiple WLANs (wireless local area networks), each with its own VLAN and security policy, the SkyExtender DualBand can support several business models with a single service installation. SkyExtender DualBand provides a unique opportunity for WISPs looking to combine scalable Wi-Fi capacity with the seamless coverage of a wireless mesh network. SkyExtender DualBand nodes on a wireless mesh network offer a basis for multi- service networks capable of providing end-to-end security and quality of service for a variety of bandwidth-hungry applications and services, including VoIP and video surveillance solutions. The auto-discovery and rapid provisioning features of a SkyPilot wireless mesh network can greatly reduce deployment and maintenance costs. Multiple topology options and network scalability create intriguing options for rapidly growing a metro Wi-Fi customer base. 1 SkyPilot SkyExtender DualBand Installation and Setup Guide 8 Default access point configuration The SkyExtender DualBand access point is set up to provide Wi-Fi access right out of the box. The access point includes a preconfigured WLAN with the SSID (service set identifier) SkyPilotDualBand , providing WPA-PSK (Wi-Fi protected access – pre-shared key) protection. Users attempting to connect to the SkyPilotDualBand WLAN must provide a password ( publicpublic by default). The default configuration is provided for initial management and configuration of the SkyExtender DualBand access point via a wireless connection. You should always create an access point configuration before testing the device or making it available to customers. NOTE A wireless network protected by WPA-PSK is vulnerable. To provide a more secure level of protection, configure the WLAN for WPA a…

Text truncated - open the document above for the full version.

March 16, 2006 American TCB 6731 Whittier Ave. Suite C110 McLean VA. 22101 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC Rules (CFR 47) regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark Briggs Principal Engineer MB/dmg Enclosures: Agent Authorization Letter Emissions Test Report with Exhibits

System Architecture and Protocol Guide – 9-05 1 © 2005 SkyPilot Networks, Inc. Technical Overview System Architecture and Protocol Guide System Architecture and Protocol Guide – 9-05 2 © 2005 SkyPilot Networks, Inc. Table of Contents Introduction .................................................................................................................................... 3 System Components ................................................................................................................. 3 Network Topologies....................................................................................................................... 4 Point-to-Point/Multipoint ............................................................................................................ 4 Mesh .......................................................................................................................................... 4 RF Management ............................................................................................................................. 7 Eight-way Antenna Array........................................................................................................... 7 Spectral Management ............................................................................................................... 8 Link Management ...................................................................................................................... 9 Per-link Data Rates for Different Modulation Types .................................................................. 9 SkyPilot Synchronous Mesh Protocol...................................................................................... 10 Quality of Service ......................................................................................................................... 12 Security Provisions...................................................................................................................... 14 Traffic Filtering ......................................................................................................................... 14 VLANs...................................................................................................................................... 15 Encryption and Authentication................................................................................................. 15 Network Management .................................................................................................................. 16 System Architecture and Protocol Guide – 9-05 3 © 2005 SkyPilot Networks, Inc. Introduction The SkyPilot Carrier-Class Broadband Wireless System supports an innovative architecture offering point-to-point, point-to- multipoint and mesh topologies. Automatic network discovery and connectivity allows an operator to quickly build a network offering high levels of coverage and redundancy. The system implements a sophisticated and flexible Layer 2 network. Rate control and packet prioritization enables multiple service offerings, including high-quality voice over IP (VoIP) support. Packet filtering combined with wireless link encryption provides very high levels of security. Full authentication and management of subscriber nodes is supported, with each network element providing an SNMP Agent and a Command Line Interface (CLI). Software images are upgraded over the air. This document provides a description of the SkyPilot system architecture and protocols. The hardware components are described along with details of network topologies and routing, spectral and link management, network-wide synchronization, quality of service, security provisions, and network management. System Components The SkyPilot Carrier-Class Broadband Wireless System has four hardware components that together support a highly flexible wireless network architecture: • SkyGateway The SkyGateway provides an interface between the wireless network and the Internet or other Local/Wide Area Network (LAN/WAN). The SkyGateway links directly to SkyExtenders and/or SkyConnectors as customer premises equipment (CPE) in point-to-point/multipoint configurations, or indirectly via multiple SkyExtender hops in a full mesh network topology. The SkyGateway has a compact, lightweight, fully integrated mechanical design with a 10/100Base-T interface and an integral GPS receiver to provide a highly accurate system timing source. • SkyExtender The SkyExtender enables a network operator to expand coverage and increase system capacity. The SkyExtender can link directly to a SkyGateway and/or one or more SkyExtenders and/or SkyConnectors. The SkyExtender hardware is identical to that of the SkyGateway, with the software image differentiating functionality. The 10/100Base-T Ethernet interface may be used to provide a subscriber interface, allowing the SkyExtender to perform double-duty as CPE that extends the network’s reach from the SkyGateway(s). • SkyExtender DualBand The SkyExtender DualBand has the same backhaul features as a SkyExtender, and adds an integral Wi-Fi access point to afford service providers with greater flexibility when deploying wireless access solutions in HotZones or HotRegions. As the name implies, the SkyExtender DualBand has separate radios for backhaul (at 5 GHz) and access (industry-standard IEEE 802.11b/g at 2.4 GHz). The separation of access from backhaul enables the use of multiple non-overlapping channels when deploying a “honeycomb” of Wi-Fi cells, thus enhancing throughput, subscriber density, network capacity and scalability. • SkyConnector The SkyConnector comes in both outdoor and indoor variants, and provides an interface between a subscriber and the wireless SkyPilot network. The link may be indirect via a SkyExtender or direct to a SkyGateway. The subscriber interface is standard 10/100Base-T Ethernet. The SkyConnector is fully integrated and houses a single antenna with a 28° horizontal cov…

Text truncated - open the document above for the full version.

Page 1 of 2 May 4, 2006 RE: SkyPilot. FCC ID: RV7-DBE1010 Attention: Doug Noble Please find our responses to your comments on this Application below: 1.) No label location photo was submitted with this application. Please submit to ATCB. The document “Label location.jpg”, showing the label on the underside of the product, was uploaded when we made the application. Please advise if this document has been corrupted and we will upload a second time. 2.) RF Exposure needs to be calculated to 20 cm. See attachments. Please revise. The rf exposure calculations show the power density at 20cm and also the distance at which the power density is at the limit. The sixth column shows the power density at a distance of 20cm (in the example below, taken for the combination of 5 GHz and 2.4 GHz transmitters operational simultaneously, the power density is 1.1 mW/cm 2 ). The final column is the distance at which the power density is at the limit specified in the second column (in the example below the distance is 20.6cm) Industry Canada 1.) Test report for Canada uses out of date standard. Please use the current standard RSS-210 September 2005. Please revise test report. The report has been updated to reflect RSS 210 Issue 6. 2.) The RSP-100 page 2 needs to have a OATS number on file with Canada. Without this number we cannot issue Canadian Certificate. Please revise. Updated and re-uploaded. Page 2 of 2 3.) The emission designator for both modulations derived from the 99% bandwidth plots in both frequency bands must be filled in on the second page of the RSP- 100. Please revise. (See attachment) Updated and re-uploaded. Regards, Mark Briggs Principal Engineer

GRAPHICS DEPT: PHONE: 408-468-1246 • FAX: 408-434-6488 • E-MAIL: [email protected] • WEB SITE: www.bal.com APPROVED As submitted. APPROVED WITH CHANGES Second proof is not required. CHANGES – SECOND PROOF REQUIRED Indicate changes. Rescheduling and additional charges may be necessary. G 10 29 04 REV 5 (PROOF E-MAIL) LM 1. CHECK THE LAYOUT, COPY (TEXT, GRAPHICS), COLOR CALLOUT(S), AND DIMENSIONS. 2. RESPOND VIA FAX OR E-MAIL INDICATING ONE OF THE FOLLOWING: 3. FOLLOW-UP WITH A CALL OR E-MAIL TO CONFIRM THAT WE RECEIVED YOUR RESPONSE. IN ORDER TO MEET YOUR DELIVERY DATE, PLEASE COMPLETE THE FOLLOWING Signature for fax approvals: Date: BAL INVOICE #: SALESPERSON: P.O. #: DESC.: QT Y.: ART: PROOF: ATTENTION: COMPANY: DATE: NO. OF PAGES: E-MAIL: ARTWORK PROOF

MPE Calculations The device is not a portable device (i.e. intended to be worn on the body or be hand- held), so it is classified as being either a mobile device or a fixed mounted device. The user’s manual specifies a minimum separation distance of at least 21cm, consistent with this classification. FCC part 1.1310, Table 1 limits the power density for uncontrolled exposure. The power density, P d (mW/cm 2 ) calculated from the maximum EIRP, P t (mW) and the distance, d (m), between the transmitting antenna and the closest person, can be calculated using: P d = P t /(4 πd 2 ) RF Exposure Calculation for 2.4 GHz Transmitter Frequency MPE Limit (mW/cm 2 ) Output Power (mW) Max. Antenna Gain (dBi) EIRP (mW) Pd at 20cm (mW/cm 2 ) Distance where Pd = limit (cm) 2400 to 2484 MHz 1.00 537.0 7.4 2951.2 0.6 15.3 RF Exposure Calculation for 5GHz Transmitter Frequency MPE Limit (mW/cm 2 ) Output Power (mW) Max. Antenna Gain (dBi) EIRP (mW) Pd at 20cm (mW/cm 2 ) Distance where Pd = limit (cm) 5725 to 5850 MHz 1.00 60.3 16.0 2398.8 0.5 13.8 RF Exposure Calculation for Both Transmitters Frequency MPE Limit (mW/cm 2 ) Output Power (mW) Max. Antenna Gain (dBi) EIRP (mW) Pd at 20cm (mW/cm 2 ) Distance where Pd = limit (cm) 2400 to 5850 MHz 1.00 - - 5345.6 1.1 20.6 (EIRP used is the sum of the EIRPs of the individual transmitters) As shown in the calculations above, the power density 21cm from the device is below the maximum permitted level for uncontrolled exposure.

File: R63255 Page 1 of 19 2016-01 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to Industry Canada RSS-Gen Issue 1 / RSS 210 Issue 6 FCC Part 15, Subpart C Section 15.247(DTS) Manufacturer: Skypilot Networks Model: SkyExtender DualBand FCC ID: RV7-DBE1010 UPN: 5550A-DBE1010 GRANTEE: Skypilot Networks 1301 Shoreway Rd. Belmont, CA 94002 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: March 16, 2006 FINAL TEST DATE: November 18 and December 22, 2005 and March 1, 2006 AUTHORIZED SIGNATORY: ______________________________ Mark Briggs Principal Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: March 16, 2006 File: R63255 Page 2 of 19 pages DECLARATIONS OF COMPLIANCE Equipment Name and Model: SkyExtender DualBand Manufacturer: Skypilot Networks 1301 Shoreway Rd. Belmont, CA 94002 Tested to applicable standards: Industry Canada RSS-Gen Issue 1 RSS 210 Issue 6 “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” FCC Part 15.247 (DTS) Measurement Facility Description Filed With Department of Industry: Departmental Acknowledgement Number: IC2845 SV2 Dated August 16, 2007 Departmental Acknowledgement Number: IC2845 SV3 Dated August 16, 2007 I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standards (through the use of ANSI C63.4:2003 as detailed in section 5.3 of RSS-210, Issue 5); and that the equipment performed in accordance with the data submitted in this report. Signature ______________________________ Name Mark Briggs Title Principal Engineer Company Elliott Laboratories Inc. Address 684 W. Maude Ave Sunnyvale, CA 94086 USA Date: March 16, 2006 Maintenance of compliance with the above standards is the responsibility of the manufacturer. Any modification of the product which may result in increased emissions should be checked to ensure compliance has been maintained (i.e., printed circuit board layout changes, different line filter, different power supply, harnessing or I/O cable changes, etc.). Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: March 16, 2006 File: R63255 Page 3 of 19 pages TABLE OF CONTENTS COVER PAGE............................................................................................................................................................. 1 DECLARATIONS OF COMPLIANCE ....................................................................................................................2 TABLE OF CONTENTS ............................................................................................................................................3 SCOPE..........................................................................................................................................................................5 OBJECTIVE ................................................................................................................................................................5 SUMMARY OF RESULTS ........................................................................................................................................6 DIGITAL TRANSMISSION SYSTEMS (2400 – 2483.5MHZ) ..............................................................................6 DIGITAL TRANSMISSION SYSTEMS (5725 –5850 MHZ) .................................................................................6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS ..........................................................................7 MEASUREMENT UNCERTAINTIES ....................................................................................................................7 EQUIPMENT UNDER TEST (EUT) DETAILS ......................................................................................................8 GENERAL................................................................................................................................................................8 OTHER EUT DETAILS ...........................................................................................................................................8 ENCLOSURE ...........................................................................................................................................................8 MODIFICATIONS ...................................................................................................................................................8 SUPPORT EQUIPMENT .........................................................................................................................................8 EUT INTERFACE PORTS ......................................................................................................................................9 EUT OPERATION DURING TESTING .................................................................................................................9 ANTENNA REQUIREMENTS................................................................................................................................9 TEST SITE .................................................................................................................................................................10 GENERAL INFORMATION .................................................................................................................................10 CONDUCTED EMISSIONS CONSIDERATIONS...............................................................................................10 RADIATED EMISSIONS CONSIDERATIONS .......................…

Text truncated - open the document above for the full version.

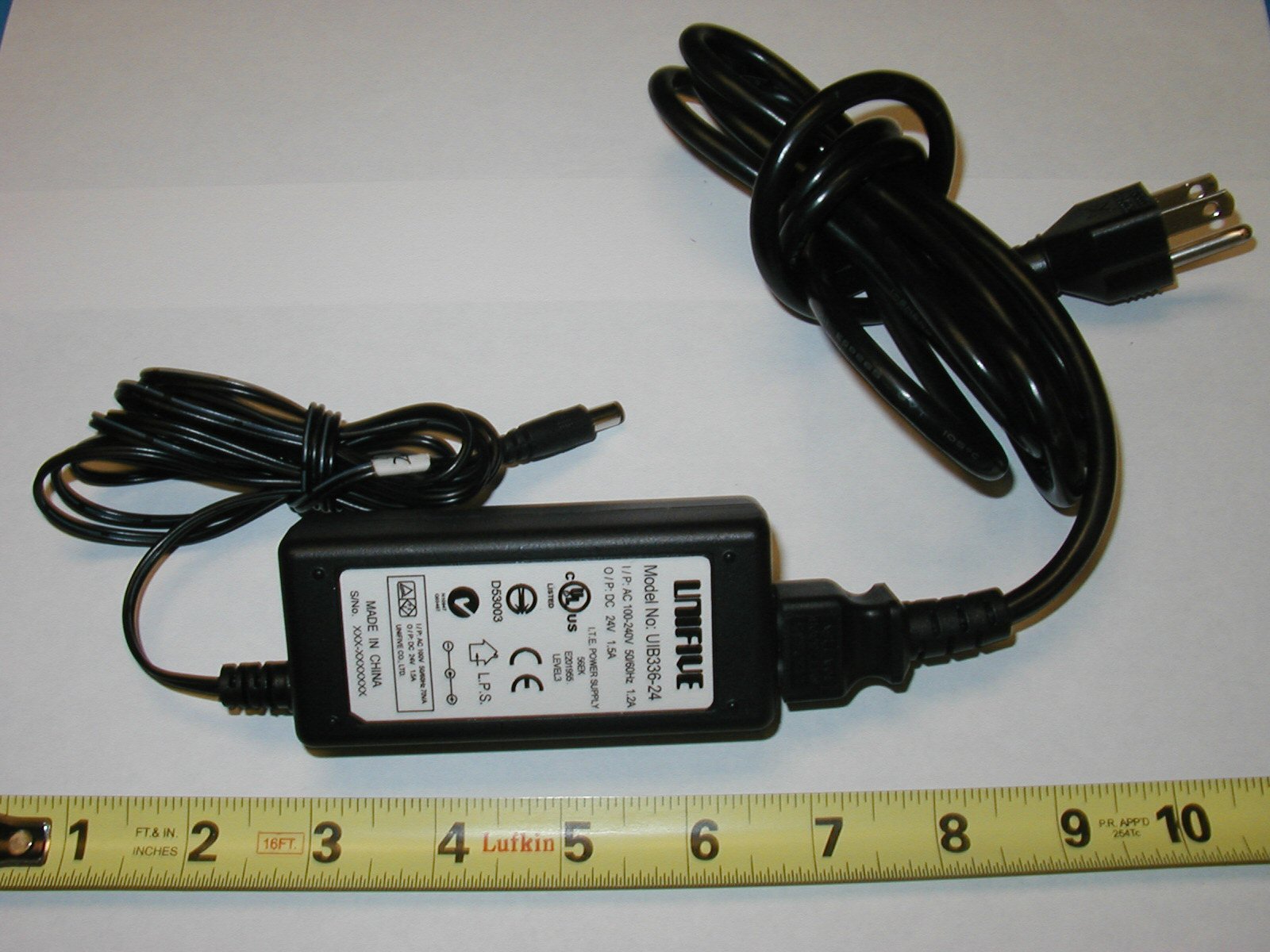

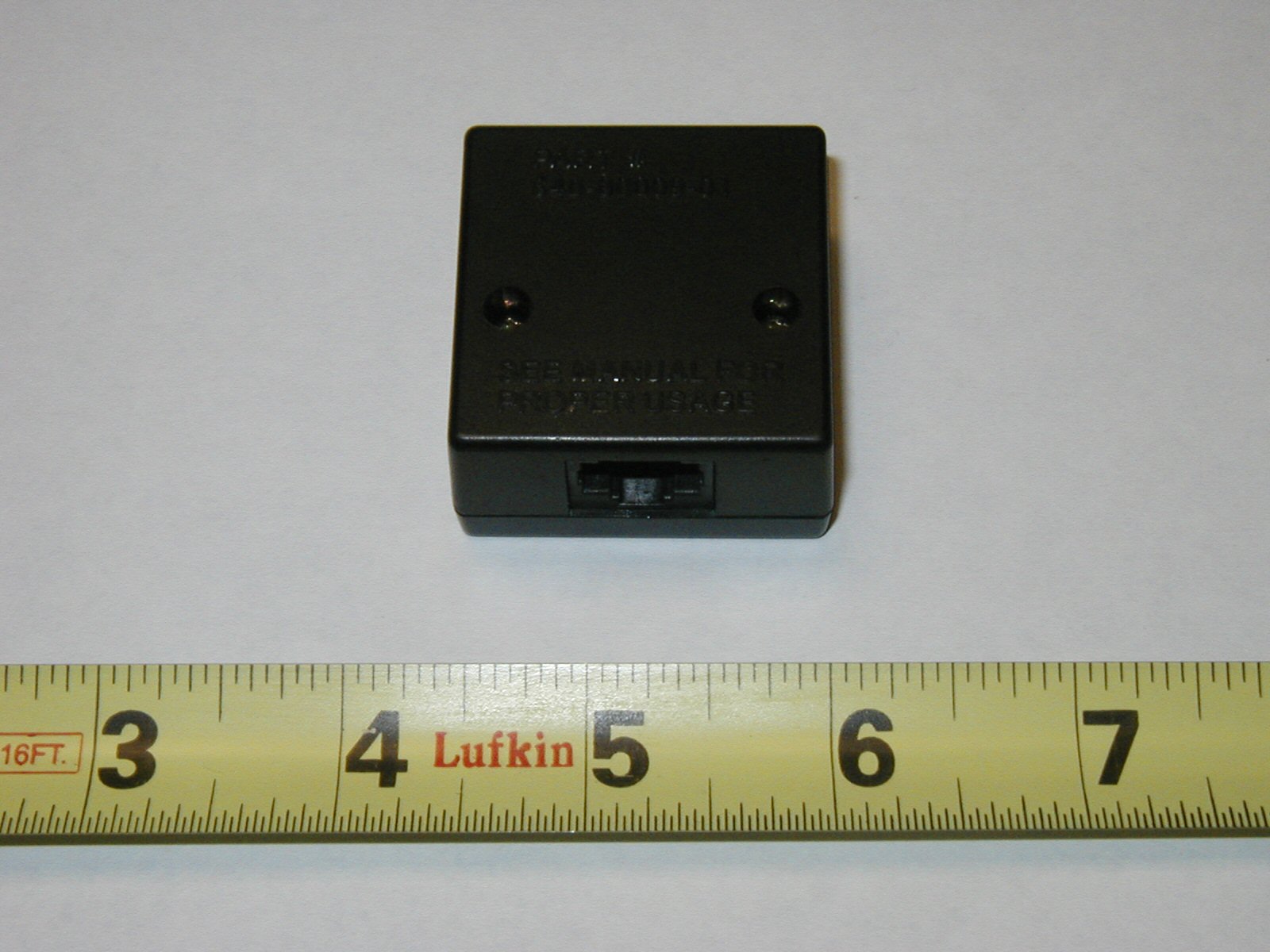

Radiated Emissions Test Configuration Photographs Radiated Emissions Test Configuration Photographs AC Power Line Conducted Emissions Test Configuration Photographs AC Power Line Conducted Emissions Test Configuration Photographs
