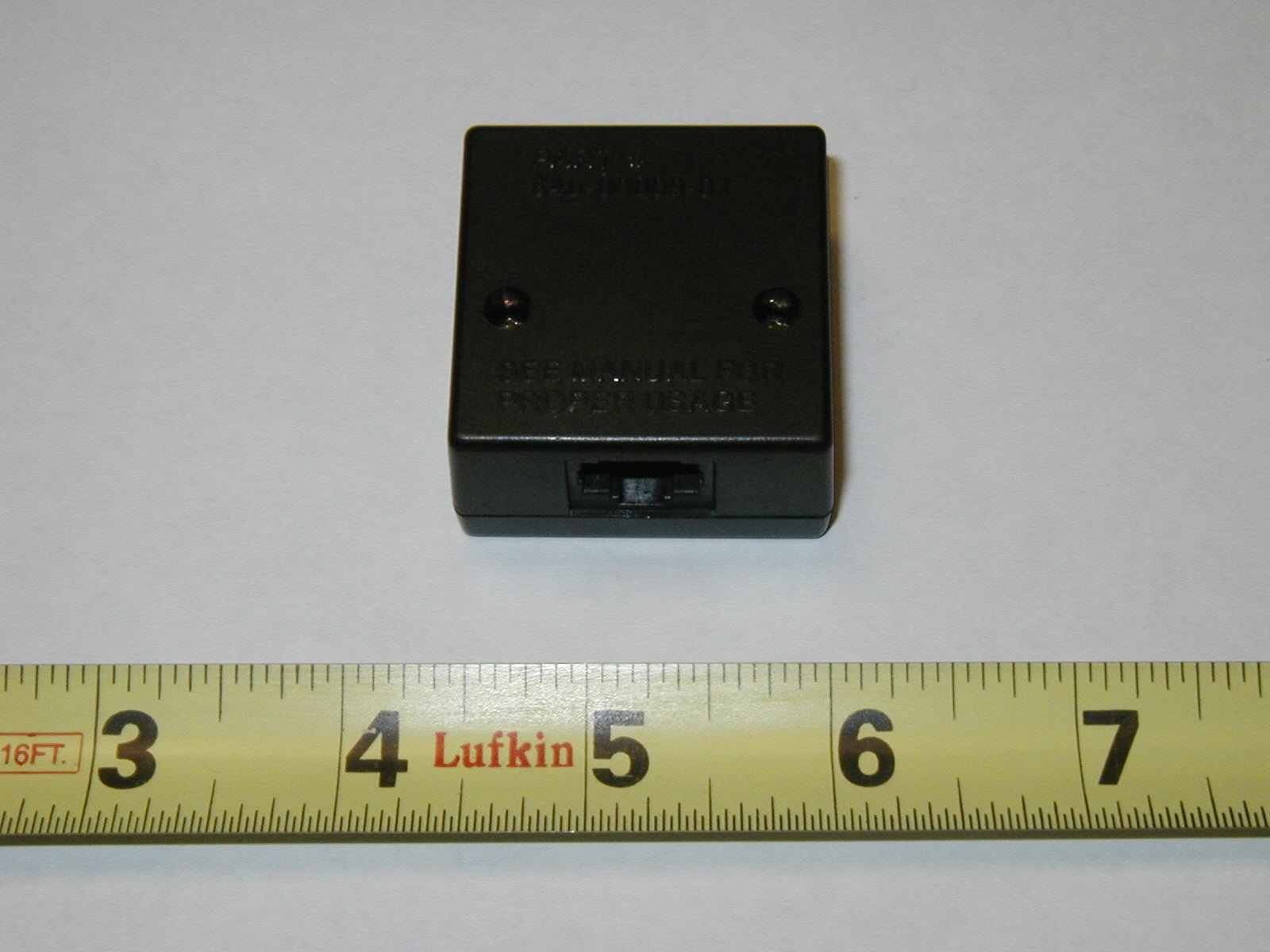

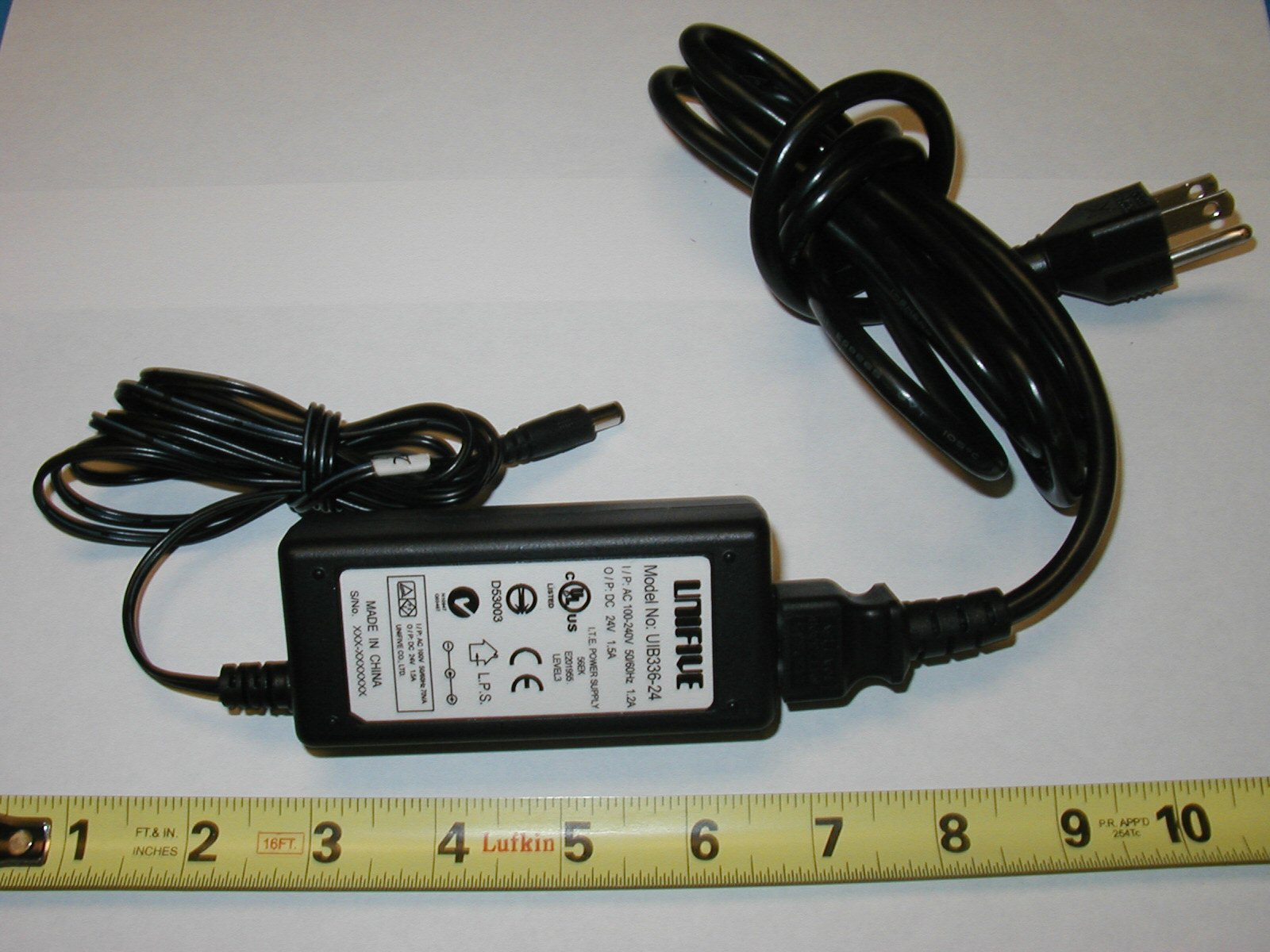

RV7-DBE101005RTri-Band 2.4GHz/5GHz Wireless LAN

SkyGateway/SkyExtender Installation and Setup | 37 FCC Statements FCC Class A Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Class B Notice This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15/90 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed, and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the distance between the equipment and the receiver. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. B 38 | Appendix B FCC Statements This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. Maximum Permissible Exposure In order to meet Industry Canada, FCC and other regulatory requirements for RF Exposure, the SkyGateway and SkyExtender units must be located a minimum of 68.4 cm (26.9 inches) from all persons. FCC 15.203 statement Because DualBands and TriBands use standard RF connectors for the external removable antennas, professional installation is required. Regulatory Statements for Canada IC RSS-210 statements This device complies with Class A Limits of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. SkyPilot Networks SkyGateway devices are certified to meet the requirements of RSS-210 for 5 GHz. Use of this device in a system must follow the Canadian regulations. For further information, contact your local Industry Canada office. Regulatory Statements for Canada | 39 To reduce potential radio interference with other users, choose an antenna type and and gain that ensures that equivalent isotropically radiated power (EIRP) is no more than what is permitted for successful communication. This device is designed for operation with internal antennas having a maximum gain of 18 dBi. Antennas displaying a gain greater than 18 dBi are strictly prohibited for use with the SkyPilot device. (Required antenna impedance is 50 ohms.) NOTEHigh power radars are allocated as primary users (meaning they have priority) of the 5650 5850 MHz band, and, these radars could cause interference and/or damage to LE-LAN devices. The SkyExtender is equipped with a pair of detachable antenna for the optional Dual Band and Tri Band modes. In addition to the provided antennas, SkyPilot SkyExtender DualBand devices can also operate with the external antenna models for the 2.4 GHz band listed in Table B-1, or the same type of antenna with a maximum gain of 7.4 dBi. Antennas not included in this list or having a gain greater than 7.4 dBi are strictly prohibited for use with this device. (Required antenna impedance is 50 ohms.) Table B-1. Antennas approved for use SkyExtender DualBand: A SkyPilot SkyExtender TriBand uses the 4.9 GHz band. Prior to operating thes devices, users are legally required to obtain frequency licenses from their local communications governing agency. Operating parameters are defined by the certification requirements of the device and the limitations listed on the user license. Any of these guidelines may affect the installation and operation of this device.” ManufacturerModel CometSF245 CometSF245+12 CometSF245+12x 40 | Appendix B FCC Statements

© 2006 SkyPilot Networks, Inc. 2055 Laurelwood Road All rights reserved. Proprietary and Confidential. Santa Clara, CA 95054 1+408.764.8000 www.skypilot.com April 6, 2007 Attn: Reviewing Engineer MET Laboratories, Inc. 914 West Patapsco Ave, Baltimore, MD 21230 Re: Request for Confidentiality Applicant: SkyPilot Networks, Inc. FCC ID: RV7-DBE101005R To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 & 0.459. We have requested to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are request to be kept confidential: Schematics Block diagrams Operational description Rationale for the request for confidentiality: SkyPilot Networks, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. Please contact me if there is any information you may need. Sincerely, William G. Olsen, Director of RF Hardware

S/N MAC This device complies with Part 15 of the FCC rules. Operation is subject to the followingtwo conditions: (1) this device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesiredoperation. 2006 SkyPilot Networks, Inc. All rights reserved. Patents pending. SkyExtender/SkyGateway FCC ID: RV7-DBE101005RIC: 5550A-DBE10105 o I.T.E. 18VH

14. PLACE ITEMS 21 AND ABOVE INTO PACKAGE PER INSTRUCTIONS 17. PLACE ASSY INTO ITEM 20 PER PACKAGING INSTRUCTIONS WHERE SHOWN 16. PRINT LABEL WITH APPROPRIATE CONFIGURATION INFO AND PLACE APPROXIMATELY 15. INSERT DIGITAL CABLE INTO FERRITE AND SNAP CLAMP SHUT PLACE OVERLAY LABEL (ITEM 12) OVER MAC AND SERIAL NUMBER 18. PRINT LABELS WITH PN, SN AND MAC #AND PLACE APPROXIMATELY WHERE SHOWN NOTES, UNLESS OTHERWISE SPECIFIED: SEE BOM 710-00012-05R 1. TEST PER TPR-710-00012-05R 2. TORQUE SPECIFICATIONS: 3. TORQUE #8 SCREWS TO 19-20 IN-LBS •CONNECT DIGITAL CABLE AND GPS COAX FR OM ANTENNA ASSY TO CARRIER BOARD OF 4. BASE ASSY (J3 AND GPS MODULE) BEFO RE SECURING ANTENNA ASSY TO BASE. FEED ANTENNA 1 & 2 CABLES, ETHERNET CABLE, RF CABLE AND POWER CABLE THROUGH 5. BOTTOM GUIDE AND THEN SECURE ANTENNA ASSY.CONNECT ANTENNA 1 CABLE TO U.FL CONNECTOR OF AP RADIO 6. CONNECT ANTENNA 2 CABLE TO MMCX CONNECTOR OF AP RADIO 7. CONNECT ETHERNET CABLE TO ET HERNET PORT(J5) OF AP CARD 8. CONNECT RF CABLE TO J2 ON SWITHCBOARD OF ANTENNA ASSY 9. CONNECT POWER CABLE TO J17 OF AP CARD 10. CLEAN O-RING, BASE GROOVE AND DOME BEFORE SEATING O-RING 11. PLACE ITEM 8 INTO SERIAL PORT CONNECTOR 12. PLACE TAMPERPROOF LABEL (ITEM 7) ACROSS DOME AND BASE GAP AT POSITION 0 13. REVISIONS ZONE REV. DESCRIPTION DATE APPROVED 3 Preliminary Release 11-17-06 4 Added Label Item 13 2/15/2007 705-00012-05R D C B A A B C TLA, SkyExtender DualBand CONSENT OF SKYPILOT NETWORK CORPORATION IS PROHIBITED. 0.XX = 0.010 Santa Clara, CA 95054 CAD GENERATED DRAWING, DO NOT MANUALLY UPDATE SCALE SIZE CAD FILE: DWG. NO. B SHEET 1 OF 3 REV. DATE APPROVALS DRAWN CHECKEDRESP ENG MFG ENG 0.X = 0.025 D X. = 0.25 ANGLE = 0.5 DEGREE SkyPilot Networks Inc. 2055 Laurelwood Road QUAL ENG 0.XXX = 0.005 MATERIAL FINISH -- -- DO NOT SCALE DRAWING 1 2 3 4 5 6 7 8 8 7 6 5 4 32 1 705-00012-05R 4 T. Kridl 11-12-06 UNLESS OTHERWISE SPECIFIED,DIMENSIONS ARE IN INCHESTOLERANCES ARE: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SKYPILOT NETWORK CORPORATION AND ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN 1:3 THIRD ANGLE PROJECTION 3 11 3 5 8X 4 2 3 1 5 4X Version Description 705-00012-05R DuallBand Extender, 2.4GHz, 400mW705-10012-05R DualBand Extender, 2.4GHz, 100mW705-20012-05R DualBand Extender, 4.9GHz 705-30012-05R DualBand Extender, 900MHz 14 3X 12 16 6 8 911 13 13 7 D C B A A B C D SkyPilot Networks Inc. 2055 Laurelwood Road Santa Clara, CA 95054 SCALE SIZE CAD FILE: DWG. NO. B SHEET 2 OF 3 REV. 1 2 3 4 5 6 7 8 8 7 6 5 4 32 1 705-00012-05R 4 TLA, SkyExtender DualBand 705-00012-05R 1:3 7 10 9 8 6 From J2 on Carrier Board Antenna Column Components Removed for Clarity Primary AP View J5 J17 15 D C B A A B C D SkyPilot Networks Inc. 2055 Laurelwood Road Santa Clara, CA 95054 SCALE SIZE CAD FILE: DWG. NO. B SHEET 3 OF 3 REV. 1 2 3 4 5 6 7 8 8 7 6 5 4 32 1 705-00012-05R 4 TLA, SkyExtender DualBand 705-00012-05R 1:3

SF-495G+9X 4.9GHz Omni-directional A/P Antenna Specifications: • 4940-4990MHz • Gain: 9.5dBi • 9 degrees uptilt • Length: 24.25 inches • 3dB Beam-width: 14 degrees • Weight: 6.2 oz • Cross Polar Rejection: 15dB + • Max Power: 25 watts • Max wind survival: 150MPH + • Wind Load: 9.9 sq in • Connector: Integral N-male • Radome: Grey UV stabilized fiberglass • Mast mounting hardware optional 1275 N. Grove St. Anaheim, CA 92806-2114 Phone: 714.630.4541 Fax: 714.630.7024 Email: [email protected] NCG Company Vertical radiation pattern FEATURES: • For the Licensed Homeland Security 4.9GHz band • 9 degree uptilt becomes for inverted mounting • Designed as a A/P antenna in a mesh network system • Male N-connector for easy installation • Compact gain antenna for point-to- multipoint applications • Heavy duty fiberglass for durability • Weather proof for indoor or outdoor installation MOUNTING OPTIONS: • MB-100: 1”-2.5” mast mount MB-100 mast mount Manufactured by: COMET Company Ltd. VSWR: 1.18:1 or less

Electromagnetic Compatibility SkyPilot Networks Intentional Radiators RV7-DBE101005R CFR Title 47, Part 15, Subpart C & RSS-210 MET Report: EMCS21813-FCC247 © 2007, MET Laboratories, Inc. Page 32 of 56 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b), A8.5 Peak Power Output and RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 5725 - 5850 MHz ; highest conducted power = 29.71dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 18 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √PG / 4πS where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (935mW) G = Antenna Gain (63.0 numeric) R = (935*63.0/ 4*3.14*1.0) 1/2 = (58905 / 12.56) 1/2 = 68.4cm separation required in order to comply with the limit of 1 mW/cm 2 for Uncontrolled Exposure.

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory April 4, 2007 SkyPilot Networks 2055 Laurelwood Road, 2nd Fl Santa Clara, CA 95054 Dear Bill Olsen, Enclosed is the EMC test report for compliance testing of the SkyPilot Networks, RV7-DBE101005R as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B & ICES-003 Issue 4, February 2004 for a Class A Digital Device and Part 15 Subpart C & RSS-210 Issue 6, September 2005 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Sanchez Documentation Department Reference: (\SkyPilot Networks\EMCS21813-FCC247) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. Electromagnetic Compatibility SkyPilot Networks Cover Page RV7-DBE101005R CFR Title 47, Part 15, Subpart B & C MET Report: EMCS21813-FCC247 © 2007, MET Laboratories, Inc. Page ii of vii Electromagnetic Compatibility Criteria Test Report for the SkyPilot Networks Model RV7-DBE101005R Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 6, September 2005 for Intentional Radiators MET Report: EMC21813-FCC247 April 4, 2007 Prepared For: SkyPilot Networks 2055 Laurelwood Road, 2nd Fl Santa Clara, CA 95054 Prepared By: MET Laboratories, Inc. 4855 Patrick Henry Dr., Building 6 Santa Clara, CA 95054 Electromagnetic Compatibility SkyPilot Networks Cover Page RV7-DBE101005R CFR Title 47, Part 15, Subpart B & C MET Report: EMCS21813-FCC247 © 2007, MET Laboratories, Inc. Page iii of vii Electromagnetic Compatibility Criteria Test Report for the SkyPilot Networks Model RV7-DBE101005R Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class A Digital Devices & 15.247 Subpart C & RSS-210, Issue 6, September 2005 for Intentional Radiators Shawn McMillen, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15.B & ICES-003 & 15.247 & RSS-210, of the FCC & Industry Canada Rules under normal use and maintenance. Tony Permsombut, Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility SkyPilot Networks Report Status RV7-DBE101005R CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS21813-FCC247 © 2007, MET Laboratories, Inc. Page iv of vii Report Status Sheet Revision Report Date Reason for Revision ∅ April 4, 2007 Initial Issue. Electromagnetic Compatibility SkyPilot Networks Table of Contents RV7-DBE101005R CFR Title 47, Part 15, Subpart B & C; ICES-003 & RSS-210 MET Report: EMCS21813-FCC247 © 2007, MET Laboratories, Inc. Page v of vii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................6 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................9 F. Support Equipment .............................................................................................................................................9 G. Ports and Cabling Information ..........................................................................................................................10 H. Mode of Operation.........................................................................…

Text truncated - open the document above for the full version.

Electromagnetic Compatibility SkyPilot Networks Unintentional Radiators RV7-DBE101005R CFR Title 47, Part 15, Subpart B & ICES-003 MET Report: EMCS21813-FCC247 © 2007, MET Laboratories, Inc. Page 16 of 56 Conducted Emission Limits Test Setup Photograph 2. Conducted Emissions Test Setup Electromagnetic Compatibility SkyPilot Networks Unintentional Radiators RV7-DBE101005R CFR Title 47, Part 15, Subpart B & ICES-003 MET Report: EMCS21813-FCC247 © 2007, MET Laboratories, Inc. Page 20 of 56 Radiated Emission Limits Test Setup Photograph 3. Radiated Emission Test Setup 30 MHz - 1 GHz Electromagnetic Compatibility SkyPilot Networks Intentional Radiators RV7-DBE101005R CFR Title 47, Part 15, Subpart C & RSS-210 MET Report: EMCS21813-FCC247 © 2007, MET Laboratories, Inc. Page 35 of 56 Photograph 4. Test Equipment and setup for various Radiated Measurements
