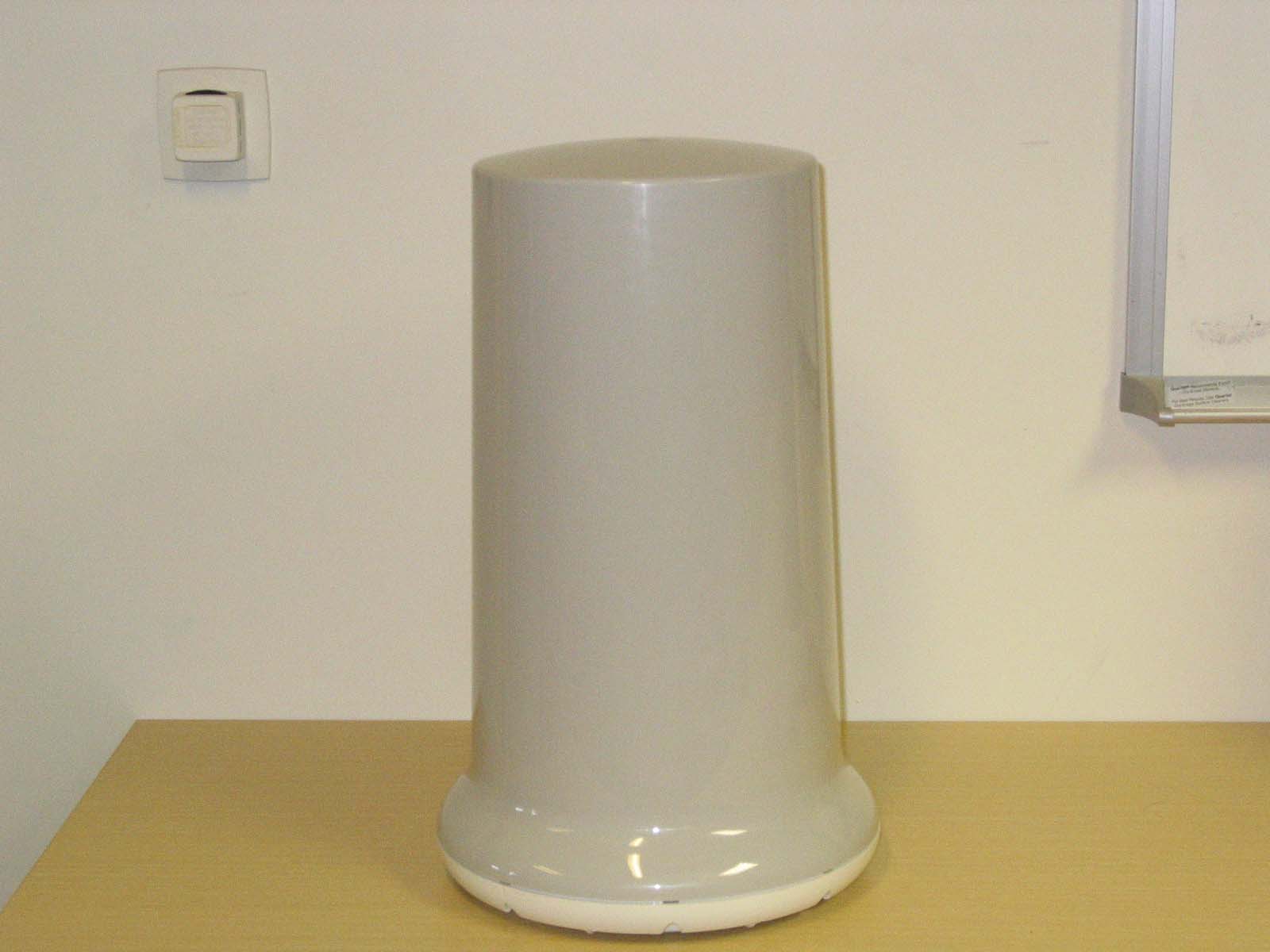

RV7-GW-SD1010802.11 Based, Fixed Wireless Node

Installation And Configuration Manual Revision: 1.0 S/W Version: 1.0 Date: Septembert 2004 SkyGateway And SkyExtender Copyright Information © 2004 SkyPilot Network, Inc. All rights reserved. Broadband Without Limits, SkyConnector, SkyControl, SkyExtender, SkyGateWay, SkyPilot, SkyPilot Network, SkyProvision, the SkyPilot logo, and other designated trademarks, trade names, logos, and brands are the property of SkyPilot Network, Inc. or their respective owners. FCC Radio Frequency Interference Statement SkyGateWay/SkyExtender FCC Number: RV7-GW-SD1010 This equipment has been tested and found to comply with the limits for the class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed, and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. Maximum Permissible Exposure In order to meet the FCC’s requirement of 1 mW/cm 2 for Maximum Permissible Exposure (MPE) at 5.8 GHz, the SkyGateway/SkyExtender units must be located a minimum of 1 meter (39.4 inches) from all persons. This distance is determined based upon the aforementioned 1 mW/cm 2 limit, measured data, and the far-field peak power density equation below: ()() [] S d GP20/ 10282.0 + = w here: d = MPE distance in cm P = Power in dBm (peak) G = Antenna Gain in dBi S = Power Density Limit in mW/cm 2 (1 mW/cm 2 ) C ertified laboratory measurements indicate that the FCC’s Power Density Limit of 1 mW/cm 2 is met at a distance of 39 cm (15.4 inches). However a distance of 1 meter is recommended in order to introduce a margin of safety equivalent to 6.6 times the FCC’s Power Density Limit. This margin of safety compensates for the assumption of a point source antenna in the far-field equation. 1301 Shoreway Road, Suite 211 Belmont, CA 94002-4106 Phone 650-413-8000 email: [email protected] We b : www.skypilot.com SkyGateway/SkyExtender Installation And Configuration September 2004iii Table Of Contents Introduction ................................................................................................. 1-1 System Overview........................................................................................................... 1-2 Physical Specifications and Installation..................................................................... 1-2 Power ........................................................................................................................ 1-2 Antennas ................................................................................................................... 1-2 Modules..................................................................................................................... 1-2 Connectors ................................................................................................................ 1-3 Network Architecture...................................................................................................... 1-4 Physical and Link Layers........................................................................................... 1-4 Routing ...................................................................................................................... 1-4 Scheduling and Bandwidth Management.................................................................. 1-5 Installation ................................................................................................... 2-1 Plan The Installation ...................................................................................................... 2-2 Site Survey ................................................................................................................ 2-2 Frequency.................................................................................................................. 2-2 Unpack The Equipment ................................................................................................. 2-3 Equipment Inventory.................................................................................................. 2-3 Wind Loading Requirements ..................................................................................... 2-5 Grounding.................................................................................................................. 2-5 Lightening.................................................................................................................. 2-5 Mount The Unit .............................................................................................................. 2-6 Install Cabling ................................................................................................................2-7 SkyGateWay Installation ........................................................................................... 2-8 Install Ethernet ...................................................................................................... 2-8 Installing Optional Serial Adapter…

Text truncated - open the document above for the full version.

10/14/2004 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: RV7-GW-SD1010 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operations These documents contain detailed system and equipment description and related information about the product that SkyPilot Network, Inc considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SkyPilot Network, Inc considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Paul A. Gordon VP, Engineering SkyPilot Network, Inc.

1 Helen Zhao Subject:FW: answer: Skypilot Network Inc., FCC ID: RV7-GW-SD1010, Assessment NO.: AN04T4260, Notice#1 User Manual gateway_(revised 1... 04U2978-4 FCC DTS Report(SD101... -----Original Message----- From: Claire Hoque Sent: Monday, November 29, 2004 10:40 AM To: Helen Zhao Subject: answer: Skypilot Network Inc., FCC ID: RV7-GW-SD1010, Assessment NO.: AN04T4260, Notice#1 Hi Helen, Here are the answers for RV7-GW-SD1010. Question #1: The operating frequency range of this device as listed on form 731 is 5745-5835 MHz. The test report indicated that some tests were done at middle channel 5765 MHz, some were done at middle channel 5785 MHz. Please explain. <answer>report has been revised. Question #2: The test report uses radiated emission below 1 GHz and powerline conducted emission test data, which refers to previous Skypilot submission (model no: GW-1000 and SD-1000, FCC ID: RV7-GW-SD1000), please justify why these data can be used for this submission (FCC ID: RV7-GW-SD1010). <answer>The same response for the SC1010 applies to the SD1010. The hardware is identical to the SD1000, only a software change allows the hardware to operate up to 5.835 GHz. Consequently, the radiated emission and powerline conducted data from the SD1000 should apply. Question #3: Please revise the user manual to include information to user per FCC15.21 and RF exposure/MPE statement per 15.247(b)(5). <answer>pls see revised user's manual. Thanks, Claire

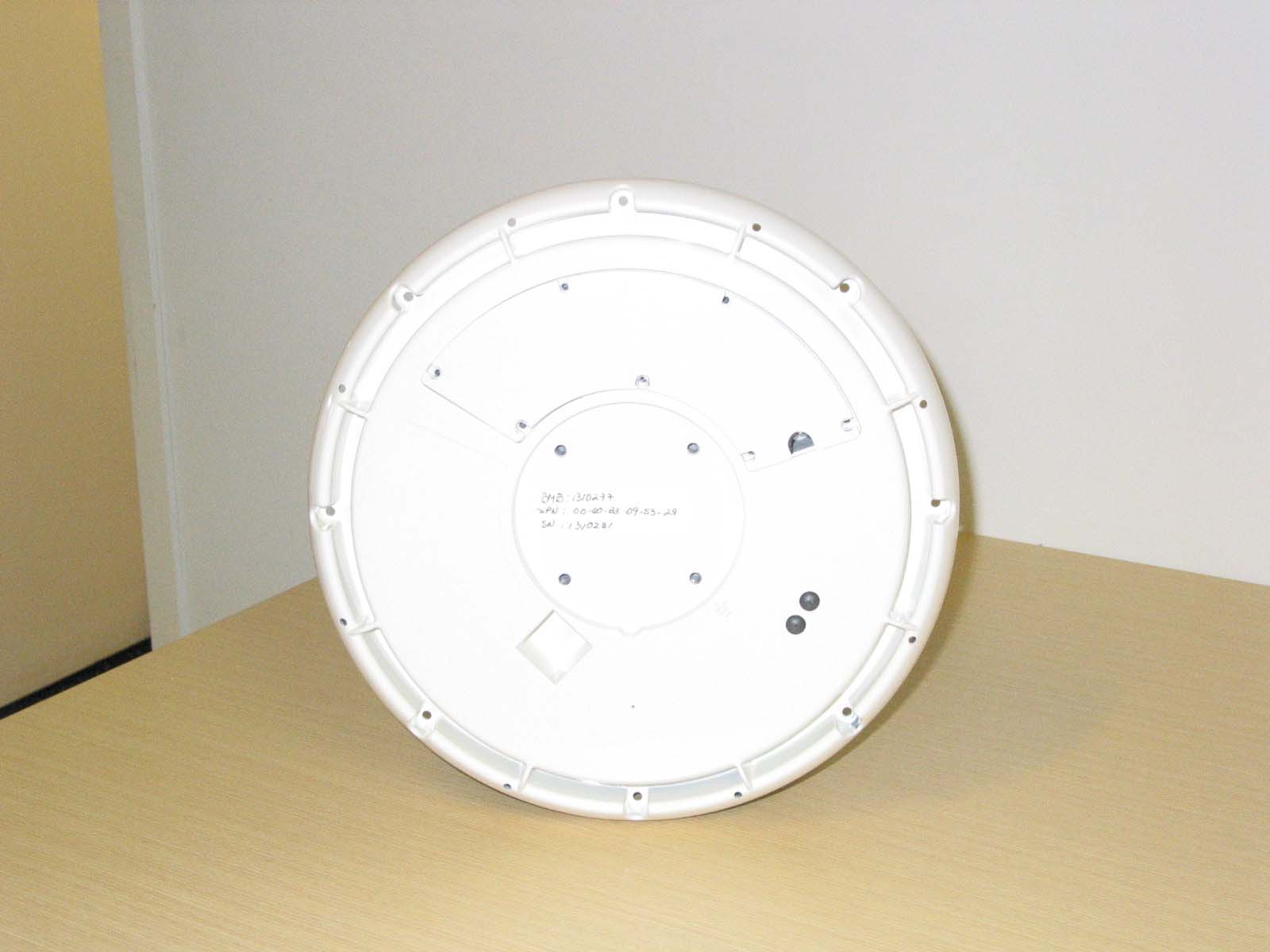

PROPOSED FCC ID LABEL AND LOCATION SKYPILOT NETWORK INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: RV7-GW-SD1010 FCC ID LABEL LOCATION

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11 BASED, FIXED WIRELESS NODE MODEL: SkyGateway GW-1010, SkyExtender SD-1010 FCC ID: RV7-GW-SD1010 REPORT NUMBER: 04U2978-4 ISSUE DATE: SEPTEMBER 29, 2004 Prepared for SKYPILOT NETWORK, INC. 1301 SHOREWAY ROAD, STE 211 BELMONT CA, 94002, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2978-4 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-GW-SD1010 Page 2 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT DECLARATION .................................................................................................... 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 5 4. FACILITIES AND ACCREDITATION .......................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 7 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 8 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 10 7.1. 6 dB BANDWIDTH ..................................................................................................................... 10 7.2. 99% BANDWIDTH ..................................................................................................................... 14 7.3. PEAK OUTPUT POWER............................................................................................................ 18 7.4. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 22 7.5. AVERAGE POWER..................................................................................................................... 25 7.6. PEAK POWER SPECTRAL DENSITY ....................................................................................... 26 7.7. CONDUCTED SPURIOUS EMISSIONS.................................................................................... 30 7.8. RADIATED EMISSIONS.............................................................................................................37 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 37 7.8.2. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 43 7.9. POWERLINE CONDUCTED EMISSIONS ................................................................................ 47 8. SETUP PHOTOS .............................................................................................................................. 51 REPORT NO: 04U2978-4 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-GW-SD1010 Page 3 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT DECLARATION COMPANY NAME: SKYPILOT NETWORK, INC. 1301 SHOREWAY ROAD, STE 211 BELMONT, CA 94002, USA EUT DESCRIPTION: 802.11 BASED, FIXED WIRELESS NODE MODEL: SkyGateway GW-1010, SkyExtender SD-1010 DATE TESTED: SEPTEMBER 27 –SEPTEMBER 28, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: YAN ZHENG DAVID GARCIA EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2978-4 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-GW-SD1010 Page 4 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The EUT is an 802.11a Fixed Wirel…

Text truncated - open the document above for the full version.

REPORT NO: 04U2978-4 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-GW-SD1010 Page 51 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 04U2978-4 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-GW-SD1010 Page 52 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 04U2978-4 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-GW-SD1010 Page 53 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 04U2978-4 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-GW-SD1010 Page 54 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 04U2978-4 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-GW-SD1010 Page 55 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
