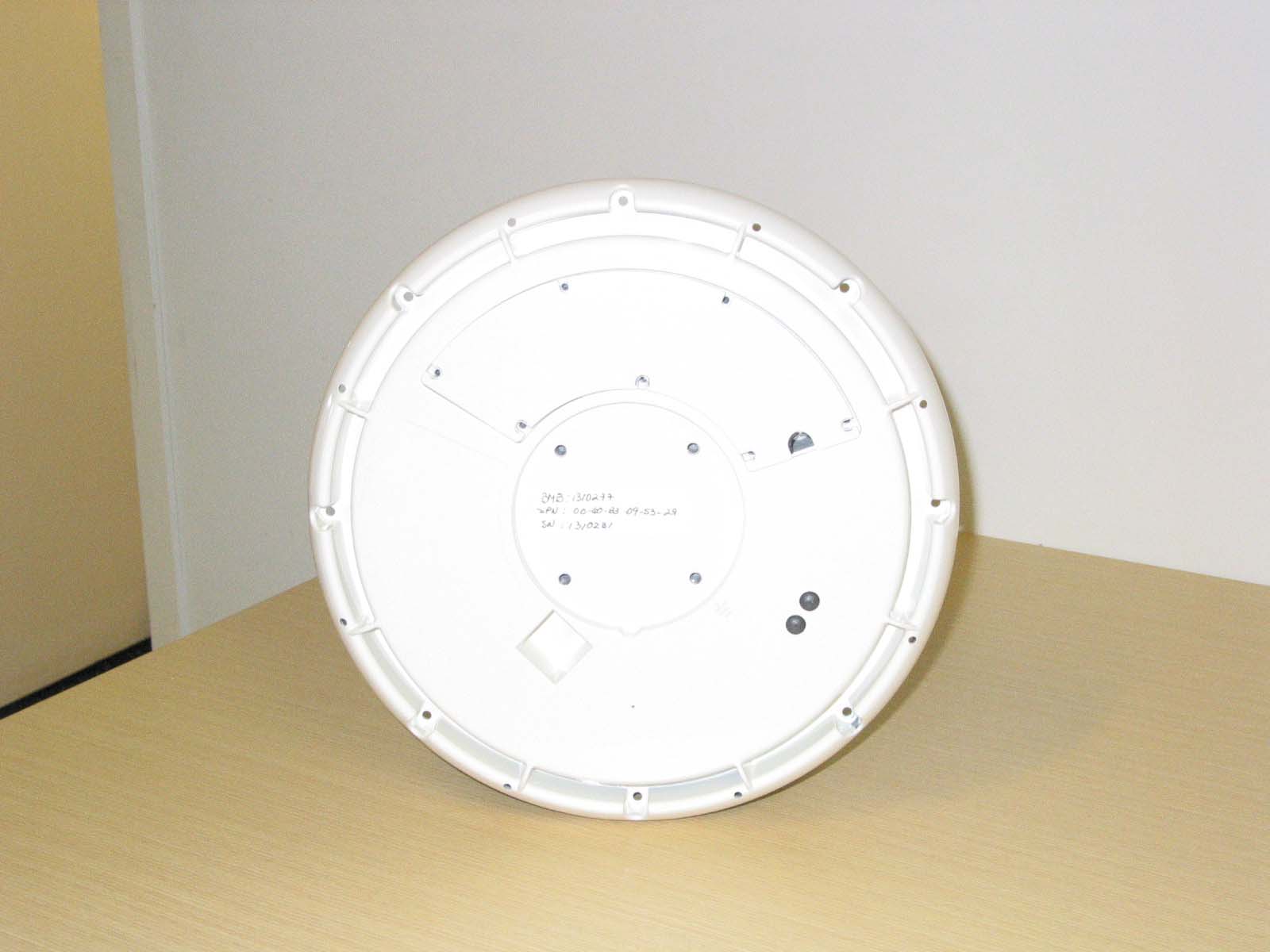

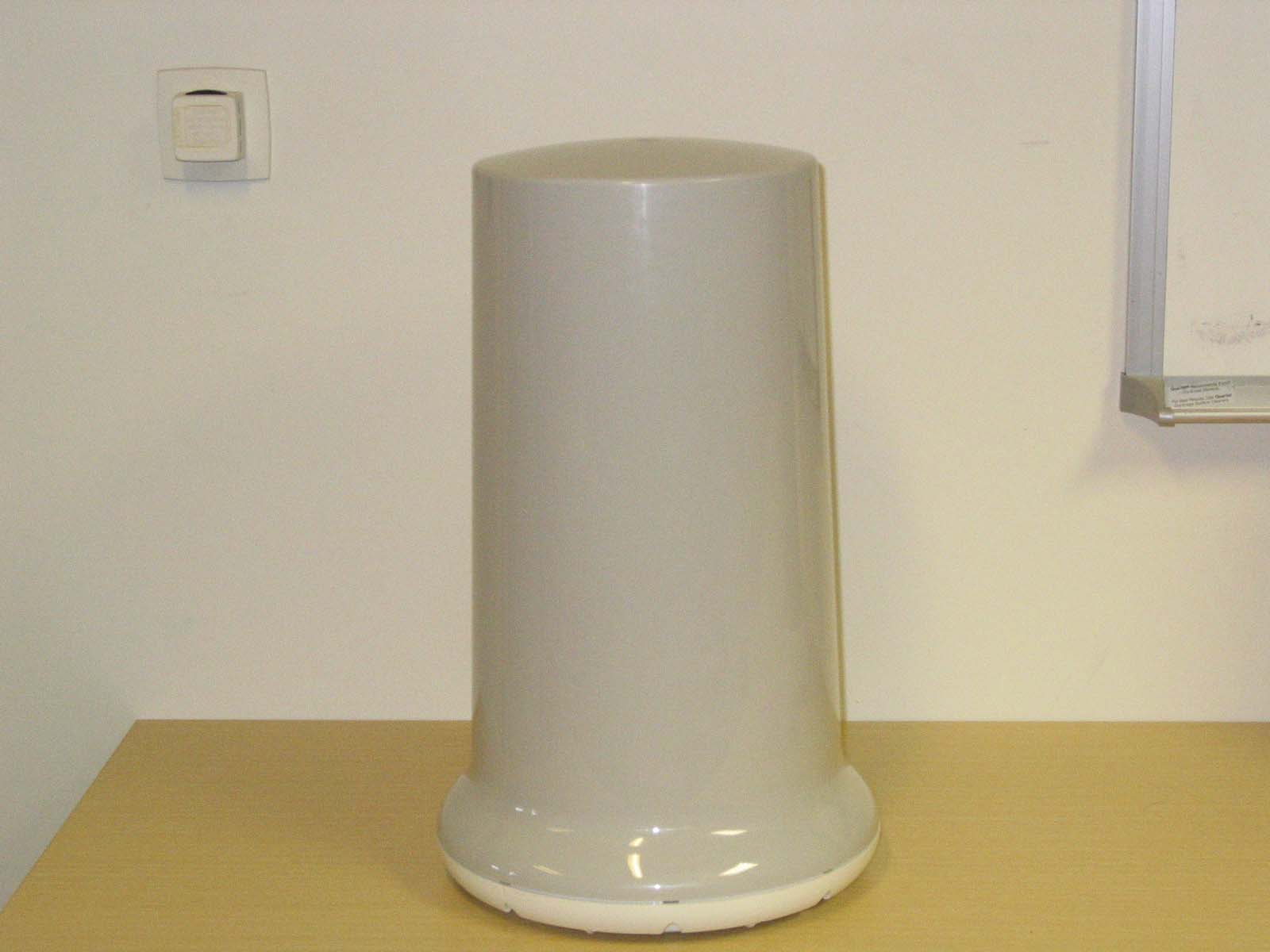

RV7-GW-SD10504.9GHz , 802.11 Based, Fixed Wireless Node

SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY Page SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY 1 User Guide Gateway (GW1050) Seed/CPE (SD1050) Version 1.1 December 8, 2005 SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY Page SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY 2 User Guide .......................................................................................................................... 1 1 Introduction.................................................................................................................3 1.1 Gateway (GW1050) ............................................................................................ 4 1.2 Seed/CPE (SD1050)............................................................................................ 4 2 Network Architecture.................................................................................................. 5 2.1 Link Establishment ............................................................................................. 5 2.2 Routing................................................................................................................ 5 2.3 Bandwidth Allocation ......................................................................................... 6 2.4 Networking ......................................................................................................... 6 3 Installation................................................................................................................... 7 3.1 Unit Mounting..................................................................................................... 7 3.2 Cabling ................................................................................................................ 8 4 Configuration ............................................................................................................ 10 4.1 GW1050 Configuration .................................................................................... 10 4.1.1 Frequency.................................................................................................. 10 4.1.2 IP Address Management ........................................................................... 10 4.2 SD1050 Configuration ...................................................................................... 12 4.2.1 IP Address Management ........................................................................... 12 4.2.2 Ethernet Port Control ................................................................................ 12 5 CLI ............................................................................................................................ 13 6 SNMP........................................................................................................................ 14 SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY Page SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY 3 1 Introduction The SkyPilot Gateway (GW1050) and Seed/CPE (SD1050) provide a complete, high- performance wireless system operating in the unlicensed 4.9 GHz public safety band. The flexible and highly scaleable SkyPilot system is ideally suited to a wide range of applications. The system offers: • High Capacity and Long Range OFDM technology, a large link budget and modulation rates of 6-54Mbps, provide reliable Non-LOS operation and market leading capacity. • Meshing The system offers the flexibility of customer connection directly to a SkyPilot Gateway (GW1050) or via an intermediary Seed (SD1050), resulting in vastly increased coverage when compared to typical point-to-multipoint systems. • Standards Based The SkyPilot system is based very closely on the 802.11 standard and utilizes commercial chipsets. SkyPilot has implemented significant enhancements that provide range and performance advantages. • Easy Installation The compact, environmentally hardened, fully integrated Gateway and Seed/CPE require minimal configuration and can easily be installed on a multitude of locations. • Networking The SkyPilot system implements an intelligent, Ethernet switching network, with a 10/100bT bridge interface provided by the Gateway and Seed/CPE. Subscriber rate control and traffic prioritization QoS mechanisms are supported, along with optional VLANs. In addition, there is support for configurable protocol filtering and Access Control Lists (ACL). • Security AES link encryption and complete node authentication with optional support for full MD5 certificates. • Network Management Both node types are fully manageable via SNMPv2c and a Command Line Interface (CLI). Static or DHCP IP address allocation is supported. SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY Page SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY 4 1.1 Gateway (GW1050) The Gateway (GW1050) is a fully integrated, environmentally hardened device providing the interface between a wireless SkyPilot network and the Internet/Wide Area Network (WAN). The connection to the Internet is via a single 10/100bT Ethernet port. The connection to the SkyPilot Seed/CPE (SD1050/SC1050) units is via multiple, individually optimized wireless links. The SkyPilot Gateway houses eight individual antenna elements providing a total of 360 degree horizontal coverage and a 12 degree vertical angle. These antennas, along with all RF and digital circuitry, are integrated in a compact, light-weight, environmentally hardened housing. Note that only one antenna is selected at any one moment in time. 1.2 Seed/CPE (SD1050) The Seed/CPE (SD1050) provides for both the extension of a wireless network and the local connection for a subscriber. It may be deployed in any of the following modes: • Seed Only An SD1050 can be deployed solely for the purpose of expanding the wireless network. In this mode, a subscriber interface shall not be provided. • CPE Only An SC1050 can be deployed solely for the purpose of providing a subscriber interface to the wireless network. The unit is installed on (or close to…

Text truncated - open the document above for the full version.

1 Chris Harvey From:Michael Heckrotte [[email protected]] Sent:Thursday, January 19, 2006 9:23 PM To: Claire Hoque; Chris Harvey Cc:Chuck Cowden; David Garcia Subject:RE: answer: Skypilot Network Inc., FCC ID: RV7-GW-SD1050, Assessment NO.: AN05T5364, Notice#1 Chris, Please disregard the previous reply to #5. The correct reply is: <answer>The necessary bandwidth is 18.48 MHz and the emission designator is 18M5G1D. Claire, Please correct the Form 731 to reflect the above Necessary BW. Best Regards, Mike -----Original Message----- From: Claire Hoque Sent: Thursday, January 19, 2006 5:08 PM To: Chris Harvey Cc: Michael Heckrotte; Chuck Cowden; David Garcia Subject: answer: Skypilot Network Inc., FCC ID: RV7-GW-SD1050, Assessment NO.: AN05T5364, Notice#1 Hi Chris, Here are the answers. 1. The Internal Photographs do not show the details of all PC Boards, including both sides and with/without RF shields. Please update the internal photos. <answer>pls see revised internal photos. 2. The MPE calculation in the test report used a value of 16dBi for the antenna gain, where the antenna specification indicates a 16.5dBi antenna gain. Although this will not show non-compliance since the recommended separation in the manual is 40cm and the calculation showed that the safe distance is 20cm (or less), please correct this discrepancy and recalculate the MPE power density. <answer>16dBi is correct for RV7- GW-SD1050, and we did submit the correct antenna spec. wit 16dBi. 16.5dBi is for FCC ID: RV7-SC1050, Assessment NO.: AN05T5363. 3. Sections 5.2 & 7.4.1 of the test report and the form 731 indicate the frequency of operation as 4894-4990MHz. The remainder of the application has the frequency of operation as 4950-4980 MHz (center of low and high channels). Please correct this discrepancy. <answer>The frequency band should be 4940-4990 MHz. pls see revised report. 4. The Users Manual contains no FCC required information about Digital Device or RF Exposure compliance. Please update the Users Manual to contain the appropriate information. <answer>pls see revised manual. 5. Please provide a necessary bandwidth indication and emission type in the form of an emission designator with justification (form 731 and report did not have this information). <answer>The necessary bandwidth is 20 MHz and the emission designator is 20M0G1D. 2 6. The name of the Theory of Operation exhibit contains the term tune-up, but no tune- up procedure has been provided. Please provide a tune-up procedure exhibit. Additionally, please provide the DC voltages and currents for the final amplification stages required for Licensed Devices per FCC 2.1033(c). <answer>pls see revised theory of operation and tune-up procedure. 7. The Pt. 90 report and test procedure does not define the Peak Power in terms of RMS equivalent. Please confirm that the Peak Power Output measured has been measured as a conducted emission over any interval of continuous transmission calibrated in terms of an RMS-equivalent voltage in accordance with FCC 90.1215. <answer>confirmed, pls see revised report. Thanks, Claire -----Original Message----- From: David Garcia Sent: Tuesday, January 03, 2006 1:48 PM To: Michael Heckrotte; Chuck Cowden; Claire Hoque Subject: RE: Skypilot Network Inc., FCC ID: RV7-GW-SD1050, Assessment NO.: AN05T5364, Notice#1 Hello Michael and Claire, I have modified both the RV7-GW-SD1050 (Gateway units) and the RV7-SC1050 (CPE units). The latter was modified before the holidays but I found a couple of spots that needed fixing. the RV7-GW-SD1050 utilizes a 16.0 dBi gain antenna per the PIS form. Claire, do you have anything that says otherwise. Currently the MPE table is using the 16.0 dBi antenna gain per the PIS information for this model. The frequency band should be 4940-4990 MHz. I have updated the reports accordingly. Let me know if there is anything missing from the questions that were asked for both projects. Regards, David P.S. Mike can you review the rms-equivalent procedure that I added to the reports (05U3795-1B and 05U3795-2B)? -----Original Message----- From: Michael Heckrotte Sent: Tuesday, January 03, 2006 9:13 AM To: Chuck Cowden; Claire Hoque; David Garcia Subject: FW: Skypilot Network Inc., FCC ID: RV7-GW-SD1050, Assessment NO.: AN05T5364, Notice#1 Hi all, Let's meet at 10:30 AM this morning in the conference room, and make a call to Claire, to discuss assignments. 3 Best Regards, Mike -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Friday, December 23, 2005 7:46 AM To: Michael Heckrotte Cc: Chris Harvey Subject: Skypilot Network Inc., FCC ID: RV7-GW-SD1050, Assessment NO.: AN05T5364, Notice#1 Michael, you are listed as the technical contact for the above referenced TCB application. The review of this application has raised several issues that need to be addressed before the review can be completed. 1. The Internal Photographs do not show the details of all PC Boards, including both sides and with/without RF shields. Please update the internal photos. 2. The MPE calculation in the test report used a value of 16dBi for the antenna gain, where the antenna specification indicates a 16.5dBi antenna gain. Although this will not show non-compliance since the recommended separation in the manual is 40cm and the calculation showed that the safe distance is 20cm (or less), please correct this discrepancy and recalculate the MPE power density. 3. Sections 5.2 & 7.4.1 of the test report and the form 731 indicate the frequency of operation as 4894-4990MHz. The remainder of the application has the frequency of operation as 4950-4980 MHz (center of low and high channels). Please correct this discrepancy. 4. The Users Manual contains no FCC required information about Digital Device or RF Exposure compliance. Please update the Users Manual to contain the appropriate information. 5. Please provide a necessary bandwidth indication and emission type in the form of an emission d…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION SKYPILOT NETWORK INC. FCC ID: RV7-GW-SD1050 FCC ID LABEL LOCATION

GW Reflector Antenna Specifications 500-00054-01 Electrical Parameter Spec Gain 16 dBi Beam Width Azimuth 45 deg Elevation 12 deg Mechanical Parameter Spec Dimensions 16.0” (L) x 1.0” (W) x 0.032” (T)

SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY Page 1 of 1 SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY SKYPILOT NETWORKS, INC 4.9 GHz Product Tune-Up Procedure SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY Page 2 of 2 SKYPILOT NETWORKS CONFIDENTIAL AND PROPRIETARY 1 Tune-Up Procedure The power and frequency of operation for both Gateway and CPE are set to pre-determined values via firmware control. The system operates at a pre-configured frequency selected by the operator. The firmware controls radio, attenuator and amplifier operation and limits the operator to only use those frequencies and power limits allowed by local compliance regulations. No operator action is required to establish equipment operation aside from channel selection within the allowed frequency band. SkyPilot’s link optimization algorithm utilizes packet loss criteria to then determine the best modulation type to use for the selected channel, however power levels are always fixed to the pre-determined levels during the optimization routine and subsequent unit operation.

FCC CFR47 PART 90 SUBPART Y CERTIFICATION TEST REPORT FOR 4.9 GHZ, 802.11 BASED, FIXED WIRELESS NODE MODEL NUMBER: SKYEXTENDER SD-1050/SKYGATEWAY GW-1050 FCC ID: RV7-GW-SD1050 REPORT NUMBER: 05U3795-1C ISSUE DATE: FEBRUARY 8, 2006 Prepared for SKYPILOT NETWORK, INC 2055 LAURELWOOD DRIVE SANTA CLARA, CA 95054 U.S.A Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3795-1C DATE: FEBRUARY 8, 2006 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 2 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By A 12/6/2005 Initial Issue DG B 1/3/2006 Corrected frequency of operation, fixed typo in sec. 5.5, changed antenna gain in MPE to 16 dBi,, clarified power test procedure to include rms equivalent. DG C 2/8/2006 Corrected cover page to show Pt. 90 Certification DG REPORT NO: 05U3795-1C DATE: FEBRUARY 8, 2006 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 3 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 4894 TO 4990 MHz BAND ......................................................... 10 7.1.1. EMISSION BANDWIDTH ................................................................................................ 10 7.1.2. PEAK OUTPUT POWER .................................................................................................. 14 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 19 7.1.4. AVERAGE POWER........................................................................................................... 22 7.1.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 23 7.2. EMISSION MASK AND CONDUCTED SPURIOUS ................................................................. 28 7.3. FREQUENCY STABILITY .......................................................................................................... 35 7.4. RADIATED EMISSIONS.............................................................................................................37 7.4.1. TRANSMITTER ABOVE 1 GHz FOR 4894 TO 4990 MHz BAND ................................ 39 7.4.2. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 40 7.5. POWERLINE CONDUCTED EMISSIONS ................................................................................ 44 8. SETUP PHOTOS .............................................................................................................................. 48 REPORT NO: 05U3795-1C DATE: FEBRUARY 8, 2006 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 4 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SKYPILOT NETWORK, INC 2055 LAURELWOOD DRIVE SANTA CLARA, CA 95054 EUT DESCRIPTION: 4.9 GHz, 802.11 Based, Fixed Wireless Node MODEL: SKYEXTENDER SD-1050, SKYGATEWAY GW-1050 SERIAL NUMBER: F20724218/F20723438 DATE TESTED: NOVEMBER 10 – NOVEMBER 12, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 90 SUBPART Y NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requiremen…

Text truncated - open the document above for the full version.

REPORT NO: 05U3795-1 DATE: DECEMBER 6, 2005 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 48 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP WITH SKYEXTENDER ANTENNA PORT CONDUCTED PHOTO REPORT NO: 05U3795-1 DATE: DECEMBER 6, 2005 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 49 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TEMPERATURE CHAMBER MEASUREMENT SETUP WITH SKYEXTENDER TEMPERATURE CHAMBER PHOTO REPORT NO: 05U3795-1 DATE: DECEMBER 6, 2005 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 50 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP WITH SKYGATEWAY RADIATED FRONT PHOTO REPORT NO: 05U3795-1 DATE: DECEMBER 6, 2005 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 51 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 05U3795-1 DATE: DECEMBER 6, 2005 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 52 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP WITH SkYGATEWAY BELOW 1GHz(Without laptop) RADIATED FRONT PHOTO REPORT NO: 05U3795-1 DATE: DECEMBER 6, 2005 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 53 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 05U3795-1 DATE: DECEMBER 6, 2005 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 54 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP WITH SKYGATEWAY LINE CONDUCTED FRONT PHOTO REPORT NO: 05U3795-1 DATE: DECEMBER 6, 2005 EUT: 4.9 GHz, 802.11 Based, Fixed Wireless Node FCC ID:RV7-GW-SD1050 Page 55 of 55 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
