RV7-SC1010802.11 Based, Fixed Wireless Node

SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY Page SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY 1 User Guide CPE (SC1010) Version 1.0 May 8, 2004 SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY Page SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY 2 User Guide .......................................................................................................................... 1 CPE (SC1010)..................................................................................................................... 1 1 Introduction.................................................................................................................3 1.1 Outdoor CPE ....................................................................................................... 4 1.2 Indoor CPE.......................................................................................................... 5 2 Network Architecture.................................................................................................. 6 2.1 Link Establishment ............................................................................................. 6 2.2 Bandwidth Allocation ......................................................................................... 6 2.3 Networking ......................................................................................................... 7 3 Installation................................................................................................................... 8 3.1 Indoor CPE.......................................................................................................... 8 3.1.1 Mounting..................................................................................................... 8 3.1.2 Cabling ...................................................................................................... 10 3.2 Outdoor CPE ..................................................................................................... 11 3.2.1 Mounting................................................................................................... 11 3.2.2 Cabling ...................................................................................................... 12 4 Configuration ............................................................................................................ 13 4.1 SC1010 Configuration ...................................................................................... 13 4.1.1 IP Address Management ........................................................................... 13 4.1.2 Ethernet Port Control ................................................................................ 13 4.1.3 Subscriber Data Rates ............................................................................... 13 5 CLI ............................................................................................................................ 14 6 SNMP........................................................................................................................ 15 SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY Page SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY 3 1 Introduction The SkyPilot CPE (SC1010) provides a subscriber interface to a SkyPilot wireless network. The SkyPilot CPE connects either to a SkyPilot Seed (SD1010) or directly to a SkyPilot Gateway (GW1010) device. The SkyPilot CPE operates in the unlicensed 5.8GHz UNII band and comes in Indoor and Outdoor variants. The Indoor and Outdoor SkyPilot CPE differ only in the external mechanical packaging. The Indoor CPE is housed in an attractive plastic package that may be installed in a home or office environment. The Outdoor CPE utilizes a fully environmentally sealed housing that supports extended temperature range operation. The combination of the SkyPilot wireless network elements provides a high capable and flexible system. The system and CPE offer: • High Capacity and Long Range OFDM technology, a large link budget and modulation rates of 6-54Mbps, provide reliable Non-LOS operation and market leading capacity. • Meshing The system offers the flexibility of subscriber CPE (SC1010) connection directly to a SkyPilot Gateway (GW1010) or via an intermediary Seed (SD1010), resulting in vastly increased coverage when compared to typical point-to-multipoint systems. • Standards Based The SkyPilot system is based very closely on the 802.11 standard and utilizes commercial chipsets. SkyPilot has implemented significant enhancements that provide range and performance advantages. • Easy Installation The SkyPilot Indoor CPE allows for very simple, end-user install. The compact, environmentally hardened Outdoor CPE is easily installed on a rooftop or under eave. • Networking The SkyPilot system implements an intelligent, Ethernet switching network, with a 10/100bT bridge interface provided by the Gateway and CPE. Subscriber rate control and traffic prioritization QoS mechanisms are supported, along with optional VLANs. In addition, there is support for configurable protocol filtering and Access Control Lists (ACL). • Security AES link encryption and complete node authentication with optional support for full MD5 certificates. • Network Management Both node types are fully manageable via SNMPv2c and a Command Line Interface (CLI). Static or DHCP IP address allocation is supported. SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY Page SKYPILOT NETWORK CONFIDENTIAL AND PROPRIETARY 4 1.1 Outdoor CPE The Outdoor CPE is a fully integrated, environmentally hardened device providing the interface between a wireless SkyPilot network and the local subscriber. The subscriber connection is via a single 10/100bT Ethernet port. The CPE connects to the SkyPilot network via a single, optimized wireless link. The SkyPilot Outdoor CPE houses a single high gain panel antenna providing 30° horizontal coverage and a 9° vertical angle, along with all RF and digital circuitry. The Outdoor CPE utilizes Power over Ethernet (PoE…

Text truncated - open the document above for the full version.

1 Helen Zhao From:Claire Hoque Sent:Wednesday, November 10, 2004 10:48 AM To:Helen Zhao Cc:Yan Zheng; Chuck Cowden; Nancy Omron Subject:RE: Skypilot Network Inc., FCC ID: RV7-SC1010, Assessment NO.: AN04T4259, Notice#1 04U2978-3 FCC DTS Report(SC101... External Photos.pdf Hi Helen, Here are the answers. Question #1: The operating frequency range of this device as listed on form 731 is 5745- 5835 MHz. Page 17 and 33 of the test report indicated that the test was done at 5765 MHz as middle channel, however the rest of report indicated the other tests were done at 5785 MHz (middle channel). Please do necessary correction to make it consistent. <answer>report is revised as attached. Question #2: The test report uses radiated emission below 1 GHz and powerline conducted emission test data, which refers to previous Skypilot submission (model no: SI-1000 and SO-1000, FCC ID: RV7-SC1000), please justify why these data can be used for this submission (FCC ID: RV7-SC1010). <answer>There is no physical difference between the RV7-SC1000 and RV7-SC1010. Only a software change allows the SC1010 unit to operate up at 5.835 GHz, versus the SC1000's upper limit of 5.805 GHz. Consequently, the radiated emissions data and line conduction data for the SC1010 is identical to the SC1000. Question #3: Please reorganize external photos to clearly indicate Indoor unit and Outdoor Unit. <answer>external photos are revised as attached. Thanks, Claire

10/14/2004 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: RV7-SC1010 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operations These documents contain detailed system and equipment description and related information about the product that SkyPilot Network, Inc considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SkyPilot Network, Inc considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Paul A. Gordon VP, Engineering SkyPilot Network, Inc.

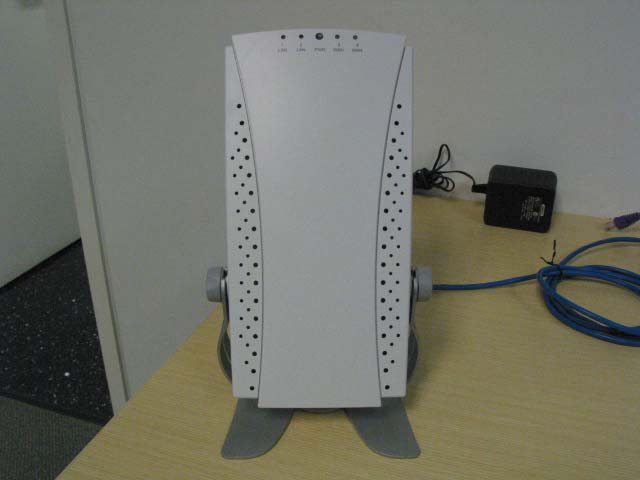

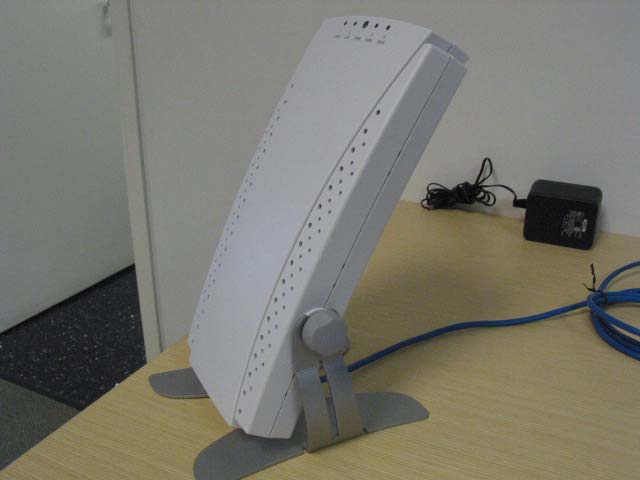

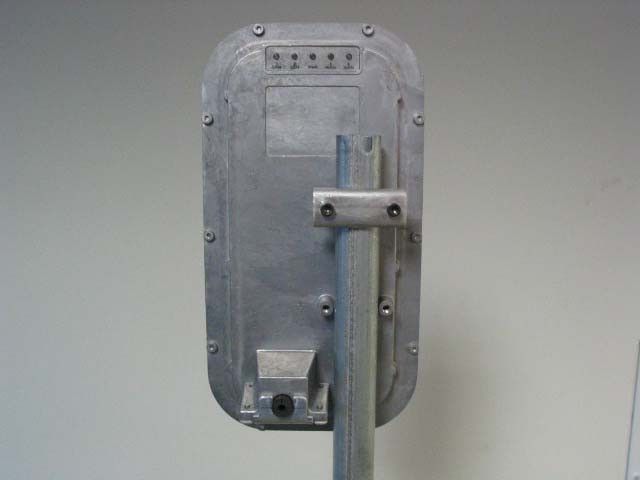

PROPOSED FCC ID LABEL AND LOCATION Indoor Unit SKYPILOT NETWORK INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: RV7-SC1010 FC ID LABEL LOCATION Outdoor Unit

CPE Patch Antenna Specifications 500-00241-01 Electrical Parameter Spec Gain 16.5 dBi Beam Width Azimuth 30 deg Elevation 9 deg Mechanical Parameter Spec Dimensions 10.0” (L) x 4.5” (W) x 0.005” (T)

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11 BASED, FIXED WIRELESS NODE MODEL: SkyConnector INDOOR SC1010 AND OUTDOOR SC1010 FCC ID: RV7-SC1010 REPORT NUMBER: 04U2978-3 ISSUE DATE: SEPTEMBER 29, 2004 Prepared for SKYPILOT NETWORK, INC. 1301 SHOREWAY ROAD STE 211 BELMONT, CA 94002 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 2 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT DECLARATION .................................................................................................... 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 5 4. FACILITIES AND ACCREDITATION .......................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 7 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 8 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 10 7.1. 6 dB BANDWIDTH ..................................................................................................................... 10 7.2. 99% BANDWIDTH ..................................................................................................................... 14 7.3. PEAK OUTPUT POWER............................................................................................................ 18 7.4. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 22 7.5. AVERAGE POWER..................................................................................................................... 25 7.6. PEAK POWER SPECTRAL DENSITY ....................................................................................... 26 7.7. CONDUCTED SPURIOUS EMISSIONS.................................................................................... 30 7.8. RADIATED EMISSIONS.............................................................................................................37 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 37 7.8.2. RADIATED EMISSIONS BELOW 1 GHZ FOR SC-1010 (INDOOR UNIT) ................. 43 7.8.3. RADIATED EMISSIONS BELOW 1 GHZ FOR SC-1010 (OUTDOOR UNIT) ............. 47 7.9. POWERLINE CONDUCTED EMISSIONS ................................................................................ 51 7.9.1. POWERLINE CONDUCTED EMISSIONS FOR SC-1010 (INDOOR UNIT) ................ 52 7.9.2. POWERLINE CONDUCTED EMISSIONS FOR SC-1010 (OUTDOOR UNIT) ............ 54 8. SETUP PHOTOS .............................................................................................................................. 57 REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 3 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT DECLARATION COMPANY NAME: SKYPILOT NETWORK, INC. 1301 SHOREWAY ROAD STE 211 BELMONT, CA 94002 EUT DESCRIPTION: 802.11 BASED, FIXED WIRELESS NODE MODEL: SkyConnector INDOOR SC1010 AND OUTDOOR SC1010 DATE TESTED: SEPTEMBER 27 –SEPTEMBER 28, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: YAN ZHENG DAVID GARCIA EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 4 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the writte…

Text truncated - open the document above for the full version.

REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 57 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 58 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 59 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 60 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. DIGITAL DEVICE RADIATED EMISSIONS SETUP FOR SC-1010 (INDOOR UNIT) DIGITAL DEVICE FRONT PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 61 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. DIGITAL DEVICE BACK PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 62 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. DIGITAL DEVICE RADIATED EMISSIONS SETUP FOR SC-1010 (OUTDOOR UNIT) DIGITAL DEVICE FRONT PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 63 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. DIGITAL DEVICE BACK PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 64 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP FOR SC-1010 (INDOOR UNIT) LINE CONDUCTED FRONT PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 65 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. LINE CONDUCTED BACK PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 66 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP FOR SC-1010 (OUTDOOR UNIT) LINE CONDUCTED FRONT PHOTO REPORT NO: 04U2978-3 DATE: SEPTEMBER 29, 2004 EUT: 802.11 Based, Fixed Wireless Node FCC ID: RV7-SC1010 Page 67 of 67 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the writte…

Text truncated - open the document above for the full version.
