1 Helen Zhao Subject: FW: answer: Skypilot Network Inc., FCC ID: RV7-SC1110, Assessment NO.: AN06T6060, (outdoor) Theory Of Operation(revised).p. User Manual(revised).pd f 06U10324-1C FCC DTS Report.Ou... Setup Photos(revised).pdf sch-00259-01(heat er board).pdf... From: Claire Hoque Sent: Thursday, August 24, 2006 11:24 AM To: Helen Zhao Subject: answer: Skypilot Network Inc., FCC ID: RV7-SC1110, Assessment NO.: AN06T6060, (outdoor) Hi Helen, Pls see answer below, thanks. -----Original Message----- Sent: Wednesday, August 16, 2006 4:54 PM Subject: Skypilot Network Inc., FCC ID: RV7-SC1110, Assessment NO.: AN06T6060, Notice#1 Question #1: The user manual (page 29) indicates "Frequency band: 4.940-5.150, 5.150-5.450, 5.450-5.725, 5.725-5.850GHz." The EUT was tested with 5.725-5.850GHz band only, if the device has the capability to operate in other bands, please perform additional test, otherwise, please update the user manual. By the way, the same page indicates "Antennas: panel 17dBi", which does not agree with Antenna spec in the filing. Please correct discrepancy. <answer>The correct band for US is 5.725-5.850GHz, and the correct antenna gain is 16.5dBi. Manual is revised. Question #2: The schematic diagram shows the EUT has an an 802.11g radio AR2112, if the device has the capability to operate at 11g mode, please perform additional test, you may need to file as composite device; Otherwise, please update the document. <answer>802.11g function is disabled for this application, pls see revised theory of op. Question #3: This device has a heater board enabling outdoor use. Please provide schematic diagram for the heater board. <answer>heater board schematic is attached. Question #4: The test was done at low: 5740MHz, middle 5785MHz, high 5835MHz, so the correct operating frequency should be 5740-5835MHz, the test report section 5.2 and form 731 list wrong frequency band, please update. <answer>report and 731 form are all revised. Best Regards, Helen Zhao The items indicated above must be submitted before processing can 2 continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

PROPOSED FCC ID LABEL AND LOCATION Skypilot Network Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: RV7-SC1110

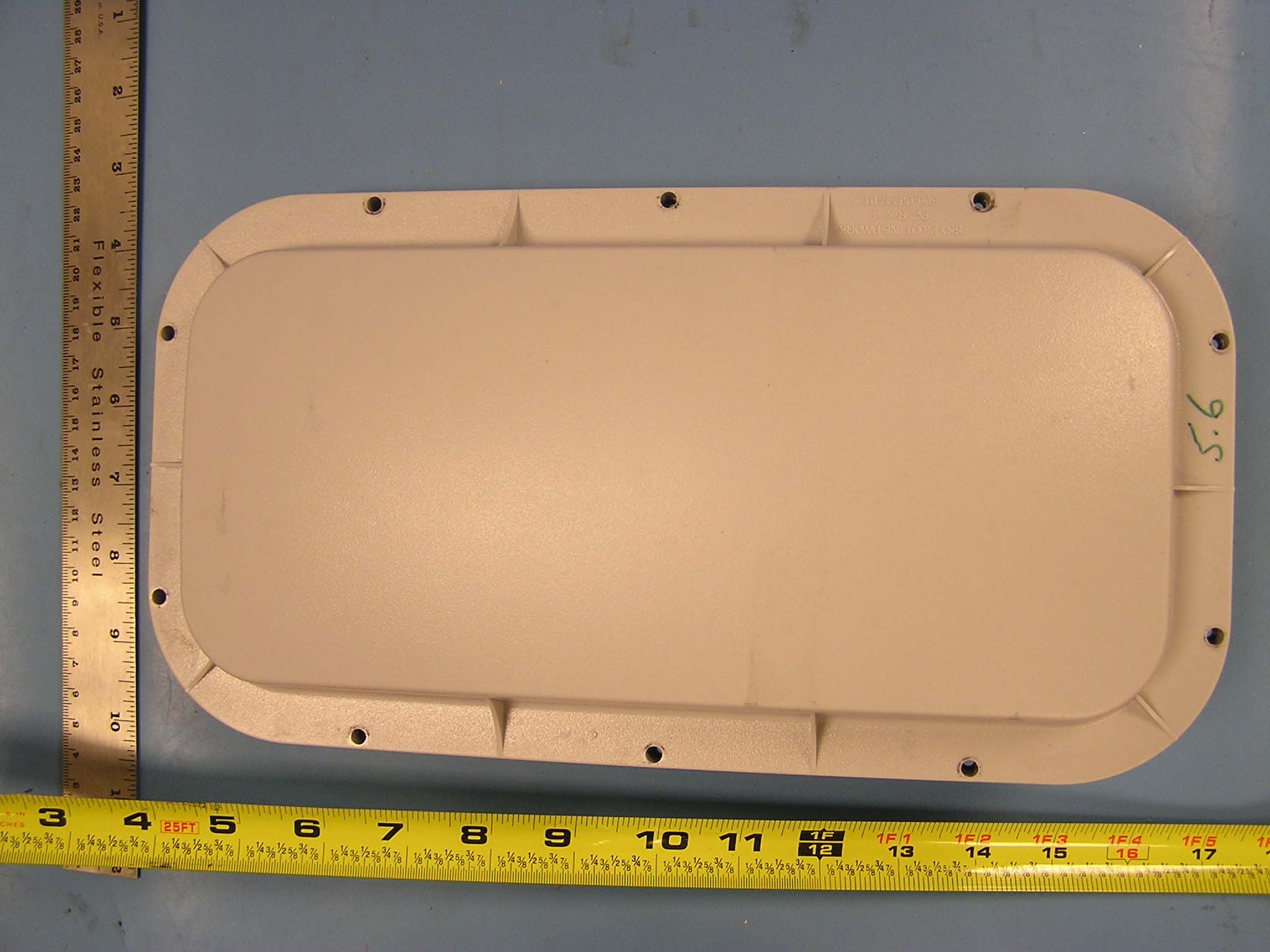

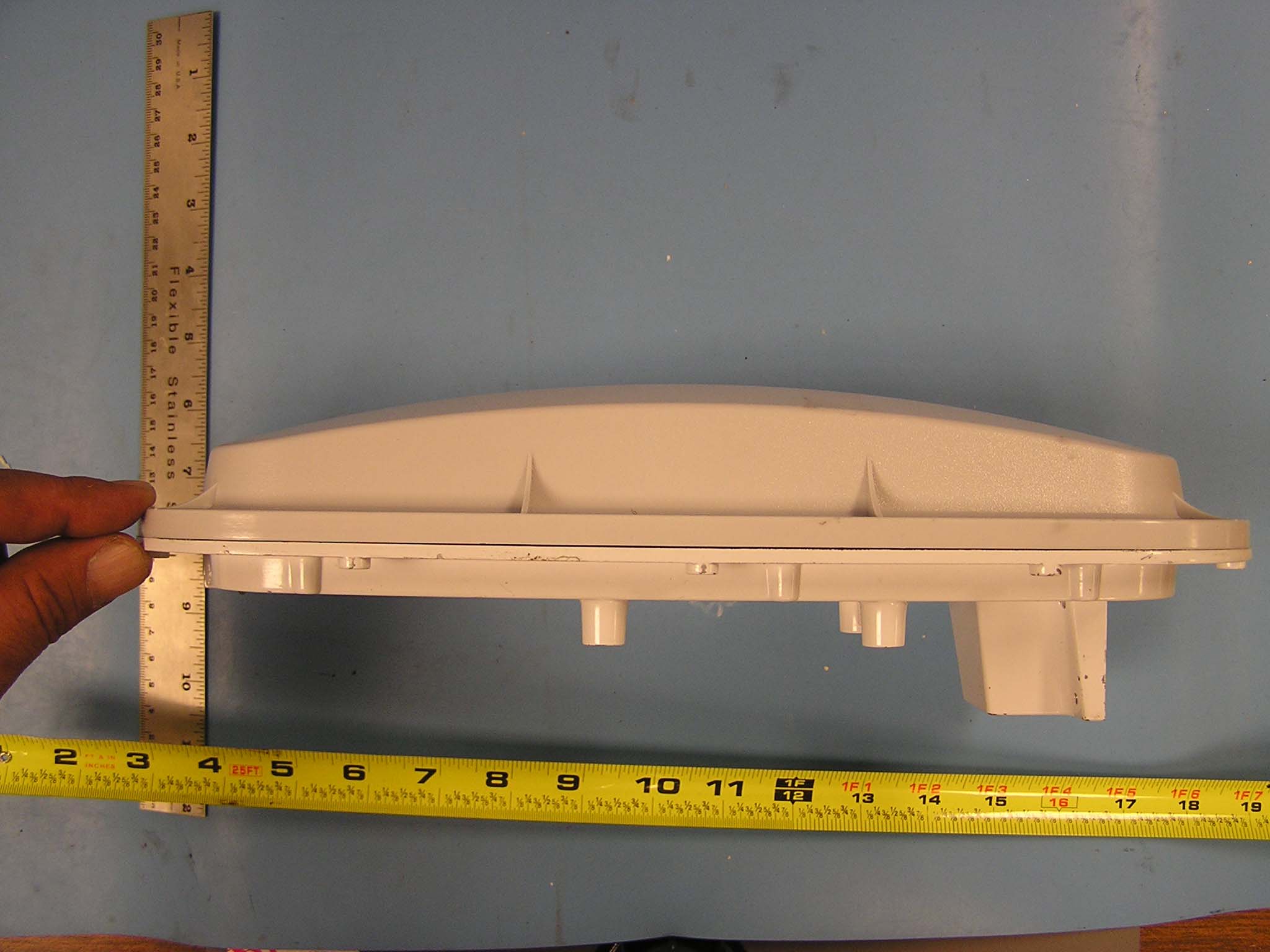

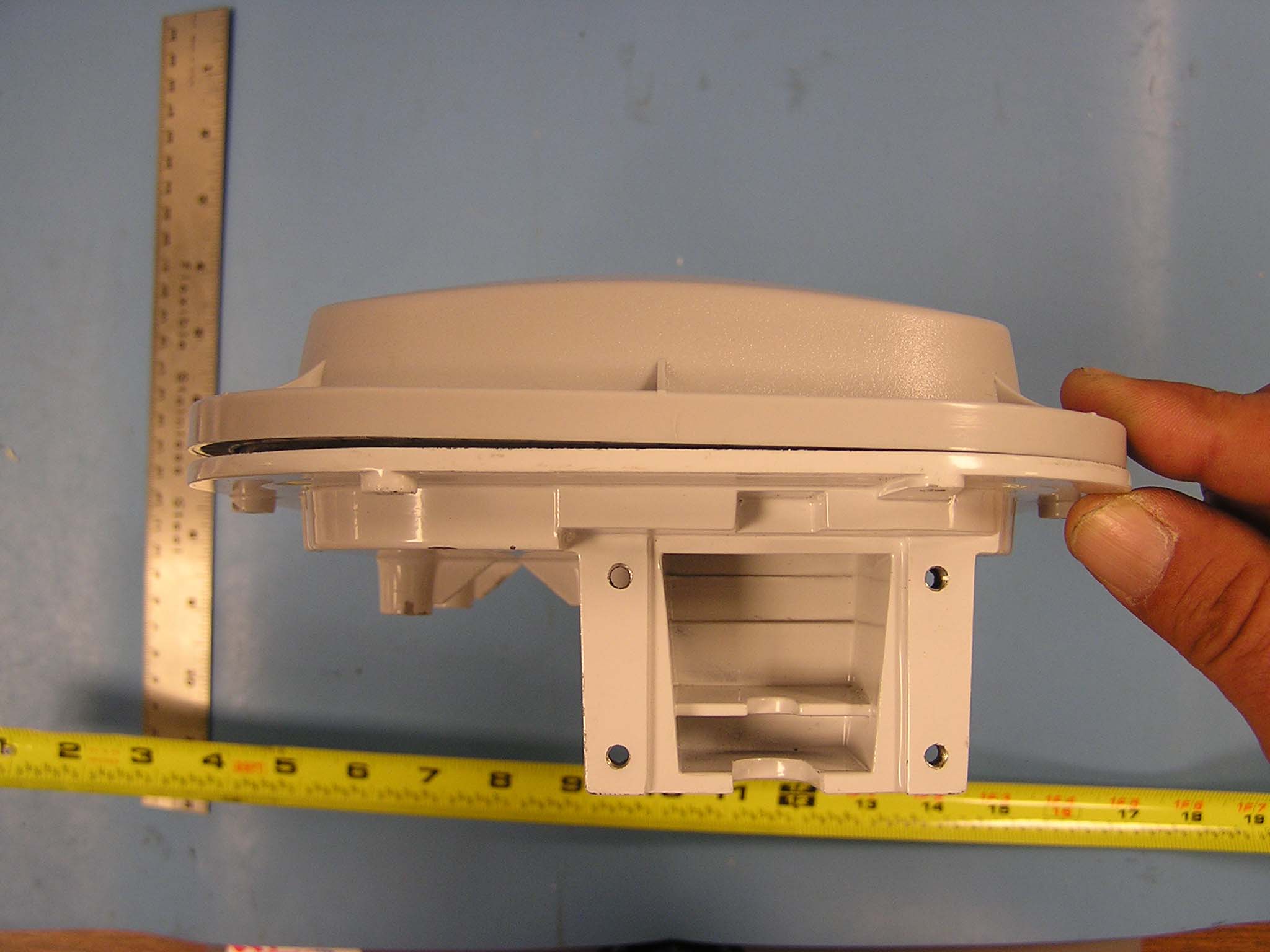

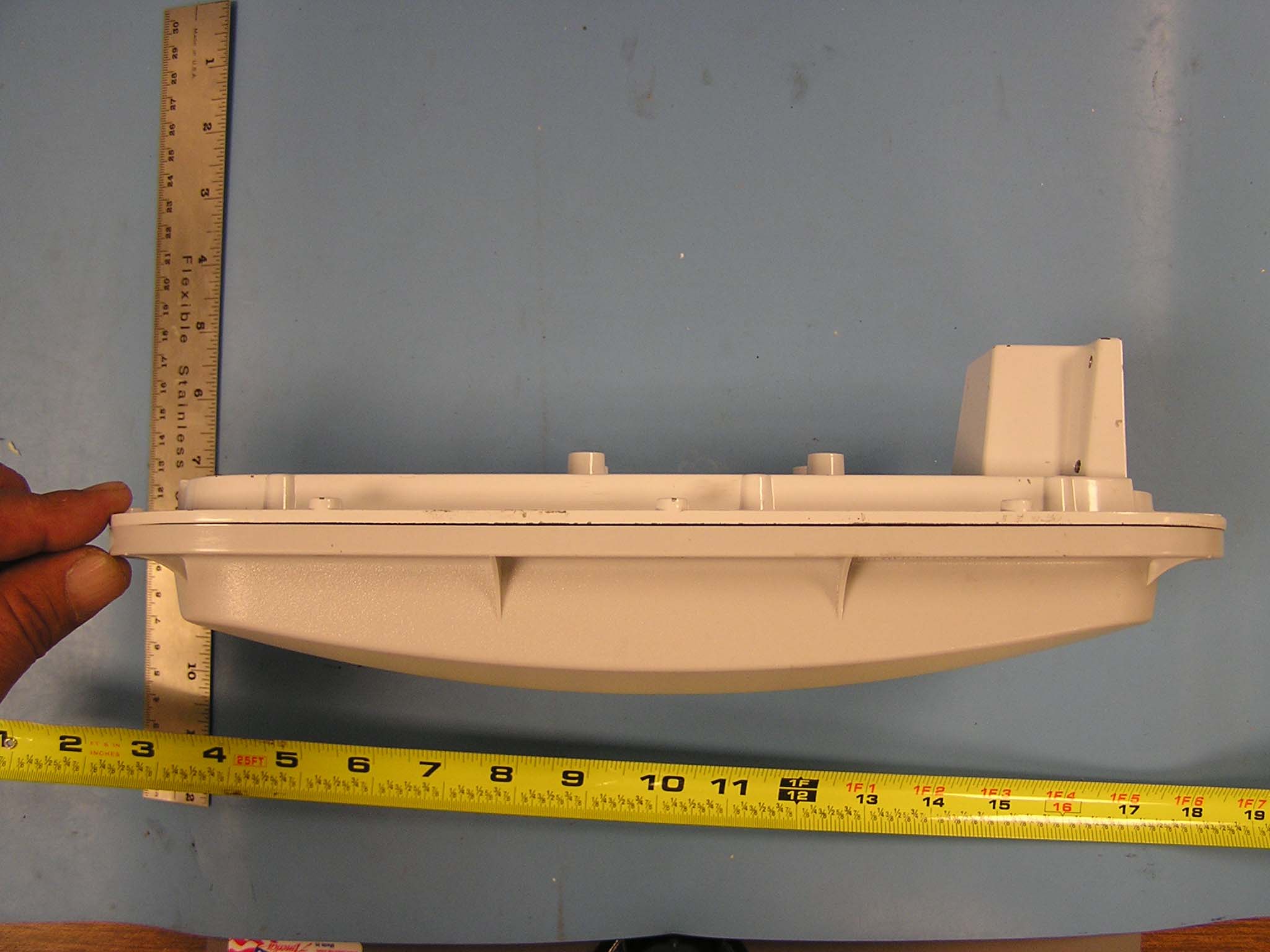

CPE Patch Antenna Specifications 500-00241-01 Electrical Parameter Spec Gain 16.5 dBi Beam Width Azimuth 30 deg Elevation 9 deg Mechanical Parameter Spec Dimensions 10.0” (L) x 4.5” (W) x 0.005” (T)

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11 BASED, FIXED WIRELESS NODE MODEL NUMBER: SkyConnector OUTDOOR SC1110 FCC ID: RV7-SC1110 REPORT NUMBER: 06U10324-1, REVISION C ISSUE DATE: AUGUST 18, 2006 Prepared for SKYPILOT NETWORKS INC. 2055 LAURELWOOD ROAD 2 nd FLOOR SANTA CLARA, CA 95054-2747 Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06U10324-1C DATE: AUGUST 18, 2006 EUT: 802.11 BASED, FIXED WIRELESS NODE FCC ID: RV7-SC1110 Page 2 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 7/24/06 Initial Issue A. Ilarina B 7/28/06 Update model name and FCC ID for the Outdoor unit and remove Indoor unit A. Ilarina 8/15/06 Update antenna gain, add MPE section A. Ilarina C 8/18/2006 Update Setup Photos, update output power table under section 5.2 A. Ilarina REPORT NO: 06U10324-1C DATE: AUGUST 18, 2006 EUT: 802.11 BASED, FIXED WIRELESS NODE FCC ID: RV7-SC1110 Page 3 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 5725 TO 5850 MHz BAND ......................................................... 10 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 7.1.2. 99% BANDWIDTH............................................................................................................ 14 7.1.3. PEAK OUTPUT POWER .................................................................................................. 18 7.1.4. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 23 7.1.5. AVERAGE POWER........................................................................................................... 26 7.1.6. PEAK POWER SPECTRAL DENSITY ............................................................................ 27 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 31 7.2. RADIATED EMISSIONS.............................................................................................................38 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 38 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 5725 TO 5850 MHz BAND ................................ 41 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 42 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 46 8. SETUP PHOTOS .............................................................................................................................. 50 REPORT NO: 06U10324-1C DATE: AUGUST 18, 2006 EUT: 802.11 BASED, FIXED WIRELESS NODE FCC ID: RV7-SC1110 Page 4 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SKYPILOT NETWORKS INC. 2055 LAURELWOOD ROAD 2 nd FLOOR SANTA CLARA, CA 95054-2747 EUT DESCRIPTION: 802.11BASED, FIXED WIRELESS NODE MODEL: SkyConnector Outdoor SC1110 SERIAL NUMBER: None DATE TESTED: JUNE 06 - 13, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirem…

Text truncated - open the document above for the full version.

REPORT NO: 06U10324-1C DATE: AUGUST 18, 2006 EUT: 802.11 BASED, FIXED WIRELESS NODE FCC ID: RV7-SC1110 Page 50 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06U10324-1C DATE: AUGUST 18, 2006 EUT: 802.11 BASED, FIXED WIRELESS NODE FCC ID: RV7-SC1110 Page 51 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP OUTDOOR UNIT RADIATED FRONT PHOTO REPORT NO: 06U10324-1C DATE: AUGUST 18, 2006 EUT: 802.11 BASED, FIXED WIRELESS NODE FCC ID: RV7-SC1110 Page 52 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06U10324-1C DATE: AUGUST 18, 2006 EUT: 802.11 BASED, FIXED WIRELESS NODE FCC ID: RV7-SC1110 Page 53 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 06U10324-1C DATE: AUGUST 18, 2006 EUT: 802.11 BASED, FIXED WIRELESS NODE FCC ID: RV7-SC1110 Page 54 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
