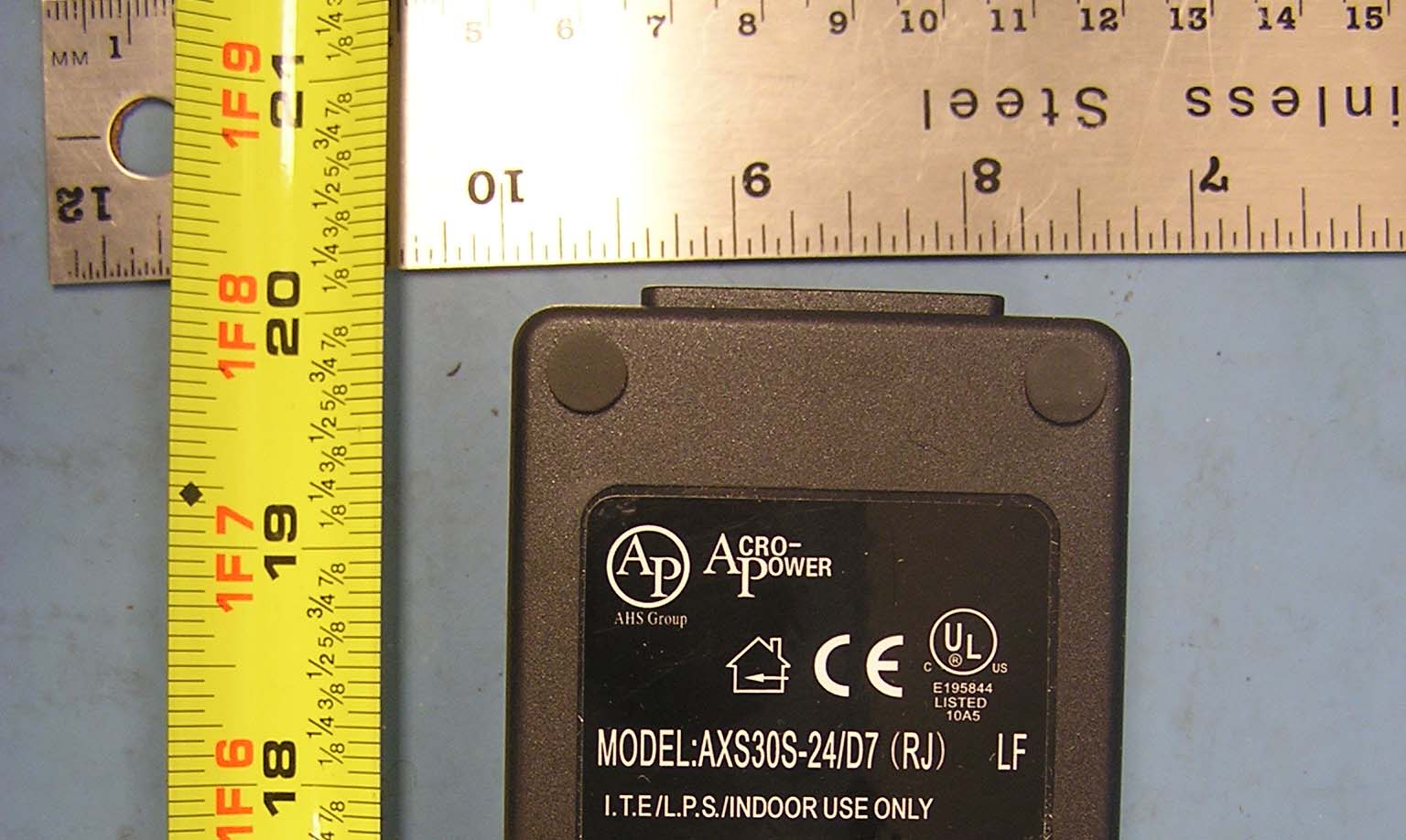

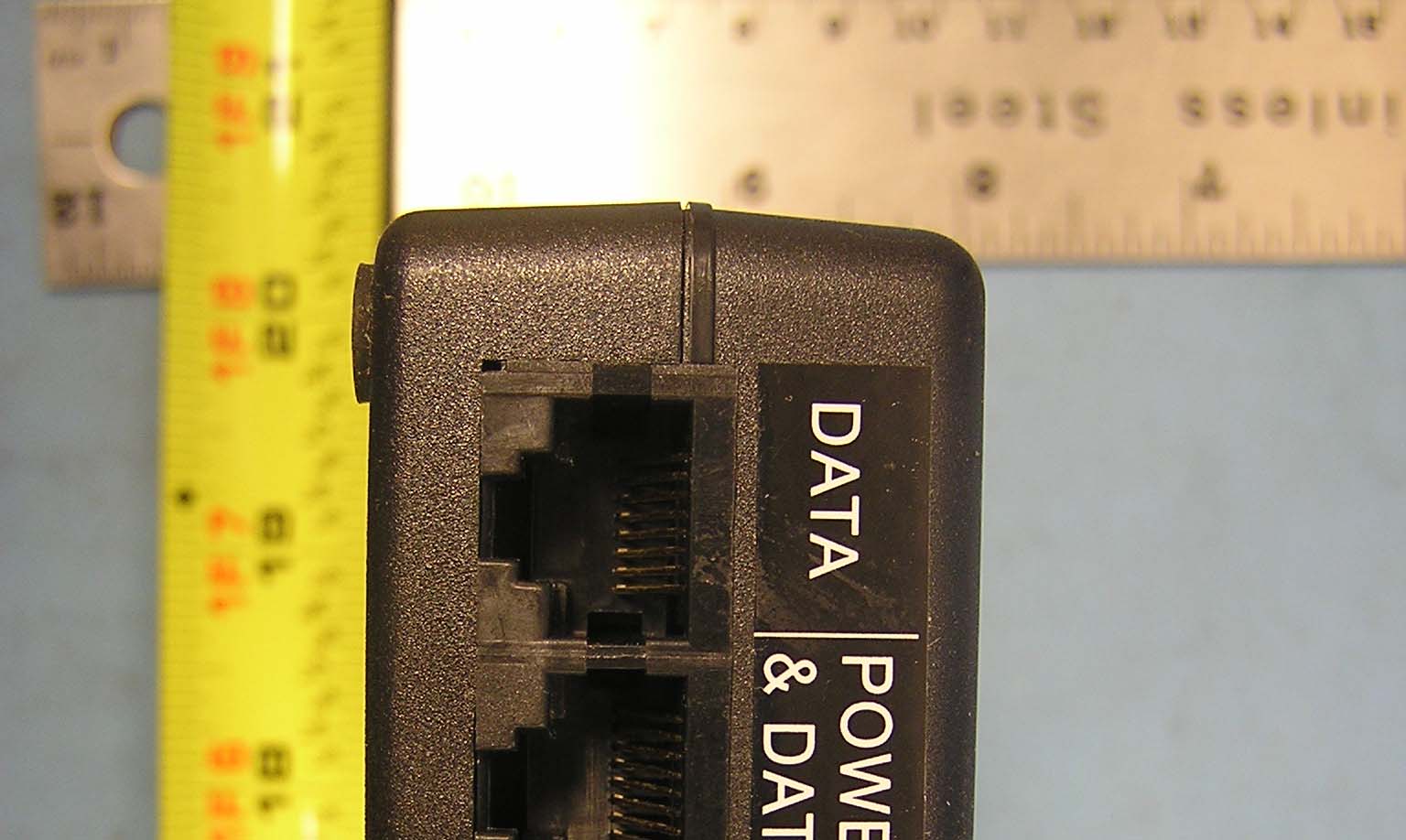

) (  "$ A b o u t T h i s G u i d e This guide explains how to install and set up a SkyPilot™ SkyAccess™ DualBand that provides access to a SkyPilot wireless mesh network and serves as an access point for users of 802.1x wireless (Wi-Fi). This guide assumes administrator-level knowledge of IP networks and a familiarity with configuring wireless devices. SkyPilot SkyAccess DualBand Installation 6 SkyPilot SkyAccess DualBand Installation 7 O v e r v i e w SkyAccess DualBand is a dual-radio solution that combines SkyPilot’s long- range, high-capacity 5.8 GHz mesh backhaul with a high-powered 802.11b/g access point that lets service providers and municipalities offer standard Wi-Fi to subscribers. *     ( SkyAccess DualBand provides a highly flexible wireless solution that combines scalable Wi-Fi capacity with the seamless coverage of a wireless mesh network. Each SkyAccess DualBand can support multiple WLANs (wireless local area networks), each with its own VLAN and security policy. One SkyAccess DualBand can support several business models with a single service installation. <<Illustration?>>   ) (# The SkyAccess DualBand access point is set up to provide Wi-Fi access right out of the box. The access point includes a preconfigured WLAN with the SSID (service set identifier) SkyAccessDualBand, providing WPA-PSK (Wi-Fi protected access – pre-shared key) protection. Users attempting to connect to the SkyAccessDualBand WLAN must provide a password (publicpublic by default). The default configuration is provided for initial management and configuration of the SkyAccess DualBand access point via a wireless connection. You should always 1 SkyPilot SkyAccess DualBand Installation 8 create a unique access point configuration before testing the device or making it available to customers. NOTE       )    +  &
!    ,  )  %      ( ) - (#  + ' . ( +                  ) ,
    )# SkyPilot Networks™ delivers a wireless, end-to-end broadband solution that seamlessly supports high-capacity, high-coverage mesh networks. Designed for managed-access networks and service providers, the SkyPilot network takes broadband wireless the “last mile” with a cost- effective, robust infrastructure solution. Based on a high-performance architecture that deploys intelligent antenna arrays, the SkyPilot network delivers a dynamic broadband solution with significant advantages for business and home users. SkyPilot wireless devices are simple to install and easily fit into any type of wireless environment—metropolitan, business, or home. The auto-discovery and rapid provisioning features of a SkyPilot wireless mesh network greatly reduce deployment and maintenance costs. Support for multiple topologies and high scalability allow attractive options for rapidly expanding a metro Wi-Fi customer base. A SkyPilot network (as illustrated in Figure 1) may include the following physical components:
SkyGateway™ (required)
SkyExtender™
SkyExtender™ DualBand
SkyConnector™ Indoor
SkyConnector™ Outdoor
SkyAccess™ DualBand SkyPilot SkyAccess DualBand Installation 9 *# ,
    %     SkyPilot SkyAccess DualBand Installation 10
    The SkyGateway operates as a base station for a wireless mesh network. It provides an interface between wired infrastructure and a wireless network of subscribers who enjoy secure, high-speed access to the Internet or to wide area networks (WANs). A SkyPilot wireless network requires at least one SkyGateway for normal operation. If necessary, you can add additional SkyGateways to increase network capacity or provide redundancy. The SkyGateway typically resides at a location with easy access to wired infrastructure—usually a POP (point of presence) or data center. For optimal performance, install the SkyGateway on an elevated site such as a cell tower or the top of a tall building.
/0
/0    SkyExtenders and SkyExtender DualBands provide a cost-effective way to add capacity and balance network loads, by operating as “repeaters” to extend the wireless range of a SkyGateway (see Figure 1). You can add these devices to your network to expand your coverage footprint and provide redundancy through SkyPilot’s mesh networking features. (A SkyExtender can also provide subscribers with a direct connection to the wireless network via its Ethernet port.) In addition, the SkyExtender DualBand serves as a Wi-Fi access point, enabling service providers and municipalities to provide standard 802.11 wireless access across great distances, for targeted hot zones, or for dense coverage patterns. For optimal performance, install the SkyExtender in an elevated location such as a roof, tower, or utility pole. SkyPilot SkyAccess DualBand Installation 11

  SkyConnectors link your subscribers to the SkyPilot wireless network. An Ethernet port on the SkyConnector enables a connection to be established to the subscribers’ computers, or to a local area network (LAN) via a data switch or router. For flexibility of installation, SkyPilot offers indoor and outdoor versions of the SkyConnector. Designed for installation by the service prov…
