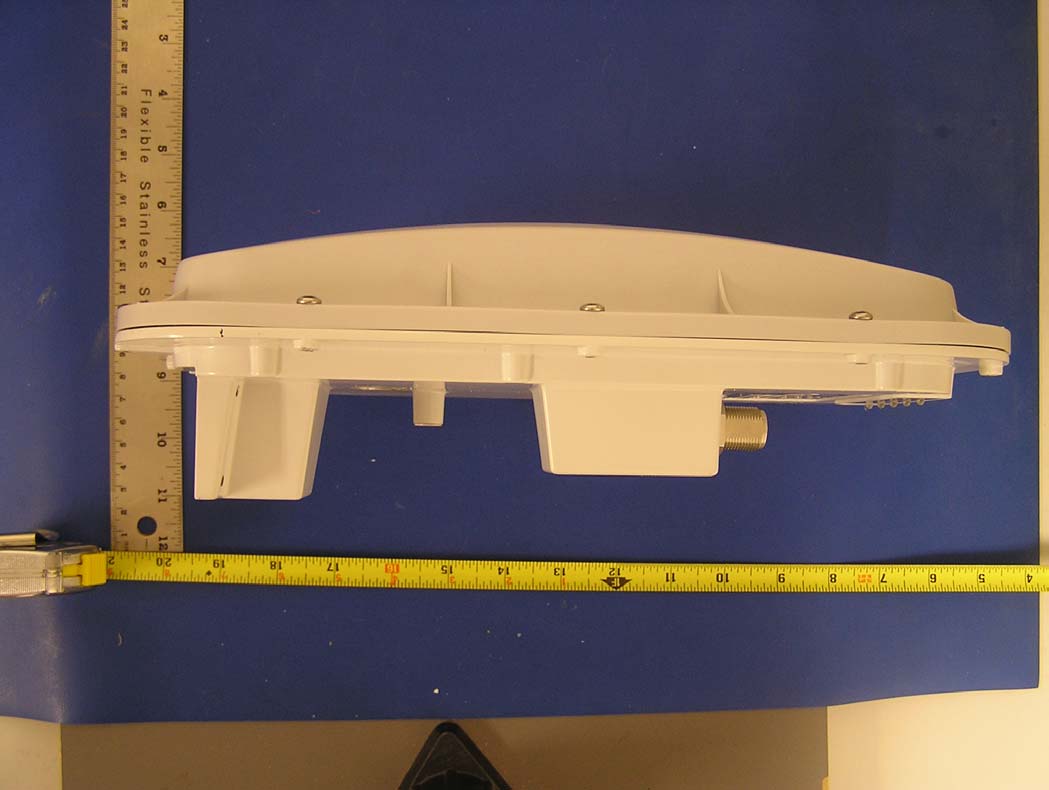

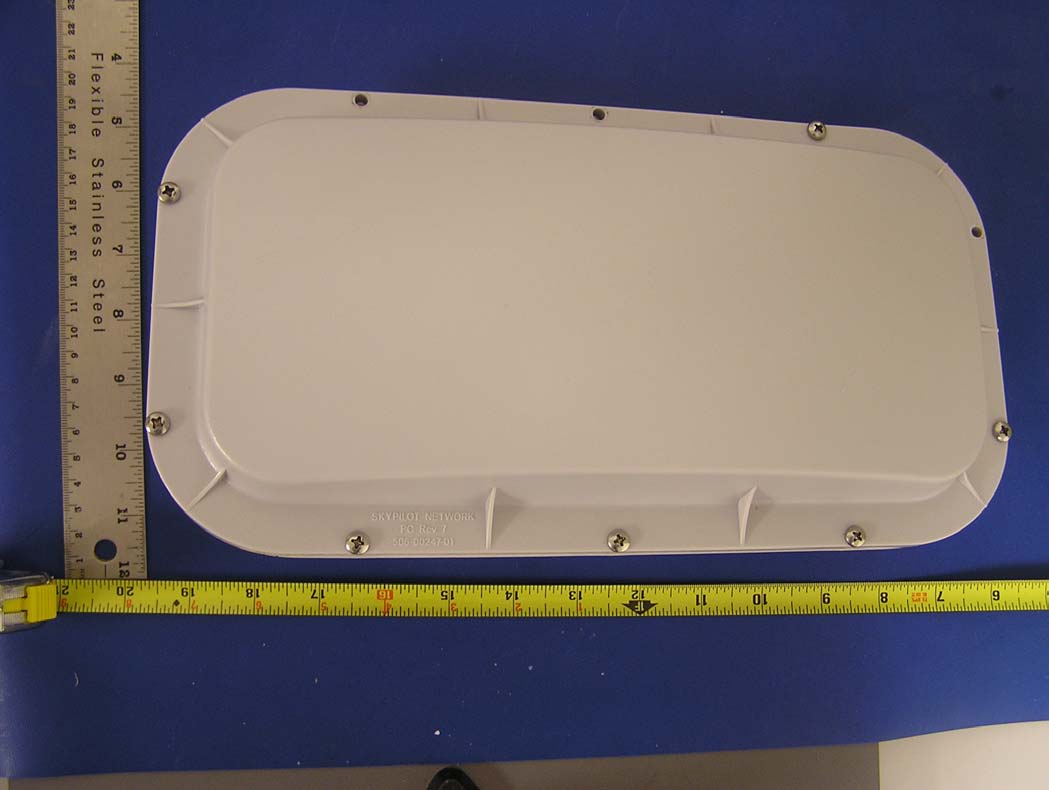

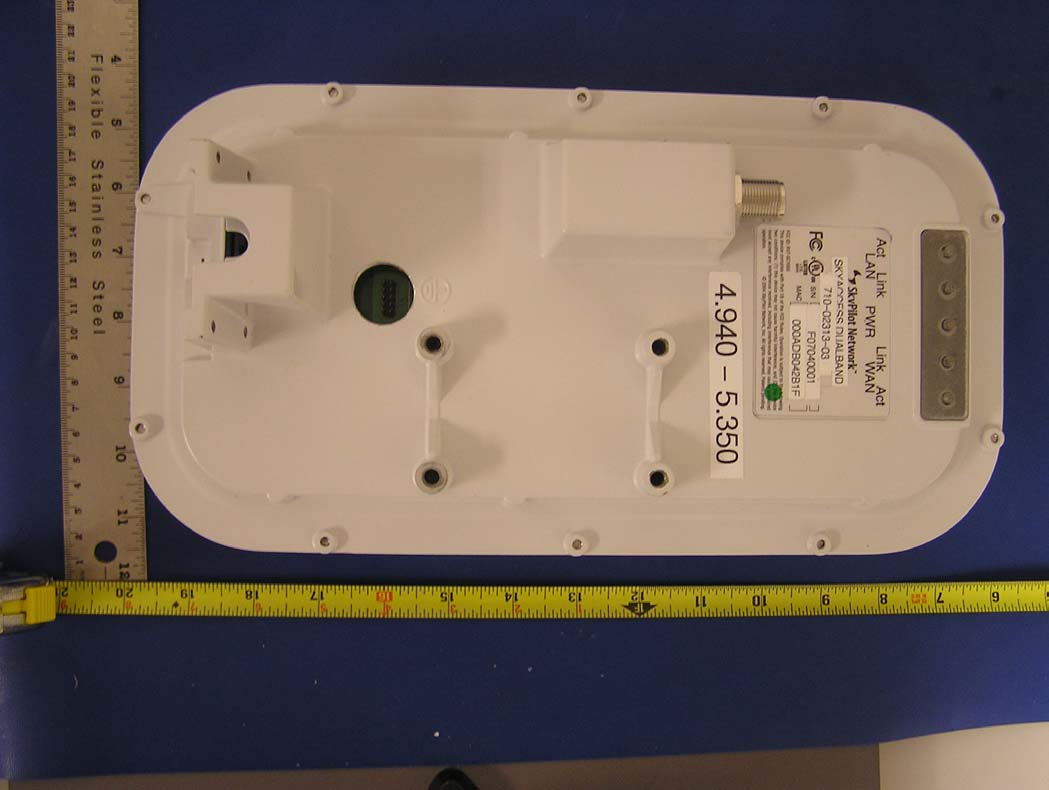

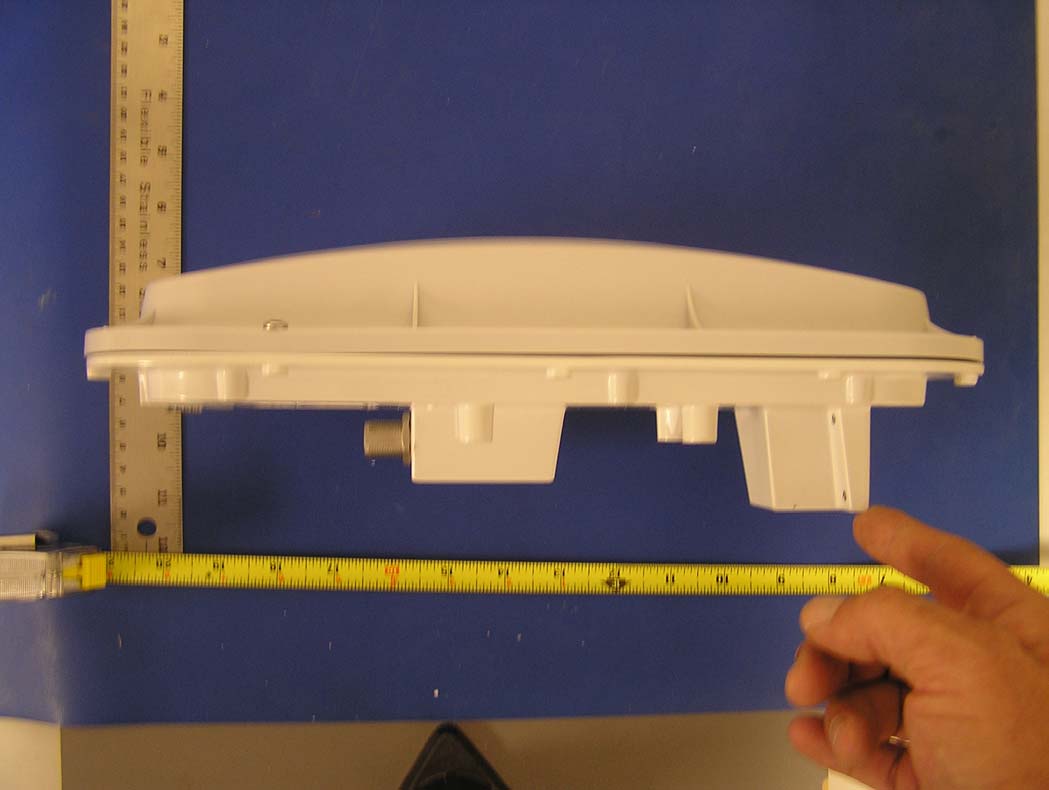

RV7-SC3130802.11 Based, Fixed Wireless Node

SkyPilot SkyAccess DualBand Installation Contents About This Guide 5 1 Overview Features and benefits 7 About access point configuration 7 SkyPilot network topology 8 2 The SkyAccess DualBand Installation Kit 13 What the kit provides 14 What else you need 14 Getting help 16 3 Installing a SkyAccess DualBand 17 Planning your installation 17 Cabling the SkyAccess DualBand 18 Powering on the SkyAccess DualBand 20 Optimizing location 22 Mounting the SkyAccess DualBand 24 Connecting to the wireless network 27 Configuring the SkyAccess DualBand 29 A Accessing SkyAccess DualBand Command-Line Interfaces 31 Connect to the SkyAccess interface 31 Connect to the access point interface 32 B Specifications 37 About This Guide This guide explains how to install and set up a SkyPilot™ SkyAccess™ DualBand that provides access to a SkyPilot wireless mesh network and serves as an access point for users of 802.1x wireless (Wi-Fi). This guide assumes administrator-level knowledge of IP networks and a familiarity with configuring wireless devices. SkyPilot SkyAccess DualBand Installation 6 SkyPilot SkyAccess DualBand Installation 7 Overview SkyAccess DualBand is a dual-radio solution that combines SkyPilot’s long- range, high-capacity 4.9 GHz mesh backhaul with a high-powered 802.11b/g access point that lets service providers and municipalities offer standard Wi-Fi to subscribers. Features and benefits SkyAccess DualBand provides a highly flexible wireless solution that combines scalable Wi-Fi capacity with the seamless coverage of a wireless mesh network. Each SkyAccess DualBand can support multiple WLANs (wireless local area networks), each with its own VLAN and security policy. One SkyAccess DualBand can support several business models with a single service installation. About access point configuration The SkyAccess DualBand access point is set up to provide Wi-Fi access right out of the box. The access point includes a preconfigured WLAN with the SSID (service set identifier) SkyAccessDualBand, providing WPA-PSK (Wi-Fi protected access – pre-shared key) protection. Users attempting to connect to the SkyAccessDualBand WLAN must provide a password (publicpublic by default). The default configuration is provided for initial management and configuration of the SkyAccess DualBand access point via a wireless connection. You should always create a unique access point configuration before testing the device or making it available to customers. 1 SkyPilot SkyAccess DualBand Installation 8 NOTE A wireless network protected by WPA-PSK is vulnerable. To provide a more secure level of protection, configure the WLAN for WPA authentication in which each user is authenticated separately. SkyPilot network topology SkyPilot Networks™ delivers a wireless, end-to-end broadband solution that seamlessly supports high-capacity, high-coverage mesh networks. Designed for managed-access networks and service providers, the SkyPilot network takes broadband wireless the “last mile” with a cost- effective, robust infrastructure solution. Based on a high-performance architecture that deploys intelligent antenna arrays, the SkyPilot network delivers a dynamic broadband solution with significant advantages for business and home users. SkyPilot wireless devices are simple to install and easily fit into any type of wireless environment—metropolitan, business, or home. The auto-discovery and rapid provisioning features of a SkyPilot wireless mesh network greatly reduce deployment and maintenance costs. Support for multiple topologies and high scalability allow attractive options for rapidly expanding a metro Wi-Fi customer base. A SkyPilot network (as illustrated in Figure 1) may include the following physical components: SkyGateway™ (required) SkyExtender™ SkyExtender™ DualBand SkyConnector™ Indoor SkyConnector™ Outdoor SkyAccess™ DualBand SkyPilot SkyAccess DualBand Installation 9 Figure 1. SkyPilot wireless mesh network SkyGateway The SkyGateway operates as a base station for a wireless mesh network. It provides an interface between wired infrastructure and a wireless network of subscribers who enjoy secure, high-speed access to the Internet or to wide area networks (WANs). A SkyPilot wireless network requires at least one SkyGateway for normal operation. If necessary, you can add additional SkyGateways to increase network capacity or provide redundancy. The SkyGateway typically resides at a location with easy access to wired infrastructure—usually a POP (point of presence) or data center. SkyPilot SkyAccess DualBand Installation 10 For optimal performance, install the SkyGateway on an elevated site such as a cell tower or the top of a tall building. SkyExtender and SkyExtender DualBand SkyExtenders and SkyExtender DualBands provide a cost-effective way to add capacity and balance network loads, by operating as “repeaters” to extend the wireless range of a SkyGateway (see Figure 1). You can add these devices to your network to expand your coverage footprint and provide redundancy through SkyPilot’s mesh networking features. (A SkyExtender can also provide subscribers with a direct connection to the wireless network via its Ethernet port.) In addition, the SkyExtender DualBand serves as a Wi-Fi access point, enabling service providers and municipalities to provide standard 802.11 wireless access across great distances, for targeted hot zones, or for dense coverage patterns. For optimal performance, install the SkyExtender in an elevated location such as a roof, tower, or utility pole. SkyConnector and SkyAccess DualBand SkyConnectors link your subscribers to the SkyPilot wireless network. An Ethernet port on the SkyConnector enables a connection to be established to the subscribers’ computers, or to a local area network (LAN) via a data switch or router. For flexibility of installation, SkyPilot offers indoor and outdoor versions of the SkyConnector. Designed for installation by the service provider, the outdoor version of the SkyConnect…

Text truncated - open the document above for the full version.

2055 Laurelwood Road FL 2 • Santa Clara, CA 95054 • Tel 408.764.8000 • Fax 408.764.8001 • www.skypilot.com Date: Sept 10th, 2007 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 2055 Laurelwood Road FL 2 • Santa Clara, CA 95054 • Tel 408.764.8000 • Fax 408.764.8001 • www.skypilot.com f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, William G. Olsen Director of Hardware Skypilot Network Inc)

2055 Laurelwood Road FL 2 • Santa Clara, CA 95054 • Tel 408.764.8000 • Fax 408.764.8001 • www.skypilot.com Date: Sept 10th, 2007 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: RV7-SC3130 and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operations Tuneup Procedure/Parts List These documents contain detailed system and equipment description and related information about the product that SkyPilot Network, Inc considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SkyPilot Network, Inc considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. This authorization is valid until further written notice from the applicant. Sincerely Yours, William G. Olsen Director of Hardware Skypilot Network Inc)

http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11547c69793716a9&ww=1131&cvap=0&qt=&zx=n571zdgcr33m Skypilot Network Inc., FCC ID: RV7-SC3111, Assessment NO.: AN07T7217, Notice#1 Inbox "[email protected]" Hello Thu, September, The review of this application is complete. Please reply Sep 25 (2 days ago) Reply from September Radecki <[email protected]> hide details 12:26 pm (30 minutes ago) to "Timothy M. Dwyer" <[email protected]> cc Thu Chan <[email protected]> date Sep 27, 2007 12:26 PM subject RE: Skypilot Network Inc., FCC ID: RV7-SC3111, Assessment NO.: AN07T7217, Notice#1 Hi Tim, Below are the answers to your questions on this application. Q1: Entries for Frequency Tolerance and Emission Designator were not included in the application form. This information is required for licensed devices. Please provide the information so that it can be entered in the application form. <CCS Answer:> The frequency tolerance is 6.45 ppm. The emissions designators are 16M8W7D and 16M8G1D. Q2: Please provide additional explanation for the Low Voltage Normal Temperature Results on page 38 of the test report. The explanation can be in the form of an email or test report addendum that will be included as an exhibit to the filing. <CCS Answer:> Please see attached Revised Test Report. Q3: Tune-up procedure and parts list exhibits are required for licensed transmitters. Please provide these exhibits. <CCS Answer:> Parts List and Tune-up Procedure are attached. Thanks and best regards, September September Radecki Compliance Certification Services 47173 Benicia Street Fremont, CA 94538 phone: 1-510-771-1090 fax: 1-510-661-0888 [email protected] <mailto:[email protected]> - Show quoted text - 9 attachments — Download all attachments sc3130bom.pdf 37K View as HTML Download SC3111bom.pdf 27K View as HTML Download 07U11263-1 FCC 90Y Report_Dual Band_setup photos.pdf 301K View as HTML Download 07U11263-1 FCC 90Y Report_Dual Band_no photos.pdf 712K View as HTML Download Tuneup Procedure.pdf 84K View as HTML Download FCC Request for Confidentiality Revised.pdf 87K View as HTML Download FCC Request for Confidentiality Revised 3130.pdf 87K View as HTML Download 07U11263-3 FCC 90Y Report_Single Band_no photos.pdf 711K View as HTML Download http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...547c69793716a9&ww=1131&cvap=0&qt=&zx=n571zdgcr33m (1 of 2)9/27/2007 12:58:23 PM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11547c69793716a9&ww=1131&cvap=0&qt=&zx=n571zdgcr33m 07U11263-3 FCC 90Y Report_Single Band_setup photos.pdf 302K View as HTML Download http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...547c69793716a9&ww=1131&cvap=0&qt=&zx=n571zdgcr33m (2 of 2)9/27/2007 12:58:23 PM

THIRD ANGLE PROJECTION 501-00027-02 D C B A A B C D Label, Product, SkyAccess, 4.9 PS Santa Clara, CA 95054 CAD GENERATED DRAWING, DO NOT MANUALLY UPDATE SCALE SIZE CAD FILE: DWG. NO. B SHEET 1 OF 1 REV. DATE APPROVALS DRAWN CHECKEDRESP ENG MFG ENGQUAL ENG 2055 Laurelwood Road SkyPilot Networks Inc. CONSENT OF SKYPILOT NETWORK CORPORATION IS PROHIBITED. X. = 0.250.X = 0.0250.XX = 0.0100.XXX = 0.005 MATERIAL FINISH -- -- DO NOT SCALE DRAWING 1 2 3 4 5 6 7 8 8 7 6 5 4 32 1 501-00027-02 1 T. Kridl 9-11-07 ANGLE = 0.5 DEGREE UNLESS OTHERWISE SPECIFIED,DIMENSIONS ARE IN INCHESTOLERANCES ARE: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SKYPILOT NETWORK CORPORATION AND ANY REPRODUCTION IN PART OR WHOLE WITHOUT THE WRITTEN 2:1 3. ALL MATERIALS AND FINISHES SHALL MEET 4. THE REQUIREMENTS OF EU DIRECTIVE 2002/95/ECON THE RESTRICTION OF THE USEOF CERTAIN HAZARDOUS SUBSTANCES IN ELECTRICAL AND ELECTRONIC EQUIPMENT (ROHS). A CERTIFICATE OF COMPLIANCE TO THIS SPECIFICATION IS REQUIREDFOR EACH ORDER. NOTES, UNLESS OTHERWISE SPECIFIED: INTERPRET DIMENSIONS AND TOLERANCES PER ANSI Y14.5, 1994 1. MATERIAL: .002" HEAVY COAT SILVER THERMAL TRANSFER MYLAR 2. W/.0018 PERMANENT ACRYLIC ACRYLIC ADHESIVE. 55# PAPER LINERTHICKNESS: .002". 3M #7872 OR EQUIVALENT. BAG AND TAG WITH PART NUMBER AND REVISION REVISIONS ZONE REV. DESCRIPTION DATE APPROVED 1 Preliminary Release 9-11-07 1.950 MAC 2.650 S/N .080 2X Outline for .25" x 1.5" Overlay Label 4X R Area for WEEE Mark Area for Agency Marking, UL operation. © 2006 SkyPilot Networks, Inc. All rights reserved. Patents pending.This device complies with Part 90 of the FCC Rules. Operation is subject to the followingtwo conditions: (1) this device may not caus e harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired FCC ID: RV7-SC3130

SkyPilot Network Inc. SkyConnector Parameters Antenna Patterns 3 March 2005 SkyPilot Network Inc. Confidential 3 March 2005 SkyPilot Network Inc. Confidential 4/14/2005 Page 1 of 4 1.0 SkyConnector Azimuth Pattern The SkyConnector unit employs a panel antenna structure. The antenna azimuth beam width is approximately 30 degrees with the mean gain across the beam width at 16.5 dBi and a max gain of 17dBi. The data and plot of antenna pattern in the azimuth direction is given in Table 1 and Figure 1 respectively. Azimuth Gain Azimuth Gain AzimuthGain AzimuthGain [Degs] [dBi] [Degs] [dBi] [Degs] [dBi] [Degs] [dBi] 0 17.0 90 -6.7 180 -25.7 270 -5.4 5 16.7 95 -7.4 185 -25.4 275 -4.5 10 16.3 100 -8.5 190 -30.2 280 -4.1 15 14.9 105 -8.9 195 -40.7 285 -4.7 20 12.1 110 -10.9 200 -27.0 290 -6.7 25 9.6 115 -12.5 205 -23.1 295 -8.2 30 5.5 120 -15.3 210 -18.1 300 -13.2 35 -2.0 125 -18.3 215 -15.0 305 -15.9 40 -10.7 130 -24.7 220 -16.3 310 -10.3 45 -10.4 135 -20.6 225 -18.0 315 -8.9 50 -10.2 140 -16.1 230 -25.6 320 -12.0 55 -16.6 145 -17.7 235 -21.2 325 -6.0 60 -29.6 150 -18.1 240 -13.0 330 2.1 65 -13.7 155 -21.3 245 -12.0 335 6.4 70 -9.2 160 -25.0 250 -11.7 340 10.4 75 -7.2 165 -23.8 255 -11.1 345 13.5 80 -6.7 170 -21.0 260 -8.5 350 15.8 85 -6.7 175 -26.8 265 -6.3 355 16.8 Table 1.- Skyconnector azimuth data 4/14/2005 Page 2 of 4 Single Sector -50 -40 -30 -20 -10 0 10 20 Single Sector Figure 1.- Skyconnector azimuth pattern 3 March 2005 SkyPilot Network Inc. Confidential 4/14/2005 Page 3 of 4 1.4 SkyConnector Elevation Pattern The elevation beam width of the SkyConnector antenna is approximately 8 degrees total. The data and plot of antenna pattern in the azimuth direction is given in Table 2 and Figure 2 respectively. Note that in Figure 2, the horizon or 0 degrees is in the vertical direction. Angle, deg Gain, dBi Angle, deg Gain, dBi Angle, deg Gain, dBi Angle, deg Gain, dBi 0 17.0 90 -15.8 180 -25.7 270 -15.9 5 13.7 95 -16.4 185 -25.3 275 -15.3 10 1.5 100 -17.0 190 -24.8 280 -14.7 15 3.3 105 -17.5 195 -24.4 285 -14.2 20 -1.8 110 -18.1 200 -23.9 290 -13.6 25 -4.4 115 -18.7 205 -23.4 295 -13.0 30 -5.1 120 -19.2 210 -22.9 300 -12.5 35 -19.2 125 -19.8 215 -22.3 305 -11.9 40 -8.2 130 -20.4 220 -21.6 310 -11.3 45 -10.7 135 -20.9 225 -21.0 315 -10.8 50 -11.3 140 -21.6 230 -20.4 320 -7.9 55 -11.9 145 -22.2 235 -19.8 325 -18.5 60 -12.4 150 -22.8 240 -19.3 330 -5.6 65 -13.0 155 -23.4 245 -18.7 335 -4.0 70 -13.6 160 -23.9 250 -18.1 340 -2.3 75 -14.1 165 -24.4 255 -17.6 345 3.5 80 -14.7 170 -24.8 260 -17.0 350 1.4 85 -15.3 175 -25.3 265 -16.4 355 12.6 Table 2.- Skyconnector elevation data 4/14/2005 Page 4 of 4 elevation pattern -30 -25 -20 -15 -10 -5 0 5 10 15 20 elevation data Figure 2.- Skyconnector elevation pattern 3 March 2005 SkyPilot Network Inc. Confidential

FCC CFR47 PART 90 SUBPART Y CERTIFICATION TEST REPORT FOR FIXED WIRELESS NODE (802.11 BASED) MODEL NUMBER: SC3130 FCC ID: RV7-SC3130 REPORT NUMBER: 07U11263-1 ISSUE DATE: SEPTEMBER 04, 2007 Prepared for SKYPILOT NETWORK INC 2055 LAURELWOOD ROAD 2NDFLOOR SANTA CLARA, CA 95054, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 2 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 09/04/07 Initial Issue T. Chan REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 3 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION............................................................................... 5 4.2. MEASUREMENT UNCERTAINTY................................................................................................ 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ............................................................................................................... 6 5.2. MAXIMUM OUTPUT POWER ...................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................................. 6 5.4. SOFTWARE AND FIRMWARE..................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS ...................................................................................................................... 10 7.1.1. EMISSION BANDWIDTH ................................................................................................ 10 7.1.2. PEAK OUTPUT POWER .................................................................................................. 14 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 18 7.1.4. AVERAGE POWER........................................................................................................... 21 7.1.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 22 7.1.6. EMISSION MASK AND CONDUCTED SPURIOUS...................................................... 26 7.2. RADIATED EMISSIONS .............................................................................................................33 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 33 7.2.2. TRANSMITTER ABOVE 1 GHz ...................................................................................... 35 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 36 7.3. FREQUENCY STABILITY........................................................................................................... 37 7.4. POWERLINE CONDUCTED EMISSIONS ................................................................................. 39 8. SETUP PHOTOS .............................................................................................................................. 43 REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 4 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: SKYPILOT NETWORK INC 2055 LAURELWOOD ROAD 2 ND FLOOR SANTA CLARA, CA 95054, USA EUT DESCRIPTION: SKY CONNECTOR OUTDOOR, 802.11 BASED, FIXED WIRELESS NODE MODEL: SC3130 SERIAL NUMBER: F07040001 DATE TESTED: AUGUST 19-27, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 90 SUBPART Y NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be…

Text truncated - open the document above for the full version.

REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 43 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 44 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TEMPERATURE CHAMBER MEASUREMENT SETUP TEMPERATURE CHAMBER PHOTO REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 45 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 46 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. LINE CONDUCTED BACK PHOTO REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 47 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP WITH 50 OHM LOADS RADIATED FRONT PHOTO REPORT NO: 07U11263-1 DATE: SEPTEMBER 04, 2007 EUT: FIXED WIRELESS NODE (WIRELESS BASED) FCC ID: RV7-SC3130 Page 48 of 48 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT RADIATED BACK PHOTO
