Annex No.5 User Manual / Technical Description E-Bus SiRoute™ Wireless Infrastructure for Alarm Systems With innovative radio technology z No range limitation z Self-configuring wireless network z Redundant communication links z Battery lifetime up to 4 years z Very good reliability z “White collar” installation z Higher security z One remote control for alarm system, emergency and home automation control z Reduced inventory costs z Family look blends with all environments z Simple addressing Fire & Security Products Siemens Building Technologies System overview The new wireless infrastructure SiRoute™ brings a complete range of devices with an innovative and reliable radio technology, which offers an unlimited transmission range and a higher security. The SiRoute™ technology is unique, based on an 914MHz bidirectional radio transmission. It features a patented routing mechanism named EasyRouting. The SiRoute™ peripheral devices can be used with Siemens hardwired systems series SI100/200/300/400 thanks to a new radio gateway. E-Gateway (E-Bus radio gateway for SI series control panels) z No range limitation, self-configuring wireless network and redundant commu- nication links The patented telegram routing algorithm EasyRouting passes on the information from the wireless participants to the radio controller in the gateway and vice versa. The communication works by passing telegrams from one participant to the radio controller via other participants if a direct radio communication is not possible. In case of radio disturbances EasyRouting automatically searches for an alternative route between the participant and the radio controller. Radio module standard E-Bus Radio module for round detectors (e.g. smoke detectors) Universal mounting base z Battery lifetime up to 4 years The SiRoute™ devices have such a low power consumption that the batteries can lead up to 4 years. The batteries are included in the supplied packages. z Very good reliability The redundancy of the routing mechanism and the high performance of the bidirec- tional radio technique make the SiRoute™ wireless infrastructure a very reliable prod- uct. 2 Siemens Building Technologies Fire & Security Products W7OP303 W7IR90 W7GB650 W7MK100 (shown with W7BT21) (shown with W7BT20) (shown with W7BT20) (shown with W7BT20) Smoke detector PIR motion detector Acoustic glass- break detector Door contact The SiRoute™ wireless optical smoke detector is based on light scatter- ing by smoke particles. Designed for low power consumption it is pow- ered by the batteries of the radio module. The smoke sensitivity is 2.5%/m. An LED indicates the alarm state in test mode. The standard 12m wide- angle Fresnel lens can be quickly replaced by an optional 18m long- range lens. Corner mounting is possible using the optional bracket W7UM20 (5pcs set). The PIR (passive- infrared) detector has an LED, which indicates the alarm state in walk test mode. In contrast to magnet contacts and vibration detectors, which must be mounted on all windows, the SiRoute™ acoustic glassbreak detector can monitor the windows of a whole room with a detection range up to 8m. It works with all glass types. An LED indicates the alarm state in test mode. The SiRoute™ wireless door contact has 3 reed contacts. This allows different positions of the housing for a great flexibility when installing the contact. The contact is designed for use on doors. One magnet is supplied with the con- tact. Spare contacts W7MK105 are available (5pcs set). Technical data Operating voltage (battery supply) from W7BT21 from W7BT20 from W7BT20 from W7BT20 Battery lifetime up to 4 years up to 4 years up to 4 years up to 4 years Specific data Smoke sensitivity: 2.5%/m Detection range: 12m volumetric (stan- dard), 18m long range (optional) Detection range: 8m radius Detection type: magnetic contact (max. 10mm between contact and magnet) Settings - Sensitivity: high / low / remote selectable by jumper Sensitivity: high (up to 8m) / low (up to 4m) / remote selectable by jumper - Ambient conditions – Operating temperature – Storage temperature – Air humidity (EN60721) – Housing protection (EN60529) -10 ... +55°C -20 ... +60°C <95% r.h., non-cond. IP 44 -10 ... +55°C -20 ... +60°C <95% r.h., non-cond. IP 42 -10 ... +55°C -20 ... +60°C <95% r.h., non-cond. IP 31 -10 ... +55°C -20 ... +60°C <95% r.h., non-cond. IP 31 Housing Material ABS ABS ABS ABS Radio module – Frequency – Transmission type – Transmission range W7BT21 913.85MHz bidirectional unlimited (EasyRouting) W7BT20 913.85MHz bidirectional unlimited (EasyRouting) W7BT20 913.85MHz bidirectional unlimited (EasyRouting) W7BT20 913.85MHz bidirectional unlimited (EasyRouting) Approvals – – 3 Siemens Building Technologies Fire & Security Products W7IO22 W7SR10 W7SR25 W7RC20 (shown with W7BT20) (shown with W7BT20) W7BT20 W7BT21 Input/output module 2/2 Indoor siren Outdoor siren Remote control Radio modules The SiRoute™ wireless input/output module 2/2 provides 2 inputs, which can be set with a jumper for either NO or NC operation. The device provides also 2 potential free outputs controlled by the radio module. The housing provides cable entries and strain relieves. The SiRoute™ indoor siren has a small size but offers a high sound level of 80dB at 3m distances. It is powered by the radio module battery. The SiRoute™ outdoor siren is self-powered and integrates the radio module. The siren provides also a strobe. Several settings are possible with jumpers: the strobe can be activated separately (Out1 of the radio module), can follow the siren activation (Out2 of the radio module) or can be disabled. The siren can be activated with no time limit, during max 3min or can be disabled. The housing is weather- proof. The multifunctional remote control SiR- oute™ is smaller than a credit card and only few mm thick, with indica- tions by 3 LEDs. It has 7 keys for standard con- trols as well as emer- gency (panic alarm). This handheld can be secured by program-…

Text truncated - open the document above for the full version.

Annex No.7 Page 1 of 1 Block Diagram : See Annex 5 Oscillator frequencies generated or used in the device: : 32.768KHz / 14.2882MHz 14.2882 MHz 32.768 kHz Radio Control RC7 W7RC20 RW8A5Q00004868 Siemens Building Technologies Version 1 Date 3 rd Mai 2004 Schreyer Micro processor MSP 430 Radio Transmitter Power supply Li Batterie 3,6 V 8 keys LED indication Power Amplifier

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 zertifiziert Akkreditiertes Testhaus - Reg.-Nr.: TTI-P-G128/96 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Siemens Building Technologies AG, Alte Landstraße 411, CH-8708 Männedorf / Switzerland would like the following documents regarding this submission for FCC ID: RW8A5Q00004860 to be kept confidential. Transmitter, W7RC20 (NOVUM Remote Control) 1. Page 2 to 7 Annex no. 8 document “Schematics” The above material contains trade secret or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, m. dudde hochfrequenz-technik Manfred Dudde

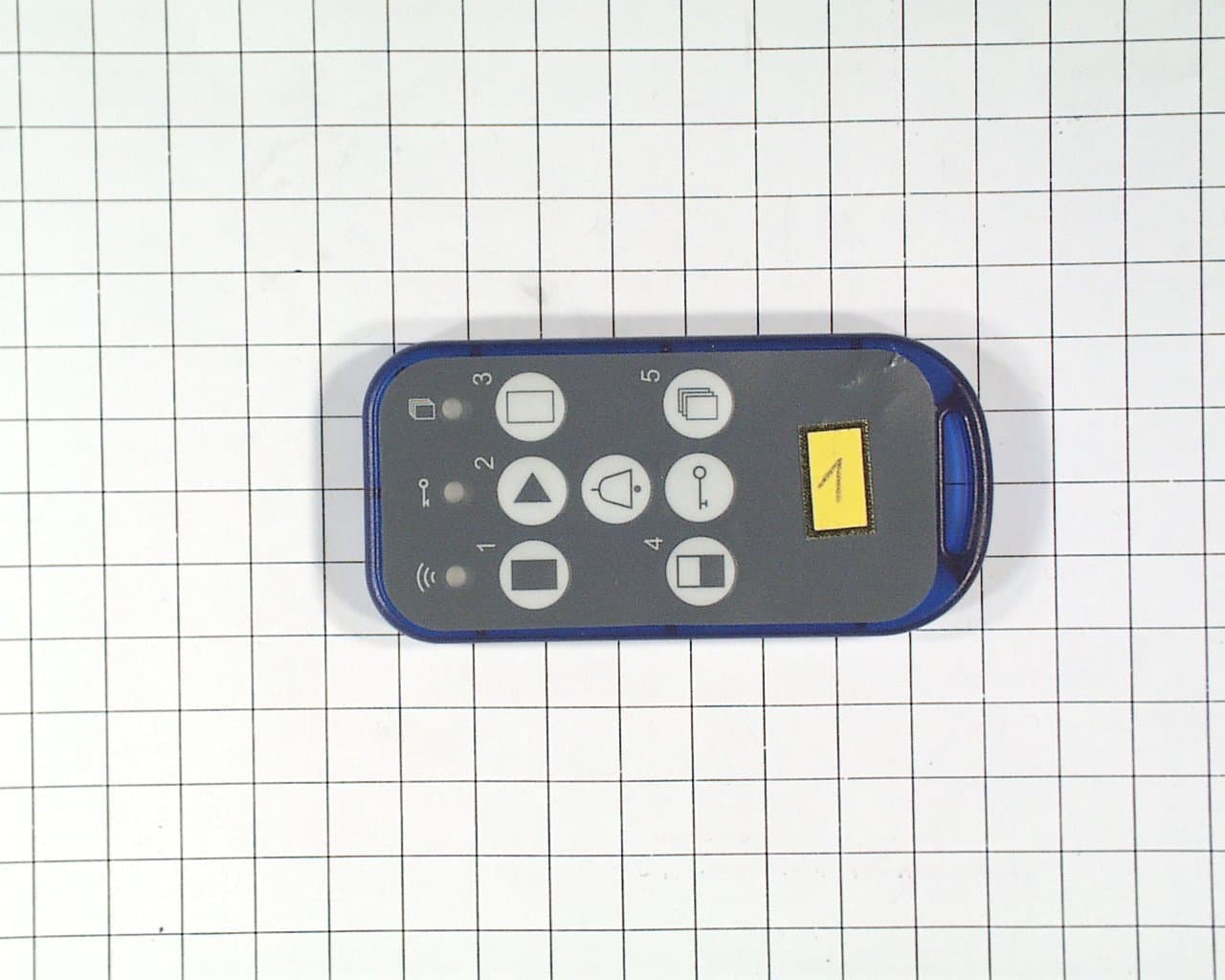

Annex No.1 Page 1 of 2 External Photographs of the Equipment Under Test EXTERNAL FRONT VIEW PHOTO Annex No.1 Page 2 of 2 EXTERNAL REAR VIEW PHOTO

Annex No.4 Page 1 of 2 FCC ID LABEL SAMPLE SKETCH OF FCC ID LABLE LOCATION Annex No.4 Page 2 of 2

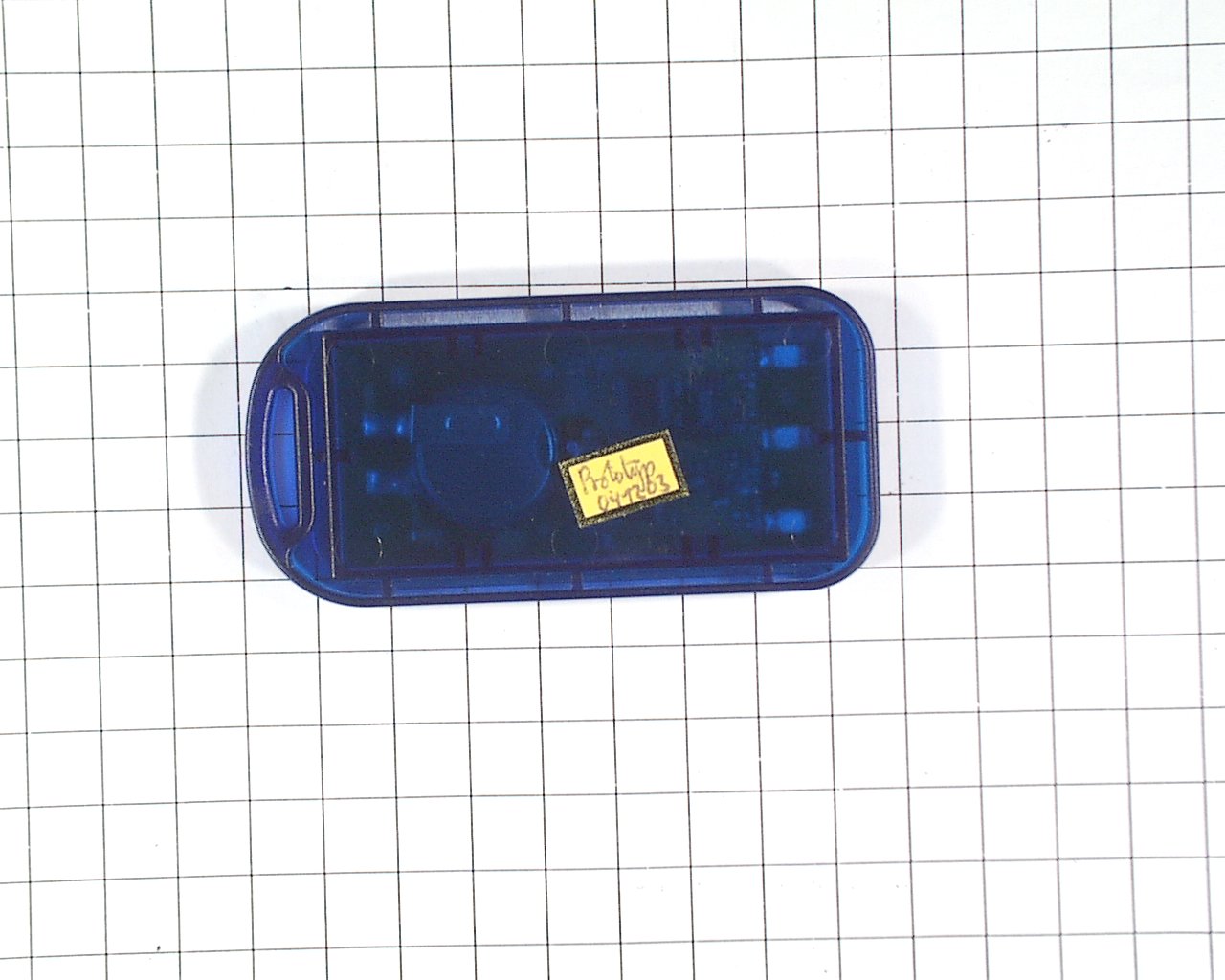

Annex No.2 Page 1 of 2 Internal Photographs of the Equipment Under Test INTERNAL UPPER SIDE PHOTO Annex No.2 Page 2 of 2 INTERNAL LOWER SIDE PHOTO

Annex No.5 Technical Description E-Bus SiRoute™ Wireless Infrastructure for Alarm Systems With innovative radio technology z No range limitation z Self-configuring wireless network z Redundant communication links z Battery lifetime up to 4 years z Very good reliability z “White collar” installation z Higher security z One remote control for alarm system, emergency and home automation control z Reduced inventory costs z Family look blends with all environments z Simple addressing Fire & Security Products Siemens Building Technologies System overview The new wireless infrastructure SiRoute™ brings a complete range of devices with an innovative and reliable radio technology, which offers an unlimited transmission range and a higher security. The SiRoute™ technology is unique, based on an 914MHz bidirectional radio transmission. It features a patented routing mechanism named EasyRouting. The SiRoute™ peripheral devices can be used with Siemens hardwired systems series SI100/200/300/400 thanks to a new radio gateway. E-Gateway (E-Bus radio gateway for SI series control panels) z No range limitation, self-configuring wireless network and redundant commu- nication links The patented telegram routing algorithm EasyRouting passes on the information from the wireless participants to the radio controller in the gateway and vice versa. The communication works by passing telegrams from one participant to the radio controller via other participants if a direct radio communication is not possible. In case of radio disturbances EasyRouting automatically searches for an alternative route between the participant and the radio controller. Radio module standard E-Bus Radio module for round detectors (e.g. smoke detectors) Universal mounting base z Battery lifetime up to 4 years The SiRoute™ devices have such a low power consumption that the batteries can lead up to 4 years. The batteries are included in the supplied packages. z Very good reliability The redundancy of the routing mechanism and the high performance of the bidirec- tional radio technique make the SiRoute™ wireless infrastructure a very reliable prod- uct. 2 Siemens Building Technologies Fire & Security Products W7OP303 W7IR90 W7GB650 W7MK100 (shown with W7BT21) (shown with W7BT20) (shown with W7BT20) (shown with W7BT20) Smoke detector PIR motion detector Acoustic glass- break detector Door contact The SiRoute™ wireless optical smoke detector is based on light scatter- ing by smoke particles. Designed for low power consumption it is pow- ered by the batteries of the radio module. The smoke sensitivity is 2.5%/m. An LED indicates the alarm state in test mode. The standard 12m wide- angle Fresnel lens can be quickly replaced by an optional 18m long- range lens. Corner mounting is possible using the optional bracket W7UM20 (5pcs set). The PIR (passive- infrared) detector has an LED, which indicates the alarm state in walk test mode. In contrast to magnet contacts and vibration detectors, which must be mounted on all windows, the SiRoute™ acoustic glassbreak detector can monitor the windows of a whole room with a detection range up to 8m. It works with all glass types. An LED indicates the alarm state in test mode. The SiRoute™ wireless door contact has 3 reed contacts. This allows different positions of the housing for a great flexibility when installing the contact. The contact is designed for use on doors. One magnet is supplied with the con- tact. Spare contacts W7MK105 are available (5pcs set). Technical data Operating voltage (battery supply) from W7BT21 from W7BT20 from W7BT20 from W7BT20 Battery lifetime up to 4 years up to 4 years up to 4 years up to 4 years Specific data Smoke sensitivity: 2.5%/m Detection range: 12m volumetric (stan- dard), 18m long range (optional) Detection range: 8m radius Detection type: magnetic contact (max. 10mm between contact and magnet) Settings - Sensitivity: high / low / remote selectable by jumper Sensitivity: high (up to 8m) / low (up to 4m) / remote selectable by jumper - Ambient conditions – Operating temperature – Storage temperature – Air humidity (EN60721) – Housing protection (EN60529) -10 ... +55°C -20 ... +60°C <95% r.h., non-cond. IP 44 -10 ... +55°C -20 ... +60°C <95% r.h., non-cond. IP 42 -10 ... +55°C -20 ... +60°C <95% r.h., non-cond. IP 31 -10 ... +55°C -20 ... +60°C <95% r.h., non-cond. IP 31 Housing Material ABS ABS ABS ABS Radio module – Frequency – Transmission type – Transmission range W7BT21 913.85MHz bidirectional unlimited (EasyRouting) W7BT20 913.85MHz bidirectional unlimited (EasyRouting) W7BT20 913.85MHz bidirectional unlimited (EasyRouting) W7BT20 913.85MHz bidirectional unlimited (EasyRouting) Approvals – – 3 Siemens Building Technologies Fire & Security Products W7IO22 W7SR10 W7SR25 W7RC20 (shown with W7BT20) (shown with W7BT20) W7BT20 W7BT21 Input/output module 2/2 Indoor siren Outdoor siren Remote control Radio modules The SiRoute™ wireless input/output module 2/2 provides 2 inputs, which can be set with a jumper for either NO or NC operation. The device provides also 2 potential free outputs controlled by the radio module. The housing provides cable entries and strain relieves. The SiRoute™ indoor siren has a small size but offers a high sound level of 80dB at 3m distances. It is powered by the radio module battery. The SiRoute™ outdoor siren is self-powered and integrates the radio module. The siren provides also a strobe. Several settings are possible with jumpers: the strobe can be activated separately (Out1 of the radio module), can follow the siren activation (Out2 of the radio module) or can be disabled. The siren can be activated with no time limit, during max 3min or can be disabled. The housing is weather- proof. The multifunctional remote control SiR- oute™ is smaller than a credit card and only few mm thick, with indica- tions by 3 LEDs. It has 7 keys for standard con- trols as well as emer- gency (panic alarm). This handheld can be secured by program- ming a PIN co…

Text truncated - open the document above for the full version.

Test Report No.: 04001938 Page 1 of 22 EUT : W7RC20 (NOVUM Remote Control) FCC ID: RW8A5Q00004860 Issue date: 2004-04-07 m. dudde hochfrequenz-technik Rottland 5a Vers. Datum:2002-12 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Test Report acc. to the relevant standard: 47 CFR Part 15 C – Intentional Radiators Measurement Procedure: ANSI C63.4 - 1992 relating to Siemens Building Technologies AG Fire & Security Products W7RC20 Measurement of Radio- Noise Emissions from Low- Voltage Electrical and Electronic Equipment Technical characteristics and test methods for radio equipment in the frequency range 9 kHz to 40 GHz Test Report No.: 04001938 Page 2 of 22 EUT : W7RC20 (NOVUM Remote Control) FCC ID: RW8A5Q00004860 Issue date: 2004-04-07 m. dudde hochfrequenz-technik Rottland 5a Vers. Datum:2002-12 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com Manufacturer’s details Manufacturer Siemens Building Technologies AG Fire & Security Products Manufacturer’s grantee code RW8 Alte Landstraße 411 CH-8708 Männedorf Switzerland Phone:0498963658269 Fax: 0498963658460 Manufacturer’s address E- mail: [email protected] 47 CFR Part 15C - Intentional Radiators Relevant standard used ANSI C63.4-1992 Test Report prepared by Ralf Trepper m.dudde hochfrequenz-technik (Labor) Rottland 5a D-51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax : +49 2207 968920 Technical engineer E-mail: [email protected] Equipment Under Test (EUT) Equipment category Transmitter Trade name Siemens Type designation W7RC20 (NOVUM Remote Control) Serial no. None (Prototype) None Variants Test Report No.: 04001938 Page 3 of 22 EUT : W7RC20 (NOVUM Remote Control) FCC ID: RW8A5Q00004860 Issue date: 2004-04-07 m. dudde hochfrequenz-technik Rottland 5a Vers. Datum:2002-12 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com 0 Test result CFR Section Report Chapter Requirements Headline Test result OK 15.203 10.1 Antenna requirement pass fail n.a. 15.249 (a) 10.2 Field strength limits (fundamental) pass fail n.a. 15.249(d) 15.209 10.2 Radiated spurious emissions pass fail n.a. 15.215 (c) 10.4 20 dB bandwidth pass fail n.a. Test requirements kept yes no . Signature test personnel ........................................ Ralf Trepper . Signature of the company official ......................................... Manfried Dudde Test Report No.: 04001938 Page 4 of 22 EUT : W7RC20 (NOVUM Remote Control) FCC ID: RW8A5Q00004860 Issue date: 2004-04-07 m. dudde hochfrequenz-technik Rottland 5a Vers. Datum:2002-12 D-51429 Bergisch Gladbach Tel. +49 2207-9689-0 Fax +49 2207 9689-20 e-mail: [email protected] http://www.dudde.com List of contents Page 0 Test result............................................................................................................................................. 3 1 Testing laboratory................................................................................................................................5 2 Introduction......................................................................................................................................... 5 3 Product................................................................................................................................................. 6 4 Test schedule........................................................................................................................................ 6 5 Product and measurement documentation......................................................................................... 7 6 Observations and comments................................................................................................................ 7 7 Summary.............................................................................................................................................. 7 8 Conclusions......................................................................................................................................... 8 9 Operation description.......................................................................................................................... 9 10.1 Antenna requirement...................................................................................................................... 10 10.1.1 Regulation ...................................................................................................................................... 10 10.1.2 Result ............................................................................................................................................. 10 10.2 Radiated emissions......................................................................................................................... 11 10.2.1 Regulation ...................................................................................................................................... 11 10.2.2 Test equipment ............................................................................................................................... 13 10.2.2 Test procedures............................................................................................................................... 13 10.2.3 Calculation of field strength Section 15.209 below 30 MHz ........................................................... 14 10.2.3 Calculation of field strength Section 15.209 above 30 MHz ........................................................... 14 10.2.4 Calculation of average correction factor.......................................................................................... 14 10.2.5 Calculation of the field strength Section 15.249.............................................................................. 15 10.2.6…

Text truncated - open the document above for the full version.

Annex No.3 Page 1 of 1 OCCUPIED BANDWITH PLOT

Annex No.6 Page 1 of 1 Test Setup Photos :
