RWVNITROMobile Phone

GSM Mobile Phone Brand Name: GIGO,SUM, MAMBA MOBILE Model Name: NITRO FCC ID: RWVNITRO 2 Phone user manual Preface Thank you for choosing NITRO mobile phone! NITRO is an Android intelligent mobile phone, it has the ultra-thin fashion appearance, it supports application software installation and unloading from Android electronic market, WLAN network connection, touch capacitive screen, high-pixels cameras, high-quality audio and ultra HD video, etc. These will lead you into an entirely new and fascinating mobile internet world. This manual systematically introduces many functions of NITRO mobile phone, tips and notes. Please carefully read it before using NITRO. The illustrations in this manual are only for reference, and their functions are based on the real product. The company reserves the right of final interpretation. 3 Basic Information 1. Safety Notice If your phone is lost or stolen, please immediately inform the telecom department or commission agents of forbidding the use of SIM card, so that avoid the economic loss caused by false calling of others. When you contact with telecom department or commission agents, they need to know your phone IMEI number (printed on the label on the back of the phone and can be found after taking down the battery). Please copy the number and keep it safe for future use. In order to use the phone more safely, please adopt preventive measures, for example: set up the PIN code of SIM card, PIN code can prevent your SIM card from being used by others without permission. When leaving the car, please don’t place the phone in a place easy to be seen, you had better to carry with you or lock in the suitcase. 2. Safety Alert and Cautions Before using the phone, please read these cautions carefully so that make sure to use the phone correctly. 3.1 General Cautions On the plane, in the hospital and other places that forbidden to use the mobile phone, please turn off the phone; otherwise it may affect the normal operation of electronic equipments and medical instruments. Please comply with the relevant regulations if using the phone in these places, Please strictly comply with the laws and regulations about the phone use in the driving place. If you use the phone while you are driving, please comply with the following rules: concentrate on driving, pay attention to the road conditions; if the phone has hands-free function, please make a phone call hands-free; if the driving conditions are not good, please stop the car, and then dial or receive a call. When approaching the places that storing fuel, chemicals or explosives, and etc., please comply with the laws, regulations and the relevant signs. Please place the phone, battery and charger in the place out of children’s reach, for fear that the children use them as tools and cause personal injury. Your phone only can use the batteries, chargers and other accessories specified by the company for fear that the phone is damaged. If using other batteries and chargers, it may cause liquid leaking, overheat, explosion, fire breakout and other failures of batteries. Please don’t use the phone close to weak signal or high precision electronic equipments. Wireless wave interference may cause the mis-operation of these electronic equipments. The phone has the function of timely auto power-on, please check the auto power-on and shut down settings of the phone, so that confirm that the phone will not power on automatically during the flight. Please don’t strike, shake or sling the phone violently for fear that the phone is failed or fire breakout. Please don’t place the battery, the phone and the charger in the micro-wave oven or high-voltage equipment; otherwise may cause circuit damage or fire breakout and other accidents. Please don’t use the phone in the places with inflammable and explosive gas; otherwise may cause phone failure or fire hazard. 4 Please don’t place the phone in the places with high temperature, high humidity or a large amount of dust; otherwise it may cause phone failure. Please don’t place the phone in the uneven or unstable place, prevent the phone from falling off and then cause failure or damage. Please only use the original antenna or the antenna being approved by the company. Unapproved and modified antenna or the antenna with additional accessories may damage the phone. Please don’t touch the antenna during a call. Touching the antenna may affect the call quality and make the phone power higher than the required power in normal use. In addition, using the unapproved antenna may violate the regulations in your country. 3.2 Cautions of Using the Phone Don’t take down or modify the phone; otherwise it may cause the damage, leakage and circuit failure of the phone. Please don’t knock the LCD by force or use the LCD to knock other things; otherwise may cause the damage of liquid crystal plate and the leaking of liquid crystal. If liquid crystal enters the eyes, it may damage eyesight. At this time, please rinse the eyes immediately with clean water (don’t rub the eyes), and see a doctor immediately. In very rare cases, if the phone is used in some types of vehicles, it may have bad effect on the electronic equipments in the vehicle. At this time, please don’t use the phone for fear of losing the safety guarantee. If your vehicle is equipped with the air bag, please don’t place the phone above the air bag or the area that can be touched after the air bag is swelled, for fear that the phone is applied very strong external force and cause serious damage on the vehicle owner when the air bag is swelled. Please don’t touch the key-stoke using needles, pen nibs and other sharp objects; otherwise it may damage the phone or cause mis-operation. If the antenna is damaged, please don’t use the phone; otherwise it may cause the personal injury. Don’t make the phone approach to the magnetic card and other magnetic objects too closely; radiation wave of the phone may clean out the information stored in the flop…

Text truncated - open the document above for the full version.

July 03, 2013 Federal Communication Commission Authorization and Evaluation Division FCC ID: RWVNITRO Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List 5: Tune Up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sumtech Industry Development Co., Ltd. Contact person: IVY QIU Title: Manager Tel: 86-755-25199083

Sumtech Industry Development Co., Ltd Room521, Sanjiu Hotel, No.1001 East Shennian Road, luohu, Shenzhen, China Date: Jul. 03, 2013 Statement We, Sumtech Industrial Development Co., Ltd states that our device, FCC ID: RWVNITRO, has no space to put the label except the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards Company: Sumtech Industry Development Co., Ltd Contact Person: IVY QIU Title: Manager

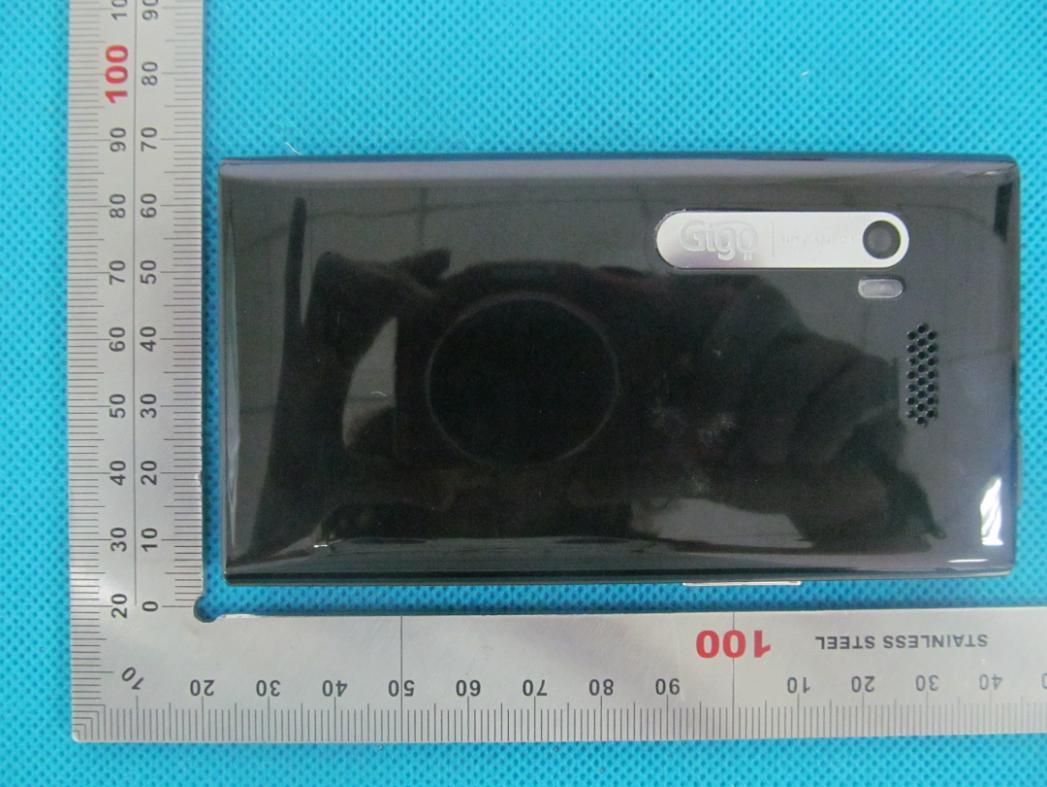

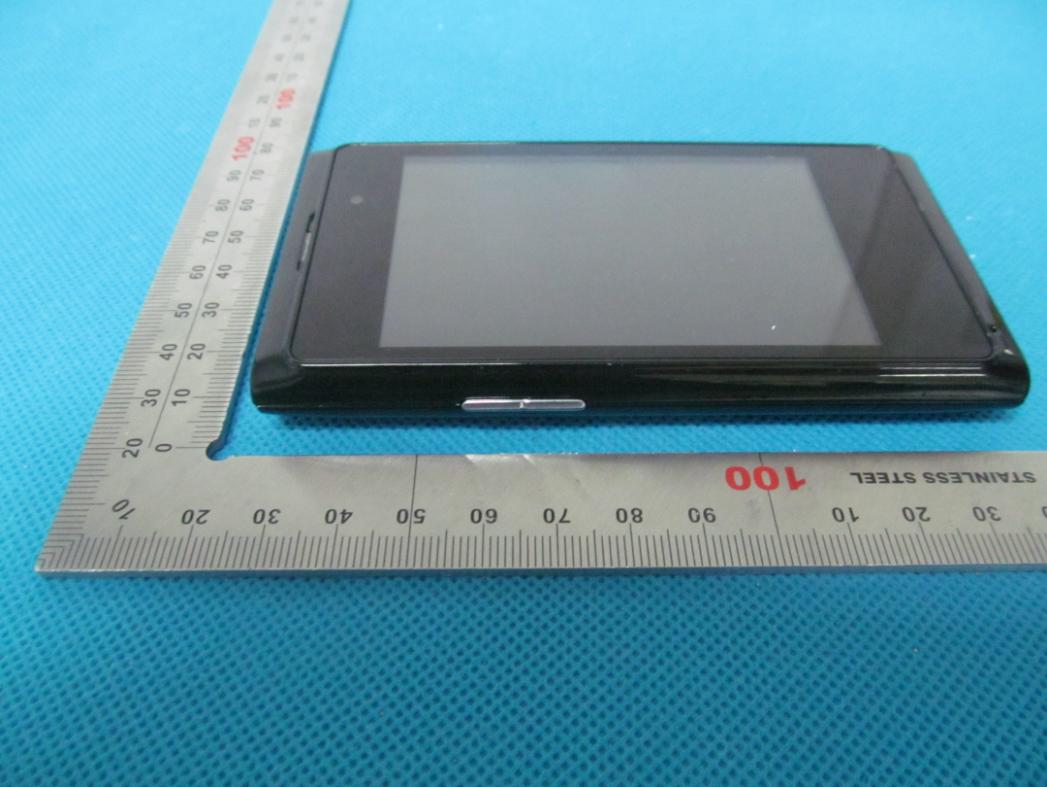

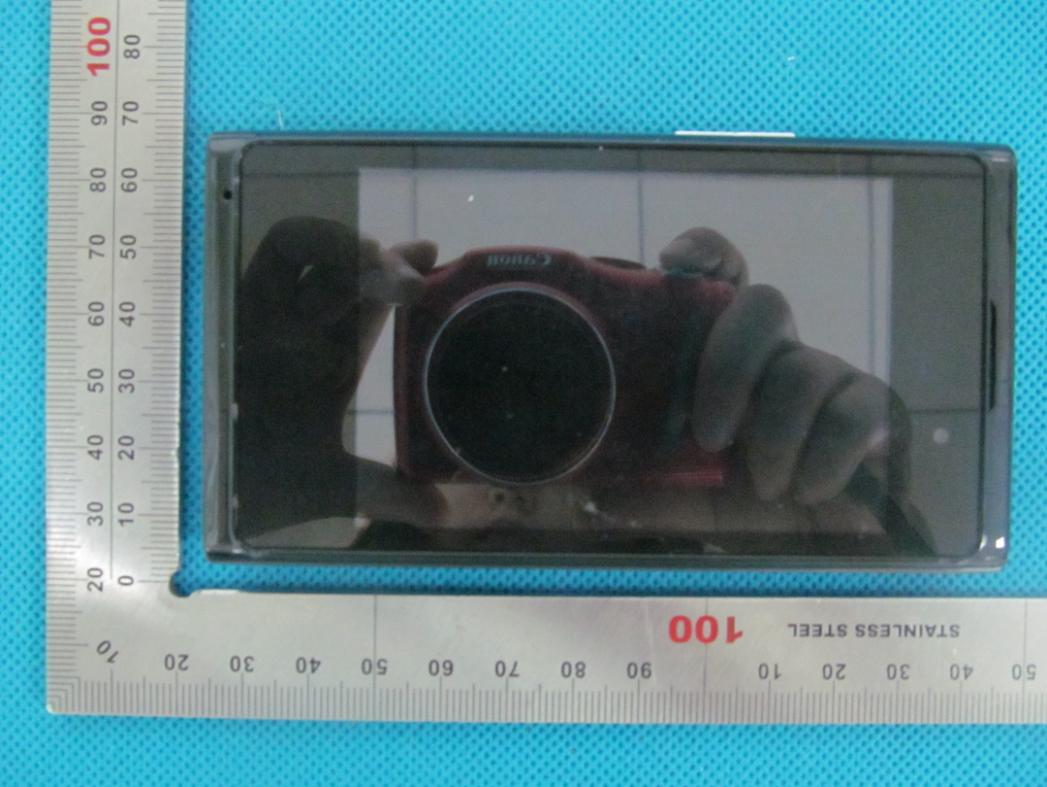

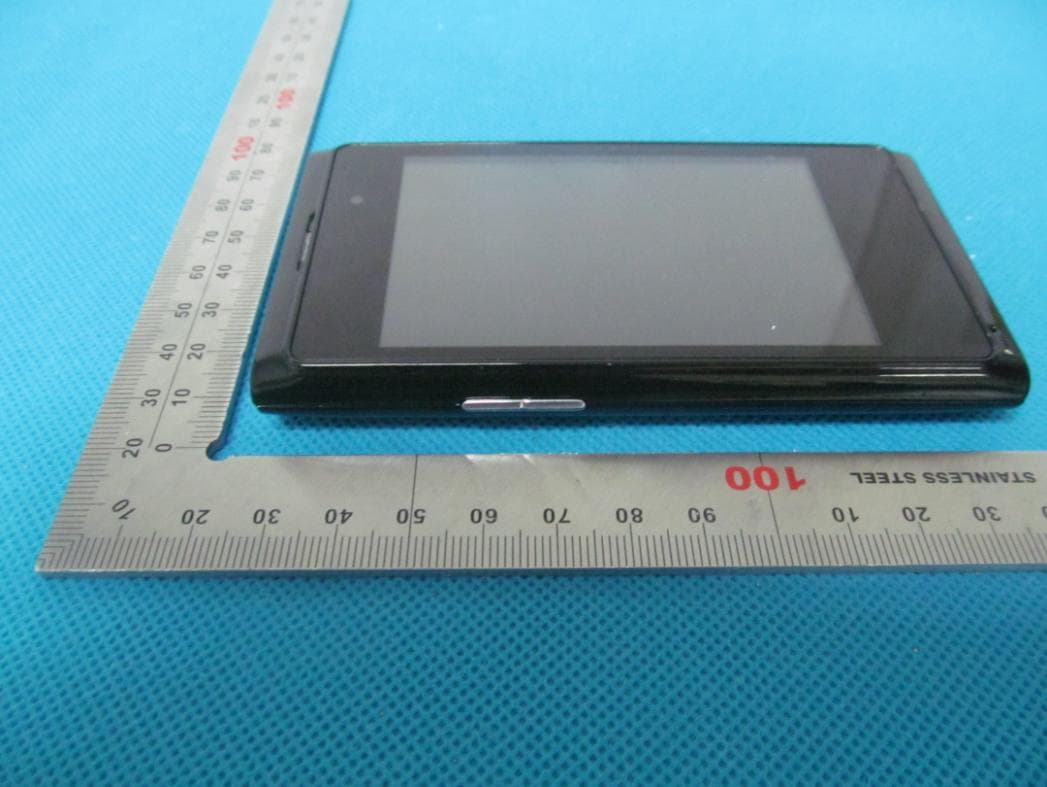

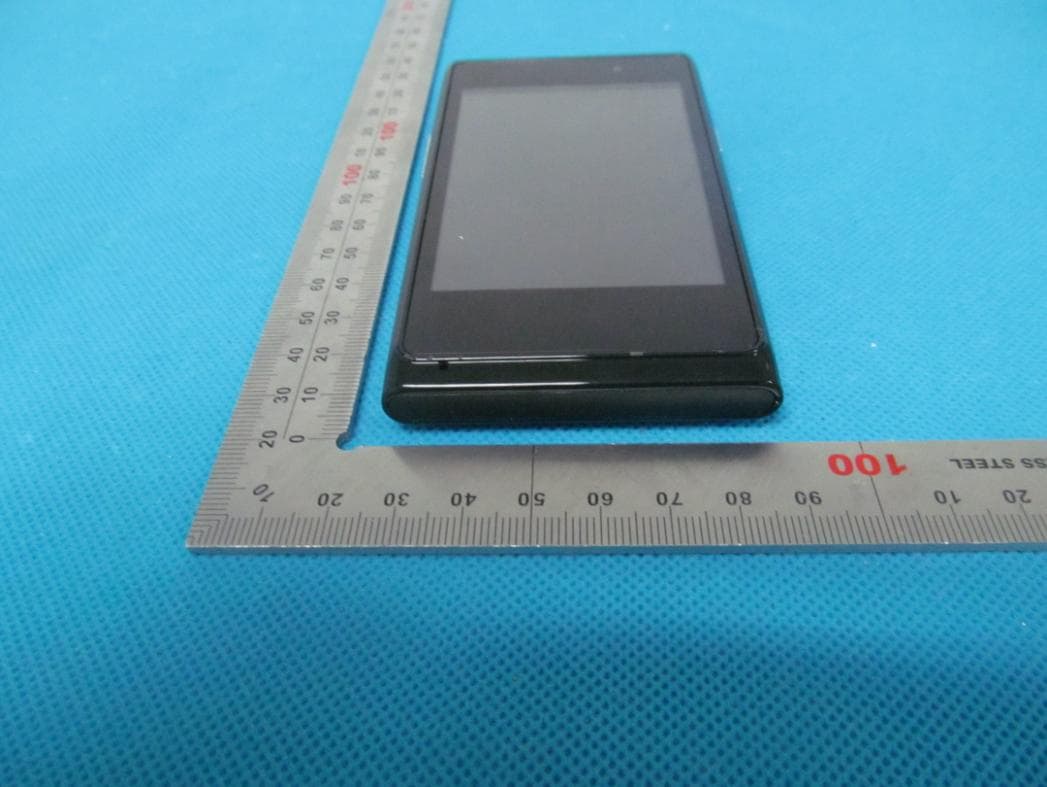

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location GSM Mobile Phone Model: NITRO Trade Name: GIGO FCC ID: RWVNITRO 920,ST920,920mini, N920,S920 SUM, MAMBA MOBILE

Internal Photos OPEN VIEW OF EUT-1 BT &WIFI Antenna GSM Antenna OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

FCC ID PRODU APPLIC BRAND MODEL CLIENT DATE O STAND REPOR A CAUTIO This rep laborato UCT DESIGN CATION PUR D NAME L NAME T OF ISSUE DARD(S) RT VERSION Attestat ON: port shall n ory and sha SA Rep : NATION : RPOSE : : : : : : : tion of G not be repro all not be q R Te port No.: A RWVNIT R GSM Mob Original E GIGO, SUM NITRO, 92 Sumtech I Jul.01, 20 FCC Oet65 IEEE Std. 47CFR § 2 V1.0 Global C oduced exc uoted out o est AGC0041 RO ile Phone Equipment M, MAMBA, M 20, 920mini, Industry Dev 13 5 Supplemen 1528‐2003 2.1093 Complia cept in full w of context. Rep 17130601 MOBILE ST920, N92 velopment C nt C June 200 ance(Sh without the Report port 1FH01 0, S920 o., Ltd. 01 henzhen e written p t No.: AGC00 t n) Co., L ermission 0417130601 Page 1 o Ltd. of the test FH01 of 116 Report No.: AGC00417130601FH01 Page 2 of 116 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jul.01, 2013 Valid Original Report Applica Applica Manufa Manufa Product Brand N Model N Differen EUT Vo Applica Te s t Da Te s t Re Perform Report T nt Name nt Address cturer Name cturer Addre t Designatio Name Name nt Descriptio oltage ble Standard ate esults med Location Template Tes S R R e S ess R R n G G N on A m D d FC IE 47 J u M H ( M si n At 2 G A Docume Check e Authoriz st Rep umtech Indu oom521,Sa oad,Luohu, S umtech Indu oom521,Sa oad,Luohu, S SM Mobile IGO, SUM, ITRO, 920, ll the model model is NITR C3.7V by ba CC Oet65 S EEE Std. 152 7CFR § 2. un.28, 2013 MAX SAR ME ead: 0.389 W Maximum Sc multaneous ttestation of F, Building ushu, Xixian GCRT-US-2 nted By ed By zed By port C ustry Develo njiu Hotel,N Shenzhen,C ustry Develo njiu Hotel,N Shenzhen,C Phone MAMBA, M 920mini, ST ls are the s RO. attery Supplement 28-2003 .1093 EASUREME W/Kg Bod caling SAR = s transmissio fGlobal Com g 2, No.1-N ng Street, B 2.5G2/SAR ( Vivi Ze Angel a Solger Z Certific opment Co., o.1001 East China opment Co., o.1001 East China OBILE T920, N920, ame, only d C June 200 ENT(1g) y: 0.657 W/ K =0.663 W/K on: 1.072 W/ mpliance(Sh No.4, Chaxi ao'an Distri c (2013-03-01 eng a Li hang Report cation Ltd. t Shennian Ltd. t Shennian S920 different in m 1 Kg g) /Kg enzhen) Co Sanwei Tec ct, Shenzhe ) Jul.01, 201 Jul.01, 201 Jul.01, 201 t No.: AGC00 n model name o., Ltd. chnical Indu n, China 3 3 3 0417130601 Page 3 o es. The test ustrial Park, FH01 of 116 Report No.: AGC00417130601FH01 Page 4 of 116 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................ 5 1.1. EUT DESCRIPTION ...................................................................................................................................... 5 1.2. TEST PROCEDURE ...................................................................................................................................... 7 1.3. TEST ENVIRONMENT .................................................................................................................................... 7 2. SAR MEASUREMENT SYSTEM ..................................................................................................................... 8 2.1. COMOSAR SYSTEM DESCRIPTION .............................................................................................................. 8 2.2. COMOSAR E-FIELD PROBE ..................................................................................................................... 10 2.3. ROBOT ..................................................................................................................................................... 10 2.4. VIDEO POSITIONING SYSTEM ...................................................................................................................... 11 2.5. DEVICE HOLDER ........................................................................................................................................ 11 2.6. SAM TWIN PHANTOM ................................................................................................................................ 12 3. TISSUE SIMULATING LIQUID ..................................................................................................................... 13 3.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID ................................................................................... 13 3.2. TISSUE CALIBRATION RESULT ..................................................................................................................... 14 3.3. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS .............................................................. 15 4. SAR MEASUREMENT PROCEDURE ......................................................................................................... 16 4.1. SAR SYSTEM VALIDATION .......................................................................................................................... 16 4.2. SAR MEASUREMENT PROCEDURE ............................................................................................................. 18 5. SAR EXPOSURE LIMITS ............................................................................................................................ 19 6. TEST EQUIPMENT LIST ............................................................................................................................. 20 7. MEASUREMENT UNCERTAINTY ................................................................................................................ 21 8. CONDUCTED POWER MEASUREMENT .................................................................................................... 22 9. TEST RESULTS .......................................................................................................................................... 23 9.1. SAR TEST RESULTS SUMMARY ..........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC00417130601FH01 Page 78 of 116 Appendix C. TEST SETUP PHOTOGRAPHS &EUT PHOTOGRAPHS Test Setup Photographs LEFT-CHECK TOUCH LEFT-TILT 15 0 Report No.: AGC00417130601FH01 Page 79 of 116 RIGHT-CHECK TOUCH RIGHT-TILT 15 0 Report No.: AGC00417130601FH01 Page 80 of 116 Body Back 5mm Body Front 5mm 5mm Report No.: AGC00417130601FH01 Page 81 of 116 Body back with Headset Report No.: AGC00417130601FH01 Page 82 of 116 DEPTH OF THE LIQUID IN THE PHANTOM—ZOOM IN Note：The position used in the measurement were according to IEEE 1528-2003 Report No.: AGC00417130601FH01 Page 83 of 116 EUT PHOTOGRAPHS TOTAL VIEW OF EUT TOP VIEW OF EUT Report No.: AGC00417130601FH01 Page 84 of 116 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.: AGC00417130601FH01 Page 85 of 116 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.: AGC00417130601FH01 Page 86 of 116 RIGHT VIEW OF EUT OPEN VIEW OF EUT-1 BT &WIFI Antenna GSM Antenna Report No.: AGC00417130601FH01 Page 87 of 116 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 Report No.: AGC00417130601FH01 Page 88 of 116 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2

Report No.: AGC00417130601FH01 Page 89 of 116 Appendix D. Probe Calibration Data Report No.: AGC00417130601FH01 Page 90 of 116 Report No.: AGC00417130601FH01 Page 91 of 116 Report No.: AGC00417130601FH01 Page 92 of 116 Report No.: AGC00417130601FH01 Page 93 of 116 Report No.: AGC00417130601FH01 Page 94 of 116 Report No.: AGC00417130601FH01 Page 95 of 116 Report No.: AGC00417130601FH01 Page 96 of 116 Report No.: AGC00417130601FH01 Page 97 of 116 Report No.: AGC00417130601FH01 Page 98 of 116 Report No.: AGC00417130601FH01 Page 99 of 116 Appendix E. Dipole Calibration Data Report No.: AGC00417130601FH01 Page 100 of 116 Report No.: AGC00417130601FH01 Page 101 of 116 Report No.: AGC00417130601FH01 Page 102 of 116 Report No.: AGC00417130601FH01 Page 103 of 116 Report No.: AGC00417130601FH01 Page 104 of 116 Report No.: AGC00417130601FH01 Page 105 of 116 Report No.: AGC00417130601FH01 Page 106 of 116 Report No.: AGC00417130601FH01 Page 107 of 116 Report No.: AGC00417130601FH01 Page 108 of 116 Report No.: AGC00417130601FH01 Page 109 of 116 Report No.: AGC00417130601FH01 Page 110 of 116 Report No.: AGC00417130601FH01 Page 111 of 116 Report No.: AGC00417130601FH01 Page 112 of 116 Report No.: AGC00417130601FH01 Page 113 of 116 Report No.: AGC00417130601FH01 Page 114 of 116 Report No.: AGC00417130601FH01 Page 115 of 116 Report No.: AGC00417130601FH01 Page 116 of 116

Report No.: AGC00417130601FE02 Page 1 of 60 FCC Test Report Report No.: AGC00417130601FE02 FCC ID : RWVNITRO APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : GSM Mobile Phone BRAND NAME : GIGO, SUM, MAMBA MOBILE MODEL NAME : NITRO, 920, 920mini, ST920, N920, S920 CLIENT : Sumtech Industry Development Co., Ltd. DATE OF ISSUE : July 03,2013 STANDARD(S) : FCC Part 22H & 24E Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00417130601FE02 Page 2 of 60 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / July 03,2013 Valid Original Report Report No.: AGC00417130601FE02 Page 3 of 60 TABLE OF CONTENTS 1. GENERAL INFORMATION ..................................................................................................................... 7 1.1 PRODUCT DESCRIPTION ............................................................................................................................................ 7 1.2 RELATED SUBMITTAL(S) / GRANT (S) ...................................................................................................................... 8 1.3 TEST METHODOLOGY ................................................................................................................................................. 9 1.4 TEST FACILITY................................................................................................................................................................ 9 1.5 MEASUREMENT INSTRUMENTS ............................................................................................................................... 9 1.6 SPECIAL ACCESSORIES .............................................................................................................................................. 9 1.7 EQUIPMENT MODIFICATIONS .................................................................................................................................... 9 2. SYSTEM TEST CONFIGURATION ....................................................................................................... 10 2.1 EUT CONFIGURATION ................................................................................................................................................ 10 2.2 EUT EXERCISE ............................................................................................................................................................. 10 2.3 GENERAL TECHNICAL REQUIREMENTS ............................................................................................................. 10 2.4 CONFIGURATION OF EUT SYSTEM ........................................................................................................................ 11 3. SUMMARY OF TEST RESULTS ........................................................................................................... 12 4. DESCRIPTION OF TEST MODES ........................................................................................................ 12 5. OUTPUT POWER ................................................................................................................................. 13 5.1 CONDUCTED OUTPUT POWER ............................................................................................................................... 13 5.2 RADIATED OUTPUT POWER ..................................................................................................................................... 16 6. PEAK-TO-AVERAGE RATIO ................................................................................................................ 20 6.1 MEASUREMENT METHOD ......................................................................................................................................... 20 6.2 PROVISIONS APPLICABLE ........................................................................................................................................ 20 6.3 MEASUREMENT RESULT ........................................................................................................................................... 21 7. SPURIOUS EMISSION ......................................................................................................................... 22 7.1 CONDUCTED SPURIOUS EMISSION ...................................................................................................................... 22 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................................ 24 8. MAINS CONDUCTED EMISSION ......................................................................................................... 28 Report No.: AGC00417130601FE02 Page 4 of 60 8.1 MEASUREMENT METHOD ......................................................................................................................................... 28 8.2 PROVISIONS APPLICABLE ........................................................................................................................................ 28 8.3 MEASUREMENT RESULT ........................................................................................................................................... 29 9. FREQUENCY STABILITY ..................................................................................................................... 31 9.1 MEASUREMENT METHOD ......................................................................................................................................... 31 9.2 PROVISIONS APPLICABLE ........................................................................................................................................ 31 9.3 MEASUREMENT RESULT (WORST TEST) .........................…

Text truncated - open the document above for the full version.

Test Setup Photos CONDUCTED EMISSION RADIATED SPURIOUS EMISSION
