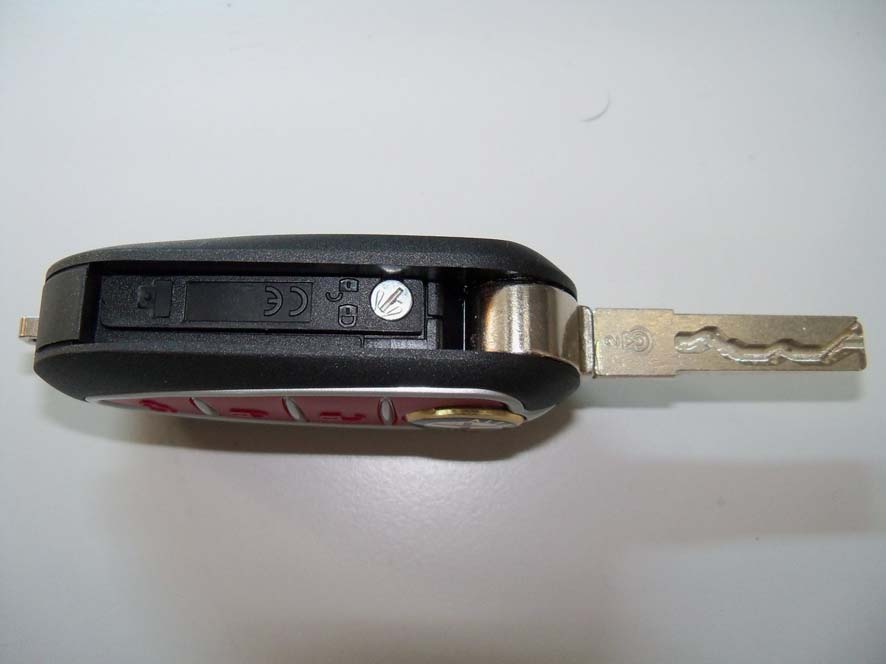

RX2TRF198Remote Keyless Entry System Transmitter

40 GETTING TO KNOW YOUR CAR SAFETY STARTING AND DRIVING IN AN EMERGENCY SERVICING AND MAINTENANCE TECHNICAL SPECIFICATIONS CONTENTS SYMBOLSSome components of the car have coloured labels who se sym- bols indicate precautions to be observed when using this compo- nent. Under the bonnet there is also a label that s ummarises all the symbols. ALFA ROMEO CODE SYSTEMThis is an electronic engine locking system which i ncreases pro- tection against attempted thefts of the car. It is automatically ac- tivated when the ignition key is extracted. Each key contains an electronic device which modula tes the sig- nal emitted during ignition by an antenna built int o the ignition de- vice. This signal is the ‘password’ which changes a t each ignition and which the control unit uses to recognise the ke y and enable ignition.OPERATION The Alfa Romeo CODE system control unit sends an ac knowl- edgement code to the engine management control unit to deacti- vate the inhibitor each time the car is started by turning the igni- tion key to MAR.The code is sent only if the Alfa Romeo CODE system control unit has recognised the code transmitted from the key. Each time the ignition key is turned to STOP, the A lfa Romeo CODE system deactivates the functions of the engine management control unit. Warning light Y lights up on the instrument panel if the code is not correctly recognised during igni tion. In this case, turn the key to STOP and then to MAR; if it is still locked, try again with the other keys that come wit h the car. If you are still unable to start the engine contact Alfa R omeo Authorized Services. 41 GETTINGTO KNOW YOUR CARSAFETYSTARTING AND DRIVINGIN AN EMERGENCYSERVICING ANDMAINTENANCETECHNICALSPECIFICATIONSCONTENTS Warning light Y comes on when driving  If the warning light Y turns on, this means that the system is running a self-test (due for example to a voltag e drop).  Contact Alfa Romeo Authorized Services if the Y warning light stays on. KEYSCODE CARD (for versions/markets, where provided) A CODE card fig.14 is provided together with the ke ys. On the card you will find a mechanical code A and an electronic code B. Keep the codes in a safe place, not in the car. The Electronic components inside the key may be damaged if the key is subjected to shocks. fig. 14 A0K0008m A B 42 GETTING TO KNOW YOUR CAR SAFETY STARTING AND DRIVING IN AN EMERGENCY SERVICING AND MAINTENANCE TECHNICAL SPECIFICATIONS CONTENTS MECHANICAL KEY The metal insert A-fig.15 operates: the ignition switch;  the door lock. fig. 15 A0K0047m fig. 16 A0K0048m Press B button fig.16 only with the key away from your body, especially your eyes and from objects which could get damaged (e.g. your clothes). Do not leave the key unattended to avoid the button be ing accidentally pressed while it is being handled, e.g . by a child. KEY WITH REMOTE CONTROL(for versions/markets, where provided)The metal insert A-fig.16 operates: the ignition switch;  the door lock. Press B button to open/close the metal insert. 43 GETTINGTO KNOW YOUR CARSAFETYSTARTING AND DRIVINGIN AN EMERGENCYSERVICING ANDMAINTENANCETECHNICALSPECIFICATIONSCONTENTS Unlocking the doors and the bootBriefly press Ë button: unlock of doors and boot, timed operation of ceiling lights, double flash of the direction indicators (for ver-sions/markets, where provided). Door lock is automatically released if the fuel cut -off system trips. Once the doors are locked, if one or more doors or the boot are not closed correctly, the LED and direction indicat ors start flashing quickly. Locking the doors and the bootBriefly press Á button: lock of doors and boot with ceiling lights off and single flash of direction indicators (for versi ons/markets, where provided).If one or more door are open, the doors will not be locked. This is indicated by a rapid flashing of the direction indi cators (for ver- sions/markets, where provided). The doors will be l ocked even if the boot is open.When a speed of over 20 km/h is reached, the doors are auto- matically locked if this specific function has been set (only on ver- sions with multi-function reconfigurable display). When the doors are locked from outside the car (usi ng the remote control), A LED fig.17 will light up for a few seco nds and then start flashing (deterrent function).When the doors are locked from inside the car (by p ressing ≈ ) the LED will remain on constantly. Opening the bootPress R button to open the boot using the remote control. T he direction indicators will flash twice to indicate t hat the boot has been opened. fig. 17 A0K0122m 44 GETTING TO KNOW YOUR CAR SAFETY STARTING AND DRIVING IN AN EMERGENCY SERVICING AND MAINTENANCE TECHNICAL SPECIFICATIONS CONTENTS REQUESTING ADDITIONAL REMOTE CONTROLSThe system can acknowledge up to 8 remote controls. If you need to request a new remote control, contact Alfa Romeo Authorized Services, taking the CODE card (for versions/market s, where pro- vided), an identity document and documents proving your own- ership of the car with you. fig. 18 A0K0051m Used batteries are harmful to the environment. They should be disposed of as specified by law in special containers or taken to an Alfa Romeo Au- thorised Service Provider, which will take care of their dis- posal. REPLACING THE BATTERY KEY WITH REMOTECONTROLProceed as follows: press A button fig.18 and open out the B metal inse rt; turn C screw to : using a small point screwdriver;  remove the D battery holder case and replace E batt ery re- specting the polarity; reinsert D case into the key and secure it by turning C screw to Á . 45 GETTINGTO KNOW YOUR CARSAFETYSTARTING AND DRIVINGIN AN EMERGENCYSERVICING ANDMAINTENANCETECHNICALSPECIFICATIONSCONTENTS SAFE LOCK DEVICE (for versions/markets where provided)This safety device prevents operation of the inside door handles and of the door locking/unlocking button. We recomm end that you activate this device whenever you park your car . Switching the device onThe device is enabled on…

Text truncated - open the document above for the full version.

Corbetta 21/12/2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. Magneti Marelli S.p.A. would like the following documents regarding this submission for FCC ID: RX2TRF198 to be kept confidential. 1. Schematic diagram 2. Block diagram 3. Product description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Magneti Marelli S.p.A.

Power of Attorney We, the undersigned, hereby authorise FAKT S.r.l. Via Lithos, 53 25086 Rezzato (BS) ITALY to require the certificate of conformity according with section 2.907 47 CFR for the following radio equipment TRF198 (Name of product, type or model) on behalf of the manufacturer / authorised representative of the manufacturer − Address: Magneti Marelli S.p.A. Viale A. Borletti, 61/63 I – 20011 Corbetta (MI) (With this letter the undersigned does not appoint FAKT S.r.l. to act as authorised representative of the manufacturer. FAKT S.r.l. does not assume any responsibilities or liabilities placed on the manufacturer according to the FCC rules) − Point of contact: Ing. Giuseppe Bergamaschi Tel: +39-02-97221 Fax: +39-02-9722740 (Name, telephone and fax number) Corbetta, 23/11/2010 (Place, date of issue) (Signature, Stamp)

FCCID: RX2TRF198 IC: 4983A-TRF198

Test Equipment List with Calibration Data Test report number(s): Date of test: 69559-03148 November 2010 / December 2010 Date of Calibration Type Inv.-No. Type Designation Serial Number Manufacturer Calibration Organization Last Next EMI test receiver 2044 ESU8 100232 Rohde & Schwarz Rohde & Schwarz 05/2009 11/2010 Spectrum analyser 1666 FSP30 100063 Rohde & Schwarz Rohde & Schwarz 11/2009 05/2011 Preamplifier 1651 CPA9231A 3393 Schaffner Electrotest TÜV SÜD SENTON 05/2010 05/2012 Preamplifier 1684 AFS3-00100800-32-LN 847743 MITEQ 89 04/2010 10/2011 Loop antenna 1016 HFH2-Z2 882964/0001 Rohde & Schwarz Rohde & Schwarz 09/2009 03/2011 Double ridged waveguide horn antenna 1516 3115 9508-4553 EMCO Elektronik Seibersdorf Laboratories 10/2010 10/2012 TRILOG Broadband Antenna 2058 VULB 9163 9163-408 Schwarzbeck Schwarzbeck 11/2009 05/2011 Note: Date of next calibration contains maximum tolerance if applicable.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Trade Register Straubing HRB 9302 V.A.T. DE 131457658 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Managing Director: Johann Roidt Phone: +49 9421 55 22-0 Fax: +49 9421 55 22-99 www.tuev-sued.de/senton TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Prüfbericht / Test Report Nr. / No. 69559-03148 (Edition 3) Applicant: Magneti Marelli Type of equipment: Handheld Transmitter Type designation: TRF198 Order No.: 10/0346 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.231 Industry Canada Radio Standards Specifications RSS-Gen Issue 3, Section 7.2.2, 7.2.4, 7.2.5 and RSS-210 Issue 8, Sections A1.1, A1.2.1 (Category I Equipment) February 6, 2012 Page 1 of 75 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 3) Page 2 of 75 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ............................................................ 3 2 Administrative Data ........................................................................................................ 4 3 Identification of the Test Laboratory ............................................................................... 5 4 Summary ........................................................................................................................ 6 5 Operation Mode and Configuration of EUT .................................................................... 7 6 Measurement Procedures .............................................................................................. 8 6.1 Bandwidth Measurements ....................................................................................... 8 6.2 Pulse Train Measurement ........................................................................................ 9 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ............................................... 10 6.4 Radiated Emission in Fully or Semi Anechoic Room ............................................. 12 6.5 Radiated Emission at Alternative Test Site ............................................................ 14 7 Photographs Taken During Testing .............................................................................. 16 8 Test Results ................................................................................................................. 28 8.1 Occupied Bandwidth .............................................................................................. 30 8.2 Bandwidth of the Emission ..................................................................................... 34 8.3 Bandwidth of Momentary Signals .......................................................................... 36 8.4 Designation of Emissions ....................................................................................... 37 8.5 Pulse Train Measurement ...................................................................................... 38 8.6 Restricted Bands of Operation ............................................................................... 42 8.7 Periodic Operation Requirements .......................................................................... 44 8.8 Radiated Emission Measurement 9 kHz to 30 MHz .............................................. 46 8.9 Radiated Emission Measurement 30 MHz to 5 GHz ............................................. 47 8.10 Exposure of Humans to RF Fields ......................................................................... 49 9 Referenced Regulations ............................................................................................... 51 10 Revision History ........................................................................................................... 53 11 Charts taken during testing .......................................................................................... 54 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 3) Page 3 of 75 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 TRF198 : Parts 2 : Serial number(s): 0001 Manufacturer: Magneti Marelli Type of equipment: Handheld Transmitter Version: As received FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 433.05 - 434.790 MHz Frequency range: 433.92 MHz Operating frequency: 433.92 MHz Type of modulation: ASK Pulse train: 100 ms Pulse width: 95.2 ms Number of RF-channels: 1 Channel spacing: Not applicable Designation of emissions 3 400KA1D : Type of antenna: Integrated Size/length of antenna: 2.5 cm Connection of antenna: detachable not detachable Type of power supply: Battery supply Specifications for power supply: nominal voltage: 3.0 V V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 3) Page 4 of 75 Pages 2 Administrative Data Application details Applicant (full address): Magneti Marelli Contact person: Mr. Nicola Scartapacchio from Fakt S.r.l. Order number: 10/0346 Receipt of EUT: November 3, 2010 December 2, 2010 (Sample with modulation) Date(s) of test: November 3, 2010 December 8, 2010 Note(s): Report details Report number: 69559…

Text truncated - open the document above for the full version.

TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 17 of 75 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 18 of 75 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 19 of 75 Pages Test setup for radiated emission measurement (fully anechoic room) TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 20 of 75 Pages Test setup for radiated emission measurement (fully anechoic room) - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 21 of 75 Pages Test setup for radiated emission measurement (fully anechoic room) - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 22 of 75 Pages Test setup for radiated emission measurement (alternate test site) TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 23 of 75 Pages Test setup for radiated emission measurement (alternate test site) - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 24 of 75 Pages Test setup for radiated emission measurement (alternate test site) - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 25 of 75 Pages Test setup for radiated emission measurement (alternate test site) - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 26 of 75 Pages Test setup for radiated emission measurement (alternate test site) - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 69559-03148 (Edition 2) Page 27 of 75 Pages Test setup for radiated emission measurement (alternate test site) - continued -
