RX3-WFUR7802.11b/g/n 1T1R WLAN Module

Foxconn WFUR7 1 Foxconn WFUR7 Hardware Specification Rev. 0.2 Foxconn WFUR7 2 Document Revision History Document Revision Date Modifier Comments 0.1 Dec. 30, 2013 Lin Eric Initial release 0.2 Feb.21,2014 Lin Eric Modify Pin Definitions Foxconn WFUR7 3 Contents 1. INTRODUCTION ............................................................................................ 4 1.1 Product Overview ............................................................................................. 4 1.2 Key Features ..................................................................................................... 4 2. ELECTRICAL SPECIFICATIONS .......................................................................... 5 2.1 Pin Definitions .................................................................................................. 5 2.2 Power Consumption Specifications ..................................................................... 5 3. RF SPECIFICATION ......................................................................................... 6 3.1 TX Specifications (preliminary) ........................................................................... 6 3.2 RX Specifications (preliminary) ........................................................................... 7 3.3 Antenna Specifications ...................................................................................... 8 4. MECHANICAL SPECIFICATIONS ....................................................................... 9 4.1 Mechanical Drawing .......................................................................................... 9 5. ENVIRONMENTAL SPECIFICATIONS .............................................................. 10 6. PART NUMBERING ...................................................................................... 11 6.1 ID Definitions .................................................................................................. 11 7. MODULE PHOTO ......................................................................................... 12 Foxconn WFUR7 4 1. Introduction 1.1 Product Overview The Foxconn WFUR7 wireless LAN module contains the Realtak® RTL8188ETV single chip which is a highly integrated single‐chip 802.11n Wireless LAN (WLAN) network USB interface (USB 1.0/1.1/2.0 compliant) controller. It combines a WLAN MAC, a 1T1R capable WLAN baseband, and WLAN RF in a single chip. The RTL8188ETV provides a complete solution for a high throughput performance integrated wireless LAN device. It fully complies with IEEE 802.11 b/g/n feature rich wireless connectivity at high standards, delivers reliable, cost‐effective, throughput from an extended distance. The optimized radio frequency architecture and baseband algorithms provide super performance and low power consumption. Deploy a high efficient USB engine and hardware data processing accelerators without overloading the host processor. Security, quality of service and international regulation are supported by WFUR7 and giving end users the greatest performance anytime in any circumstance. 1.2 Key Features  CMOS MAC, Baseband PHY, and RF in a single chip for IEEE 802.11b/g/n compatible WLAN  IEEE 802.11b/g/n compatible WLAN  Complete 802.11n solution for 2.4GHz band  72.2Mbps receive PHY rate and 72.2Mbps transmit PHY rate using 20MHz bandwidth  150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth  IEEE 802.11e QoS Enhancement (WMM)  802.11i (WPA, WPA2). Open, shared key, and pair‐wise key authentication services  Complies with USB 1.0/1.1/2.0 for WLAN  Low power with advanced power management Foxconn WFUR7 5 2. Electrical Specifications 2.1 Pin Definitions Table 3.1 Pin Definitions Pin # Name Pin # Name 15 GND 16 GND 13 GND 14 WPS 11 GND 12 GND 9 GND 10 GND 7 GND 8 HSDP 5 GND 6 HSDM 3 GND 4 +3.3V 1 PDn 2 +3.3V 2.2 Power Consumption Specifications Power consumption is measured using current probe loop on the Power rails of the USB interface (Pins). Table 3.2 Power Consumption Specifications(preliminary) Description Typical Unit Disable 19 mA 2G/2T‐ HT 40MHz MCS 7(14dBm) 290 mA 2G/2T‐ HT 20MHz MCS 7(14dBm) 199 mA 2G/2T‐ OFDM54M(15dBm) 206 mA 2G/2T‐ CCK11M(17dBm) 295 mA 2G/2R‐ HT 40MHz MCS 7 143 mA 2G/2R‐ HT 20MHz MCS 7 143 mA 2G/2R‐ OFDM54M 143 mA 2G/2R‐ CCK11M 143 mA Foxconn WFUR7 6 3. RF Specification 3.1 TX Specifications (preliminary) Table 3.1 TX Specifications Data Rate (Mbps) Modulation Tx Typical Power (dBm) Data Rate (Mbps) Modulation Tx Typical Power (dBm) 1 DBPSK 16 HT20‐7.22 BPSK 14 2 DQPSK 16 HT20‐14.44 BPSK 14 5.5 CCK 16 HT20‐21.67 QPSK 14 11 CCK 16 HT20‐28.89 QPSK 14 6 OFDM 15 HT20‐43.33 16‐QAM 14 9 OFDM 15 HT20‐57.78 16‐QAM 14 12 OFDM 15 HT20‐65 64‐QAM 14 18 OFDM 15 HT20‐72.22 64‐QAM 14 24 OFDM 15 HT40‐15 BPSK 14 36 OFDM 15 HT40‐30 QPSK 14 48 OFDM 15 HT40‐45 QPSK 14 54 OFDM 15 HT40‐60 16‐QAM 14 HT40‐90 16‐QAM 14 HT40‐120 64‐QAM 14 HT40‐135 64‐QAM 14 HT40‐150 64‐QAM 14 ※Each tolerance is ±2dBm Foxconn WFUR7 7 3.2 RX Specifications (preliminary) Table 3.2 RX Specifications (ANT 1 & ANT 2) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Max. Typ. Max. Typ. 1 DBPSK ‐83 ‐94 HT20‐7.22 BPSK ‐82 ‐87 2 DQPSK ‐80 ‐93 HT20‐14.44 QPSK ‐79 ‐86 5.5 CCK ‐78 ‐91 HT20‐21.67 QPSK ‐77 ‐84 11 CCK ‐76 ‐89 HT20‐28.89 16‐QAM ‐74 ‐82 6 OFDM ‐85 ‐88 HT20‐43.33 16‐QAM ‐70 ‐78 9 OFDM ‐84 ‐87 HT20‐57.78 64‐QAM ‐66 ‐74 12 OFDM ‐82 ‐86 HT20‐65 64‐QAM ‐65 ‐72 18 OFDM ‐80 ‐85 HT20‐72.22 64‐QAM ‐64 ‐71 24 OFDM ‐77 ‐82 HT40‐15 BPSK ‐79 ‐87 36 OFDM ‐73 ‐79 HT40‐30 QPSK ‐76 ‐84 48 OFDM ‐69 ‐75 HT40‐45 QPSK ‐74 ‐81 54 OFDM ‐68 ‐74 HT40‐60 16‐QAM ‐71 ‐79 HT40‐90 16‐QAM ‐67 ‐74 HT40‐120 64‐QAM ‐63 ‐71 HT40‐135 64‐QAM ‐62 ‐70 HT40‐150 64‐QAM ‐61 ‐68 Foxconn WFUR7 8 3.3 Antenna Specifications Nominal antenna port impedance specification is 50 ohms for the Foxconn WFUR7 hardware. For regulatory requirements, it is assumed that the antenna gain is:  Antenna gain for the 2.4GHz band : 1.22 dBi There …

Text truncated - open the document above for the full version.

Confidentiality Request Letter Confidentiality Request regarding application for certification of FCC ID: RX3‐WFUR7 and IC: 2878F‐WFUR7 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, and IC RSP‐100, Section 10, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type Block Diagram, Schematics, Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, _______________________________ Hugo Shieh/Supervisor 2014, Mar 13

Request for Modular Transmitter Module Approval Module Characteristics declaration: Item No. Yes /No Requirements Declaration of the final design 1 Yes Have its own RF shielding This module has been shielded. 2 Yes Have buffered modulation/data inputs (if such inputs are provided) , The module has buffered data input, it is integrated in chip RTL8188ETV. 3 Yes Have it own power supply regulation The module has buffered data input, it is integrated in chip RTL8188ETV. 4 Yes Meet the antenna requirements of Section 15.203 1 RF connectors for 1 external antenna. The module will be sold together with the antenna shown in the filing. 5 Yes Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing The module was tested in a stand-alone configuration via a test kit. Please see section photographs of test configuration in the test report. 6 Yes Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The EUT has a label showing the FCC ID:RX3-WFUR7 of this module. Module’s user guide has instructions to the OEM of the end device containing the EUT on how to label the end product with module FCC ID: RX3-WFUR7. 7 Yes The limited modular transmitter must comply with all specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are given in the module user guide. 8 Yes Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). The EUT is compliant with RF exposure requirement. RF exposure is addressed in the RF exposure exhibition. Certified By: Date 2014, Mar 14

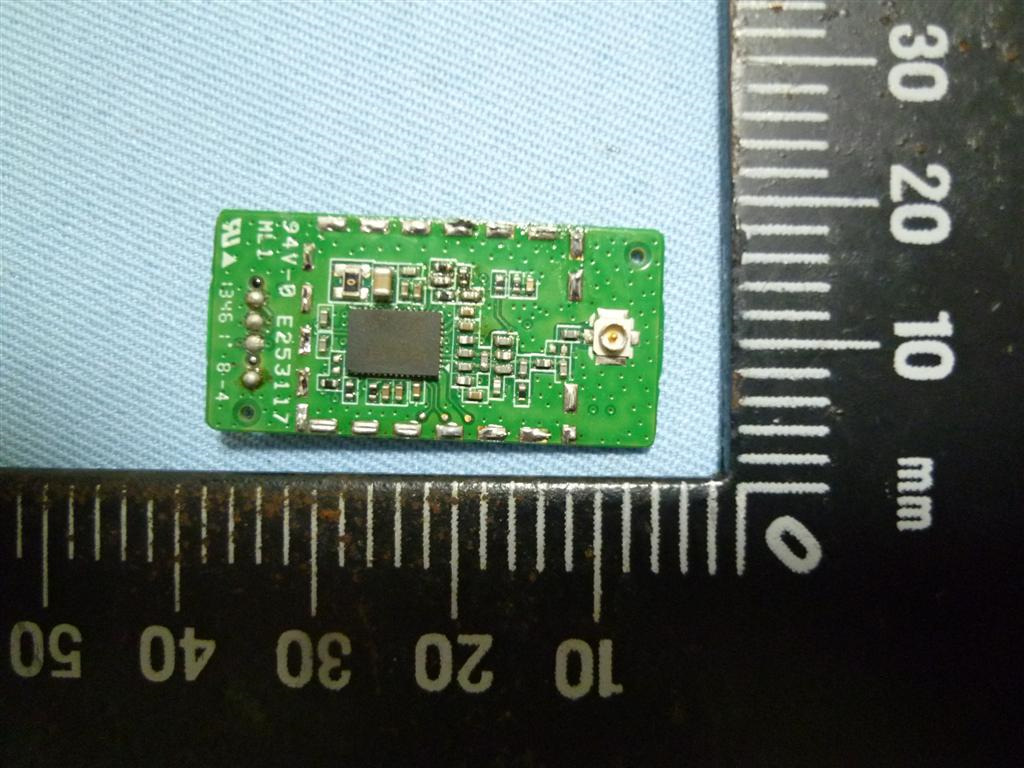

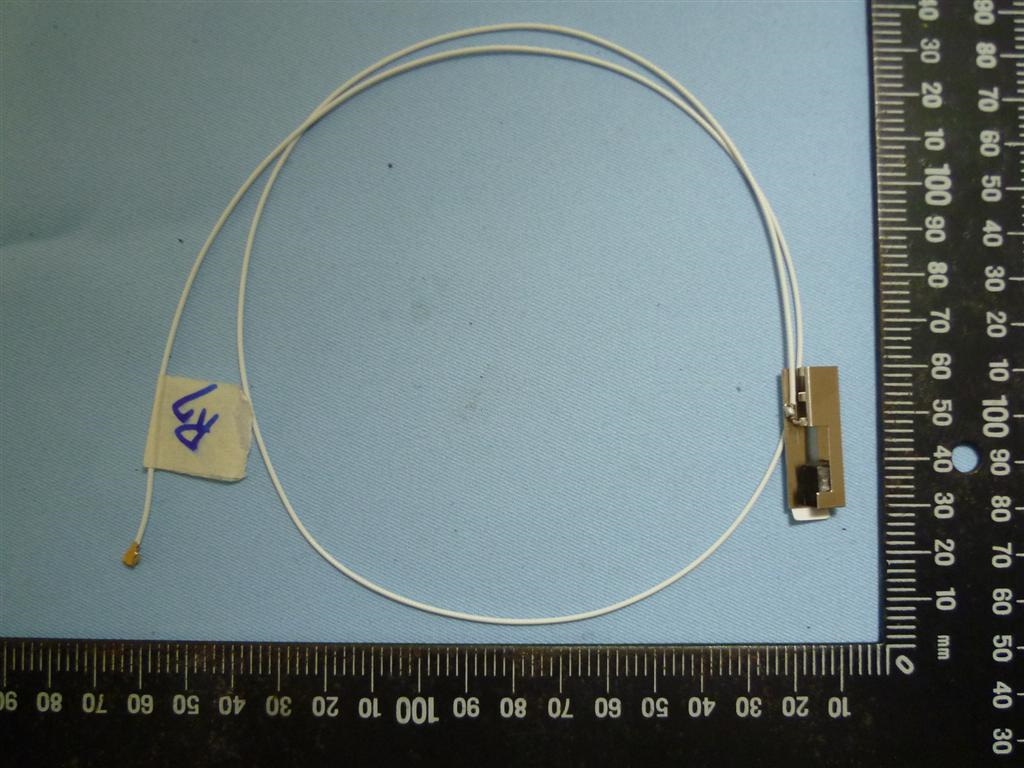

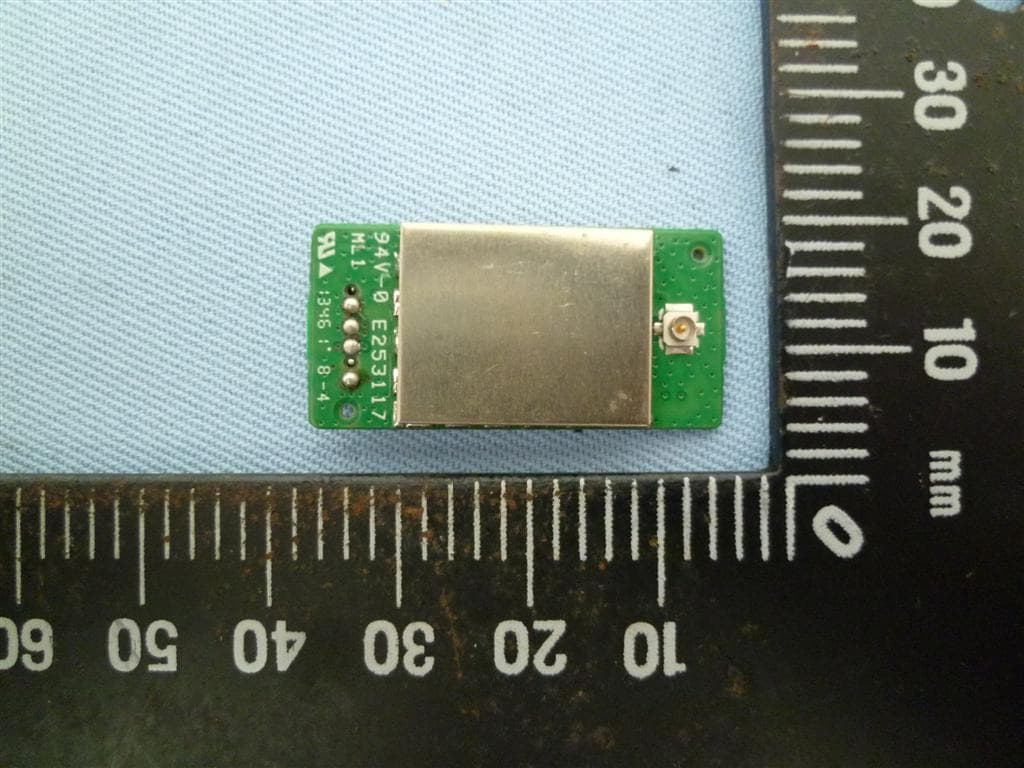

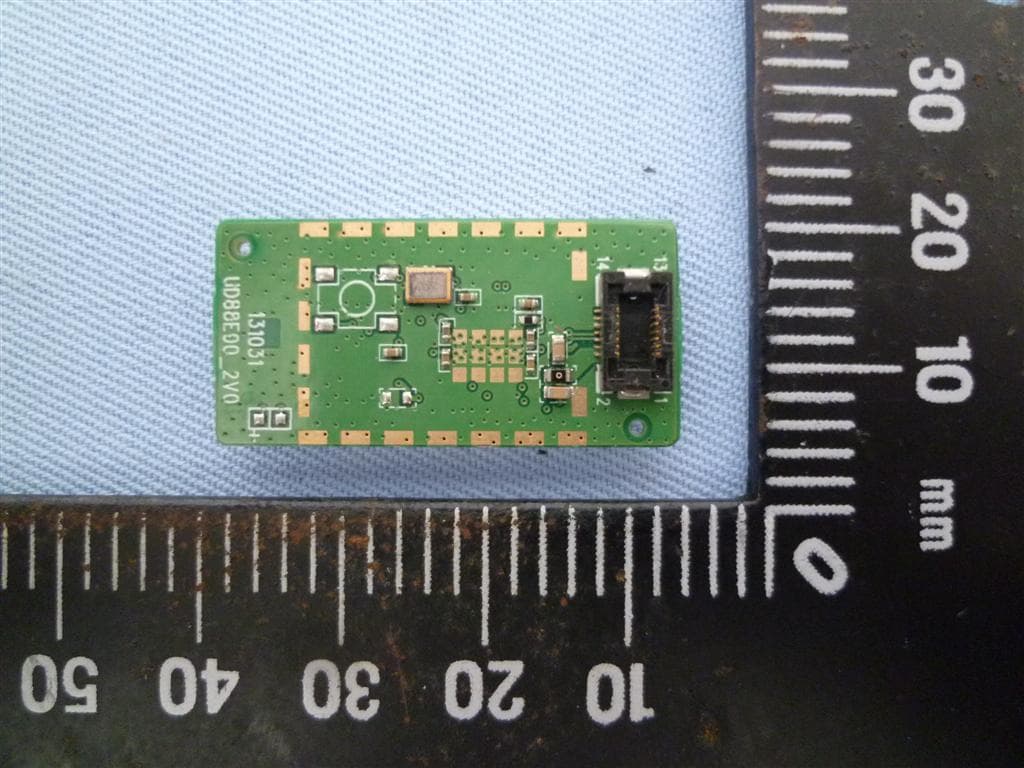

ATTACHMENT Photo Documentation Page 1 of 3 Report No.: 10046115 001 Product: 802.11b/g/n 1T1R WLAN Module Type Designation: WFUR7 ATTACHMENT Photo Documentation Page 2 of 3 Report No.: 10046115 001 Product: 802.11b/g/n 1T1R WLAN Module Type Designation: WFUR7 ATTACHMENT Photo Documentation Page 3 of 3 Report No.: 10046115 001 Product: 802.11b/g/n 1T1R WLAN Module Type Designation: WFUR7

18mm 13mm

ATTACHMENT Photo Documentation Page 1 of 3 Report No.: 10046115 001 Product: 802.11b/g/n 1T1R WLAN Module Type Designation: WFUR7 ATTACHMENT Photo Documentation Page 2 of 3 Report No.: 10046115 001 Product: 802.11b/g/n 1T1R WLAN Module Type Designation: WFUR7 ATTACHMENT Photo Documentation Page 3 of 3 Report No.: 10046115 001 Product: 802.11b/g/n 1T1R WLAN Module Type Designation: WFUR7

Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 59 von 64 Page 59 of 64 6. Safety Human exposure 6.1 Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC KDB Publication 447498 The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The gain of the antennas used in the product is extracted from the Antenna information provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the exposure at a distance or 20 cm away from the product and compare it to the limit of MPE. Frequency Band: 2400-2483.5 MHz S=PG/4 πR^2 Antenna GainLimit (numeric)(mW/cm^2) 59.61.22 1.3240.016 1Pass Max Power to Antenna (mW) Antenna Gain (dBi) Result Power Density at 20cm (mW/cm^2)

Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 2 von 64 Page 2 of 64 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 6DB BANDWIDTH AND 99% BANDWIDTH RESULT: Passed 5.1.4 POWER DENSITY RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 3 von 64 Page 3 of 64 Contents 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 6 2.1 TEST FACILITIES ..................................................................................................... 6 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 7 2.3 TRACEABILITY ........................................................................................................ 8 2.4 CALIBRATION ......................................................................................................... 8 2.5 MEASUREMENT UNCERTAINTY ................................................................................. 8 3. GENERAL PRODUCT INFORMATION ........................................................................... 9 3.1 PRODUCT FUNCTION AND INTENDED USE ................................................................. 9 3.2 SYSTEM DETAILS AND RATINGS ............................................................................... 9 3.3 INDEPENDENT OPERATION MODES ......................................................................... 10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ............................................ 10 3.5 SUBMITTED DOCUMENTS ....................................................................................... 10 4. TEST SET-UP AND OPERATION MODES ................................................................... 11 4.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................ 11 4.2 TEST OPERATION AND TEST SOFTWARE................................................................. 11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ............................................... 11 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .............................................. 12 4.5 TEST SETUP DIAGRAM .......................................................................................... 12 5. TEST RESULTS ..................................................................................................... 14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES ......................................................... 14 5.1.1 Antenna Requirement ................................................................................................................ 14 5.1.2 Peak Output Power .................................................................................................................... 15 5.1.3 6dB Bandwidth and 99% Bandwidth .......................................................................................... 23 5.1.4 Power Density ............................................................................................................................ 38 5.1.5 Conducted spurious emissions and Frequency Band Edge measured in 100kHz Bandwidth ................................................................................................................................... 46 5.1.6 Spurious Emission ..................................................................................................................... 57 5.2 MAINS EMISSIONS................................................................................................. 58 5.2.1 Mains Conducted Emissions ...................................................................................................... 58 6. SAFETY HUMAN EXPOSURE ................................................................................... 59 6.1 RADIO FREQUENCY EXPOSURE COMPLIANCE ......................................................... 59 6.1.1 Electromagnetic Fields ............................................................................................................... 59 Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 4 von 64 Page 4 of 64 7. PHOTOGRAPHS OF THE TEST SET-UP ..................................................................... 60 8. LIST OF TABLES ................................................................................................... 64 9. LIST OF PHOTOGRAPHS......................................................................................... 64 Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 5 von 64 Page 5 of 64 1. General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix P: Photo Documentation external view (File Name: 10046115APPENDIX P) Appendix D: Test Result of Radiated Emissions (File Name: 10046115APPENDIX D) Test Specifications Table 1: Applied Standard and Test Levels Radio FCC CFR47 Part 15: Subpart C Section 15.247 ANSI C63.10:2009, KDB558074 D01 DTS Meas Guidance v02 Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 6 von 64 Page 6 of 64 2. Test Sites 2.1 Test Facilities TUV Rheinland Taiwan Ltd. 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) FCC Registration No.: 365730 TAF Accredited NCC Test Lab. No.:0759 TAF ISO17025 Certification effective periods: 2013-Jul-1st to 2016-Jun-30th Produkte Products…

Text truncated - open the document above for the full version.

Test Report No.10046115 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 10046115AppendixD) Contents Spurious Emissions, Band Edges, 2.35-2.5G ............................................................................................. 2 Spurious Emissions, TX Mode, 1-18G ..................................................................................................... 18 Spurious Emissions, TX Mode, 18-26G ................................................................................................... 42 Spurious Emissions, TX Mode, 30M-1G ................................................................................................. 66 Spurious Emissions, Mains, 150kHz - 30MHz ......................................................................................... 68 Spurious Emissions, Band Edge, 2.35-2.5G 2 Spurious Emissions, Band Edges, 2.35-2.5G Radiated Bandedge (802.11b) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 3 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 4 High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 5 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 6 Radiated Bandedge (802.11g) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 7 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 8 High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 9 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 10 Radiated Bandedge (802.11n HT20) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 11 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 12 High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 13 High Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 14 Radiated Bandedge (802.11n HT40) Low Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 15 Low Channel (Ver) Spurious Emissions, Band Edge, 2.35-2.5G 16 High Channel (Hor) Spurious Emissions, Band Edge, 2.35-2.5G 17 High Channel (Ver) Spurious Emissions, TX Mode, 1-18G 18 Spurious Emissions, TX Mode, 1-18G Service No.: 114019337 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/3/7 15:43:29 Applicant: Hon Hai Precision Industry Test Rating: DC 5V Product: WLAN module Temp.(°C °C°C °C)/Hum.(%): 19.5(°C °C°C °C)/59% Model No.: WFUR7 Test Engineer: Hugo Chang Test Mode: B-2412 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4824.000 -2.53 47.96 45.43 74.00 -28.57 peak 2 7236.000 5.53 45.24 50.77 74.00 -23.23 peak 3 8083.333 6.08 45.02 51.10 74.00 -22.90 peak 100 56 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 19 Service No.: 114019337 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/3/7 15:44:31 Applicant: Hon Hai Precision Industry Test Rating: DC 5V Product: WLAN module Temp.(°C °C°C °C)/Hum.(%): 19.5(°C °C°C °C)/59% Model No.: WFUR7 Test Engineer: Hugo Chang Test Mode: B-2412 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4824.000 -2.53 49.47 46.94 74.00 -27.06 peak 2 5985.577 3.62 45.29 48.91 74.00 -25.09 peak 100 360 3 7236.000 5.53 44.71 50.24 74.00 -23.76 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 20 Service No.: 114019337 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/3/7 15:47:44 Applicant: Hon Hai Precision Industry Test Rating: DC 5V Product: WLAN module Temp.(°C °C°C °C)/Hum.(%): 19.5(°C °C°C °C)/59% Model No.: WFUR7 Test Engineer: Hugo Chang Test Mode: B-2437 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4874.000 -2.41 48.17 45.76 74.00 -28.24 peak 2 7311.000 5.74 43.60 49.34 74.00 -24.66 peak 3 9009.615 6.87 44.75 51.62 74.00 -22.38 peak 100 46 Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 21 Service No.: 114019337 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Vertical Test item: Radiation Emission Test Time: 2014/3/7 15:48:47 Applicant: Hon Hai Precision Industry Test Rating: DC 5V Product: WLAN module Temp.(°C °C°C °C)/Hum.(%): 19.5(°C °C°C °C)/59% Model No.: WFUR7 Test Engineer: Hugo Chang Test Mode: B-2437 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4874.000 -2.41 48.29 45.88 74.00 -28.12 peak 2 6040.064 3.85 45.25 49.10 74.00 -24.90 peak 100 61 3 7311.000 5.74 43.07 48.81 74.00 -25.19 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 22 Service No.: 114019337 Test Distance: 3m Test Standard: FCC Above 1G PEAK Ant. Polarization: Horizontal Test item: Radiation Emission Test Time: 2014/3/7 15:51:51 Applicant: Hon Hai Precision Industry Test Rating: DC 5V Product: WLAN module Temp.(°C °C°C °C)/Hum.(%): 19.5(°C °C°C °C)/59% Model No.: WFUR7 Test Engineer: Hugo Chang Test Mode: B-2462 Remark: No. Frequency (MHz) Factor (dB/m) Reading (dBuV) Level (dBuV/m) Limit (dBuV/m) Margin (dB) Det. Height (cm) Azimuth (。 。。 。) Remark 1 4924.000 -2.28 48.55 46.27 74.00 -27.73 peak 2 6012.820 3.75 45.33 49.08 74.00 -24.92 peak 100 104 3 7386.000 5.94 43.64 49.58 74.00 -24.42 peak Tel:+886-2172-7000 fax:+886-2528-0018 11F., No.758, Sec.4 Bade Road. Songshan Dist, Taipei City 105 TUV Taiwan Spurious Emissions, TX Mode, 1-18G 23 Service No.: 114019337 Test Distance: 3m T…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 60 von 64 Page 60 of 64 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View) Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 61 von 64 Page 61 of 64 Photograph 2: Set-up for Spurious Emissions (Back View 1) Photograph 3: Set-up for Spurious Emissions (Back View 2) Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 62 von 64 Page 62 of 64 Photograph 4: Set-up for Conducted testing Produkte Products Prüfbericht - Nr.: Test Report No. 10046115 001 Seite 63 von 64 Page 63 of 64 Photograph 5: Set-up for for Mains Conducted testing Back Photograph 6: Set-up for for Mains Conducted testing Front
