RXB-RDKSTire Pressure Monitoring System

Users manual For RDKS ® Battery-less TPMS 1.0.1 IQ-mobil GmbH, Hans-Urmiller-Ring 46c, D-82515 Wolfratshausen, Germany Users manual For RDKS ® Battery-less TPMS Rev. 1.0.1 01.Apr, 2004 Users manual For RDKS ® Battery-less TPMS 1.0.1 IQ-mobil GmbH, Hans-Urmiller-Ring 46c, D-82515 Wolfratshausen, Germany Table of Contents 1. Purpose and scope of this document ...................................................................................3 2. Installation ...............................................................................................................................3 2-1. Parts to be used for the installation ..........................................................................................................3 2-2. Installation procedure.................................................................................................................................3 3. Operation .................................................................................................................................4 4. Operation sequence of the measurement.............................................................................4 4-1. Interference detection.................................................................................................................................4 4-2. Transmission................................................................................................................................................4 4-3 Reception ......................................................................................................................................................4 4-4. Calculation ...................................................................................................................................................4 5. Eligibility requirements for regulatory approval...................................................................5 5-1. Compliance statement to FCC ...................................................................................................................5 5-2. RF exposure compliance............................................................................................................................5 5-3. Requirements to end product ....................................................................................................................5 5-3-1. Wheel-arch Antenna.............................................................................................................................5 5-3-2. Markings ................................................................................................................................................5 5-3-3. Caution to user for modification.........................................................................................................5 5-3-4. Compliance statement to FCC ............................................................................................................5 6. Caution.....................................................................................................................................6 6-1. Life Support Applications...........................................................................................................................6 7. Revision History......................................................................................................................7 Users manual For RDKS ® Battery-less TPMS 1.0.1 IQ-mobil GmbH, Hans-Urmiller-Ring 46c, D-82515 Wolfratshausen, Germany 1. Purpose and scope of this document This document describes the installation, operation and regulatory requirements for RDKS ® Battery-less Tire Pressure Monitoring System (TPMS) . 2. Installation 2-1. Installation requirements ATPMS system consists of the following components: ♦ Car terminal ♦ Display ♦ Cable harness (to connect Car terminal with the Display and Power supply from car battery (ex. via cigarette socket)) ♦ 4 Wheel-arch Antennas each with 350cm length coaxial cable plus connector(FAKRA) ♦ 4 Tires with installed wheel terminal. Please refer to Fig.-1 for a pictorial view of the related TPMS components. 2-2. Installation procedure a) Install the wheel-arch antennas in the front-left, front-right, rear-left and rear-right, tire-house of the car. b) Put the Car terminal underneath the passenger seat, or in one of the Glove compartments(location may vary depending on user preference), and connect the car terminal to the antennas by coaxial cables. c) Place the Display in the center console panel and connect it to the car terminal by the Cable harness. d) Connect the cable harness to the cigarette socket as a power supply. The below picture Fig. -1 shows an image of installed TPMS in a vehicle. Fig.-1 : TPMS system architecture RDKS ® system architecture FR FL RL RR ECU Transponder Display Wheel-arch ANT coaxial cable ECU Cable Harness Users manual For RDKS ® Battery-less TPMS 1.0.1 IQ-mobil GmbH, Hans-Urmiller-Ring 46c, D-82515 Wolfratshausen, Germany 3. Operation The following section explains the functional operation for the TPMS system in the car. a) Turn on the car ignition which will supply power to the car terminal. b) Check the status of 4 tires by looking at the Display, some tires may not display any information, because they may be out of their respective Inquiry angle ranges. (Check the status of the four tires by the display. Some tires may not display any information, because they are out of the operate angle.) After power on, but before a valid reading is sent from the tire, the “INAKTIV” icon will be displayed. After one revolution of all four wheels the “AKTIV” icon should be displayed. c) After one full tire revolution, all states of air pressure, and temperature measurement data are displayed. d) If after step c) there are still no readings on the display, the antenna, the transponder, and the tire are checked to find the non-functional unit. 4. Operation sequence of the meas…

Text truncated - open the document above for the full version.

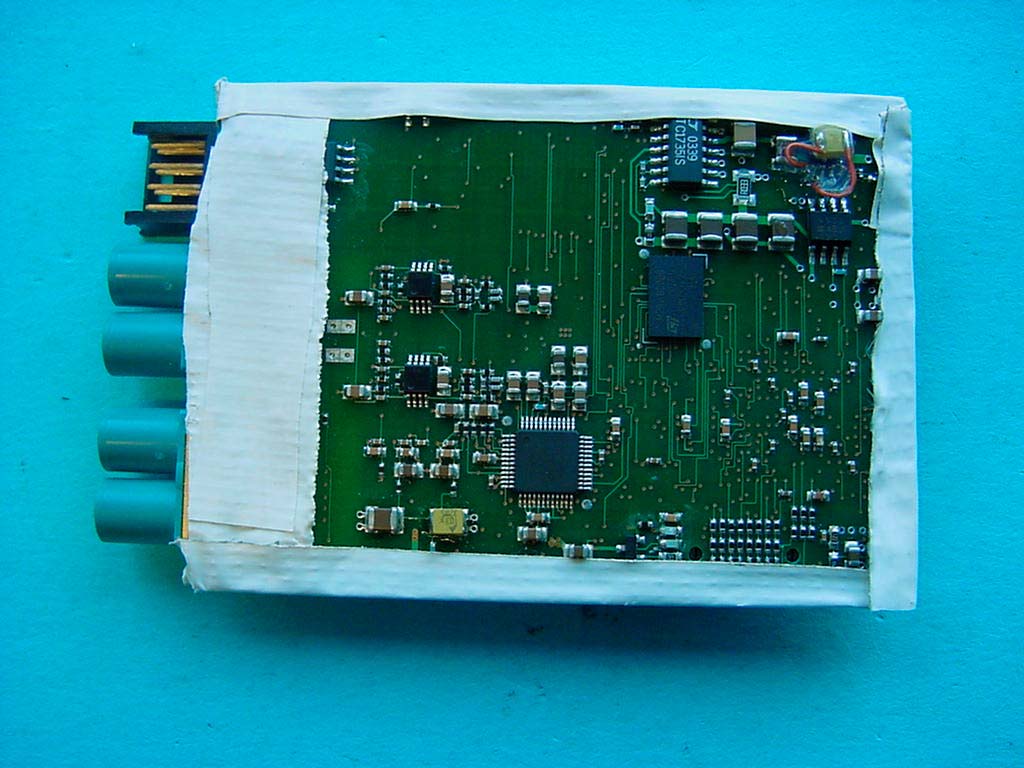

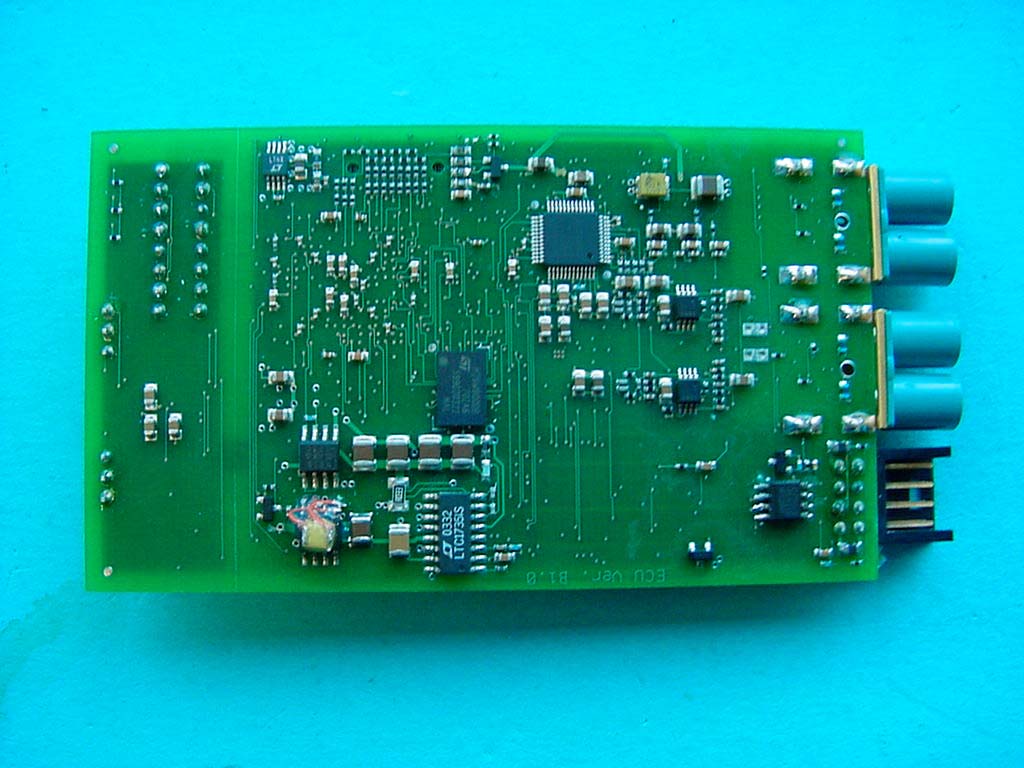

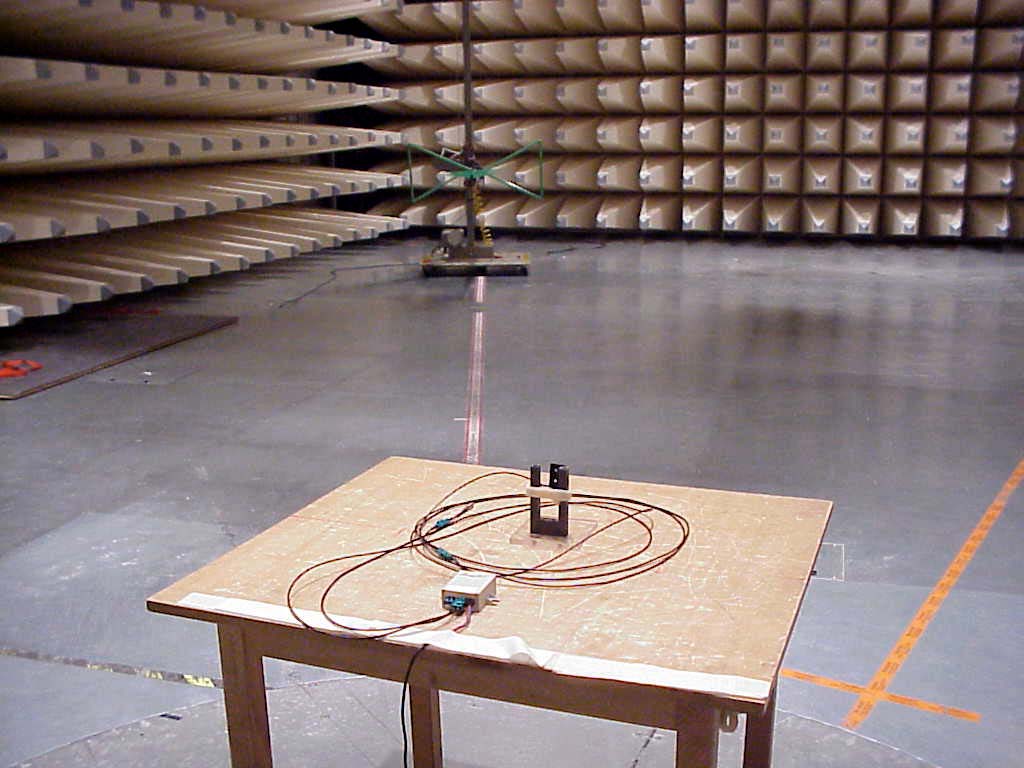

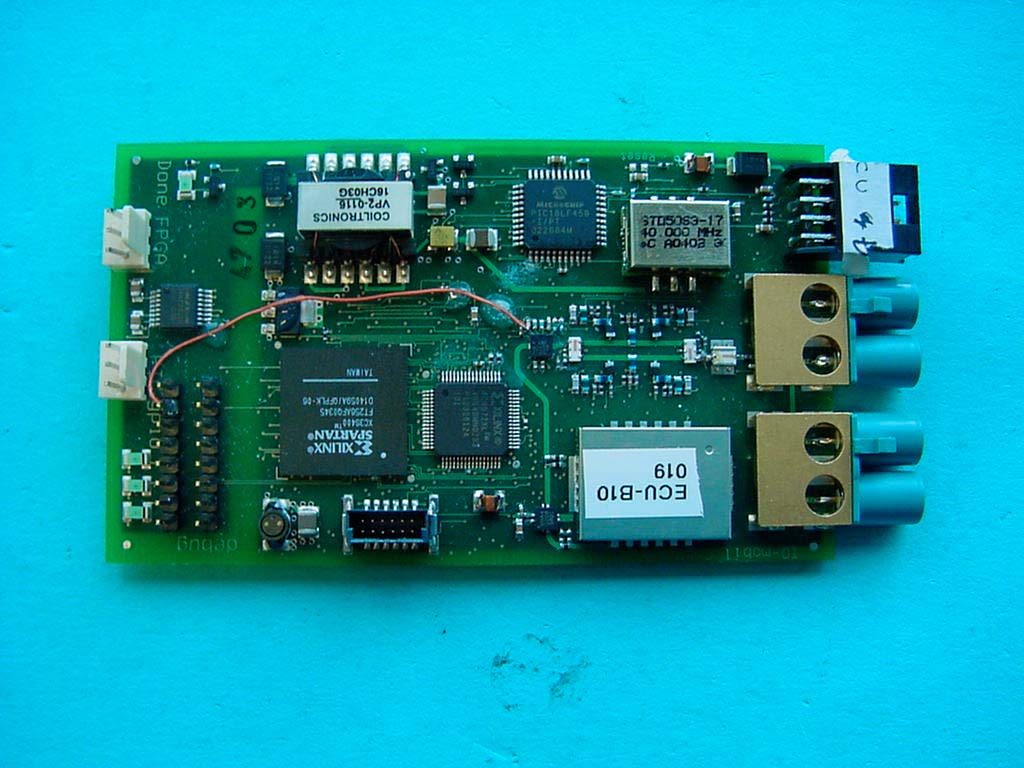

CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 48 (56) Pictures of the test site: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 49 (56) Pictures of the test site: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 50 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 51 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 52 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 53 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 54 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 55 (56) Pictures of the test sample: (including programming part) CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 56 (56) Pictures of the test sample: (including programming part)

---------------------------------------- FCC ID: RXB-RDKS ----------------------------------------

CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 48 (56) Pictures of the test site: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 49 (56) Pictures of the test site: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 50 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 51 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 52 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 53 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 54 (56) Pictures of the test sample: CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 55 (56) Pictures of the test sample: (including programming part) CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19Page 56 (56) Pictures of the test sample: (including programming part)

Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz)Power Density (mW/cm 2 ) Averaging Time (minutes) 300 – 1500f/150030 1500 – 100.0001.030 where f = frequency in MHz Prediction for Tire Pressure Monitoring System FCC ID: RXB-RDKS Antenna Type: 0,8 dBi Antenna Maximum peak output power at antenna input terminal: 19,68 dBm Maximum peak output power at antenna input terminal:92,90 mW Antenna gain(typical): 0,80 dBi Maximum antenna gain: 1,20 numeric Prediction distance: 20,00 cm Prediction frequency: 2.450,00 MHz MPE limit for uncontrolled exposure at prediction frequency: 1,00 Power density at prediction frequency: 0,022 with Antenna Gain of 0,8 dBi Maximum allowable antenna gain for TMPS: 17,33 dBi The antenna gain where 1 for TMPS would be reached at 20 cm distance, is G=17,33 dBi 2 4R PG S π = 2 cm mW 2 cm mW 2 cm mW 2 cm mW 2 cm mW MPE_Calculation_RXB-RDKS.xlsFCC ID RXB-RDKS1/ 1

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelephon: +49 (0)681 598-0Telefax: -9075 RSC14issue test report consist of 56 PagesPage 1 (56) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test Report No.: 2_3499-01-02/04 FCC Part 15.247 / CANADA RSS-210 RDKS / IQ mobil GmbH FCC ID: RXB-RDKS IC: 4991A-RDKS CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 589-9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19 Page 2 (56) Table of Contents 1 General Information 1.1 Notes 1.2 Testing Laboratory 1.3 Details of Applicant 1.4 Application Details 1.5 Test Item 1.6 Test Specifications 2 Technical Test 2.1 Summary of Test Results 2.2 Test Report CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19 Page 3 (56) 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test Laboratory Manager: 2004-03-22RSC8414Ames H. DateSectionNameSignature Technical Responsibility for Area of Testing: 2004-03-22RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19 Page 4 (56) 1.2 Testing Laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR-registration number : TTI-P-G 081/94-D0 Accredited Bluetooth™ Test Facility (BQTF) BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3Details of Applicant Name : IQ-mobil GmbH Street : Hans-Urmiller Ring 46c City : D-82515 Wolfratshausen Country : Germany Telephone : +49 81 71 48 38 22 Telefax : +49 81 71 48 38 10 Contact : Mr. Sascha Kunzmann Telephone : +49 81 71 48 38 22 E-mail: [email protected] 1.4 Application Details Date of receipt of application : 2004-01-26 Date of receipt of test item : 2004-01-26 Date of test : 2004-01-26 to 2004-02-19 CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19 Page 5 (56) 1.5 Test Item Type of equipment : RadioLAN 2.4 GHz as radio telemetry device Type designation: RDKS Manufacturer: IQ-mobil GmbH Street: Hans-Urmiller Ring 46c City: D-82515 Wolfratshausen Country: Germany Serial number: 006 FCC – ID: RXB-RDKS IC : 4991A-RDKS Hardware: Software : Additional information : Frequency: 2400 – 2483.5 MHz Type of modulation: 400KFXD / 53M8FXD (FHSS) Number of channels : 535 Antenna: External antenna Power supply: 13.8 V via car Accumulator Output power: EIRP: 111.7 mW (worst case); conducted : 92.9 mW Field strength: max. 100.8 dBμV/m in 3m Occupied bandwidth: 464.929 kHz Transmitter spurious : 42.8μV/m in 3m Receiver spurious. Temperature range: -30°C - +70°C DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: _______________________________________________ Date: ___2003-05-09 Michael Berg ; Test management NAME AND TITLE (Please print or type): 1.6 Test Specifications: FCC Part 15 §15.247 (March 13. 2003) CANADA RSS-210 (Issue 5) CETECOM ICT Services GmbH Test Report No.: 2_3499-01-02/04Issue Date: 2004-02-19 Page 6 (56) 2 Technical Test 2.1Summary of Test Results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 25 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analysers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn All measurements are done in accordance with the Filing and Measurement Guidelimes for Frequency Hopping Spread Spectrum Systems DA 00-705 The product full…
