RXIHRM300HRM-BLE-300

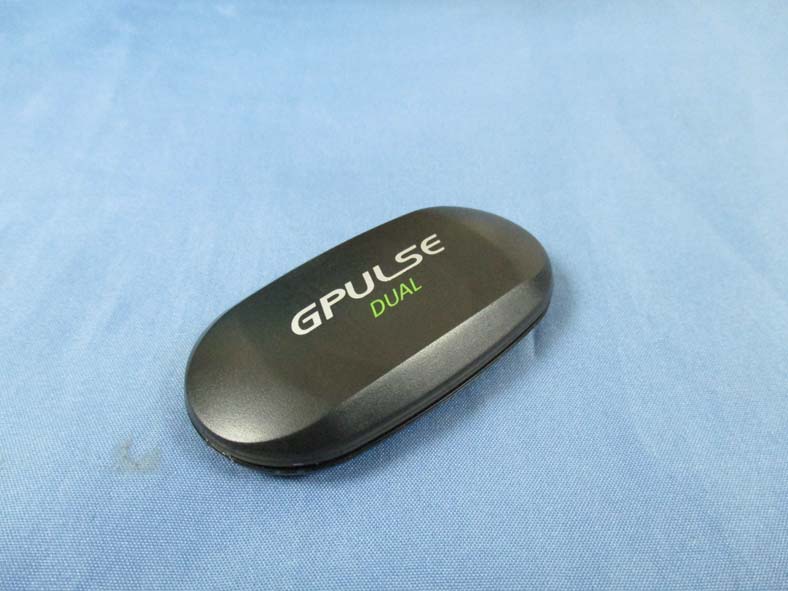

BLE smart & ANT+ Combo Heart Rate Chest Belt ACCESSORIES & ATTACHMENT @@ Heart Rate Transmitter @@ Textile Elastic Strap @@ Battery Cover @@ O-ring @@ CR2032 3V Lithium Battery WEARING THE HEART RATE CHEST BELT : Step 1. Slightly moisten electrode area with some water on the textile strap.(If necessary) Step 2. Attach the Bluetooth smart transmitter to the textile strap 2 connection buttons. The right metal button should on the right side, and left to left side of the body. Step 3. Adjust strap length and wrap around chest. Insert clasp to loop end. Make sure strap is fastened on your body properly. Step 4. Make sure the electrodes are pressed firmly against your skin. The sensor should be centered on your chest in the upright position. Led light should be on the top side. Step 5. You can check the transmission success by red led flash light, it ‘ll continue flashing 5 minutes when detect active pulse. After this period, it’ll enter power saving condition-no flash. Step 6.. NFC function: The smartphone can start the relevant tracking application or connect to the website just by touching the transmitter. NOTICE: 1. Use water, ECG gel to other conductive liquids to moisten the conductive rubber skin contact. 2. Do not use Vaseline or Oils which may insulate the Transmitter making it unable to detect the heart rate signals. 3. To save the power, if you don’t want to detect heart rate, pls make sure to take off the chest belt. 4. NFC transmission distance is about 20mm(transmission condition will vary, depend on each smartphone design and style of phone bags) --------------------------------------------------------------------------------------------------- TRANSMITTER BATTERY INSTALLMENT Install a CR2032 battery as back side illustrated. Step 1. Place O-ring or check if O-ring already in the interval of battery cover. Step 2. Slide the battery (CR2032) in the battery compartment. Step 3. Put on the battery cover and turn right to close it with a coin (turn left to open it). Slide the CR2032 battery at an angle as below illustrated and make sure during battery installation that the battery is first pressed against the side contact (positive electrode) and then pressed into the battery compartment. Place the battery rubber pad(O-ring) ensures water proof protection of the battery compartment. IMPORTANT: Make sure to close the battery cover very tightly to prevent sweat and moisture from spoiling the battery composition. WEAR THE BLE smart & ANT+ COMBO HEART RATE CHEST BELT This heart rate chest belt has a soft textile strap with adjustable buckle design,. Pls adjust to proper length to get the effective heart rate detection. *Before wearing the chest belt , you can check the transmission success by pressing the electrode area with your fingers. If the red led light flash, means it’s in good working condition. TURN ON HEART RATE TRANSMITTER Bluetooth smart : The BLE smart & ANT+ COMBO Heart Rate Transmitter is compatible with iPhone 4s and 5, iPod Touch (5th generation), iPad (3rd and 4th generation) and Android 4.3 or above smartphones. It is also compatible with some sport watches with BLE smart support such as Polar loop, etc. Please follow the following steps to wirelessly connect to your smartphones. Step 1. Go to Device Settings->General->Bluetooth. Step 2. Turn On Bluetooth. Don’t look for this transmitter to pair. The Bluetooth smart device will pair directly with an application. Step 3. Pick a compatible fitness application from the “app store” and download it to the phone. Select a fitness application. For example, Wahoo fitness, Endomondo, Runtastic, Strava, RunKeeper, Cyclemeter, 321Run, Ble Heart Rate Monitor etc. Step 4. Pair the Bluetooth Heart Rate Transmitter with the fitness application in the application settings. *Note: some applications with ANT+ connection doesn’t mean can be used except the smartphones with built-in ANT+ accessories. If want to know whether your phone equiped with it, pls check the phone specification. ANT+ : The BLE smart & ANT+ COMBO Heart Rate Transmitter is compatible with most ANT+ sport watches, cycle meters, and other ANT+ wireless devices. For example, Garmin FR60,Garmin Edge 500, Garmin vivofit watch etc. Step 1. Go to Device Settings->Turn on ANT+ Step 2. Pairing your heart rate transmitter with the devices. Step 3. When you see the heart rate value means connection success. MAINTENANCE OF TEXTILE ELASTIC STRAP The textile strap can be washed in delicate machine wash at +40°C/104°F with most common laundry detergents. Use of detergents with optical brightening agents, detergents with bleaching agents, soap or fabric softener is not recommend. Use of a laundry pouch is recommended. Machine washing has less variation than hand washing and for this reason the machine washing is recommended instead of hand-washing. *The strap does not resist soaking , dry –cleaning or bleaching. *The strap should be dry flat, hang dry or drip dry. NOTICE: 1. Wet strap should not be stretch unnecessarily. Strap does not tumble drying and should not be wring dry. Ironing and pressing with heat are forbidden. 2. Detach the connector from the strap and rinse the strap under running water after every use. 3. Sweat and moisture may keep the electrodes wet and the transmitter activated. This will reduce the transmitter battery life. 4. To keep the product best performance, please wipe out the sweat on metal buttons with clear water to avoid rusty, causing bad transmission. Care symbols are presented as TROUBLE SHOOTING: No Heart Rate or “ZERO” Display * -Re-wear it as instructed. -Stay away from power lines or other electromagnetic sources. -Moisten the electrode sensing area of the textile strap. *- If there’s no heart rate value display or led light always on, not in flash condition, pls take out the battery and wait for about 1minute then re-install the battery. -If appear wrong heart rate value,please check the cleanness of metal buttons on transmitter. -Avoid using …

Text truncated - open the document above for the full version.

Report No：1480253R-RFUSP01V00-A Page: 52 of 57 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No：1480253R-RFUSP01V00-A Page: 53 of 57 (3) EUT Photo (4) EUT Photo

G.PULSE INTERNATIONAL CO.,LTD. 16-3 LANE 852 TU CHENG ROAD,TA LI,TAICHUNG CITY,TAIWAN R.O.C. FCC ID.: RXIHRM300 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. HRM-BLE-300 Model No.: HR-08 FCC ID : RXIHRM300 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan Trade name: GPULSE Model number.: HR-08

Report No：1480253R-RFUSP01V00-A Page: 54 of 57 (5) EUT Photo (6) EUT Photo Report No：1480253R-RFUSP01V00-A Page: 55 of 57 (7) EUT Photo (8) EUT Photo (MB) Report No：1480253R-RFUSP01V00-A Page: 56 of 57 (9) EUT Photo (10) EUT Photo (Ant) Report No：1480253R-RFUSP01V00-A Page: 57 of 57 (11) EUT Photo (12) EUT Photo (Ant)

Report No. 1480253R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation Declaration Product Name ：HRM-BLE-300 Model No. ：HR-08 FCC ID. ：RXIHRM300 Applicant : G.PULSE INTERNATIONAL CO.,LTD. Address : 16-3 LANE 852 TU CHENG ROAD,TA LI,TAICHUNG CITY,TAIWAN R.O.C. Date of Receipt : 2014/08/08 Date of Declaration : 2014/10/03 Report No. : 1480253R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 1480253R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to 1.1307(b)(1), system operating under the previsions of this section shall be operated in manner that ensure that the public is not exposed is not exposed to radio frequency energy level in excess of the Commission’s guideline. No SAR required for output power as below thresholds: f = GHz, d = Distance (between radiated device and the body) [(max. power of channel,including tune-up tolerance,mW)/(min. test separation distance, mm)]x[√f (GHz) ] ≦ 3.0 for 1-g SAR Where f (GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation. Ex: f = 2.402GHz, Output Power threshold = (max power/5)x[√f (GHz) ] = (1.40/5)x1.54 = 0.43 ≦ 3.0 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 1480253R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product HRM-BLE-300 Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1.00 in linear scale. Output Power into Antenna Channel Channel Frequency (MHz) Output Power to Antenna (mW) EIRP (mW) Output Power threshold (mW) (d <5mm) 00 2402 2.1717 2.1717 10 19 2440 1.9458 1.9458 10 39 2480 1.9418 1.9418 10 Channel Channel Frequency (MHz) Output Power to Antenna (mW) EIRP (mW) Output Power threshold (mW) (d <5mm) 00 2457 4.1601 4.1601 8 Conclusion: No SAR evaluation required, since transmitter output power is below threshold.

Report No：1480253R-RFUSP01V00-A Page: 1 of 57 FCC Test Report Product Name：HRM-BLE-300 Model No. ：HR-08 FCC ID. ：RXIHRM300 Applicant ： G.PULSE INTERNATIONAL CO.,LTD. Address ： 16-3 LANE 852 TU CHENG ROAD,TA LI,TAICHUNG CITY,TAIWAN R.O.C. Date of Receipt：2014/08/08 Issued Date ：2014/10/03 Report No. ：1480253R-RFUSP01V00-A Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：1480253R-RFUSP01V00-A Page: 2 of 57 Test Report Certification Issued Date : 2014/10/03 Report No. : 1480253R-RFUSP01V00-A Product Name ： HRM-BLE-300 Applicant ： G.PULSE INTERNATIONAL CO.,LTD. Address ： 16-3 LANE 852 TU CHENG ROAD,TA LI,TAICHUNG CITY,TAIWAN R.O.C. Manufacturer ： G.PULSE INTERNATIONAL CO.,LTD. Model No. ： HR-08 FCC ID. ： RXIHRM300 EUT Voltage : DC 3V (Power by Battery) Trade Name ： GPULSE Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2013 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Reviewed By : ( Jimmie Liu / Senior Engineer ) Approved By : ( Roy Wang / Director ) Report No：1480253R-RFUSP01V00-A Page: 3 of 57 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 3024 NCC, Certificate No: NCC-RCB-07 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：1480253R-RFUSP01V00-A Page: 4 of 57 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 6 1.1. EUT Description..........................................................................................................................6 1.2. Test Mode....................................................................................................................................7 1.3. Tested System Details................................................................................................................8 1.4. Configuration of tested System................................................................................................9 1.5. EUT Exercise Software..............................................................................................................9 1.6. Test Facility................................................................................................................................10 2. Peak Power Output ...................................................................................................... 11 2.1. Test Equipment.........................................................................................................................11 2.2. Test Setup..................................................................................................................................11 2.3. Test procedures.........................................................................................................................11 2.4. Limits...........................................................................................................................................11 2.5. Test Specification......................................................................................................................11 2.6. Test Result.................................................................................................................................12 3. Radiated Emission ....................................................................................................... 15 3.1. Test Equipment.........................................................................................................................15 3.2. Test Setup..................................................................................................................................15 3.3. Limits...........................................................................................................................................16 3.4. Test Procedure..........................................................................................................................16 3.5. Test Specification......................................................................................................................16 3.6. Test Result.................................................................................................................................17 3.7. Test Photo..................................................................................................................................25 4. RF antenna conducted test .......................................................................................... 27 4.1. Test Equipment................…

Text truncated - open the document above for the full version.

Report No：1480253R-RFUSP01V00-A Page: 25 of 57 3.7. Test Photo Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Bilog) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Bilog) Report No：1480253R-RFUSP01V00-A Page: 26 of 57 Test Mode ： Mode 1: Transmit Description： Front View of Radiated Emission Test Setup (Horn) Test Mode ： Mode 1: Transmit Description： Back View of Radiated Emission Test Setup (Horn)
