RXIHRMBLEBLE CHEST BELT

FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

G.pulse Int'l Co., Ltd. 16-3,Lane 852, Tu Cheng Road,Ta Li Dist. Taichung Ta i w a n FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name G.pulse Int'l Co., Ltd. Address 16-3,Lane 852, Tu Cheng Road,Ta Li Dist. Taichung City, Taiwan R.O.C. City Taichung Country Taiwan request for this certification filing under: Grantee Code Product Number FCC ID: RXI HRMBLE to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description √ Operational Description explaining the functioning of the block diagram √ Block Diagrams showing the systematic building blocks of the EUT √ Schematics Diagrams showing components, their values and interconnection Bill of Materials List of components used on the PCB’s of the EUT Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere.

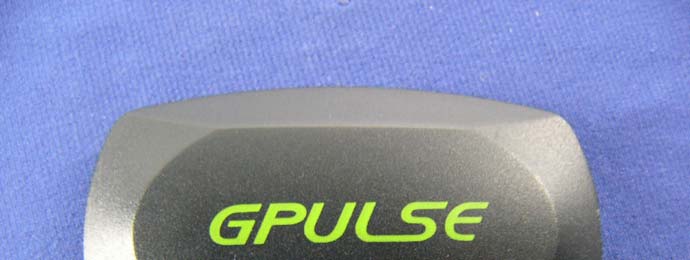

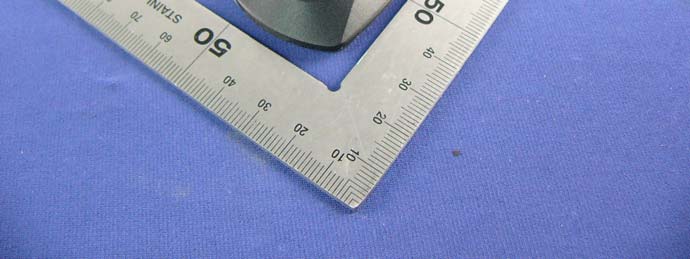

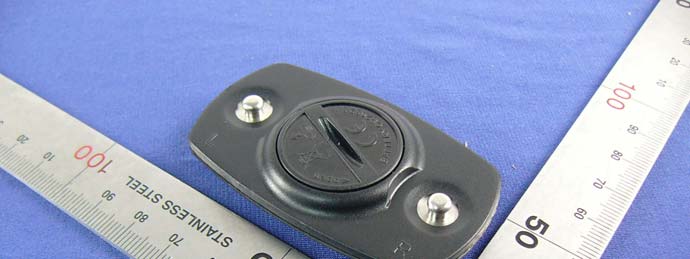

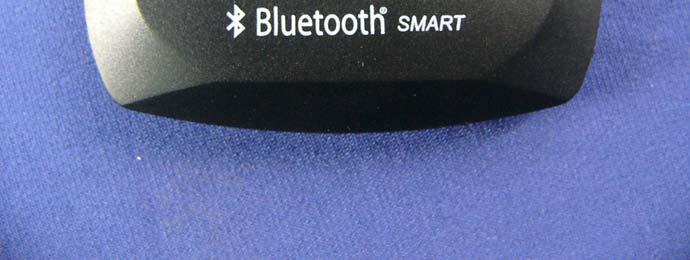

Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 Page 1/3 External Photos of EUT Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 Page 2/3 Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 Page 3/3

Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 Page 1/4 Internal Photos of EUT Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 Page 2/4 Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 Page 3/4 Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 Page 4/4

FCC RF Exposure FCC ID: RXIHRMBLE Frequency: 2402-2480 MHz (79 channels) Mid-Channel Peak Power or Highest Peak Power, Conducted: -4.83 dBm == 0.33 mW Antenna Gain: G = -8.75 dBi Peak, Radiated = -4.83 dBm + -8.75 dBi = -13.85 dBm = 0.04 mW SAR Test Exclusion Thresholds specified in KDB447498 Appendix A: Evaluation: The maximum calculated peak radiated power of 0.04 mW lies very far under the 10mW at 5 mm.. Conclusion: This device emits far under the exposure limit for its typical use, and is excluded for SAR evaluation, so PASS.

Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 FCC ID: RXIHRMBLE Page 1 / 42 FCC 47 CFR PART 15 SUBPART C for BLE CHEST BELT Model: HRM-BLE-100 Brand: GPULSE Test Report Number: C130128Z01-RP1 Issued for G.pulse Int'l Co., Ltd. 16-3, Lane 852, Tu Cheng Road, Ta Li Dist. Taichung City, Taiwan R.O.C. Issued by: Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services (Shenzhen) Inc. No.10-1, Mingkeda Logistics Park, No.18 Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen, China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: January 29, 2013 Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 FCC ID: RXIHRMBLE Page 2 / 42 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue No. Revisions Effect Page Revised By 00 C121105Z01-RP1 Initial Issue ALL Amay Tang 01 C130128Z01-RP1 Update Report ALL Nancy Fu Rev.01 (C130128Z01-RP1): 1. The report updated the product name, the model name, the brand name, the applicant, the manufacturer, and also changed the appearance of EUT based on the Report No.: C121105Z01-RP1. 2. The other information, please refer to the Report No.: C121105Z01-RP1 and this report. Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 FCC ID: RXIHRMBLE Page 3 / 42 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST CERTIFICATION .............................................................................................. 4 2 TEST RESULT SUMMARY ........................................................................................ 5 3 EUT DESCRIPTION ................................................................................................... 6 4 TEST METHODOLOGY ............................................................................................. 7 4.1. DESCRIPTION OF TEST MODES ...................................................................................... 7 5 SETUP OF EQUIPMENT UNDER TEST .................................................................... 8 5.1. DESCRIPTION OF SUPPORT UNITS................................................................................. 8 5.2. CONFIGURATION OF SYSTEM UNDER TEST ................................................................. 8 6 FACILITIES AND ACCREDITATIONS ....................................................................... 9 6.1. FACILITIES .......................................................................................................................... 9 6.2. ACCREDITATIONS ............................................................................................................. 9 6.3. MEASUREMENT UNCERTAINTY....................................................................................... 9 7 FCC PART 15.247 REQUIREMENTS ...................................................................... 10 7.1. POWER LINE CONDUCTED EMISSIONS MEASUREMENT........................................... 10 7.2. SPURIOUS EMISSIONS MEASUREMENT....................................................................... 13 7.3. 6dB BANDWIDTH MEASUREMENT ................................................................................. 26 7.4. PEAK OUTPUT POWER ................................................................................................... 29 7.5. BAND EDGES MEASUREMENT....................................................................................... 33 7.6. PEAK POWER SPECTRAL DENSITY MEASUREMENT.................................................. 39 Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 FCC ID: RXIHRMBLE Page 4 / 42 1 TEST CERTIFICATION Product BLE CHEST BELT Model HRM-BLE-100 Brand GPULSE Tested November 5~19, 2012 Applicant G .pulse Int'l Co., Ltd. 16-3, Lane 852, Tu Cheng Road, Ta Li Dist. Taichung City, Taiwan R.O.C. Manufacturer G.pulse Int'l Co., Ltd. 16-3, Lane 852, Tu Cheng Road, Ta Li Dist. Taichung City, Taiwan R.O.C. APPLICABLE STANDARDS Standard Test Type Standard Test Type 15.207(a) Power Line Conducted Emissions 15.247(d) 15.209(a) z Spurious Emissions z Conducted Measurement z Radiated Emissions 15.247(a)(2) 6dB Bandwidth Measurement 15.247(b)(3) 15.247(b)(4) Peak Power Measurement 15.247(d) Band Edges Measurement 15.247(e) Peak Power Spectral Density We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Tom Gan Supervisor of EMC Dept. Compliance Certification Service Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Service Inc. Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 FCC ID: RXIHRMBLE Page 5 / 42 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2 TEST RESULT SUMMARY APPLICABLE STANDARDS Standard Test Type ResultRemark 15.247(a)(2) 6dB Bandwidth Measurement PassMeet the requirement of limit. 15.247(b)(3) 15.247(b)(4) Peak Power Measurement PassMeet the requirement of limit. 15.247(d) Band Edges Measurement PassMeet t…

Text truncated - open the document above for the full version.

Reference No.: C121105Z01-RP1 Report No.: C130128Z01-RP1 FCC ID: RXIHRMBLE Page 1/1 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Below 1GHz Above 1GHz
