RYG-Q1Remote Control

Shenzhen Anycon Electronics Technology Co.,Ltd Agent Authorization Company: Shenzhen Anycon Electronics Technology Co.,Ltd Address: No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan China Product Name: Remote Control Model Number(s): Q1 Product Description: Remote Control FCC ID: RYG-Q1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-05 Name: Vincent Guo Title: Quality supervisor Company: Shenzhen Anycon Electronics Technology Co.,Ltd

Shenzhen Anycon Electronics Technology Co.,Ltd No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan China Date: November 05, 2020 FCC ID: RYG-Q1 Model Number: Q1 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To Whom It May Concern, We, Shenzhen Anycon Electronics Technology Co.,Ltd declare that this EUT (FCC ID: RYG-Q1) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Vincent Guo / Quality supervisor Company: Shenzhen Anycon Electronics Technology Co.,Ltd Address: No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan China Tel: 86-0769-87091688 Fax: 86-0769-87091685 E-mail: [email protected]

Shenzhen Anycon Electronics Technology Co.,Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-05 Subject; Request for Confidentiality FCC ID: RYG-Q1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Vincent Guo Title: Quality supervisor

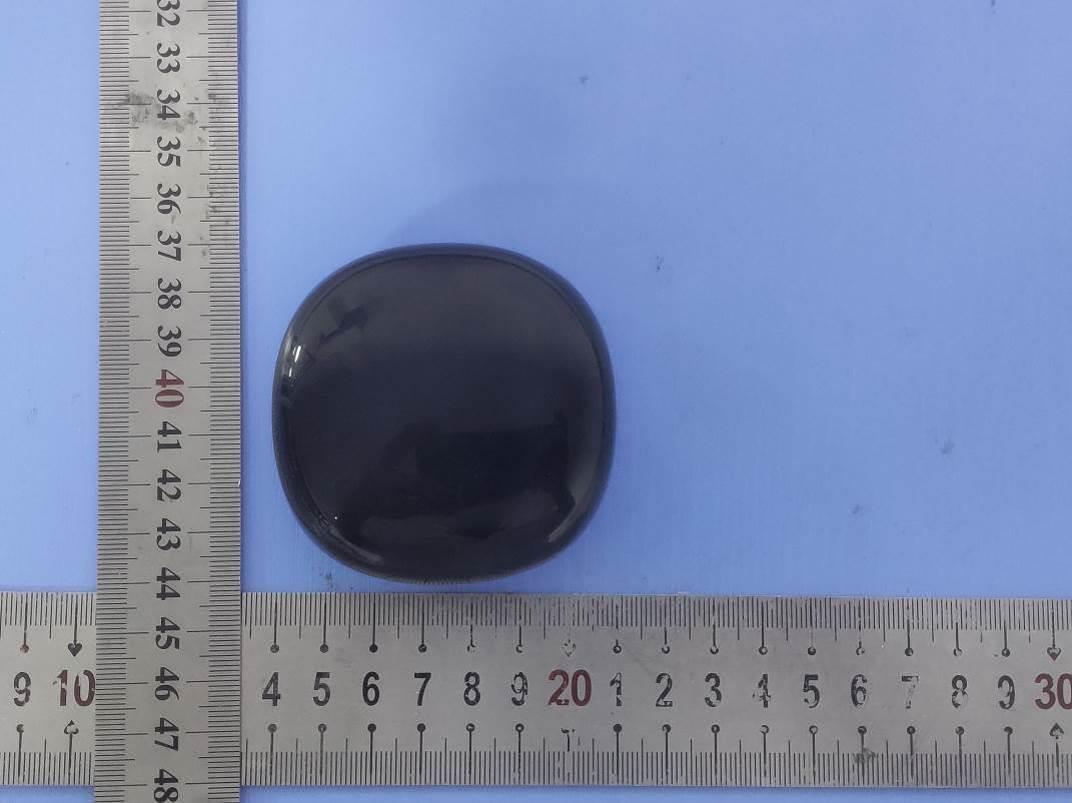

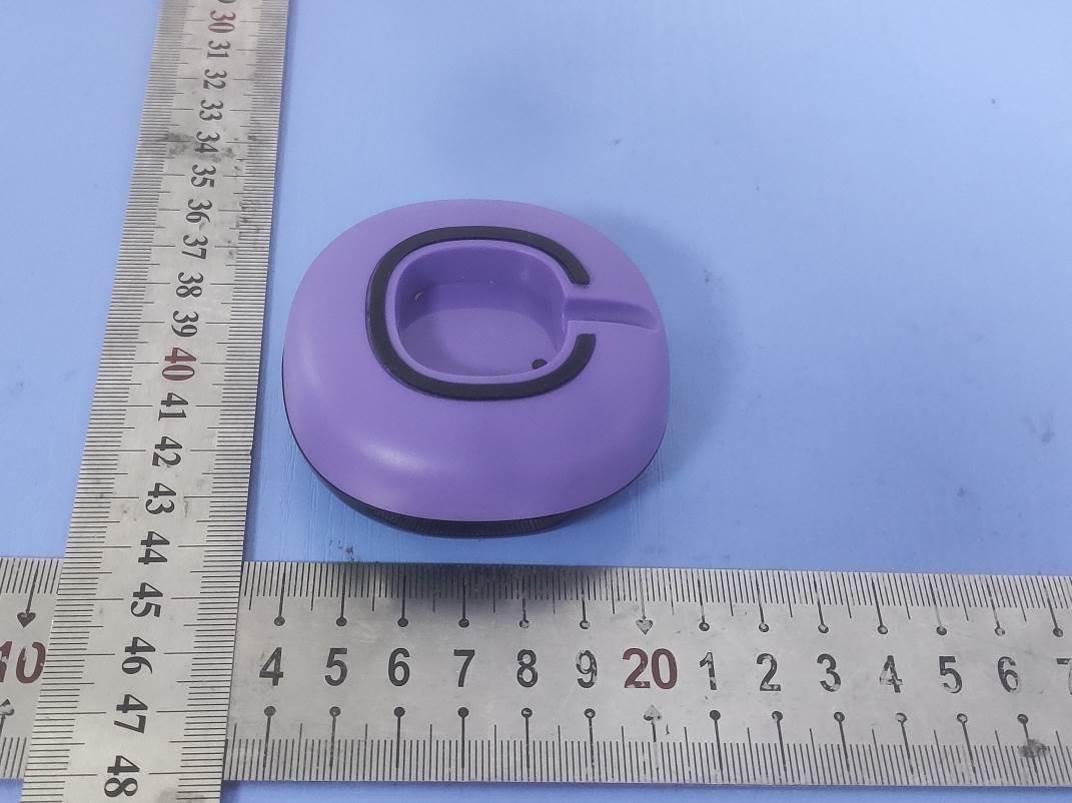

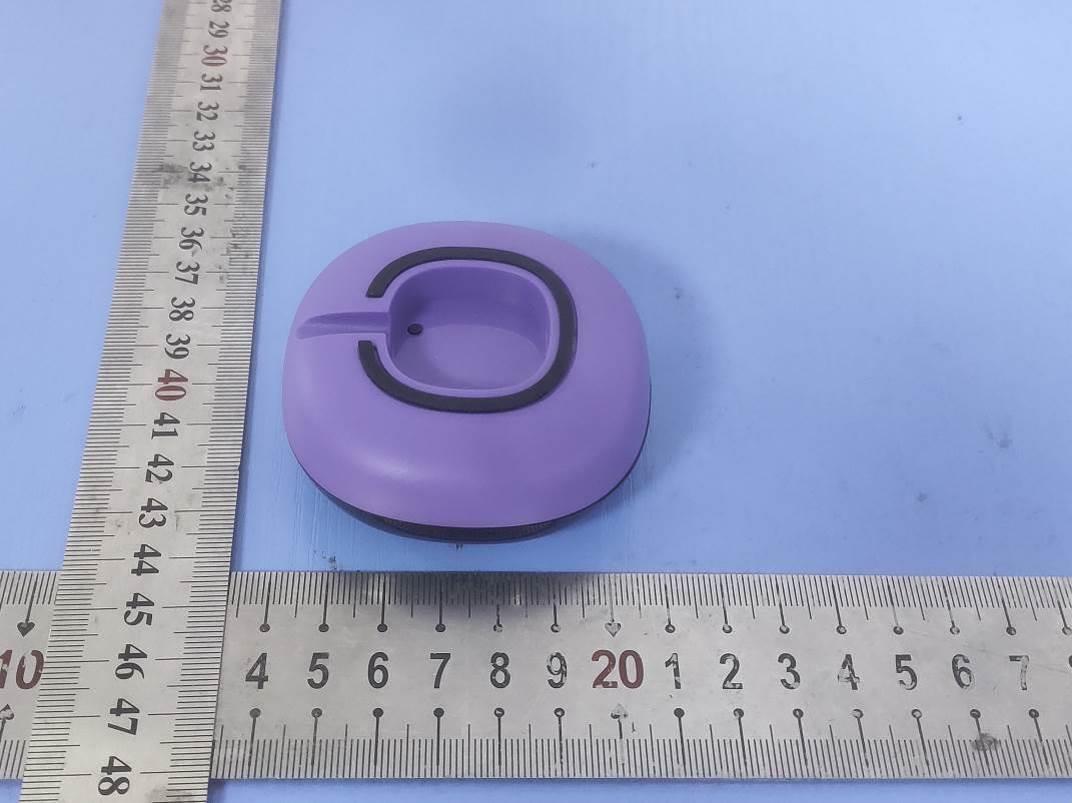

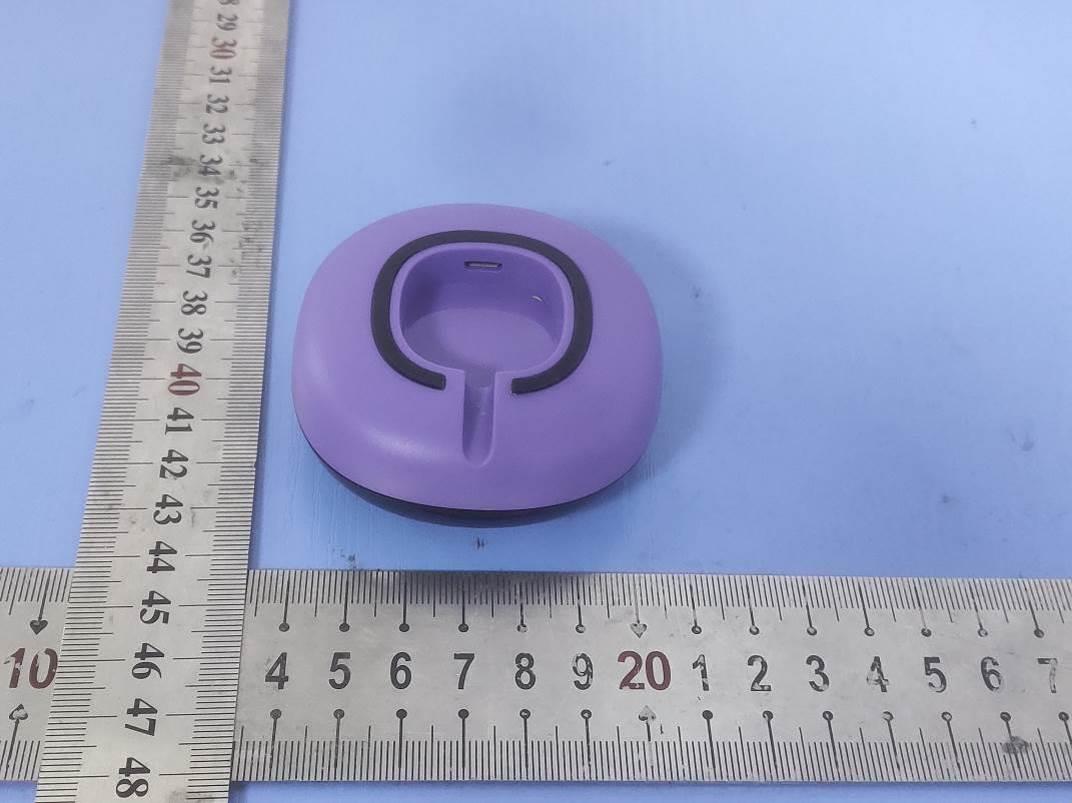

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 8.EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Remote Control Model No.: Q1 FCC ID: RYG-Q1

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 9.INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Fig.9 Fig.10 WIFI Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 FCC RF Exposure Evaluation 1. Product Information FCC ID RYG-Q1 Product name Remote Control Model number Q1 Power supply DC 5V From Micro USB Modulation Type IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Antenna Type PCB Antenna, Antenna Gain 0dBi(Max.) Hardware version / Software version / FCC Operation frequency 2412MHz – 2462 MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Devices 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. Limit 3. 1 Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information Artemis Antenna can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna type and antenna number Operate frequency band Maximum antenna gain Note Antenna Internal Antenna, 2412MHz-2462MHz 0dBi WIFI Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 6. Conducted Power Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) 11B 1 2412 19.13 6 2437 17.98 11 2462 16.82 11G 1 2412 19.22 6 2437 18.41 11 2462 17.25 11N20SISO 1 2412 19.21 6 2437 18.39 11 2462 17.36 7. Manufacturing Tolerance 11B (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 19.0 18.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 11G (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 19.0 18.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 11N20SISO (Peak) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 19.0 18.0 17.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna refer to antenna information, the RF power density can be obtained. [Antenna ] Band/Mode RF output power Antenna Gain (dBi) MPE (mW/cm2) MPE Limits (mW/cm2) dBm mW IEEE 802.11b 20.0 100.00 0 0.0199 1.0000 IEEE 802.11g 20.0 100.00 0 0.0199 1.0000 IEEE 802.11n HT20 20.0 100.…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 1 of 40 Appendix A RF Test Data for 2.4G WIFI (Conducted Measurement) Product Name: Remote Control Trade Mark: N/A Test Model: Q1 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Kay Hu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11B 2437 Ant1 88.87 0.51 0.01 11G 2437 Ant1 86.31 0.64 0.01 11N20SISO 2437 Ant1 85.67 0.67 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 2 of 40 Duty Cycle_11B_2437_Ant1 Duty Cycle_11G_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 3 of 40 Duty Cycle_11N20SISO_2437_Ant1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 4 of 40 A.2 Maximum Conducted Output Power Mode Channel AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit [dBm] Verdict 11B LCH 18.62 0.51 19.13 30 PASS MCH 17.47 0.51 17.98 30 PASS HCH 16.31 0.51 16.82 30 PASS 11G LCH 18.58 0.64 19.22 30 PASS MCH 17.77 0.64 18.41 30 PASS HCH 16.61 0.64 17.25 30 PASS 11N20SISO LCH 18.54 0.67 19.21 30 PASS MCH 17.72 0.67 18.39 30 PASS HCH 16.69 0.67 17.36 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 5 of 40 Test Graphs 11B/LCH 11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 6 of 40 11B/HCH 11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 7 of 40 11G/MCH 11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 8 of 40 11N20SISO/LCH 11N20SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 9 of 40 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 10 of 40 A.3 Maximum Power Spectral Density Mode Channel Power Density [dBm/30KHz] Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density [dBm/3KHz] Limit [dBm/3KHz] Verdict 11B LCH 5.477 0.51 -10 -4.01 8 PASS MCH 5.053 0.51 -10 -4.44 8 PASS HCH 3.631 0.51 -10 -5.86 8 PASS 11G LCH 1.269 0.64 -10 -8.09 8 PASS MCH 0.515 0.64 -10 -8.85 8 PASS HCH -0.724 0.64 -10 -10.08 8 PASS 11N20 SISO LCH 1.835 0.67 -10 -7.50 8 PASS MCH 0.897 0.67 -10 -8.43 8 PASS HCH -0.027 0.67 -10 -9.36 8 PASS Note: 1. RBW Factor(dB)=10log(3/30) 2. Report Power Density [dBm/3KHz]= Power Density[dBm/30KHz]+ Duty Cycle Factor(dB)+ RBW Factor(dB) Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 11 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 12 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 13 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 14 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 15 of 40 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict 11B LCH 8.596 ≥0.5 PASS MCH 8.119 ≥0.5 PASS HCH 8.119 ≥0.5 PASS 11G LCH 16.08 ≥0.5 PASS MCH 16.30 ≥0.5 PASS HCH 16.32 ≥0.5 PASS 11N20SISO LCH 16.07 ≥0.5 PASS MCH 16.58 ≥0.5 PASS HCH 16.59 ≥0.5 PASS Test Graphs 11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 16 of 40 11B/MCH 11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 17 of 40 11G/LCH 11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 18 of 40 11G/HCH 11N20SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 19 of 40 11N20SISO/MCH 11N20SISO/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 20 of 40 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdic t 11B LCH 8.54 -38.965 -11.460 PASS MCH 8.162 -38.924 -11.838 PASS HCH 7.599 -37.880 -12.401 PASS 11G LCH 6.144 -38.630 -13.856 PASS MCH 5.186 -37.989 -14.814 PASS HCH 4.41 -37.841 -15.590 PASS 11N20 SISO LCH 6.244 -37.498 -13.756 PASS MCH 5.574 -38.586 -14.426 PASS HCH 4.395 -38.607 -15.605 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 21 of 40 11B_LCH_Graphs Pref/11B/LCH Puw/11B/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 22 of 40 11B_MCH_Graphs Pref/11B/MCH Puw/11B/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 23 of 40 11B_HCH_Graphs Pref/11B/HCH Puw/11B/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 24 of 40 11G_LCH_Graphs Pref/11G/LCH Puw/11G/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 25 of 40 11G_MCH_Graphs Pref/11G/MCH Puw/11G/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 26 of 40 11G_HCH_Graphs Pref/11G/HCH Puw/11G/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 27 of 40 11N20SISO_LCH_Graphs Pref/11N20SIS O/LCH Puw/11N20 SISO/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 28 of 40 11N20SISO_MCH_Graphs Pref/11N20 SISO/MCH Puw/11N20 SISO/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA Page 29 of 40 11N20SISO_HCH_Graphs Pref/11N20 SISO/HCH Puw/11N20 SISO/H…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 37 FCC TEST REPORT For Shenzhen Anycon Electronics Technology Co.,Ltd Remote Control Test Model: Q1 Prepared for : Shenzhen Anycon Electronics Technology Co.,Ltd Address : No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : July 22, 2020 Number of tested samples : 2 Sample number : 200707107A-1, 200707107A-2 Serial number : Prototype Date of Test : July 22, 2020 ~ August 04, 2020 Date of Report : August 05, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 37 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200707107AEA Date of Issue .................................. : August 05, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure .......... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Shenzhen Anycon Electronics Technology Co.,Ltd Address .......................................... : No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan China Test Specification Standard ......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. .................. : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. .......................... : Remote Control Trade Mark ..................................... : N/A Test Model ...................................... : Q1 Ratings ........................................... : DC 5V From Micro USB Result ............................................ : Positive Compiled by: Supervised by: Approved by: Cherry Chen/ Administrators Jin Wang / Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 37 FCC -- TEST REPORT EUT......................................... : Remote Control Test Model............................... : Q1 Applicant............................... : Shenzhen Anycon Electronics Technology Co.,Ltd Address.................................. : No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : DONGGUAN ANYCON INTELLIGENT TECHNOLOGY CO., LTD Address................................... : NO.12, Limin Road, Jinxiaotang Industrial Zone, Zhutang Villa ge, Fenggang Town, Dongguan, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Factory................................... : DONGGUAN ANYCON INTELLIGENT TECHNOLOGY CO., LTD Address................................... : NO.12, Limin Road, Jinxiaotang Industrial Zone, Zhutang Villa ge, Fenggang Town, Dongguan, Guangdong Province, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200707107AEA August 05, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 37 Revision History Revision Issue Date Revisions Revised By 000 August 05, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 Report No.: LCS200707107AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 37 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS .......................................................................................... 7 1.3. EXTERNAL I/O CABLE ...............................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 _______________________________________________________________________________________________ 7. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: RYG-Q1 _______________________________________________________________________________________________ Power Line Conducted Emission
