RYG1301120100Bluetooth Remote Control

Shenzhen Anycon Electronics Technology Co., Ltd 1 USER MANUAL Button quantity: 13 From: Shenzhen Anycon Electronics Technology Co., Ltd 1. Basic Requirements: 1.1 Module: BCM20730 Voltage: DC 3V 1.2 Automatic connection, no pairing password/ Default password: 0000 1.3 Current: <25mA 1.4 Standby Current: <20uA (The state is connected with equipment, wake up without matches 1.5 Work distance: Indoors: 10m, Ourdoors: 10m 1.6 With the CE/FCC certificate, approved by the international Bluetooth. 2. Increase the S18 function instruction 2.1 Pairing: Before pairing with device, connect the power and the LED will flash for 3 times, it shows the power works well.Keep on pressing the S18 button for 3 seconds, the LED light on constantly, remote control come to pairing state. Device will send out the pairing insturction and pairing without password( or 0000)automatically. LED light flashing for 3 times,pairing succeed. Whenever you press the S18 for 3 seconds, remote control will come to pairing state. 2.2 ON/OFF function: In the normal state when you use the remote control, once you press the S18 button, remote control will turn off, the current is less than 1uA Press the button once again, the remote control come to work state, meanwhile, LED light flashing for 3 times, remote control works well. 3. The remote control name shows on the device: Bluetooth RCU 4. Instruction 4.1 The LED light flash for 2 times when you press the button on the remote control 4.2 Low Power instruction: LED light will keep flashing, Frequency: one time for one second 4.3 Sleep/Standby state: LED light stop flashing. 4.4 When you in the normal working state, if you do not press any button within 10 minutes, it will come to sleep mode. Return to work state once you press one button on the remote control. 4.5 Shut off the device power, it will come to low voltage state when you can not find the succeed paired device after 5 minutes, and the quiescent current is: 1uA. 4.6 When you reset the succeed paired device, the LED light will flash and connect the device automatically once youfind the remote control. Shenzhen Anycon Electronics Technology Co., Ltd 2 5. Products Silkscreen Figure FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Anycon Electronics Technology Co.,Ltd No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan, Guangdong Province, China Confidentiality Request Letter Page 1 of 1 Rev 2.0 March 20, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Permanent Confidentiality Request Confidentiality Request regarding application for certification of FCC ID: RYG1301120100 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Guangyao You / Manager Contact information / address: No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan, Guangdong Province, China TEL: 86-0769-87091688 FAX: 86-0769-87091685 E-mail: [email protected]

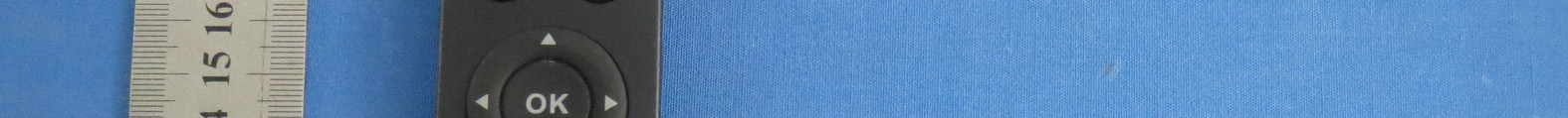

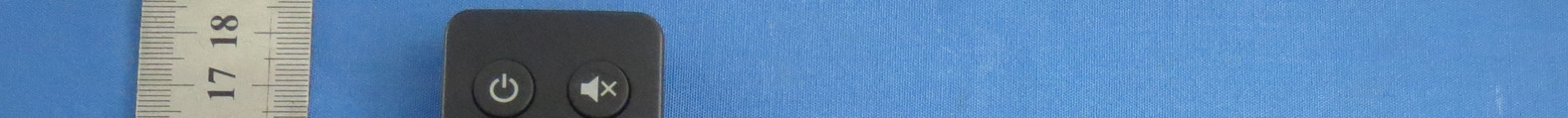

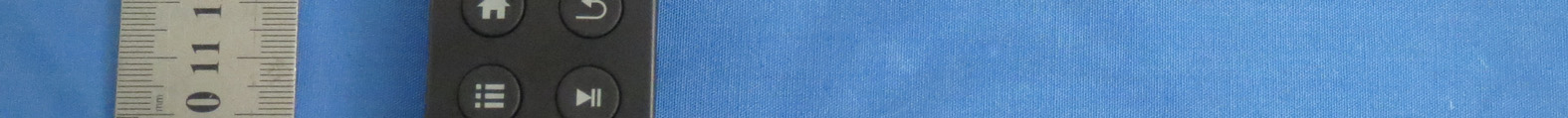

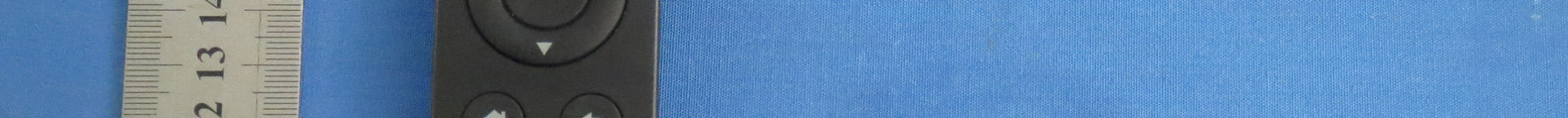

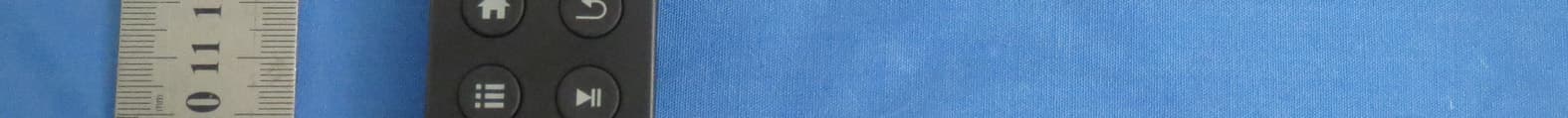

External Photo

FCC Certification Label FCC ID:RYG1301120100 Label Location on EUT label size:high 1.0cm, Wide:2.5cm EUT View/ FCC ID Label Location

Internal Photo Antenna

FCC PART 15.249 EMI MEASUREMENT AND TEST REPORT For Shenzhen Anycon Electronics Technology Co.,Ltd No.12,Limin Road, Jinxiaotang industry area, Fenggang, Dongguan, Guangdong Province, China FCC ID:RYG1301120100 March 13, 2014 This Report Concerns: Original Report Equipment Type: Bluetooth Remote Control Test Engineer: Lisa Chen Report No.: BSL14032219Y-1ER-3 Receive EUT Date/Test Date: March 14,2014 / March 17-21, 2014 Reviewed By: Sky Zhang Prepared By: BSL Testing Co.,LTD. NO. 24, ZH Park, Nantou, Shenzhen, 518000 China Tel: 86- 755-26508703 Fax: 86- 755-26508703 Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of BSL Testing Co.,LTD. This report must not be used by the client to claim product certification,approval,or endorsement by NVLAP, NIST or any agency of the US Government. FCC ID: RYG1301120100 BSL14032219Y-1ER-3 Page 2/24 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................3 1.1. Report information ............................................................................................................3 1.2. Measurement Uncertainty .................................................................................................3 2. PRODUCT DESCRIPTION ......................................................................................................4 2.1. EUT Description ...............................................................................................................4 2.2. Block Diagram of EUT Configuration..............................................................................5 2.3. Support Equipment List ....................................................................................................5 2.4. Test Conditions .................................................................................................................5 3. TEST RESULTS SUMMARY ...................................................................................................6 Modifications ................................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 5. ANTENNA REQUIREMENT ...................................................................................................8 5.1. Standard Applicable..........................................................................................................8 5.2. Antenna Connected Construction .....................................................................................8 5.3. Result ................................................................................................................................8 6. CONDUCTED POWER LINE TEST .......................................................................................9 6.1. Test Equipment .................................................................................................................9 6.2. Test Procedure ..................................................................................................................9 6.3. Test Setup..........................................................................................................................9 6.4. Conducted Power line Emission Limits............................................................................9 6.5. Conducted Power Line Test Result.................................................................................10 7. RADIATED EMISSION TEST ...............................................................................................11 7.1. Test Equipment ...............................................................................................................11 7.2. Test Procedure ................................................................................................................11 7.3. Radiated Test Setup ........................................................................................................11 7.4. Radiated Emission Limit.................................................................................................13 7.5. Radiated Emission Test Result .......................................................................................14 8. BAND EDGE .............................................................................................................................19 8.1. Test Equipment ...............................................................................................................19 8.2. Test Procedure ................................................................................................................19 8.3. Band Edge FCC 15.249(d) Limit ....................................................................................19 8.4. Band Edge Test Result ....................................................................................................20 9. 20-DB BANDWIDTH ...............................................................................................................21 9.1. Test Equipment ...............................................................................................................21 9.2. Test Procedure ................................................................................................................21 9.3. Limit................................................................................................................................21 9.4. Test Result /Plots ............................................................................................................21 FCC ID: RYG1301120100 BSL14032219Y-1ER-3 Page 3/24 1. GENERAL INFORMATION 1.1. Report information 1.1.1.This report is not a certificate of quality; it only applies to the sample of the specific pr…

Text truncated - open the document above for the full version.

Radiated emissions test
