RYLH1LV5001Wireless Mouse

User Manual Please follow the steps as below: 1. Plug the receiver into PC USB port before using, the red indicator shines means the connection between PC and receiver is OK. 2. Load the batteries to the mouse and click on the power switch then the optical LED will be lightened. 3. Click the mouse ID setting button, its optical LED will be darkened and the low power indicator (red color) will shine for once. 4. Click the receiver ID setting button, it will shine red slowly. 5. After ID setting of the mouse and receiver is finished, the red indicator of receiver will be quickly shining and then stop shining which shows that the connection between mouse and receiver is OK. 6. The red indicator of the receiver will shine while moving the mouse, and stop shining if mouse not moving. 7. When the batteries carry low power (2.0V), the red low power indicator of the mouse will shine. 8. After 8 minutes of not moving the mouse, its optical LED will be darkened (in sleep mode). 9. Users should click the mouse buttons or scroll if tend to wake it up from the sleep mode. FCC Warning Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment compliance with FCC radiation exposure limit set forth for uncontrolled Environment

Block Diagram ANTENNA MCU MA6221 27.045 MHz LED SENSOR ATA2180 f = 27.045 MHz

FCC ID Label/Location FCC ID Label FCC ID Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location: FCC ID: RYLH1LV5001

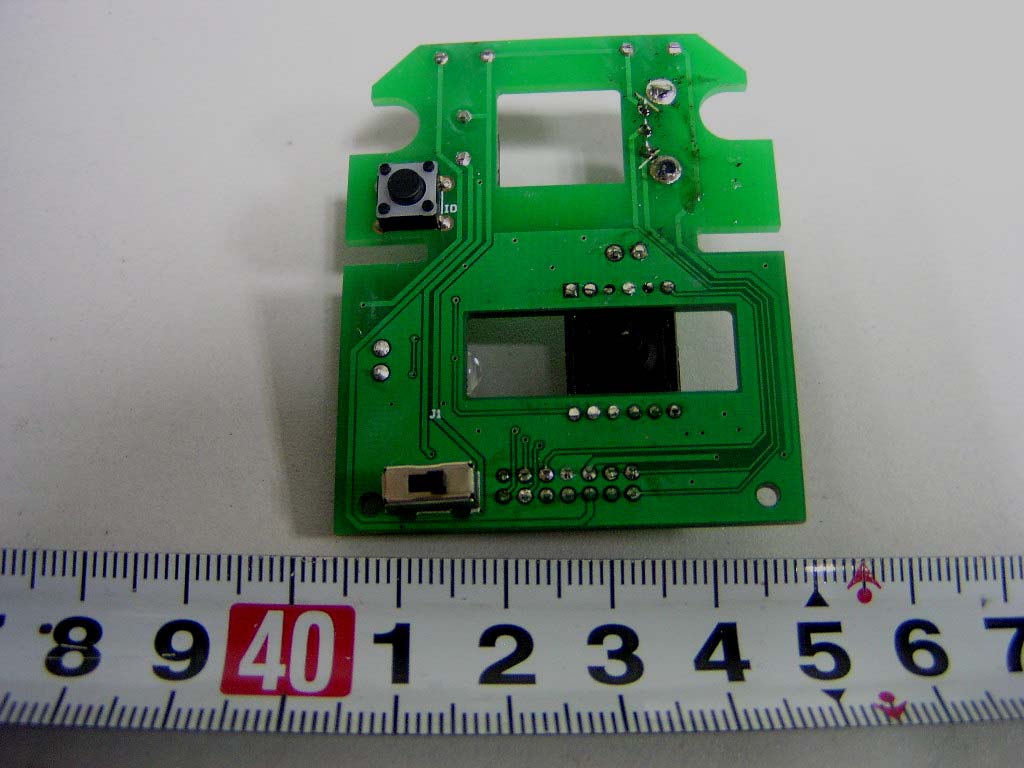

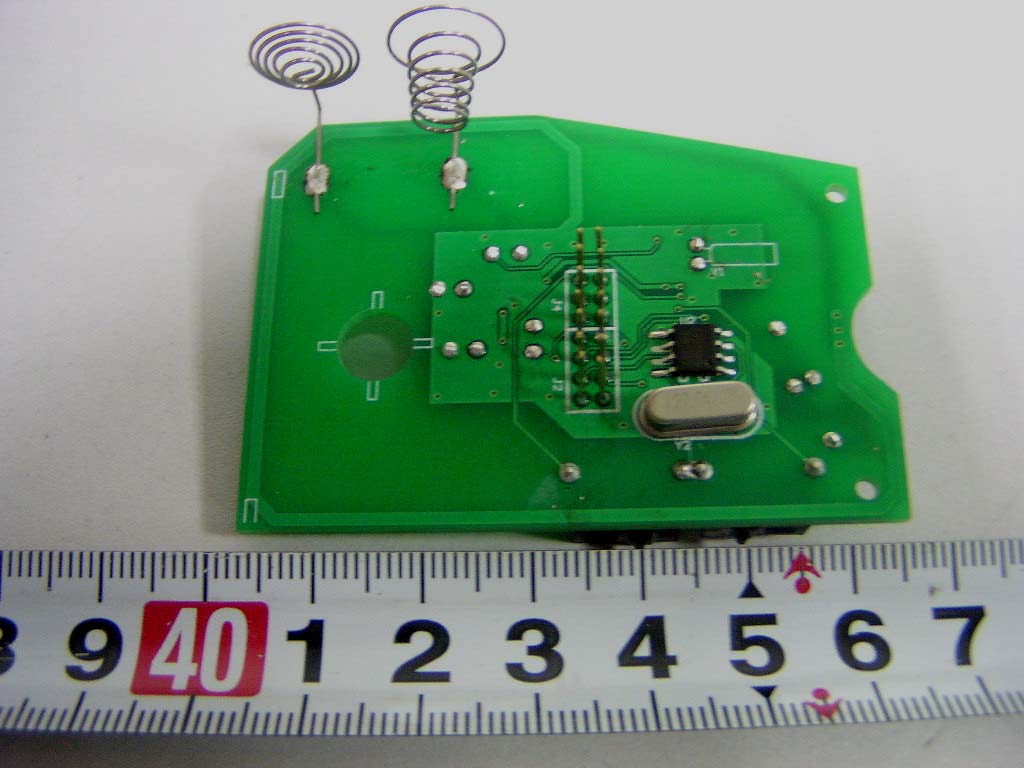

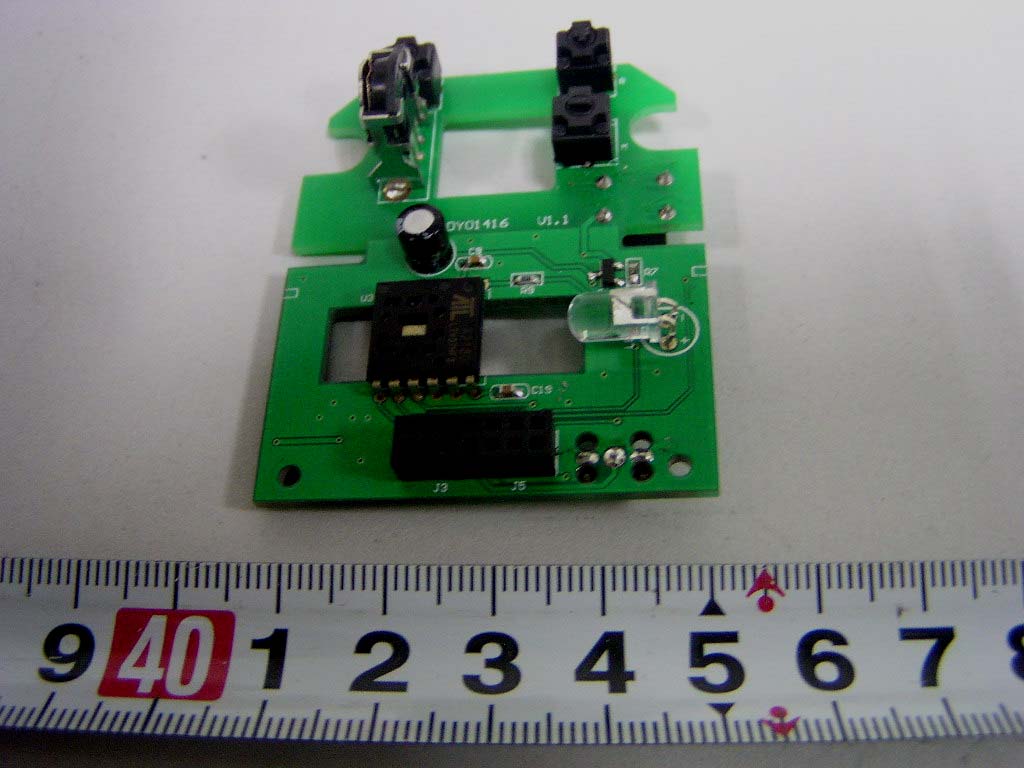

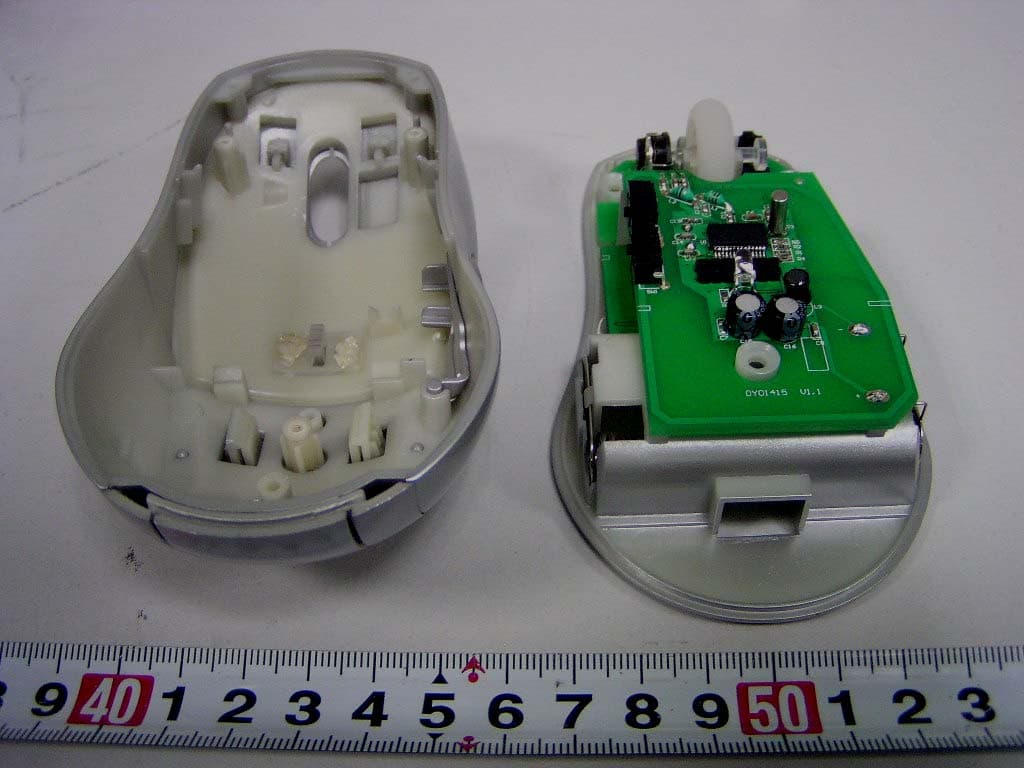

Internal Photos EUT – Uncovered View EUT- Main Board Components Top View EUT- Main Board Components Bottom View EUT- Control Board Components Top View EUT- Control Board Components Bottom View

Wireless Mouse Transmitter Circuit Description a. IC-ATA2180：IC-ATA2180 is the integration of wireless controlling IC and optical IC. The optical part of ATA2180 transforms the image of the mouse movement to the electronic signal, and then send to the controlling IC; the signal transmits from the antenna after modulated to a frequency of 27.045 MHz. b. The clock signal of IC- MA6221 is controlled by clock of oscillating controller. c. When the optical part of IC－ATA2180 is working, the MCU will output the controlling signal Q1 from the PIN 12 to control the brightness of LED d. The operating voltage of IC- ATA 2 1 8 0 is 3.0V.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:24-Jul-2007Sheet of File:E:\cgy\cgy\work\H1L\H1L.ddbDrawn By: R3 10M Y1 76.8K C122pF C222pF C6104pF R M L C1133pF L21.8uH C1075pF L1 0.82uH C3 22pF C5 36pF C4 24pF Y2 27.042MHz C1327pF C12 18pF PD C A B Z1 ENCODER ID BT2 UM-4(X2) XA XB VER:A0 PCB No: YB YA R2 1.2M R5 510K VBT1 DY01415DY01416与 1 OF 1 VDD VDD J1 Switch power C8 104pF +C16 100uF/6.3V C14 2pF LED2 LED1 VDD Q12N3906 R8 10K P D R9 100 R6 560 VBT1 C7 104pF +C15 100UF/6.3V R1 200K R4 82K L3 100uH D3 1N5819 SVDIN DCVR SVDIN DCVR VDD SW1 SW2 VDD OSC1 1 VSS 2 OSC2 3 VDD 4 RBUT 5 MBUT 6 LBUT 7 RFOUT 8 ORFIN0 9 ORF0 10 TXD 11 PD 12 EEP_CS 13 EEP_DIO 14 Z1IN 15 Z2IN 16 BATL 19 TXCB 22 BBUT 23 FBUT 24 VL 27 SVDIN 25 DCVR 26 VL_NM 28 X2IN 17 X1IN 18 Y1IN 20 Y2IN 21 U1 MA6221-Q17K(EEPROM)SMD EEP_CS EEP_CS EEP_SK EEP_IO EEP_IO CS 1 SK 2 DI 3 DO 4 VCC 8 NC 7 NC 6 GND 5 U2 ATC93LC46 EEP_SK XY_LED 1 VDD 2 NC 3 VSS 4 NC 5 YA 6 YB 7 XB 8 XA 9 OSC 10 VSSA 11 VDDA 12 U3 ATA2180 XA XB YB Y A R7 220K C9 104pF + C17 47uF/16V C19 104pF f = 27.045MHZ PDF created with pdfFactory trial version www.pdffactory.com
