H3L3E43USB Manual Product features Three-button mouse Optical sensor(800dpi) USB connection System requirements: Windows 98/Me/2000/Xp USB port Connecting the mouse Connect the USB plug to the corresponding USB port of your computer. The plug&play function of your system will automatically detect that a new device has been connected. FCC Warnning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram MCU OM30PS Key-press USB Port Sensor Y1 6MHz

DynaPoint (Dong Guan) INC. FCC ID: RYLH3L3E43USB POWER OF ATTORNEY Date: May 10, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, DynaPoint (Dong Guan) INC., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, DynaPoint (Dong Guan) INC. Kouni Chang Manager

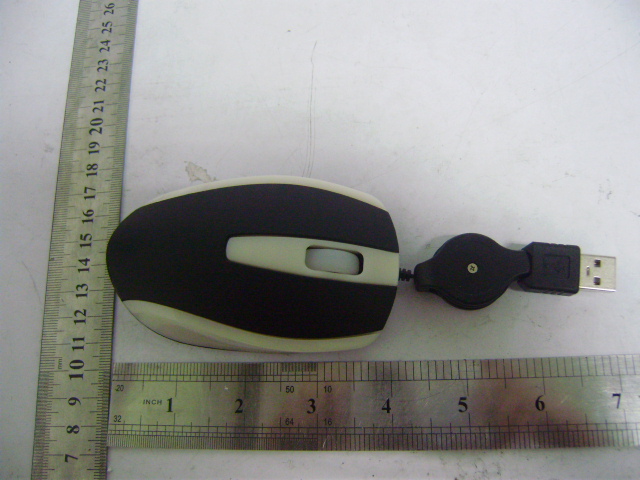

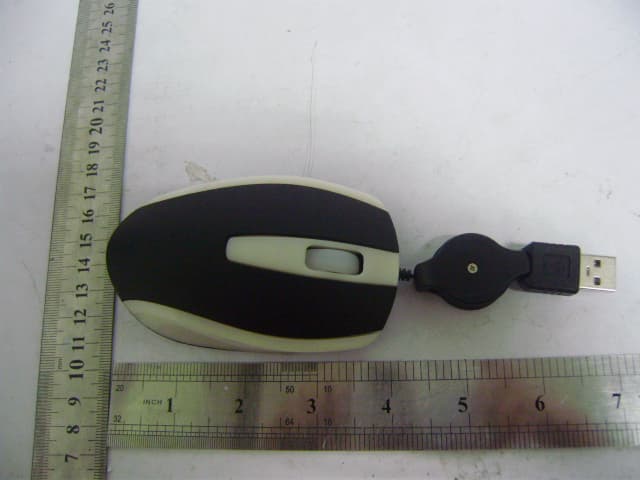

DynaPoint (Dong Guan) INC. Model: H3L3E43USB REPORT NO.: STR10048173I FCC PART 15.109 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

DynaPoint (Dong Guan) INC. Model: H3L3E43USB REPORT NO.: STR10048173I FCC PART 15.109 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: RYLH3L3E43USB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DynaPoint (Dong Guan) INC. Model: H3L3E43USB REPORT NO.: STR10048173I FCC PART 15.109 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: RYLH3L3E43USB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DynaPoint (Dong Guan) INC. Model: H3L3E43USB REPORT NO.: STR10048173I FCC PART 15.109 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 DynaPoint (Dong Guan) INC. Model: H3L3E43USB REPORT NO.: STR10048173I FCC PART 15.109 Solder Board-Component View 2

Circuit Description 1. U1-OM30PS is master controller of the mouse, the Y1 is generated the 6 MHz clock signal to it, the operator operating the mouse via key-press, and the control signal input to U1, and to control the computer via USB port.
