H6X3043USB Manual Product features Three-button mouse Optical sensor(1000dpi) USB connection System requirements: Windows 98/Me/2000/Xp USB port Connecting the mouse Connect the USB plug to the corresponding USB port of your computer. The plug&play function of your system will automatically detect that a new device has been connected. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram MCU U8612 Key-press USB Port Mechanical Zwheel A5060 Y1 6MHz Y2 24MHz LED

DynaPoint (Dong Guan) INC. FCC ID: RYLH6X3043USB POWER OF ATTORNEY Date: March 9, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, DynaPoint (Dong Guan) INC., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, DynaPoint (Dong Guan) INC. Kouni Chang Manager

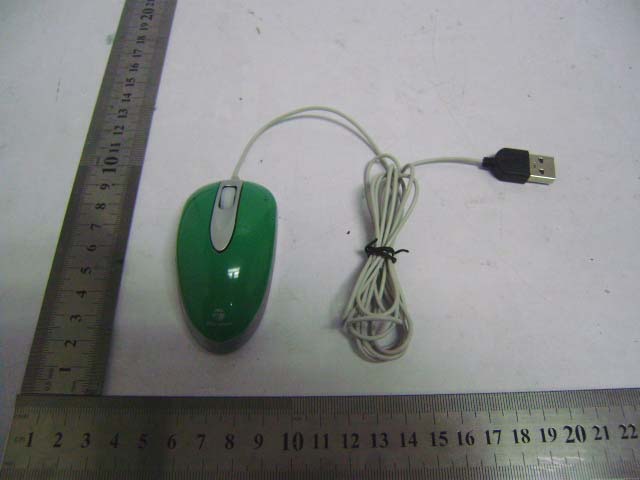

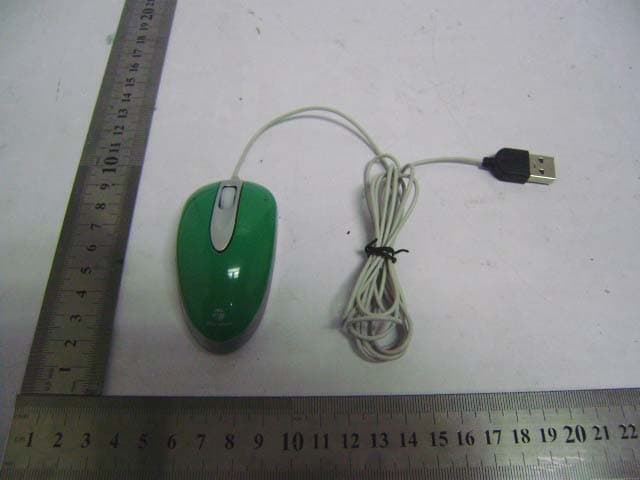

DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I FCC PART 15.109 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I FCC PART 15.109 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: RYLH6X3043USB Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I FCC PART 15.109 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: RYLH6X3043USB Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I FCC PART 15.109 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I FCC PART 15.109 Solder Board-Component View 2

Circuit Description 1. U1-U8612 is master controller of the mouse, the Y1 is generated the 6 MHz clock signal to it, the operator operating the mouse via key-press, and the control signal input to U1, and to control the computer via USB port. 2. The Zwheel is mechanical switch of the master controller, and transmission to master controller. 3. The NAV LED is sensor of the IC-A5060 controller, the Y2 is generated the 24 MHz clock signal as the base clock frequency of the IC-A5060.

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:8-Mar-2010 Sheet of File:D:\abc\交接资料\文档\H6\H6X\H6X3043 USB.DDBDrawn By: CPIS 1 LB 2 RB 3 MB 4 SCLK 5 SDIO 14 PD 15 Z1 18 Z2 17 G N D 7 Z_SEL 6 IR_Control 16 V3.3 8 OSC1 9 OSC0 10 D-/DATA 12 D+/CLK 13 V C C 1 1 U1 U8612 SCK 4 SDIO 3 OSC1 1 OSCO 2 G N D 6 REFA 8 LED_CNTL 5 V D D 7 U2 A5060 1 2 3 4 CON1 CON R110R C3 104 C1 10UF Y1 6M C9 4.7UF ZA 1 ZB 2 COM 3 EN SWR SWL Y2 24M R8 100K R7 68R R9 1K C5 104 C10 4.7UF Q2 3906 D1 LED V3.3 V3.3 VDD VDD C6 2.2UF H6X3043USB AO 1 R3 1.5K Q3 945 SWM R822R R422R C11 33P C3 33P PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.cn

DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I PAGE 1 OF 13 FCC PART 15.109 FCC PART 15B MEASUREMENT AND TEST REPORT FOR DynaPoint (Dong Guan) INC. The Sixth Industrial Park, Shangsha, South Area ChangAn, DongGuan, GuangDong, China FCC ID: RYLH6X3043USB Report Concerns: Original Report Equipment Type: Mouse Model: H6X3043USB Report No.: STR10038023I Test/Witness Engineer: Test Date: 2010-03-04 to 2010-03-09 Issue Date: 2010-03-09 Prepared By: SEM.Test Compliance Service Co., Ltd. 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C. (518101) Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I PAGE 2 OF 13 FCC PART 15.109 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.107 (A)- CONDUCTED EMISSION .................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 TEST RECEIVER SETUP...........................................................................................................................................7 3.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.8 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.109(A)- RADIATED EMISSION ....................................................................................................................10 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................10 4.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................10 4.3 TEST PROCEDURE.................................................................................................................................................10 4.4 TEST RECEIVER SETUP.........................................................................................................................................11 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................11 4.6 ENVIRONMENTAL CONDITIONS............................................................................................................................11 4.7 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I PAGE 3 OF 13 FCC PART 15.109 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: DynaPoint (Dong Guan) INC. Address of applicant: The Sixth Industrial Park, Shangsha, South Area ChangAn, DongGuan, GuangDong, China Manufacturer: DynaPoint (Dong Guan) INC. Address of manufacturer: The Sixth Industrial Park, Shangsha, South Area ChangAn, DongGuan, GuangDong, China General Description of E.U.T Items Description EUT Description: Mouse Trade Name: / Model No.: H6X3043USB Rated Voltage: DC 5V Packaging Size: 7.1X3.6X2.6 cm For more information refer to the circuit diagram form and the user’s manual. The test data is gathered from a production sample, provided by the manufacturer. 1.2 Test Standards The following report is…

Text truncated - open the document above for the full version.

DynaPoint (Dong Guan) INC. Model: H6X3043USB REPORT NO.: STR10038023I FCC PART 15.109 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup
