RYLH7L500127MHz MOUSE

User Manual The wireless mouse is use two AAA batteries. SPEC Model no MOUSE Type Wireless IC EV656A51H Modulation FSK Battery 2*AAA DPI 800 Frequency 27.045MHz Supply Voltage 3V Operating current 30mA System Win2000/XP/Vista FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram MOUSE VOLTAGE REGULATOR OR DCTO DC 2802-30 MCU EV656M51H OPTICAL SENSOR OM02 OSC 6MHZ RF CIRCUIT OSC 13.5225MHZ Ant. 27.045MHz

DynaPoint (Dong Guan) INC. FCC ID: RYLH7L5001 POWER OF ATTORNEY Date: June 2, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, DynaPoint (Dong Guan) INC., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, DynaPoint (Dong Guan) INC. Kouni Chang Manager

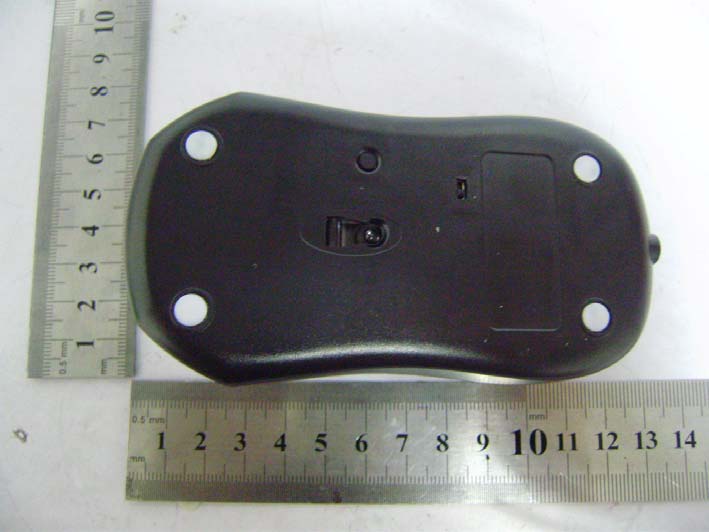

DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I FCC PART 15.227 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I FCC PART 15.227 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: RYLH7L5001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I FCC PART 15.227 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: RYLH7L5001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I FCC PART 15.227 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I FCC PART 15.227 Solder Board-Component View 2

Description for circuit: Mouse circuit: a. The L2, D2, Q5 circuit for adjusting voltage is used for supplying enough voltage to MCU, optical sensor, and RF circuit. b. The function of MCU Ev656M51 is used for gathering signal produced by optical sensor or key operation and transmitting the signal to RF circuit formed by Q1, Q2, Q3, Q4, L1, Y1 and other electronic components to modulate, amplify and send out. c. The RF signal of 27.045MHz is generated by a oscillator of 13.5225MHz circuit, and the modulated 27.045MHz wireless signal is transmitting via antenna.

VCC C22open C410P R62K2 C9102P Data Out SW3 L RF Control RF Control VCC C16 150P C6104P Q6 2SC2412 R44100K C2447uF/6.3V Y1 L2 220uH/0.5W D1LED R1 10K R433.3K RFTX003 V03 Tx_GM_Mouse_OM02&OM10 A4 11 Thursday , May 15, 2008 Tit leSize Document Number Rev Date: Sheet of C21104P C547P C1320P U2EV656M51 576 12111013 94 15 3 14 218 161718 VSSP61P60 P66P65P64P67 P63/RESET OSCOTC C VDD P53P52P62 OSCI P50P51 C25104P C15 20P Data Out R16 short Y26MHz VCC OM02:R15: ShortR16, R17: OpenOM10A:Q7,R15: OpenR16: ShortR17: 3.3K SW1 M Y2 Q1 2N3906 C14 150P VCC C20 100uF/6.3V L1 0.56uH R8 10R Q2 2SC2412 ENSW4 3 12 R40 1K R15 open R3 10K X2 R1233R X2 OMSW R24K7 SW2 R X1 C18 104P C1 47uF/6.3V VCC Q32SC2412 OMSW VCCQ7 open R5100K X1 VCC C11 4.7uF/6.3V C747P C3104P C1056P Y2 Q4 2SC3356 C12333P C31NO C8561P Q5 2802-30 1 3 2 G IO BT13.0V 12 Y1 VCC R433K VCC2 R956K R1368K SW6 ID U1 OM RF 12345678 910111213141516 TC LKX2X1Y1Y2XY _ L E DREFAREFB ROSCB GND ROSCA GND VDD RBIN PD TI O C19 4.7uF/6.3V D2 1N5819 1 2 R17 3.3k Y1 13.5225MHz

DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I PAGE 1 OF 13 FCC PART 15.227 FCC PART 15.227 MEASUREMENT AND TEST REPORT FOR DynaPoint (Dong Guan) INC. No.51, Xinju Road Precinct Shangjia, ChangAn, DongGuan, GuangDong, China FCC ID: RYLH7L5001 Report Concerns: Original Report Equipment Type: 27MHz MOUSE Model: 62150NS Report No.: STR10058226I Test Date: 2010-05-27 to 2010-05-31 Issue Date: 2010-06-02 Test Engineer: Susan Su Reviewed By: Lahm Peng Approved & Authorized By: Jandy so/PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I PAGE 2 OF 13 FCC PART 15.227 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.227- RADIATED EMISSION ..............................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.3 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................7 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................8 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................8 5. §15.227(B) OUT OF BAND EMISSIONS .............................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I PAGE 3 OF 13 FCC PART 15.227 1. GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) Client Information Applicant: DynaPoint (Dong Guan) INC. Address of applicant: No.51, Xinju Road Precinct Shangjia, ChangAn, DongGuan, GuangDong, China Manufacturer: DynaPoint (Dong Guan) INC. Address of manufacturer: No.51, Xinju Road Precinct Shangjia, ChangAn, DongGuan, GuangDong, China General Description of E.U.T Items Description EUT Description: 27MHz MOUSE Trade Name: / Model No.: 62150NS Rated Voltage: DC 3V Battery Output Current: / Frequency Range: 27.045MHz Antenna Type: Integral Antenna Size: 11.3X6.0X3.3 cm For more information refer to the circuit diagram form and th…

Text truncated - open the document above for the full version.

DynaPoint (Dong Guan) INC. Model: 62150NS REPORT NO.: STR10058226I FCC PART 15.227 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz)
