RYLKA998Wireless Keyboard

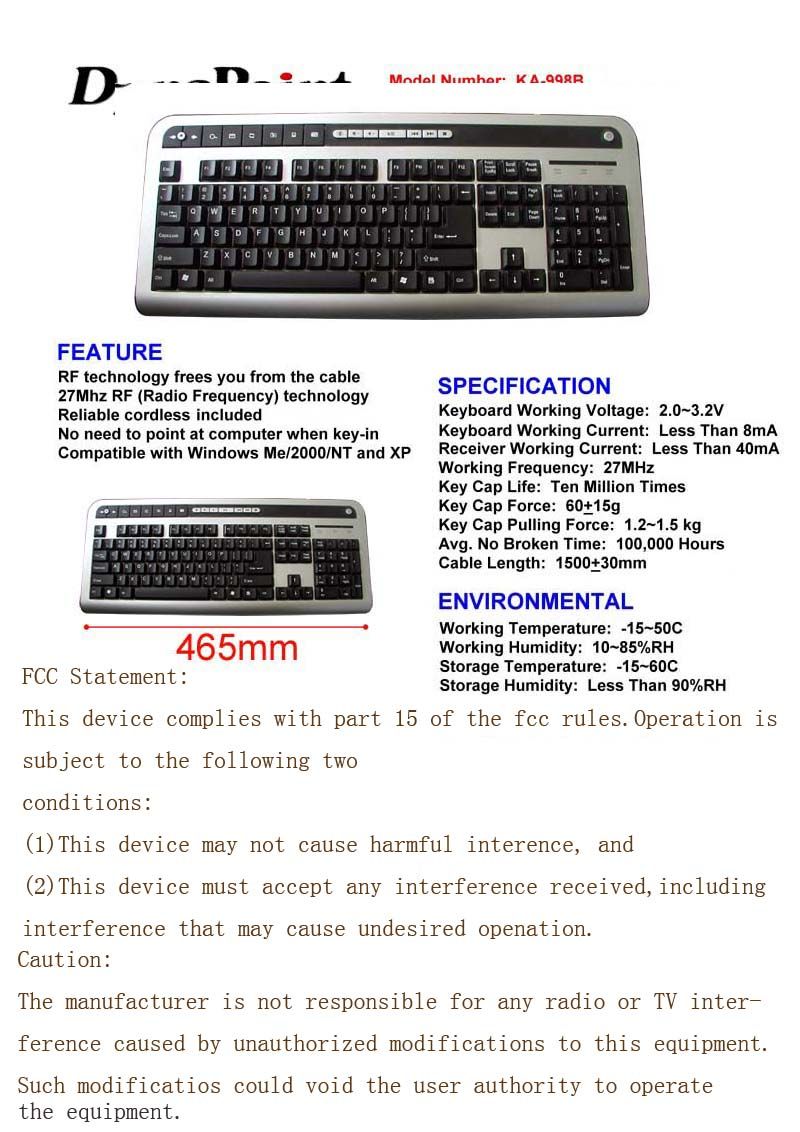

KA998 Pane Drawing FCC Statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, Such modifications could void the user authority to operate the equipment. 27.142MHZ 32.768KHZ I O I O RF OSC ANT motching Circuit AMP CLOCK OSC DC/DC BAT_LOW DETECT BATTERY ID KEY KEY MATRIX

External Photos EUT-Front View EUT-Rear View

ID Label Label FCC ID: RYLKA998

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label Location FCC ID: RYLKA998

Internal Photos EUT-Uncovered View EUT- Inside View (1) EUT- Inside View (2) EUT-PCB Top View EUT-PCB Bottom View

KA998 CIRCUIT DIAGRAM Two BT1 for power supply, the mixed undee will be filtrated through the CAP C8 & C11. The inner circuit will be composed of 3.3V after it passes through inductance L1, diode D1, capacitance C9, R2, R3 and MCU. Rise voltage passes through filter C12 & C9, then through the protection resistor R16 to supply IC. When the voltage is roughly under 1.5V, the low power indicator LED1 will light automatically. The MCU vibrates and brings a 32.768KHZ oscillator internal pull-up which enables it to function normally when C1, C2, Y1 & R1 has power supply. C3, C4, C16 & Y2 form a carrier wave frequency 27.145MHZ. When the key of the keyboard is pressed, it passes through CON1 to MCU and is encoded by the inner MCU. After encoded, it will be sent out by the IF which is composed of C5, L3, C14, C15,C6, C7 and the aerial of the printed circuit. Modulate mode is fsk .

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:30-Nov-2005Sheet of File:\\Rd11\KA998\PCB\DY0077~3.DDBDrawn By: LBUT 10 MBUT 9 RBUT 8 OSC2 7 OSC1 6 BBUT 5 FBUT 4 VDD 3 COL[0] 2 COL[1] 1 TXCB 11 ORF1 12 ORF2 13 RFOUT 14 RFCTL 15 T E S T 1 7 X 1 I N 1 8 X 2 I N 1 9 Y 1 I N 2 0 Y 2 I N 2 1 Z 1 I N 2 2 Z 2 I N 2 3 X R E S T 2 4 W 1 I N 2 5 W 2 I N 2 6 X I R 2 7 S V D I N 2 8 V S S 2 9 R O W [ 7 ] 3 0 R O W [ 6 ] 3 1 R O W [ 5 ] 3 2 TXD 16 ROW[4] 33 ROW[3] 34 ROW[2] 35 ROW[1] 36 ROW[0] 37 P2[6] 38 R1 IN 39 R2 IN 40 L1 IN 41 L2 IN 42 TURBO 43 VSSS 44 VL 45 DCVR 46 COL[19] 47 COL[18] 48 C O L [ 1 7 ] 4 9 C O L [ 1 6 ] 5 0 C O L [ 1 5 ] 5 1 C O L [ 1 4 ] 5 2 C O L [ 1 3 ] 5 3 C O L [ 1 2 ] 5 4 C O L [ 1 1 ] 5 5 C O L [ 1 0 ] 5 6 C O L [ 9 ] 5 7 C O L [ 8 ] 5 8 C O L [ 7 ] 5 9 C O L [ 6 ] 6 0 C O L [ 5 ] 6 1 C O L [ 4 ] 6 2 C O L [ 3 ] 6 3 C O L [ 2 ] 6 4 U1 MA6231 COL0 COL1 C O L 2 C O L 3 C O L 4 C O L 5 C O L 6 C O L 7 C O L 8 C O L 9 C O L 1 0 C O L 1 1 C O L 1 2 C O L 1 3 C O L 1 4 C O L 1 5 C O L 1 6 C O L 1 7 COL18 COL19 C O L 0 C O L 1 C O L 2 C O L 3 C O L 4 C O L 5 C O L 6 C O L 7 C O L 8 C O L 9 C O L 1 0 C O L 1 1 C O L 1 2 C O L 1 3 C O L 1 4 C O L 1 5 C O L 1 6 C O L 1 7 VDD R1 4.7M Y1 32.768KHZ C1 47P C2 47P SW1 SW-ID Y2 27.142MHZ C3 18P C4 36P C5 33PF C6 OPEN C7 5P ROW0 ROW1 ROW2 ROW3 ROW4 ROW5 ROW6 ROW7 BAT C8100UF C11 104 L1 D1 5819 R2 220K R3 100k C12 104 C9 100UF VDD 1234567891 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 CON1 CONP-2620 R O W 0 R O W 1 R O W 2 R O W 3 R O W 4 R O W 5 R O W 6 R O W 7 R6 1M R9 430K L3 1.8UH C14 47P C15 22P BAT LD1 LED R7 560R VDD C16 2p BT1 1.5*2 MA6231\RF\KA998\SCH C10 104 D C V R VL R4 0R R5 0R R8 0R R10 0R VLDCVR SWID R15 0 X_LED R14 0 GND R13 0 R16 10R C13 104 C17 220UF R11 0R R12 0R VDDSWID FSK PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.com.cn

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For Dyna Point (Dong Guan) Inc. The Sixth Industrial Park. Shangsha, South Area ChangAn, DongGuan, GuangDong, China 523880 FCC ID: RYLKA998 December 9, 2005 This Report Concerns: Original Report Equipment Type: Wireless Keyboard Test Engineer: Simon Mo, Eric Yuan, Louise Lu and Jandy Su Report No.: RSZ05051606 Test Date: November14-17, 2005 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: 86-755-33320018 Fax: 86-755-33320008 Dyna Point (Dong Guan) Inc. FCC ID: RYLKA998 Report # RSZ05051606 Page 2 of 13 FCC PART 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 SPECIAL ACCESSORIES.................................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 CONFIGURATION OF TEST SETUP.................................................................................................................................5 B LOCK D IAGRAM OF T EST S ETUP ................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 §15.205, §15.209, §15.227(A) - RADIATED EMISSIONS TEST ..............................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP........................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 CORRECTED AMPLITUDE & MARGIN CALCULATION...................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 PLOT(S) OF TEST DATA..............................................................................................................................................10 §15.227(B) - OUT OF BAND EMISSION .................................................................................................................12 EMI TEST RECEIVER SETUP......................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST DATA.................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos Radiated Emissions-Front View (Above 30 MHz) Radiated Emissions-Rear View (Above 30 MHz) Radiated Emissions-Front View (Below 30 MHz) Radiated Emissions-Rear View (Below 30 MHz)
