S2MLIVE120DVR BOARD

Installation Manual 1. Hardware Installation 2.Software Installation User Manual 3.User Manual- Server 01. Main Program 02. Search Program 03. AVI Backup Manager 04. Backup Manager 4.User Manual- Client 01. NetClient Program 02. WebClient Program Annex Annex 1. I/O Device Annex 2. Dynamic IP Annex 3. IP Router Please check contents before installation: DVR Board, Extension Cable, Audio & PTZ Installation, etc., if you are missing any parts please contact your local dealer. 1. DVR Board & Extension Cable Installation 1-1. Insert the DVR Board to an empty PCI Slot in DVR PC. 1-2. Use Extension Cable to connect cameras. Either connect the MIC to Audio IN port of DVR Board OR Mainboard MIC port. 2. DVR Audio Installation 2-1. Prepare DVR PC and MIC. 2-2. Connect the MIC to the Mainboard MIC Port of DVR PC OR the Audio IN port on DVR Board. Please connect the Speaker to the back panel of DVR PC. - H Board: Connect the 4CH MIC(B) to DVR Board(A) starting from the left. Installation manual - Hardware Installation Installation manual - Hardware Installation 4. Real Display(RD) Board Installation 4-1. Insert the Real Display Board into an empty PCI Slot in DVR PC. 4-2. Use Cable to connect Real Display Board with DVR Board. Real Display Board cannot be used alone, it must be used with S, H, HPLUS DVR Boards. 3. P/T/Z Installation 3-1. P/T/Z Cable [A] Cable : Connect to COM port of DVR PC [B] Cable : Connect to DVR Board [C] Cable : Connect to Receiver Cable - HP Board: Connect the 8CH MIC(B) to DVR Board(A) starting from the top. - RC Board: Connect the 4CH MIC(B) to DVR Board(A) starting from the left. To use 16 port In/Out, A : Slave Board must remove jumper. B : Master Board must install jumper. < 16 port In/Out Connection> 5. I/O Board Installation 5-1. Prepare Sensor, Alarm, I/O Board and I/O Extension Board for I/O Board Installation. A : Industrial Case System can use In/Out port separately when additional Back Panel is available. < 8 port In/Out Connection> Installation manual - Software Installation 1. Software Installation You can install SmartDVR Software by using SmartDVR Formula CD or downloading from INTOTECH website, www.intotech.co.kr. Software CD consists of Server Package (Main program, WebClient program, Apache HTTP Server program), Client Package (NetClient program) & AVI Codec. User Manual is also available from SW CD. [Main Program Installation] Insert SmartDVR Formula CD into CD-ROM drive or run DvrSetup.exe file; the following installation screen will appear . Click the icon below and Main Program installation will automatically proceed. Installation Step : Apache HTTP Server (Web Server) -> WebClient -> SmartDVR Formula Installation manual - Software Installation 1. SmartDVR Apache HTTP Server (Web Server) Installation Installation wizard tool will appear. Click [Next]. 1-2 Read the License Agreement and if you agree to the contents, select [I accept...] and click [Next]. 1-3 Click [Next] after checking server information of Apache HTTP Server. Insert Network Domain, Server Name, Administrator’s E-mail Address. (This procedure is only a formality. In general cases, follow example) Select [Run as a service for All Users – Recommended] and click [Next]. Installation manual - Software Installation 1-5 Select Setup Type as [Complete] and click [Next]. 1-6 Click [Next] without change of setting. Note: Do not change the directory! 1-7 After the setting is finished, click [Install] and start installation. 1-8 After the installation is done, click [Finish]. Installation manual - Software Installation 1-9 After the installation is finished, a message confirming the change of the Server port of Apache will appear. 2 SmartDVR WebClient Installation 2-1 After the Installation Wizard Tool is appeared, click [Next]. 2-2 Check the contents of License Agreement; if you agree to the contents, click [Yes]. 2-3 After the installation is done, click [Finish]. Installation manual - Software Installation 3 SmartDVR Formula Installation After Installation Wizard Tool is appeared, Click [Next]. Check the details of License Agreement; if you agree to the contents, click [Yes]. 3-3 After choosing [Destination Folder] for installation, click [Next]. 3-4 After the installation is done, click [Finish]. Installation manual - Software Installation 3-5 Driver Installation: Wizard automatically installs drivers according to each board type. 3-6 Reboot PC after all the installation. 4. SmartDVR Formula Uninstallation 4-1 Goto [Start] – [Control panel] and click [Add/Remove Program]. 4-2 Select [SmartDVR Formula] and click [Change/Remove]. Click the icon below and NetClient Program installation will proceed. 5 NetClient Installation 5-1 After the Installation Wizard Tool is appeared, click [Next]. 5-2 After choosing [Destination Folder] for installation, click [Next]. Installation manual - Software Installation 5-3 After the installation is finished, click [Finish] 6 NetClient Uninstallation 6-1 Goto [Start] – [Control panel] and click [Add/Remove Program]. 6-2 Select [NetClient Plus] and click [Change/Remove]. AVI Codec Installation Click the icon below and AVI Codec installation will proceed. 7-1 AVI Codec Installation diagram. 7-2 After the installation is finished, click [Finish]. User Manual - Main Program 3 Main Program 01. Main Program Main Program enables users to monitor images through PC monitor. The main program supports the following functions: record images, search & playback images and control camera remotely. Image can also be transmitted over the network to any remote site. <Main Program> 1 : Control Panel 2 : Screen Partition Panel 3 : Pan/Tilt Control Panel 4 : Camera Selection Panel 5 : Audio Volume Control Bar 6 : Status Information Panel 1-1 Control Panel Control Panel consists of the following icons: This enables users to run search programs, manually record images and open configuration window. - Search Icon: Search Option. - Configuration Icon: To change setup of program. - Lock Ico…

Text truncated - open the document above for the full version.

User Manual - DVR AVI Backup Manager 03 AVI Backup Manager AVI Backup Manager AVI Backup Manager converts the recorded data into AVI file format to replay the image conveniently using Windows Media Player. 1-1 AVI Backup To backup recorded data in to AVI format simply double click the AVI Backup Manager icon. 1-2 Selecting Data for Backup Click [Load Data] from top right of GUI Select the date you wish to backup Then click [LOAD] icon. 1-3 Backup by Channels Select the channel you wish to backup. Channel icon turns green when selected. User Manual - DVR AVI Backup Manager 1-4. Backup Time Selection Enter the time you wish to start backup from Time Bar. Recorded data is indicated in red. 1-5 Backup Data Converting Click [Converting] icon after entering the limits of the backup time in reference. Click the start time and click [A->B] icon. Start time will automatically appear as below. Select the location of the directory to backup data and click [OK]. Click the end time and click [A->B] icon. End time will automatically appear as below. AVI BackUp Manager can only convert files up to one hour. Backup data time is only indicated when the difference between start time & end time is less than one hour. AVI Backup Processing Windows prompt message indicating AVI Converting End will automatically appear. You have successfully converted your data for storage. User Manual - Backup Manager 1-6 Play Backup Data using Windows Media-Player Our website offers utilities that users can Download & install AVI Formula Codec V 1.0 from www.intotech.co.kr, DownLoad -> Util section to properly replay stored data. You can now replay all AVI format data using your Windows Media Player . Media Player should replay stored data as seen below. 04.Backup Manager Using Intotech Backup Manager recorded images(* iva. data) can be managed efficiently or quickly backup to CD using this software. [Backup Manager Detailed Information] : Transfer data to Backup List. Remove data from Backup List. : Remove all data from Backup List. : Search screen will be displayed in (YUV) screen mode. (Default setting) : Search screen will be displayed in (RGB) screen mode. Graphic Card may not support YUVmode YUVis the default setting. (Please convert to RGB mode when transferring or removing data .) : Play Backup Data. : Start Backup. : Stop Backup. Backup Manager illustrates recorded data by date, channel and time. The following icons are used to help manage your recorded data. User Manual - Backup Manager Add data to Backup List illustrated below. Backup folder & Progress Time Bar is indicated as follows. : Select directory to backup : Direct backup to CD (CD-RW required) 1-4 Clickicon to setup backup directory. 1-5 Choose HDD to backup and click [OK]. Example selects C: Drive. Backup Manager HDD Backup Click Backup Manager icon to run program. 1-2 Select date & time from Data List to Backup. 1-3 Move selected data from Data List to Backup List. Click ( ) icon to move data from Data List to Backup List. Ex) Indicates 2004/ 2/ 7 CH2 10 o’clock. User Manual - Backup Manager 1-6 Click icon to start backup.. 1-7 Message is displayed after completion. 2 CD Backup 2-1 Click Backup Manager icon and run program. 2-2 Select date & time from Data List to Backup. 2-3 Move selected data from Data List to Backup List. Clickicon to move data. Ex) Indicates 2004/ 2/ 7 CH2 10 olock. Clickicon. 2-4 Click [CD – RW] and click [Contain Backup Player]. (NOTE : The Contain Backup Player(7MB) must be checked.) 2-5 Click icon to start backup User Manual - Backup Manager 3 Play HDD Backup Data 3-1 Click Backup Manager and run program. 2-6 Message is displayed after completion. 3-4 Search Data screen illustrated below. a. Recorded data is shown in red. 3-5 Choose date you want to playback and Click [Load]. 3-2 Click [Play] icon to search Backup Data Directory. 3-3 Select RGB Mode and select directory and Click [OK]. User Manual - Backup Manager 3-6 Click icon to exit from playback mode and return to Backup Manager. 4. Play CD Backup Data Insert CD to CDROM. (Run CDROM Drive -> Backup Player -> Click [ ] icon.) Select CDROM directory and click [OK]. [The following Error Messages appear usually means the following errors.] [Error Message] There is no medium in the burner : There is no CD inside CD-RW drive. If you want to Backup CD. Please reboot or end process ‘imap.exe’ : Please reboot PC OR stop imap.exe’ by force from Windows Task Manager. Set CD recorder failed. : Conflict with CD-RW settings. Not Enough Hdd Disk Free Space to Create CD IMAGE : HDD must have enough free space to CD backup data onto CD. The call failed because IMAPI has not been opened with Open. : Your Operating System(O/S) does not support CD Backup. If you have any further tech support issues, please contact your local Intotech DVR dealer. User Manual - NetClient Interface 4 NetClient Interface 01. Intotech Net-Client Interface NetClient Program is able to receive images from DVR Server using the Internet. NetClient functions: Display & recording, camera control from remote site and other features that we will illustrated in this document. Control Panel The Control Panel can search program, open connection setup, save & print still images and record server image from remote PC where NetClient is installed. 1-2 Screen Partition Panel Support 7 kinds of various screen partition, full-screen and sequence rotation display mode. Search Icon:Runs search program. Connection Setup Icon: Run [Connecting & Configuration Management] used for internet access. Run [Modem Connection] used for internet access . 1-3 Pan/Tilt Control Panel Pan / Tilt / Zoom / Focus control is supported from remote site when DVR Server is using Pan/Tilt camera. Control sensitivity can be configured in Control Panel. Only broadband Internet users can use Pan/Tilt control, Modem users cannot use this feature. 1-4 Network Type Selection Panel Select [LAN] from Network Type Selection Panel when using broadband connection and…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 FCC ID Label Sample INTO-TECH Inc. DVR BOARD FCC ID: S2MLIVE120

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 FCC ID Sample Label & Location Information LABELLING REQUIREMENTS PER ∫∫∫∫2.928 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. INTO-TECH Inc. DVR BOARD FCC ID :S2MLIVE120

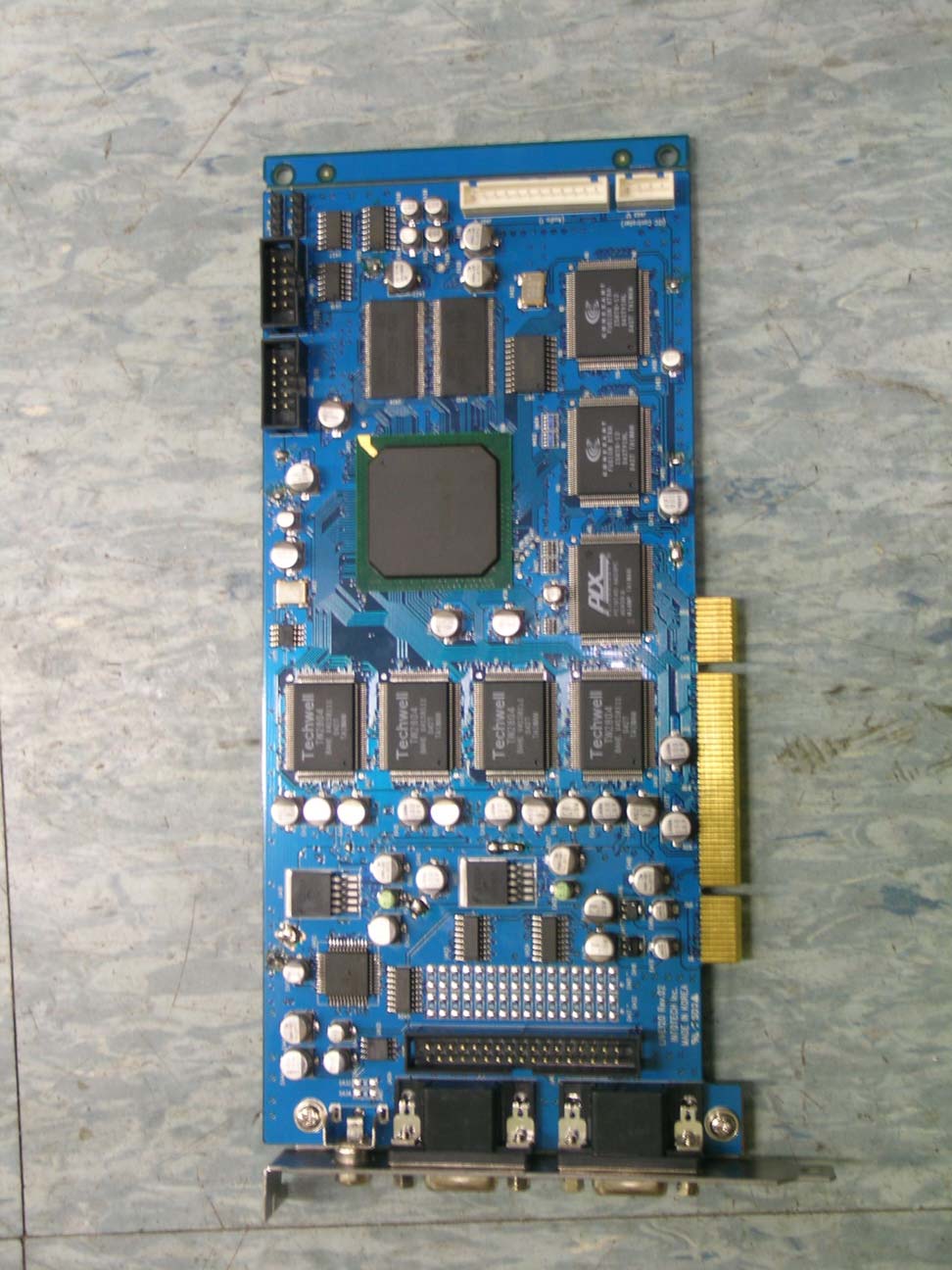

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 Internal Photographs of EUT

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-050411-023 FCC ID :S2MLIVE120 Operational Description I. Installation <Main Program Installation> Insert SmartDVR Formula CD into CD-ROM drive or run DvrSetup.exe file;the following installation screen will appear. Click the icon below and Main Program installation will automatically proceed. Installation Step: Apache HTTP Server(Web Server)->WebClient->SmartDVR Formula 1. SmartDVR Apache HTTP Server(Web Server) Installation 1-1 Installation wizard tool will appear. Click<Next> 1-2 Read the License Agreement and if you agree to the contents, select <I accept...>and click<Next> 1-3 Click <Next> after checking server information of Apache HTTP Server. 1-4 Insert Network Domain, Server Name, Administrator’s E-mail Address. (This procedure is only a formality. In general cases, follow example) Select<Run as a service for All Users-Recommended>and click<Next>. 1-5 Select Setup Type as<Complete> and click<Next>. 1-6 Click<Next> without change of setting. Note:Do not change the directory! 1-7 After the setting is finished, click <Install> and start installation. 1-8 After the installation is done, click<Finish>. 1-9 After the installation is finished, a message confirming the change of the Server port of Apache will appear. SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-050411-023 FCC ID :S2MLIVE120 2. SmartDVR Web Client Installation 2-1 After the Installation Wizard Tool is appeared, click<Next>. 2-2 Check the contents of License Agreement;if you agree to the contents, click<Yes>. 2-3 Afger the installation is done, click<Finish>. 3. SmartDVR Formula Installation 3-1 After Installation Wizard Tool is appeared, Click<Next>. 3-2 Check the details of License Agreement;if you agree to the contents, click <Yes>. 3-3 After choosing<Destination Folder> for installation, click <Next>. 3-4 After the installation is done, click<Finish>. 3-5 Driver Installation:Wizard automatically installs drivers according to each board type. 3-6 Reboot PC after all the installation.

55 44 33 22 11 D D C C B B A A Version 3.6Date 20050201Part TVOUTDesigner Joo Jeong Ki Must to benear to theTV-OUTConnector. DISPLAY_DATA4DISPLAY_DATA7DISPLAY_DATA6DISPLAY_DATA1DISPLAY_DATA0DISPLAY_DATA2DISPLAY_DATA3DISPLAY_DATA5 TVOUT_AMP TVOUT_16 TVOUT_SEL1TVOUT_SEL4TVOUT_SEL0 VIN7VIN0VIN3VIN14VIN6 TVOUT_16 VIN8VIN10 TVOUT_SEL2 VIN2VIN1 TVOUT_SEL0 VIN13VIN9VIN15VIN4VIN12 TVOUT_SEL1 TVOUT_AMP TVOUT_SEL5 TVOUT_SEL2 VIN11VIN5 TVOUT_SEL3 TVOUT SCL ENC_CLK27 SDA RESETB DISPLAY_DATA[7:0] TVOUT VIN6 VIN9 VIN8 VIN14VIN11 VIN5VIN7 VIN12VIN15 VIN4 VIN13VIN10 VIN0VIN1VIN2VIN3 TVOUT_SEL0TVOUT_SEL1TVOUT_SEL2TVOUT_SEL3TVOUT_SEL0TVOUT_SEL1TVOUT_SEL2TVOUT_SEL4 TVOUT_SEL5 3.3V 3.3V 5VA 5VA -5V U4234051 13141512 15246 1110 9 31687 X0X1X2X3X4X5X6X7INHABC X VDD VSSVEE C417CAPACITOR VAR(37pF) C6660.1uF C6740.1uF R532 75 R530 100 R541 0 D434 1N4148 L441 1uH D4335.6V C6600.1uF C676 0.1uF U4264051 13141512 15246 1110 9 31687 X0X1X2X3X4X5X6X7INHABC X VDD VSSVEE + E442 10uF/16V C675 0.1uF L473 BEAD C6610.1uF C665270pF R531 100 R52975 C6620.1uF C670 0.1uF C6670.1uF C6630.1uF + E443 22uF/16V L444 BEAD C664180pF U425JRC2267 1234 5678 VIN1GNDSAG1VOUT1 VOUT2 SAG2 VCC VIN2 C671 0.1uF C673 0.1uF C672 0.1uF L474 BEAD L440BEAD U4244051 13141512 15246 1110 9 31687 X0X1X2X3X4X5X6X7INHABC X VDD VSSVEE + E441 47uF/16V C6690.1uF + E444 100uF/16V L472BEAD R528 4.7 R5331M + E47122uF/16V C6680.1uF U422 SAA7121 16151413121110 9 3435 1 234 56 78 1718 19 20 21 22232425262728293031323336 37 3839 4042414344 MP0MP1MP2MP3MP4MP5MP6MP7X tal_OX tal_I RES SPAPLCC Vssd1 Vddd1 RCV1RCV2 Vddd2 Vssd2 RTCI RES SA RESRES C Vdda1 RES Y Vdda2 RES CVBS Vdda3 Vssa1Vssa2 Vdda4 XCLK Vssd3 Vddd3 RESET SDASCLTTXRQTTX 55 44 33 22 11 D D C C B B A A or MAX489 RS232-422,485CONVERTER POWER Version 3.6Date 20050201Part RS232 CONVERTER & POWERDesigner Joo Jeong Ki 74HC04 RS232TXEN RS422BO RS232TXRS422AO RS422BI RS422AI RS232TX RS232TXEN RS422BO RS232RX RS422BI RS232RX RS422AI RS422AO 5VC 5VC 5VC 5VC 5VC -5V -12V 5VA 12V 3.3V5V 2.5VX 3.3V 2.5VY 5V 5VC 5VC 5VC 5V 5VC R612 0 + E438 10uF/16V + E440100uF/16V + E4321uF/16V R587 0 C6830.1uF R5272K R604 0 R621 0 R596 0 C6810.1uF R5202K R613 0 U427 1234567 891011121314 1A1Y2A2Y3A3YGND 4Y 4A 5Y 5A 6Y 6A VCC R588 0 R605 0 + E433100uF/16V J410 PIN HEADER 4 2.54PIN 1 2 3 4 C6870.1uF R597 0 R614 0 L478 BEAD R585 0 R589 0 R606 0 C6590.1uF J408 BOX HEADER 2*5 2.54PIN 246810 13579 U4177805 3 1 2 VIN VOUT GND R598 0 R5251K R615 0 U421 54 31 2 INCNTL OUT S GND R524120 + E43047uF/16V C6860.1uF R590 0 R607 0 C6850.1uF U420 MAX232 1345 111012 9 26147138 1615 C1+C1-C2+C2-T1INT2INR1OUTR2OUT V+ V- T1OUTT2OUT R1INR2IN VCCGND R599 0 C6820.1uF R616 0 R591 0 + E469 10uF/16V R608 0 J409PIN HEADER 4 2.54PIN 1 2 3 4 R5221K R600 0 + E436 10uF/16V R617 0 U418 MAX491 1234567 891011121314 NC1RORE DEDIGND1GND2 NC2 Y Z BA NC3 VCC C6800.1uF + E429 47uF/16V R592 0 + E435 10uF/16V R609 0 + E4391uF/16V R601 0 R5262K R618 0 R593 0 R610 0 + E470 10uF/16V + E43147uF/16V R602 0 U4167905 12 3 COMIN OUT R619 0 U419 54 31 2 INCNTL OUT S GND C6580.1uF R622 0 R594 0 + E434 10uF/16V R611 0 R586 0 R52310K + E43747uF/16V R603 0 R620 0 R623 0 R595 0 R5212K 55 44 33 22 11 D D C C B B A A FOR PCI6140 Version 3.6Date 20050201Part PCIDesigner Joo Jeong Ki Near to PCI Connector PREQPCBE3 PCBE2PPERRPSERR PCBE0 PPAR PSTOPPTRDY PRSTPGNT S_AD0S_AD1S_AD2S_AD3S_AD4S_AD5S_AD6S_AD7S_AD8S_AD9S_AD10S_AD11S_AD12S_AD13S_AD14S_AD15S_AD16S_AD17S_AD18S_AD19S_AD20S_AD21S_AD22S_AD23S_AD24S_AD25S_AD26S_AD27S_AD28S_AD29S_AD30S_AD31 PCBE0PCBE1PCBE2PCBE3PGNTPIRDYPREQPRSTPSTOPPTRDYPPERRPPARPIDSELPSERRPCLKLSTAT SCBE0SCBE1SCBE2SCBE3 SDEVSELSFRAME SGNT0SGNT1SIRDYSTRDYSREQ0SREQ1SSTOPSSERRSPERRSPAR PCBE1PIRDY PFRAME PIDSEL PCLK SFRAMESTRDYSSTOPSDEVSELSSERRSPERRLSTATSREQ0SREQ1SREQ2 INTA INTB S_AD24S_AD25 SIDSEL0SIDSEL1 S_AD[31:0] SIRDY SREQ2 PDEVSEL PDEVSELPFRAME SRST SREQ3 SREQ3 P_AD28 P_AD3P_AD30 P_AD31 P_AD18 P_AD29 P_AD[31:0] P_AD3 P_AD6P_AD16P_AD9 P_AD22 P_AD17 P_AD4 P_AD5 P_AD25 P_AD13 P_AD19 P_AD12P_AD20 P_AD29 P_AD28P_AD2P_AD14P_AD8 P_AD24 P_AD5 P_AD14 P_AD15 P_AD10P_AD27 P_AD24 P_AD6 P_AD11P_AD19 P_AD15 P_AD23 P_AD27 P_AD26 P_AD1 P_AD0 P_AD0P_AD13P_AD22 P_AD12 P_AD30 P_AD25P_AD8 P_AD31P_AD4 P_AD1 P_AD23 P_AD16P_AD9 P_AD10 P_AD21 P_AD7P_AD17P_AD18 P_AD[31:0] P_AD2 P_AD26P_AD21 P_AD7 P_AD11P_AD20 3.3V_PCI6140 3.3V_PCI6140 SCBE0SCBE1SCBE2SCBE3SDEVSELSFRAMESGNT0SGNT1SIRDYSTRDYSREQ0SREQ1SSTOP SRST SSERRSPERRSPAR SIDSEL0SIDSEL1 S_AD[31:0] INTA INTB SCLK1SCLK0 5V 3.3V -12V 12V 3.3V 5V 3.3V 3.3V C47327pF C6510.1uF UNIVERSAL PCI B401 B1B2B3B4B5B6B7B8B9 B10B11B14B15B16B17B18B19B20B21B22B23B24B25B26B27B28B29B30B31B32B33B34B35B36B37B38B39B40B41B42B43B44B45B46B47B48B49B52B53B54B55B56B57B58B59B60B61B62 A1A2A3A4A5A6A7A8A9A10A11A14A15A16A17A18A19A20A21A22A23A24A25A26A27A28A29A30A31A32A33A34A35A36A37A38A39A40A41A42A43A44A45A46A47A48A49A52A53A54A55A56A57A58A59A60A61A62 -12VTCKGNDTDO+5V+5VINTB#INTD#PRSNT1#RESERVEDPRSNT2#RESERVEDGNDCLKGNDREQ#VI/OAD31AD29GNDAD27AD25+3.3VCBE3#AD23GNDAD21AD19+3.3VAD17CBE2#GNDIRDY#+3.3VDEVSEL#GNDLOCK#PERR#+3.3VSERR#+3.3VCBE1#AD14GNDAD12AD10M66ENAD8AD7+3.3VAD5AD3GNDAD1VI/OACK64#+5V+5V TRST# +12V TMS TDI +5V INTA# INTC# +5V RESERVED VI/O RESERVED 3.3VAUX RST# VI/O GNT# GND PME# AD30 +3.3V AD28AD26 GND AD24 IDSEL +3.3V AD22AD20 GND AD18AD16 +3.3V FRAME# GND TRDY# GND STOP# +3.3V SDONE SBO# GND PAR AD15 +3.3V AD13AD11 GND AD9 CBE0# +3.3V AD6AD4 GND AD2AD0 VI/O REQ64# +5V+5V + E47347uF/16V + E428 10uF/16V C6530.1uF N407 4.7K C6550.1uF R516 10K C6500.1uF N408 4.7K R517 0 C67920pF C6520.1uF R543 10 PCI6140 U415 44434241403736353332313028272625131210 987652 127126125124123122121 342414 3 1815 118 1623 119116 1917 4 2221 117113114 1 20395884 102120 11293849647593 111128 45464748505152535556575960616263777879808182838587888990919294955466768671741001011031047372679697989970105686911010910810711511210665 P_AD[0]P_AD[1]P_AD[2]P_AD[3]P_AD[4]P_AD[5]P_AD[6]P_AD[7]P_AD[8]P_AD[9]P_AD[10]P_AD[11]P_AD[12]P_AD[13]P_AD[14]P_AD[15]P_AD[16]P_AD[17]P_AD[18]P_AD[19]P_AD[20]P_AD[21]P_AD[22]P_AD[23]P_AD…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 16 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 Certificate of Compliance Test Report No.: SKTFCE-050411-023 NVLAP CODE : 200220-0 Applicant: INTO-TECH Inc. Applicant Address: 3F, Seojin Bldg., 1-17, Cheongdam-Dong, Gangnam-Gu, Seoul, 135-100, KOREA Product: DVR BOARD FCC ID: S2MLIVE120 Model No.: LIVE120 Receipt No.: SKTEU05-0069 Date of receipt: Jan. 01, 2005 Date of Issue: Apr. 11, 2005 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2003 Rule Parts: FCC part 15 Subpart B Equipment Class : Class B Digital Device Peripheral Test Result: The above mentioned product has been tested and passed. Prepared by: S.Y.Ye Tested by: S.H.Yoon/Engineer Approved by: C.H.Jeong /Manager& Chief Engineer Signature Date Signature Date Signature Date Other Aspects : Abbreviations : · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 16 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 》》 Contents 《《 Contents 2 List of Tables 2 List of Figures 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Type of Used cables 7 4.4 Test Setup 7 4.5 Uncertainty 8 5. EMISSION Test 11 5.1 Conducted Emissions 11 5.2 Radiated Emissions 15 》List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Conducted Emissions 14 Table 3 Test Data, Radiated Emissions 16 》List of Figures Figure 1 Spectral Diagram, LINE-PE 12 Figure 2 Spectral Diagram, Neutral-PE 13 SK TECH CO., LTD. Page 3 of 16 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200220-0 and DATech for DAR-Registration No.:DAT-P-076/97-01 SK TECH CO., LTD. Page 4 of 16 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 10.2005 Artificial Mains Network ESH2-Z5 834549/011 08.2005 EMI Receiver ESHS10 835871/002 11.2005 Artificial Mains Network ESH3-Z5 836679/018 08.2005 z Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 10.2005 EMI Receiver ESVS 10 834468/008 11.2005 Spectrum Analyzer R3361A 11730187 10.2005 Amplifier 8447F 3113A05153 08.2005 Log Periodic Antenna UHALP9107 1819 04.2005 Biconical Antenna BBA9106 91031626 04.2005 Open Site Cable N/A N/A N/A Antenna Turntable Driver 5907 N/A N/A Antenna Turntable controller 5906 N/A N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cable N/A N/A N/A 50Ω Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : Jan. 01, 2005 Date of Test : Feb. 04, 2005 ~ Feb. 05, 2005 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 16 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 3. Description of the tested samples The EUT is the DVR BOARD built in computer. 3.1 Rating and Physical Characteristics Category Specification Video Input 16Ch TV Output 1Ch ( Split Mode Or 16CH Switching ) Rated input voltage +3.3V/ 5.0Vd.c. Rated input current 0.06A / 0.64A Audio Input Compatible with 4 Ch Digital Audio Board (Option) (Extension Board) Display FPS 480 Fps 400 Fps Record FPS 120 Fps(at 320x240) 100 Fps(at 360x288) 30 Fps (at 640x480) 25 Fps (at 720x576) Compression 2-3KB/fps Codec Formula (Modified H.263) Digital I/O Compatible with new version I/O Board (Option) (Extension Board) Basic : Input 8 CH / Output 4 Ch Using 2 Piece I/O Board : Input 16 CH / Output 8 Ch Camera Control P/T/Z Focus Preset Power Supply Consumption 12.43 W Supply Voltage 2.5V/1.98A, 3.3V/1.3A, 5V/ 0.64A 3.2 Submitted Documents N/A SK TECH CO., LTD. Page 6 of 16 SKT SKTFCE-050411-023 FCC ID : S2MLIVE120 4. Measurement Conditions The operating voltage of EUT is supplied by PCI slot of Personal Computer. (PC Input Voltage : AC 120V, 60Hz) 4.1 Modes of Operation The EUT was in the following operation mode during all testing; After the EUT has received the video signal from the video camera, the signal was displayed in the CRT Monitor and PC monitor through the EUT. 4.2 List of Peripherals Description Manufacturer Model Name Serial No. FCC ID Keyboard(PS2) Jing Mold Enterprise Co., Ltd. LKB-0107 20103462 - Mouse(USB) LG LMULBGS01I 04CU000259 - Printer(Parallel) EPSON PRECISION (PHILIPPINES), INC. EPSON STYLUS PHOTO 830 ELTK014619 - Personal Computer LG Electronics W8S 203KI12463 - Camera(x2) Sunkwang - N/…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-050411-023 FCC ID :S2MLIVE120 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-050411-023 FCC ID :S2MLIVE120 Photograph 2: Setup for Radiated Emissions
