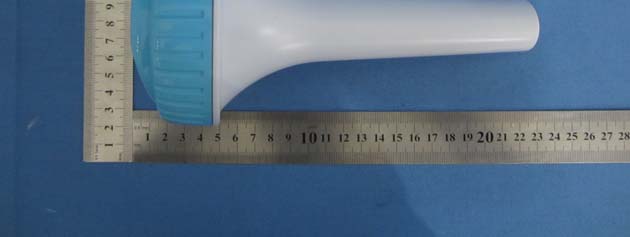

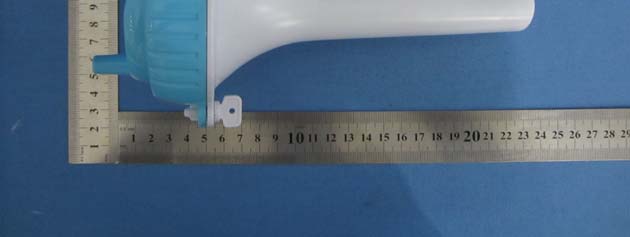

S2SF007PFWireless Thermometer

Version 1.0 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 1 Ambient Weather F007PF 8-Channel Wireless Water Thermometer User Manual Table of Contents 1 Introduction..................................................................................................................................... 2 2 Getting Started ................................................................................................................................ 2 Parts List ............................................................................................................................................. 2 2.1 Water Thermometer Sensor Set Up ............................................................................................... 2 3 Glossary of Terms ........................................................................................................................... 7 4 Specifications .................................................................................................................................. 7 4.1 Wireless Specifications ................................................................................................................. 7 4.2 Measurement Specifications ......................................................................................................... 7 4.3 Power Consumption ...................................................................................................................... 7 5 Troubleshooting Guide.................................................................................................................... 7 6 Accessories ..................................................................................................................................... 8 7 Liability Disclaimer ........................................................................................................................ 8 8 FCC Statement............................................................................................................................ 9 9 Warranty Information ................................................................................................................. 9 Version 1.0 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 2 1 Introduction Thank you for your purchase of the Ambient Weather F007PF 8-Channel Wireless Water Thermometer. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit: http://ambientweather.wikispaces.com/F007PF The thermometer allows you to measure the temperature a water, this product is intended be used as a comfort and convenience solution, it is not intended as a pool or SPA safety device. Follow your pool or SPA manufacturers instructions for safe use of your pool or SPA. 2 Getting Started Note: The power up sequence must be performed in the order shown in this section (insert batteries in the remote transmitter(s) first, Display Console second). Parts List QTY Item 1 Thermometer transmitter (F007PF) for pool/SPA Dimensions (LxHxW): 8.5” x 4.2” x 3.7” 216*106*95mm LCD Dimensions (LxW): 1.1 x 0.62” 27*16mm Remote sensor into the water: 7.1’’ 180mm Remote sensor waterproof: Up to 3.28 ft 1 m 2 User Manual 2.1 Water Thermometer Sensor Set Up Note: Can use rechargeable batteries. We recommend fresh alkaline batteries for temperature ranges between -4 °F and 140 °F and fresh lithium batteries for temperature ranges between -40 °F and 140 °F. Version 1.0 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 3 1.Twist the KEY lid to unlock, and twist the main of the sensor by removing the top cover, as shown in Figure 1 . Figure 1 2.BEFO RE inserting the batteries, locate the dip switches on the inside cover of the lid of the transmitter. Figure 2 displays all four switches in the OFF position (factory default setting). Figure 2 Version 1.0 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 4 Channel Number: The F007PF supports up to eight transmitters. To set each channel number (the default is Channel 1), change Dip Switches 1, 2 and 3, as referenced in 3. Table 1. Temperature Units of Measure: To change the transmitter display units of measure (°F vs. °C), change Dip Switch 4, as referenced in 4. Table 1. DIP SWITCH 1234 FU NCTION DOWN DOWN DOWN --- Channel 1 (pool) DOWN DOWN UP --- Channel 2 (SPA) DOWN UP DOWN --- Channel 3 (optional) DOWN UP UP --- Channel 4 (optional) UP DOWN DOWN --- Channel 5 (optional) UP DOWN UP --- Channel 6 (optional) UP UP DOWN --- Channel 7 (optional) UP UP UP --- Channel 8 (optional) ---------DOWN °F ---------UP °C Table 1 5.In sert four AAA batteries. 1)Open the battery compartment of the transmitters； 2)Insert 4XAA 1,5V Alkaline batteries into the battery compartment of the Remote, observing the correct polarity . Note: The u pper cover and lower connection lead has a sensor cover ,when the operation must be Version 1.0 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 5 careful not to pull the connecting line, to prevent the breaking point. 6.After inserting the batteries, the remote sensor LED indicator will light for 4 seconds, and then flash once per 60 seconds thereafter. Each time it flashes, the sensor is transmitting data. 7.Verify the correct channel number (CH) and temperature units of measure (°F vs. °C) ar e on th e display, as shown in Figure 3. Figure 3 (1) temperature (2) temperature units (°F vs. °C) (3) channel number 8.Cl ose the battery door. Make sure the gasket (around the battery compartment) is properly seated in its trace prior to closing the door. Focus on maintenance of two RED waterproof map are in place, otherwise it will cause not waterproof ,and damage the remoter sensor. as shown in Figure 34 . F igure 4 Not e: Should be more careful, outermost o-waterproof off easily Version 1.0 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 6 9.Twist the main of the sensor…
