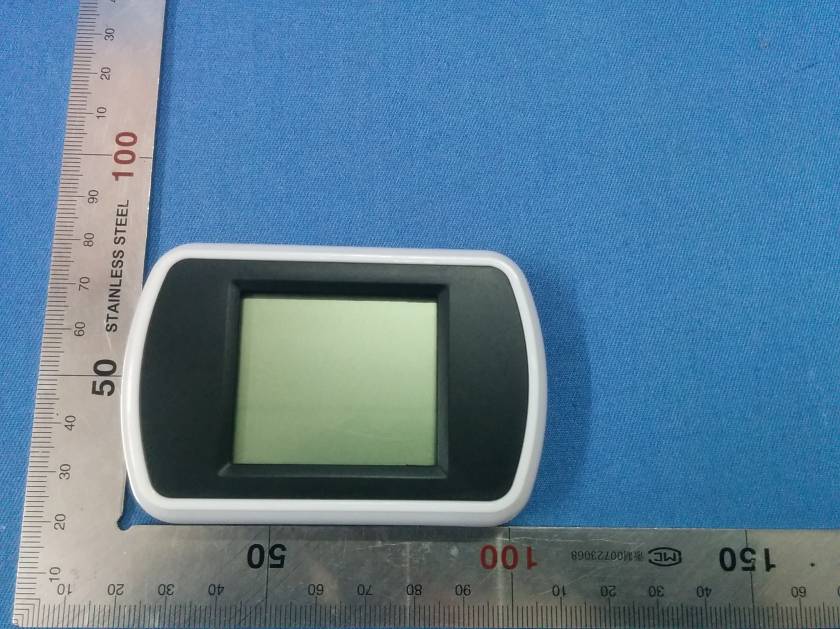

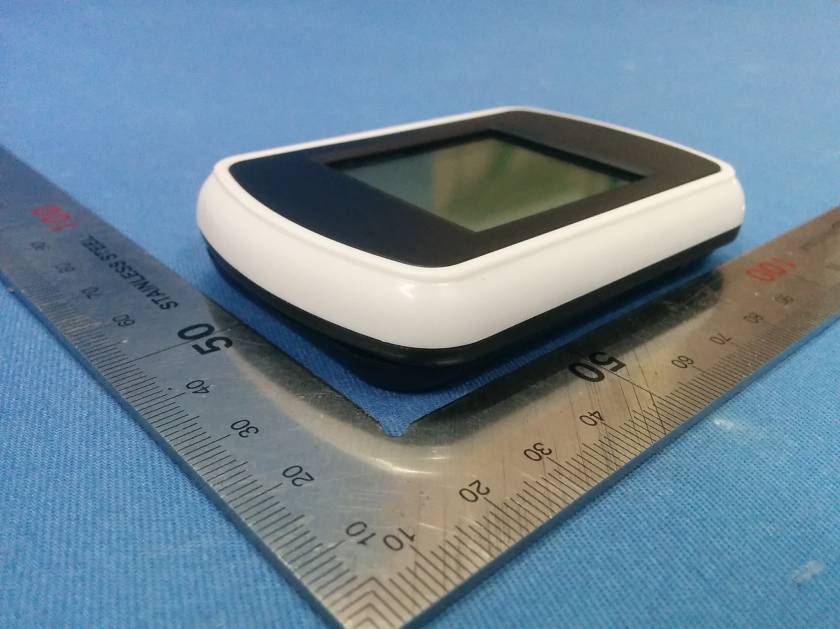

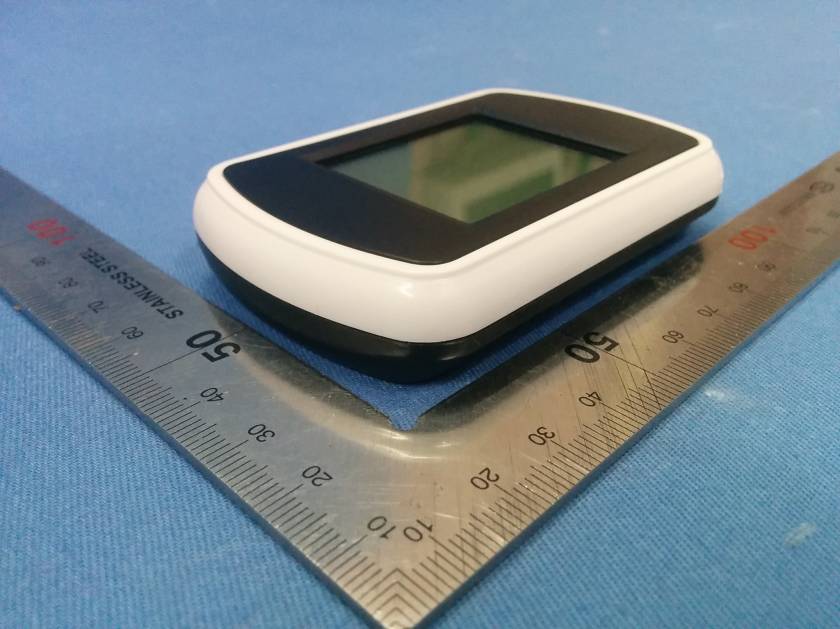

S2SWS40Wireless Thermometer

Version 1.0 ©Copyright 2015, Ambient LLC. All Rights Reserved. Page 1 Ambient Weather WS-40 Wireless Indoor / Outdoor Thermometer Table of Contents 1. Introduction..................................................................................................................................... 1 2. Getting Started ................................................................................................................................ 1 2.1 Parts List ....................................................................................................................................... 1 2.2 Thermometer Sensor Set Up ......................................................................................................... 1 2.3 Display Console Set Up ................................................................................................................ 3 2.4 Sensor Operation Verification ................................................................................................ 4 3. Remote Sensor Installation ............................................................................................................. 4 4. Glossary of Terms ........................................................................................................................... 4 5. Specifications .................................................................................................................................. 5 5.1 Wireless Specifications ................................................................................................................. 5 5.2 Measurement Specifications ......................................................................................................... 5 5.3 Power Consumption ...................................................................................................................... 5 6. Troubleshooting Guide.................................................................................................................... 5 7. Liability Disclaimer ........................................................................................................................ 6 8. FCC Statement ................................................................................................................................ 6 9. Warranty Information...................................................................................................................... 7 1. Introduction Thank you for your purchase of the Ambient Weather WS-40 wireless indoor / outdoor thermometer. The following user guide provides step by step instructions for installation, operation and troubleshooting. To download the latest manual and additional troubleshooting tips, please visit: http://ambientweather.wikispaces.com/ws40 2. Getting Started The WS-40 wireless indoor / outdoor thermometer consists of a display console (receiver), and a wireless thermometer (remote transmitter). 2.1 Parts List QTY Item 1 Display Console Frame Dimensions (LxWxH): 3.5 x 2.5 x 0.75 in LCD Dimensions (LxW): 1.5 x 1.25” 1 Thermometer/Transmitter (F007T) Dimensions (LxHxW): 4.5” x 2.0” x 0.75” 2.2 Thermometer Sensor Set Up Note: Do not use rechargeable batteries. We recommend fresh alkaline batteries for temperature Version 1.0 ©Copyright 2015, Ambient LLC. All Rights Reserved. Page 2 ranges between -4 °F and 140 °F and fresh lithium batteries for temperature ranges between -40 °F and 140 °F. 1. Remove the battery door on the back of the sensor by removing the set screw, as shown in Figure 1 . Figure 1 2. BEFORE inserting the batteries, locate the dip switches on the inside cover of the lid of the transmitter. Make sure all of the dip switches are in the down position (the WS-40 only supports one wireless transmitter). Figure 2 3. Temperature Units of Measure: To change the transmitter display units of measure (°F vs. °C), change Dip Switch 4, as referenced in Table 1. DIP SWITCH 1 2 3 4 FUNCTION DOWN DOWN DOWN --- Channel 1 (WS40) --- --- --- DOWN °F --- --- --- UP °C Ta b l e 1 4. Insert two AAA batteries. 5. After inserting the batteries, the remote sensor LED indicator will light for 4 seconds, and then flash once per 60 seconds thereafter. Each time it flashes, the sensor is transmitting data. 6. Verify the correct channel number (CH 1) and temperature units of measure (°F vs. °C) are on the display, as shown in Figure 3. Version 1.0 ©Copyright 2015, Ambient LLC. All Rights Reserved. Page 3 Figure 3 (1) temperature (2) temperature units ( °F vs. °C) (3) channel number 7. Close the battery door. Make sure the gasket (around the battery compartment) is properly seated in its trace prior to closing the door. Tighten the set screw. 2.3 Display Console Set Up Note: To avoid permanent damage, please take note of the battery polarity before inserting the batteries. Move the remote thermometer at least 5’ away from the display console (if the sensor is too close, it may not be received by the display console). Remove the battery door on the back of the display. Insert two AA (alkaline or lithium) batteries in the back of the display console, as shown in Figure 4. All of the LCD segments will light up for a few seconds to verify all segments are operating properly. The IN status bar will continuously flash once per second to confirm proper operation. Replace the battery door, and fold out the desk stand and place the console in the upright position. The console will instantly display indoor temperature. The outdoor temperature will display dashes or --.-, then update on the display within a few minutes. If the remote sensor does not update, please reference the troubleshooting guide in Section 6. Version 1.0 ©Copyright 2015, Ambient LLC. All Rights Reserved. Page 4 Figure 4 2.4 Sensor Operation Verification Verify the indoor and outdoor temperature match closely with the console and the remote thermometer in the same location (about 5’ apart). The sensors should be within 4°F (the …
