S3PRFRCentral Vacuum Remote Control Receiver

Hose Handle RF Kit – LV9 Wireless Controller Installation Instructions 1.Remove low-voltage wires from central vacuum unit, if connected. 2.Install low-voltage wire jumpers (supplied) to the central vacuum unit. Install the other end of the jumper to the tabs on the LV9 Wireless Receiverlabelled “LV”. 3.Attach Velcro piece to the back of the LV9 and to a location suitable to support the LV9. Ensure the antenna is extended straight up from the top of the unit. Mount receiver at a minimum distance of 6 feet away from the central vacuum unit in order to prevent electrical interference of the RF signal from the motor. 4.Place the LV9 into position and insert connector end of the power adapter to the LV9 “24 Vac Input” terminal. 5.Turn power back on to central vacuum unit and plug AC adapter into power source. 6. To program the Hose Handle Transmitter :Press with a pointed object, the switch located on the top side of the LV9 Wireless Receiver. Immediately press and hold the “I” button located on the Hose Handle for 1 second. Programming is now complete. 7. Operation of the Transmitter:to turn on the central vacuum unit, press the “I” button located on the transmitter. To turn off, press the “O” button. Caution: Disconnect power to central vacuum system before starting Part Nbr: 980 INS-003 Rev 1.2April 2005 NOTE:Changes or modifications not expressly approved by Alutron Modules could void the user's authority to operate the equipment. Hose Handle RF Kit – LV9 Wireless Controller Installation Instructions 1.Remove low-voltage wires from central vacuum unit, if connected. 2.Install low-voltage wire jumpers (supplied) to the central vacuum unit. Install the other end of the jumper to the tabs on the LV9 Wireless Receiverlabelled “LV”. 3.Attach Velcro piece to the back of the LV9 and to a location suitable to support the LV9. Ensure the antenna is extended straight up from the top of the unit. Mount receiver at a minimum distance of 6 feet away from the central vacuum unit in order to prevent electrical interference of the RF signal from the motor. 4.Place the LV9 into position and insert connector end of the power adapter to the LV9 “24 Vac Input” terminal. 5.Turn power back on to central vacuum unit and plug AC adapter into power source. 6. To program the Hose Handle Transmitter :Press with a pointed object, the switch located on the top side of the LV9 Wireless Receiver. Immediately press and hold the “I” button located on the Hose Handle for 1 second. Programming is now complete. 7. Operation of the Transmitter:to turn on the central vacuum unit, press the “I” button located on the transmitter. To turn off, press the “O” button. Caution: Disconnect power to central vacuum system before starting Part Nbr: 980 INS-003 Rev 1.2April 2005 NOTE:Changes or modifications not expressly approved by Alutron Modules could void the user's authority to operate the equipment.

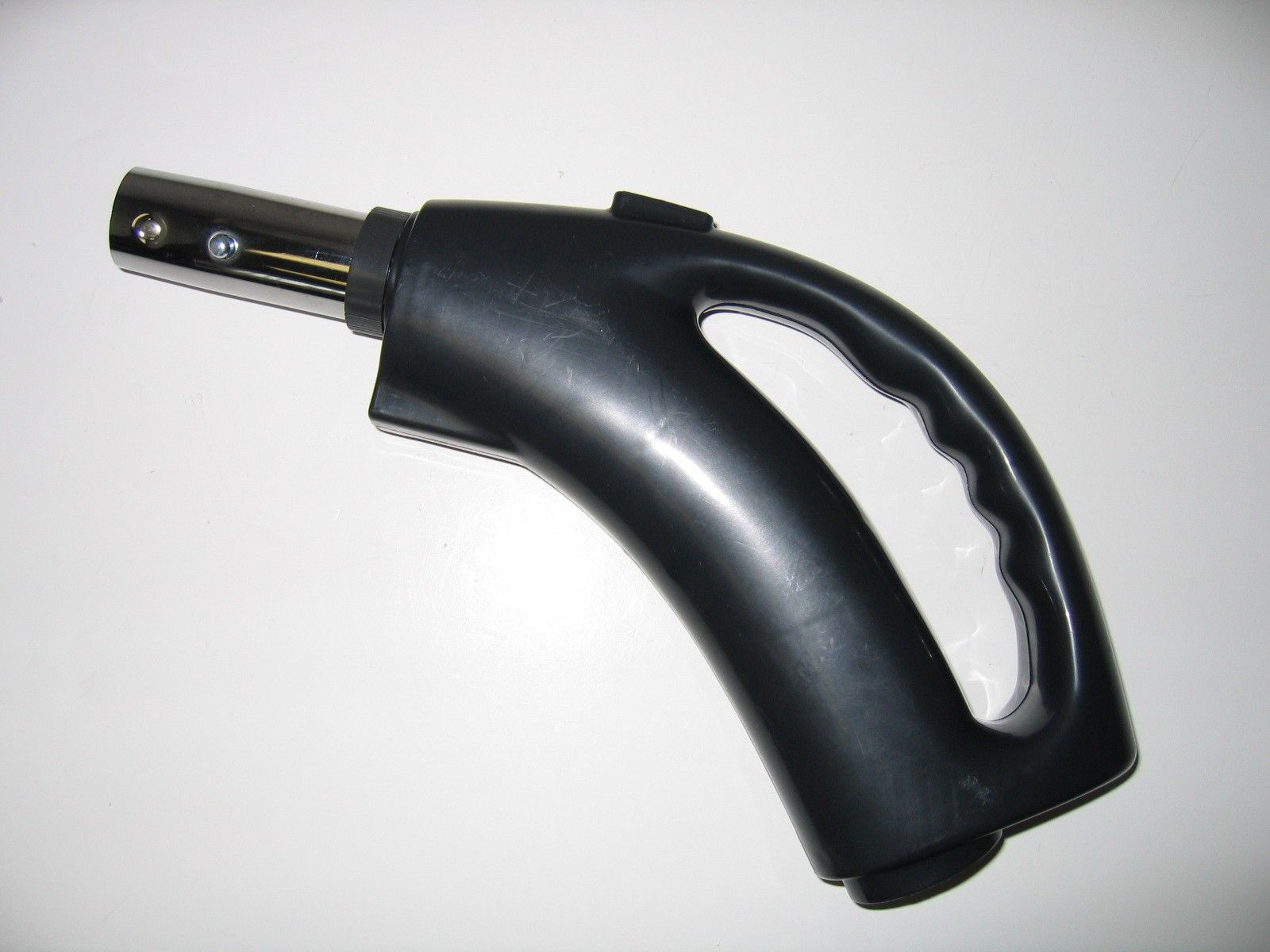

Hose Handle RF Kit - Wireless Controller – LV11 Installation Instructions 1.Remove low-voltage wires from central vacuum unit, if connected. 2.Install low-voltage wire jumpers (supplied) to the central vacuum unit. Install the other end of the wire jumper to the tabs on the LV11 Wireless Receiverlabelled “LV”. 3.Mount the LV11 in a suitable location. Ensure the antenna is extended straight up from the top of the unit. Mount receiver at a minimum distance of 6 feet away from the central vacuum unit in order to prevent electrical interference of the RF signal from the motor. 4.Insert connector end of the power adapter to the LV11 “9 Vac Input”terminal. 5.Turn power back on to central vacuum unit and plug AC adapter into power source. 6. To program the Hose Handle Transmitter :Press, with a pointed object, the switch located on the top side of the LV11 Wireless Receiver. Immediately press and hold the right side of the rocker switch located on the Hose Handle for 1 second. Programming is now complete. 7. Operation of the Transmitter: to turn on the central vacuum unit, press the right side of the rocker switch located on the Hose Handle. To turn off, press the left side of the rocker switch on the Hose Handle. Caution: Disconnect power to central vacuum system before starting Part Nbr: 980 INS-004 Rev 1.1April 2005 NOTE:Changes or modifications not expressly approved by Alutron Modules could void the user's authority to operate the equipment. Hose Handle RF Kit - Wireless Controller – LV11 Installation Instructions 1.Remove low-voltage wires from central vacuum unit, if connected. 2.Install low-voltage wire jumpers (supplied) to the central vacuum unit. Install the other end of the wire jumper to the tabs on the LV11 Wireless Receiverlabelled “LV”. 3.Mount the LV11 in a suitable location. Ensure the antenna is extended straight up from the top of the unit. Mount receiver at a minimum distance of 6 feet away from the central vacuum unit in order to prevent electrical interference of the RF signal from the motor. 4.Insert connector end of the power adapter to the LV11 “9 Vac Input”terminal. 5.Turn power back on to central vacuum unit and plug AC adapter into power source. 6. To program the Hose Handle Transmitter :Press, with a pointed object, the switch located on the top side of the LV11 Wireless Receiver. Immediately press and hold the right side of the rocker switch located on the Hose Handle for 1 second. Programming is now complete. 7. Operation of the Transmitter: to turn on the central vacuum unit, press the right side of the rocker switch located on the Hose Handle. To turn off, press the left side of the rocker switch on the Hose Handle. Caution: Disconnect power to central vacuum system before starting Part Nbr: 980 INS-004 Rev 1.1April 2005 NOTE:Changes or modifications not expressly approved by Alutron Modules could void the user's authority to operate the equipment.

There are two fairly minor differences between the LV9 and LV11. The first is in the power supply - the LV9 is designed to work from 24 Vac while the LV11 requires only 9Vdc. The other is the the type of relay used in the output - the LV9 has a heavier duty one than the LV11. Other than that the devices are identical and, in particular, the orientation of the RF components are the same.

LABEL REQUIREMENTS RF IC & FCC 25 mm Alutron Modules Inc. Model No.: LV9 IC: 4603A-0502 FCC ID: S3PRFR * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in Canada Alutron Modules Inc. Model No.: LV11 IC: 4603A-0502 FCC ID: S3PRFR * This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Made in Canada ** If label format is not in full scale, please indicate the dimensions of the label. MUST APPEAR ON THE OUTSIDE OF THE CERTIFIED UNIT. ALL INFORMATION MUST APPEAR ON THE LABEL. 12 mm 12 mm

A A l l u u t t r r o o n n M M o o d d u u l l e e s s I I n n c c . . LV9 and LV11 comparison LV11 LV9 top view Judy MacF ady e n August 24, 2005 A A l l u u t t r r o o n n M M o o d d u u l l e e s s I I n n c c . . LV9 and LV11 comparison LV11 LV9 bottom view Judy MacF ady e n August 24, 2005

FCC Part 15 Subpart B, March 2005 Test Report: 5W38277.3 Applicant: Alutron Modules Inc. 420 Industrial Parkway South Aurora, Ontario L4G 3V7 Apparatus: Central Vacuum Remote Control Receivers LV9 and LV11 FCC ID: S3PRFR In Accordance With: FCC Part 15 Subpart B, 15.107 and 15.109 Unintentional Radiators Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Sim Jagpal, Resource Manager Date: 18 August 2005 Total Number of Pages: 18 Nemko Canada Inc. REPORT SUMMARY Report Number: 5W38277.3 FCC ID: S3PRFR Specification: FCC Part 15 Subpart B Page 2 of 18 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart B. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: Central Vacuum Remote Control Receivers LV9 and LV11 Specification: FCC Part 15 Subpart B, 15.107 and 15.109 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Jason Nixon, Telecom Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 5W38277.3 FCC ID: S3PRFR Specification: FCC Part 15 Subpart B Page 3 of 18 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................5 Section 2 : Test Conditions......................................................................................................................... 6 2.1 Specifications .............................................................................................................................................6 2.2 Deviations From Laboratory Test Procedures ............................................................................................6 2.3 Test Environment .......................................................................................................................................6 2.4 Test Equipment...........................................................................................................................................6 Section 3 : Observations ............................................................................................................................. 7 3.1 Modifications Performed During Assessment ............................................................................................7 3.2 Record Of Technical Judgements ...............................................................................................................7 3.3 EUT Parameters Affecting Compliance .....................................................................................................7 3.4 Test Deleted................................................................................................................................................7 3.5 Additional observations ..............................................................................................................................7 Section 4 : Results Summary ..................................................................................................................... 8 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Appendix B : Setup Photographs ............................................................................................................ 16 Appendix C : Block Diagram of Test Setups .......................................................................................... 18 Nemko Canada Inc. SECTION 1 : EQUIPMENT UNDER TEST Report Number: 5W38277.3 FCC ID: S3PRFR Specification: FCC Part 15 Subpart B Page 4 of 18 Section 1 : Equipment Under Test 1.1 Product Identification The Equipment Under Test was identified as follows: Central Vacuum Remote Control Receivers LV9 and LV11 1.2 Samples Submitted for Assessment The following samples of the apparatus have been submitted for type assessment: Sample No. Description Serial No. 1 ALUTRON MODULES LV9 WIRELESS RECEIVER ⎯⎯ 2 ALUTRON MODULES LV11 WIRELESS RECEIVER ⎯⎯ 6 CLASS 2 TRANSFORMER (P/N A41W240300-0…
