S4L4CQ01GPS Navigation system

2 What’s in the box What’s in the box aTomTom GO AOn/Off button BMicrophone CLight sensor DSpeaker EMemory card (micro SD card) slot bActive DockcUSB car charger dUSB cableeDocumentation pack A B C D E Siena-USA-UG-NONLIVE.book Page 2 Thursday, June 24, 2010 2:32 PM 3 Mounting your device EN Mount- ing your device Mounting your navigation device 1. Push the EasyPort™ Mount on your TomTom GO against the windshield in your car. 2. Lock the EasyPort Mount by twisting the base. Siena-USA-UG-NONLIVE.book Page 3 Thursday, June 24, 2010 2:32 PM 4 Mounting your device 3. Lock the EasyPort Mount by twisting the base. 4. Insert the Car Charger into your device. Insert the Car Charger into the cigarette lighter in your car. Siena-USA-UG-NONLIVE.book Page 4 Thursday, June 24, 2010 2:32 PM 5 Mounting your device EN 5. Switch your device on by pressing the On/Off button on the top of your device. 6. You now have to answer some questions to set up your device. Tap the screen to answer the questions. Siena-USA-UG-NONLIVE.book Page 5 Thursday, June 24, 2010 2:32 PM 6 Mounting your device 7. To remove the Mount from your windshield, first unlock the EasyPort Mount, then gently pull one of the tabs. The Mount comes away from the windshield. Siena-USA-UG-NONLIVE.book Page 6 Thursday, June 24, 2010 2:32 PM Getting started 7 EN Getting started Switching on and off Install your TomTom GO navigation device in your car following the instructions in the installation section at the start of this book. To switch on your navigation device, press and hold the On/Off button until you see the start-up screen. The first time you switch on your device, it may take a short time to start. Setting up When you first switch on your device, you have to answer a few questions to set up the device. Answer the questions by tapping the screen. You are asked whether you make regular trips to the same locations. If you tap YES, you can enter these destinations as your favourite destinations. Every time you switch on your device, you can immediately select one of these locations as your desti- nation. To change these destinations or select a new destination, tap Start-up preferences in the Preferences menu, then select Ask for a destination. Device not starting In rare cases, your TomTom GO navigation device may not start correctly or may stop responding to your taps. First, check that the battery is properly charged. To charge the battery, connect your device to the car charger. It can take up to 2 hours to fully charge the battery. If this does not solve the problem, you can reset the device. To do this, press and hold the On/Off button for 15 seconds and release the button when your device begins to restart. Siena-USA-UG-NONLIVE.book Page 7 Thursday, June 24, 2010 2:32 PM Getting started 8 Battery notes The battery in your TomTom GO navigation device charges when you connect it to the car charger or to your computer. When you connect your device to a com- puter, you are asked if you want to connect to the computer. If you select No and then do not tap the screen within three minutes, the device will automatically switch off. This happens so that the battery can charge faster. Note: You should plug the USB connector directly into a USB port on your computer and not into a USB hub or USB port on a keyboard or monitor. GPS reception When you first start your TomTom GO nav- igation device, the device may need a few minutes to determine your GPS position and show your current position on the map. In future, your position will be found much faster, usually within a few seconds. To ensure good GPS reception, you should use your device outdoors. Large objects such as tall buildings can sometimes inter- fere with reception. Siena-USA-UG-NONLIVE.book Page 8 Thursday, June 24, 2010 2:32 PM Safety 9 EN Safety Positioning the EasyClick Mount Consider carefully where to attach the mount in your car. The mount should not block or interfere with any of the following: • Your view of the road • Any of the controls in your car • Any of your mirrors • The airbag When your navigation device is in the mount, you should be able to reach the device easily without leaning or stretching. The diagrams show where you can safely attach the mount. You can attach the mount to the wind- screen, side window or use a Dashboard Mount Disk to attach the mount to your dashboard. TomTom also offers alternative mounting solutions for your TomTom navi- gation device. For more information about Dashboard Mount Disks and alternative mounting solutions, go to tomtom.com/ accessories. Installing the Active Dock Make sure that both the Active Dock and your window are clean and dry. 1. Press the suction cup firmly against the window on an area where the glass is flat. 2. Twist the rubber grip near the base of the Active Dock in a clockwise direction until you hear a click. The Active Dock is now installed. Siena-USA-UG-NONLIVE.book Page 9 Thursday, June 24, 2010 2:32 PM 10 Planning a route Planning a route Planning a route with your ProductName- Long navigation device is easy. To plan a route, follow the steps below. Important: For safety reasons, you should always plan a route before you start your journey. 1. Tap the screen to bring up the Main Menu. Note: The buttons on your navigation device are shown in full colour unless a button is cur- rently unavailable. 2. Tap Navigate to... Plan route. 3. Tap Address. In this example, we will enter an address. cMakingYourFirstJourney-nonLIVE.fm Page 10 Thursday, June 24, 2010 3:29 PM 11 Planning a route EN 4. Tap Street and house number. Note: When planning a trip for the first time your navigation device asks you to choose a state or country. Your choice is saved and used for all routes you plan. You can change this setting at any time by tap- ping the flag. 5. Start to type the name of the town where you want to go. Tap the name when it is shown in the list. Tip: Instead of typing the name, tap this button to say the address by s…

Text truncated - open the document above for the full version.

TomTom International BV Rembrandtplein 35 1017 CT Amsterdam The Netherlands Tel: +31 (0) 20 8500800 ; Fax: +31 (0) 20 8501099 Date: September 8, 2010 Power of Attorney To whom it may concern, Please be notified that I, Gareth Weston, have designated Roy Wu in Sporton International Inc. and Roberto Scandian in TomTom International BV as the persons being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Roy Wu in Sporton International Inc., and Roberto Scandian in TomTom International BV on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: S4L4CQ01 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Gareth Weston Company: TomTom International BV TEL: +31 (0) 20 8500800 FAX: +31 (0) 20 8501099 E-mail: [email protected]

TomTom International BV Rembrandtplein 35 1017 CT Amsterdam The Netherlands Tel: +31 (0) 20 8500800 ; Fax: +31 (0) 20 8501099 Date: September 3, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: S4L4CQ01 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics (file: 4CQ01,4KJ00_Schem.pdf) Block Diagram (file: 4CQ01,4KJ00_BlkDia.pdf) Parts List (file: 4CQ01,4KJ00_PartsLst.pdf) Operation Description (file: 4CQ01,4KJ00_OpDes.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Contact Person: Roberto Scandian Applicant: TomTom International BV Tel: +31 (0) 20 75 75886 Fax: + 31 (0)20 8501099 E-Mail: [email protected] Rev. 1/1/03

TomTom International BV Rembrandtplein 35 1017 CT Amsterdam The Netherlands Tel: +31 (0) 20 8500800 ; Fax: +31 (0) 20 8501099 Date: September 3, 2010 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : S4L4CQ01 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days: ‹ External Photos (file: 4CQ01,4KJ00_ExtPho.pdf) ‹ Internal Photos (file: 4CQ01,4KJ00_IntPho.pdf) ‹ Test Setup Photos (file: 4CQ01,4KJ00_Tsup.pdf) ‹ User Manual (file: 4CQ01,4KJ00_UserMan.pdf) The application contains technical information, which TomTom International BV deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Roberto Scandian 1/1

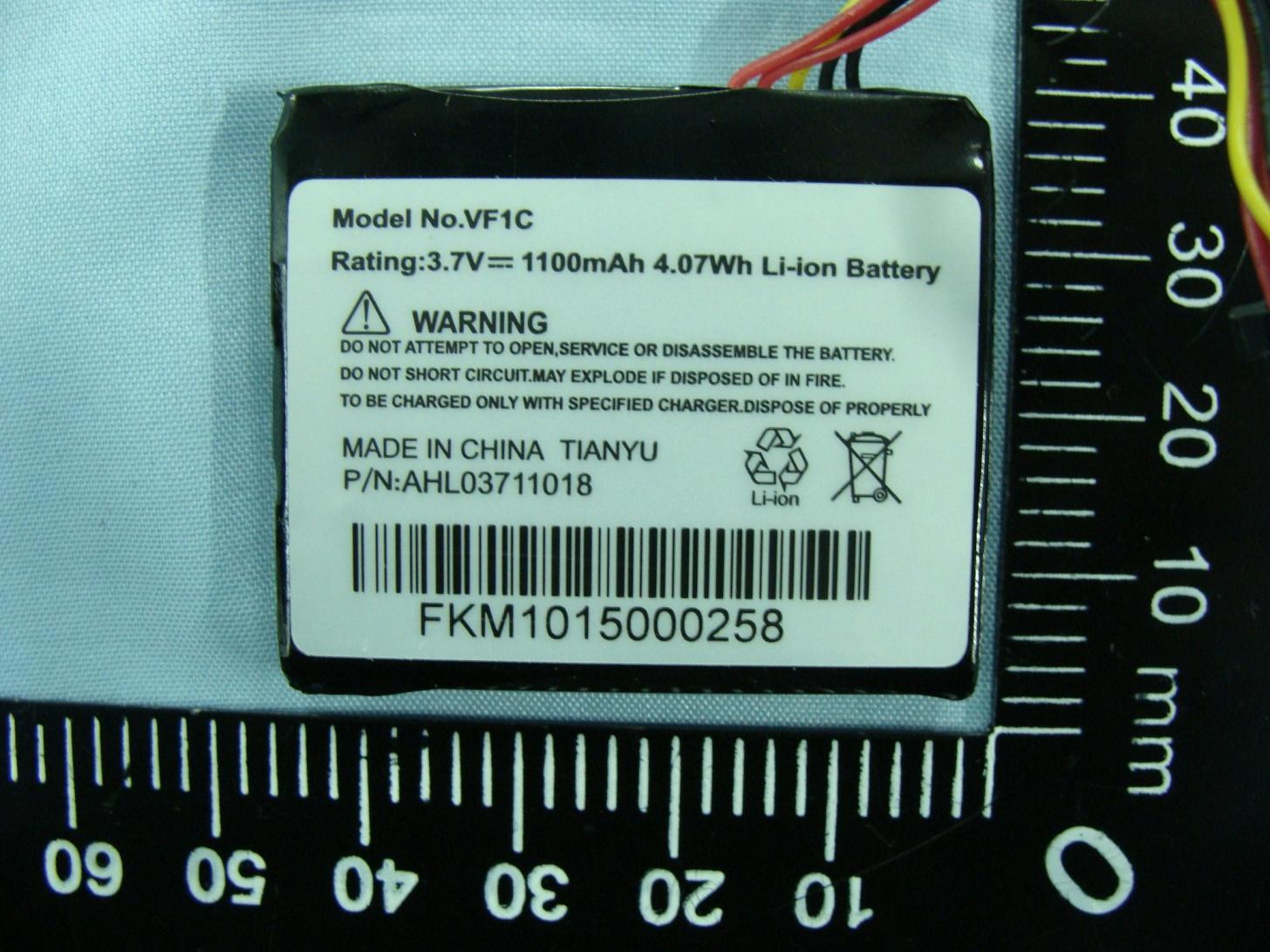

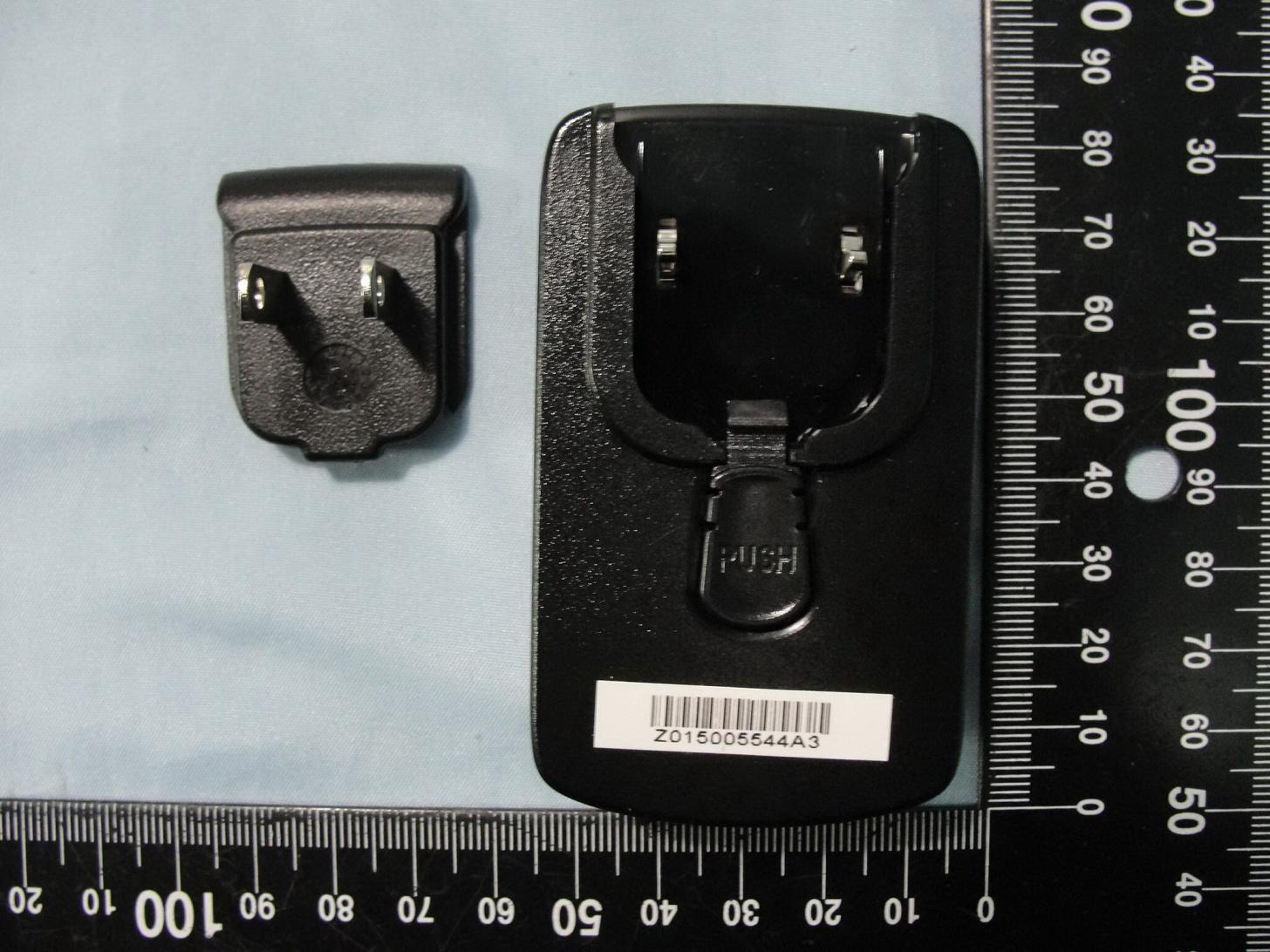

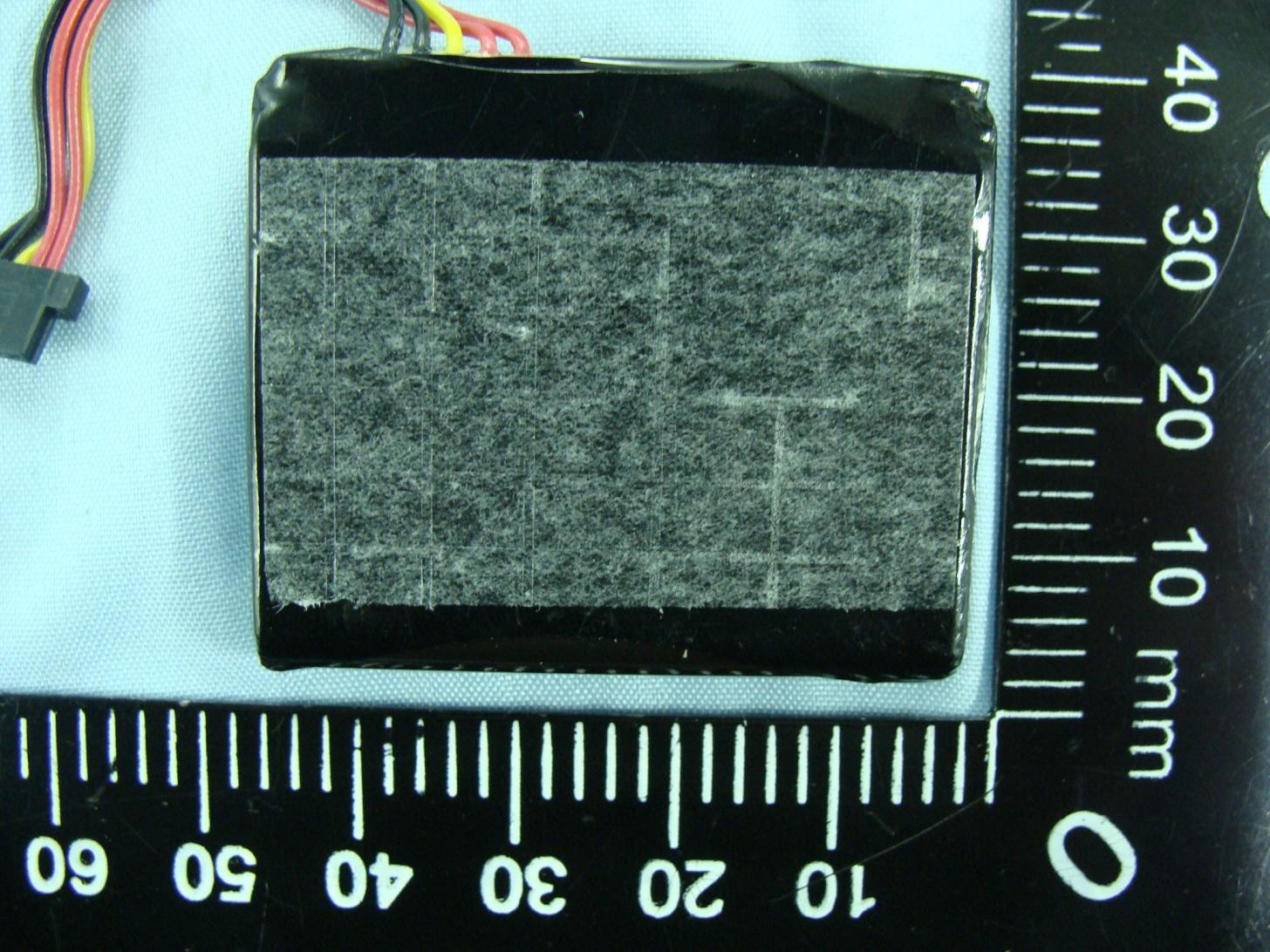

Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 1 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 1. External Photograph of EUT Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 2 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 3 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 4 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 5 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 6 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 7 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 8 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 9 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 List of Accessory: Specification of Accessory AC Adapter 1 Brand Name TomTom Manufacturer AKII Model Name A05T2-05MU Power Rating I/P:100-240Vac, 50-60Hz, 0.2A; O/P: 5Vdc, 1A AC Adapter 2 Brand Name TomTom Manufacturer Phihong Model Name PSB05R-050Q Power Rating I/P:100-240Vac, 50-60Hz, 200mA; O/P: 5Vdc, 1A Car Charger 1 Brand Name TomTom Manufacturer Supatech Model Name 4CQ04 Power Rating I/P: 12V/24V; O/P: 5V, 1.2A Power Cord Type 1.5 meter non-shielded cable without ferrite core Car Charger 2 Brand Name TomTom Manufacturer Foxlink Model Name 4UUC3 Power Rating I/P: 12V/24V; O/P: 5V, 1.2A Power Cord Type 1.8 meter shielded cable without ferrite core Car Charger 3 Brand Name TomTom Manufacturer Supatech Model Name 4UUC3Z Power Rating I/P: 12V/24V; O/P: 5V, 1.2A Car Charger 4 Brand Name TomTom Manufacturer Supatech Model Name 4UUC3B Power Rating I/P: 12V/24V; O/P: 5V, 1.2A Power Cord Type 1.8 meter non-shielded cable without ferrite core Battery Brand Name TomTom Model Name VF1C Power Rating 3.7Vdc, 1100mAh, 4.07Wh Type Li-ion USB Cable 1 Brand Name TomTom Model Name 4CQ0.001.06 Signal Line Type 1.5 meter shielded cable without ferrite core USB Cable 2 Brand Name TomTom Model Name 4UUC.001.02 Signal Line Type 1.5 meter shielded cable without ferrite core Dock 1 Brand Name TomTom Model Name 4UCB3 Dock 2 Brand Name TomTom Model Name 4UCB3 WWAN Module Brand Name Arima Model Name 7901 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 10 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 11 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Adapter 1 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 12 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 13 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 14 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Adapter 2 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 15 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 16 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 17 of 53 TEL : …

Text truncated - open the document above for the full version.

Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 37 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 3. Internal Photograph of EUT Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 38 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 39 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 40 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 41 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 42 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 43 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 44 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 45 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 46 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 47 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 48 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 49 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 50 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 51 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 52 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 Bluetooth Antenna Photographs of EUT Report No.: EP070841-01 Brand Name: TomTom / Model Name: 4CQ01 SPORTON INTERNATIONAL INC. Page Number : 53 of 53 TEL : 886-3-327-3456 Report Issued Date : Sep. 09, 2010 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : S4L4CQ01 IC : 5767A-4CQ01 GPS Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 58 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4CQ01 FCC RF Test Report Report No. : FR070841-01 FCC RF Test Report APPLICANT : TomTom International BV EQUIPMENT : GPS Navigation System BRAND NAME : TomTom MODEL NAME : 4CQ01, 4CQ02, 4KJ00 FCC ID : S4L4CQ01 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : Digital Spread Spectrum (DSS) The product was received on Jul. 09, 2010 and completely tested on Jul. 30, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.4-2003 and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Anderson Chiu / Deputy Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 58 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4CQ01 FCC RF Test Report Report No. : FR070841-01 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Testing Site ........................................................................................................................................ 6 1.5 Applied Standards ............................................................................................................................. 6 1.6 Ancillary Equipment List .................................................................................................................... 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 RF Output Power ............................................................................................................................... 7 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 RF Utility ............................................................................................................................................ 9 3 TEST RESULT .......................................................................................................................................... 10 3.1 Number of Channel Measurement .................................................................................................. 10 3.2 20dB and 99% Bandwidth Measurement ........................................................................................ 13 3.3 Hopping Channel Separation Measurement ................................................................................... 26 3.4 Dwell Time Measurement ................................................................................................................ 29 3.5 Peak Output Power Measurement .................................................................................................. 31 3.6 Band Edges Measurement .............................................................................................................. 34 3.7 Spurious Emission Measurement .................................................................................................... 38 3.8 AC Conducted Emission Measurement........................................................................................... 42 3.9 Radiated Emission Measurement .................................................................................................... 46 3.10 Antenna Requirements .................................................................................................................... 55 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 56 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 57 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 58 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4CQ01 FCC RF Test Report Report No. : FR070841-01 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR070841-01 Rev. 01 Initial issue of report Aug. 20, 2010 SPORTON INTERNATIONAL INC. Page Number : 4 of 58 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4CQ01 FCC RF Test Report Report No. : FR070841-01 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 15.247(a)(1) A8.4(2) Number of Channels ≥ 15Chs Pass - 3.2 15.247(…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B4 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4CQ01 FCC RF Test Report Report No. : FR070841-01 Appendix B. Setup Photographs <Conducted Emission> Front View Rear View SPORTON INTERNATIONAL INC. Page Number : B2 of B4 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4CQ01 FCC RF Test Report Report No. : FR070841-01 Side View SPORTON INTERNATIONAL INC. Page Number : B3 of B4 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4CQ01 FCC RF Test Report Report No. : FR070841-01 <Radiated Emission> Front View Rear View SPORTON INTERNATIONAL INC. Page Number : B4 of B4 TEL : 886-3-327-3456 Report Issued Date : Aug. 20, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4CQ01 FCC RF Test Report Report No. : FR070841-01 Remote View
