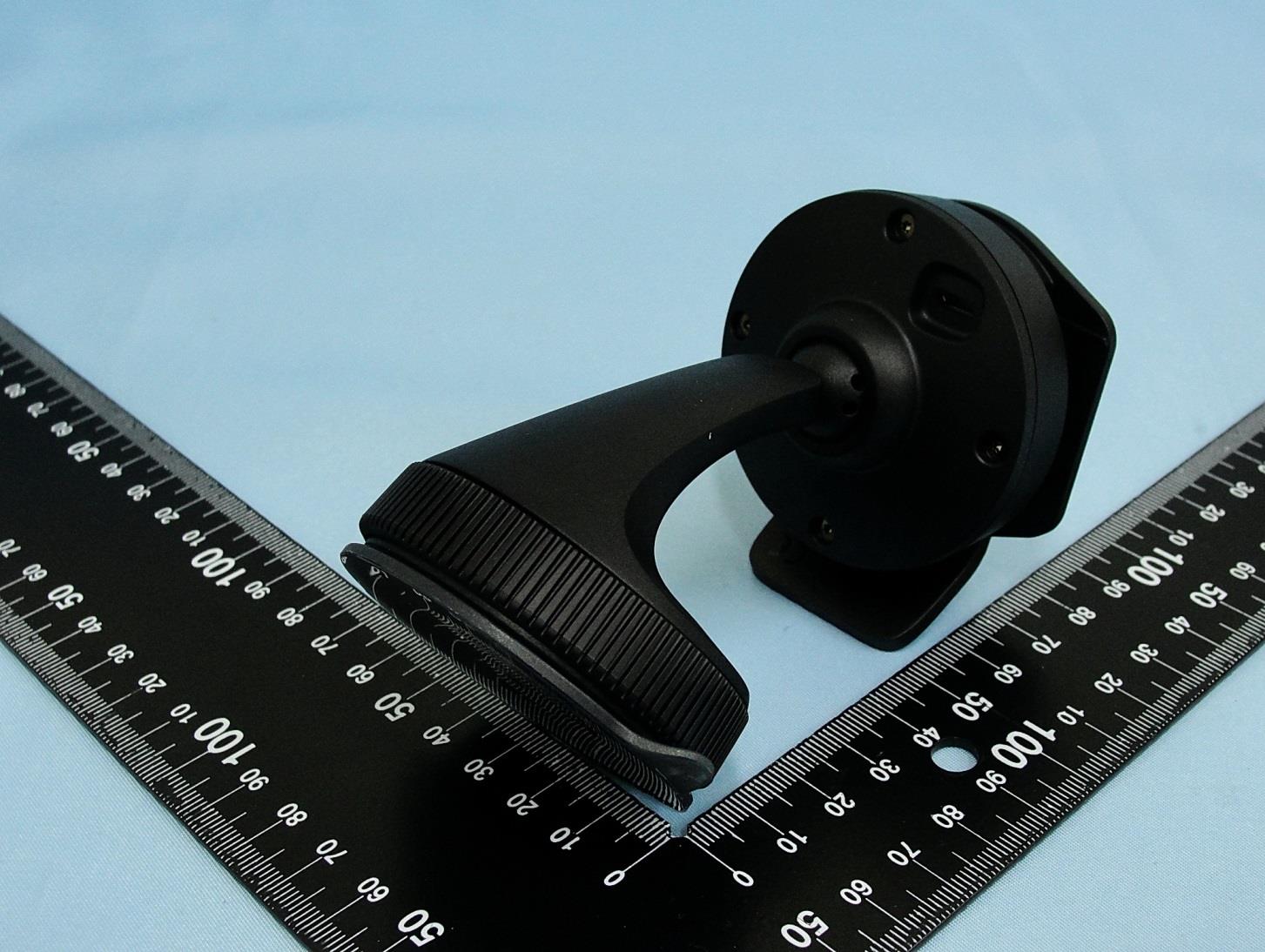

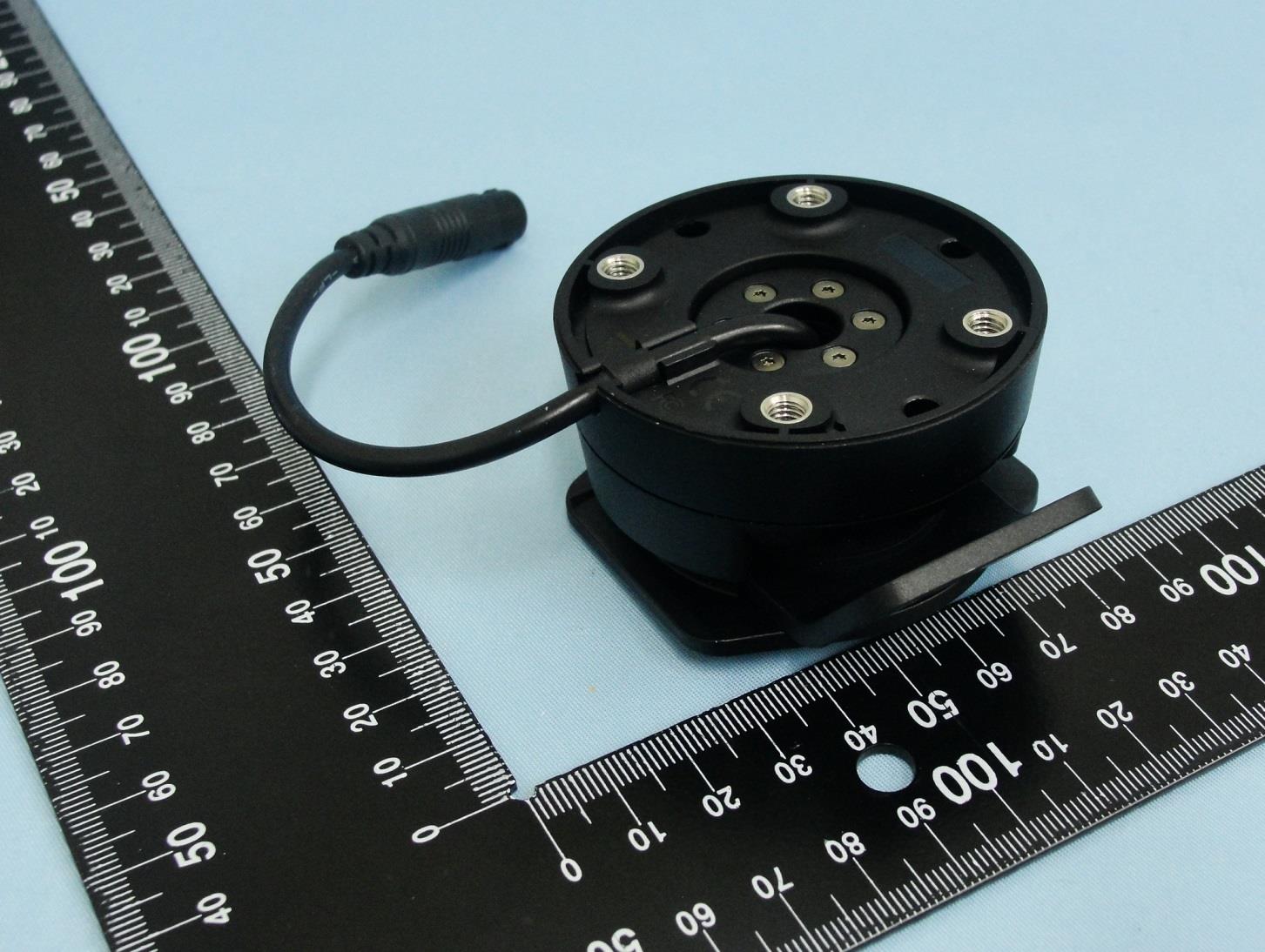

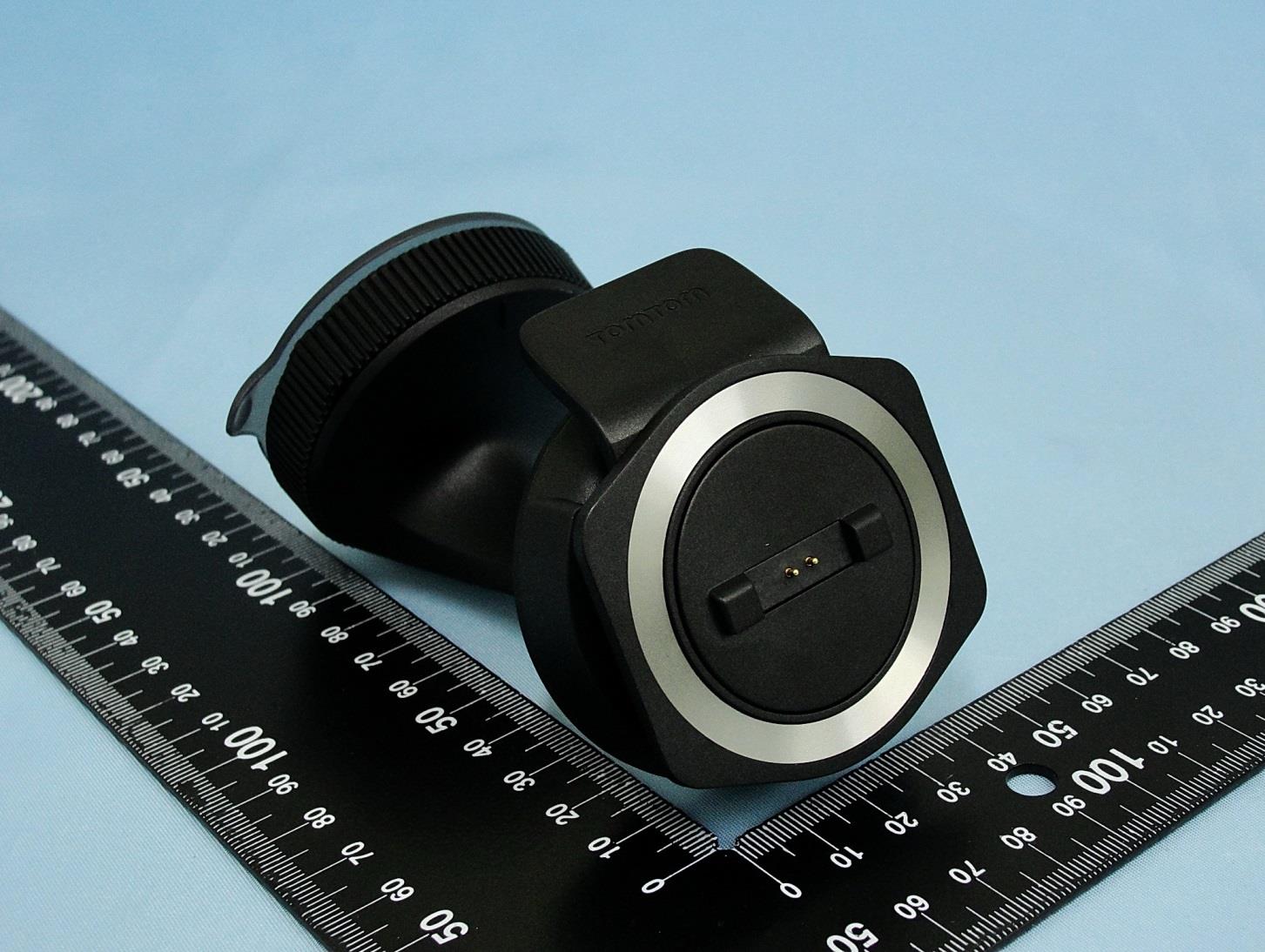

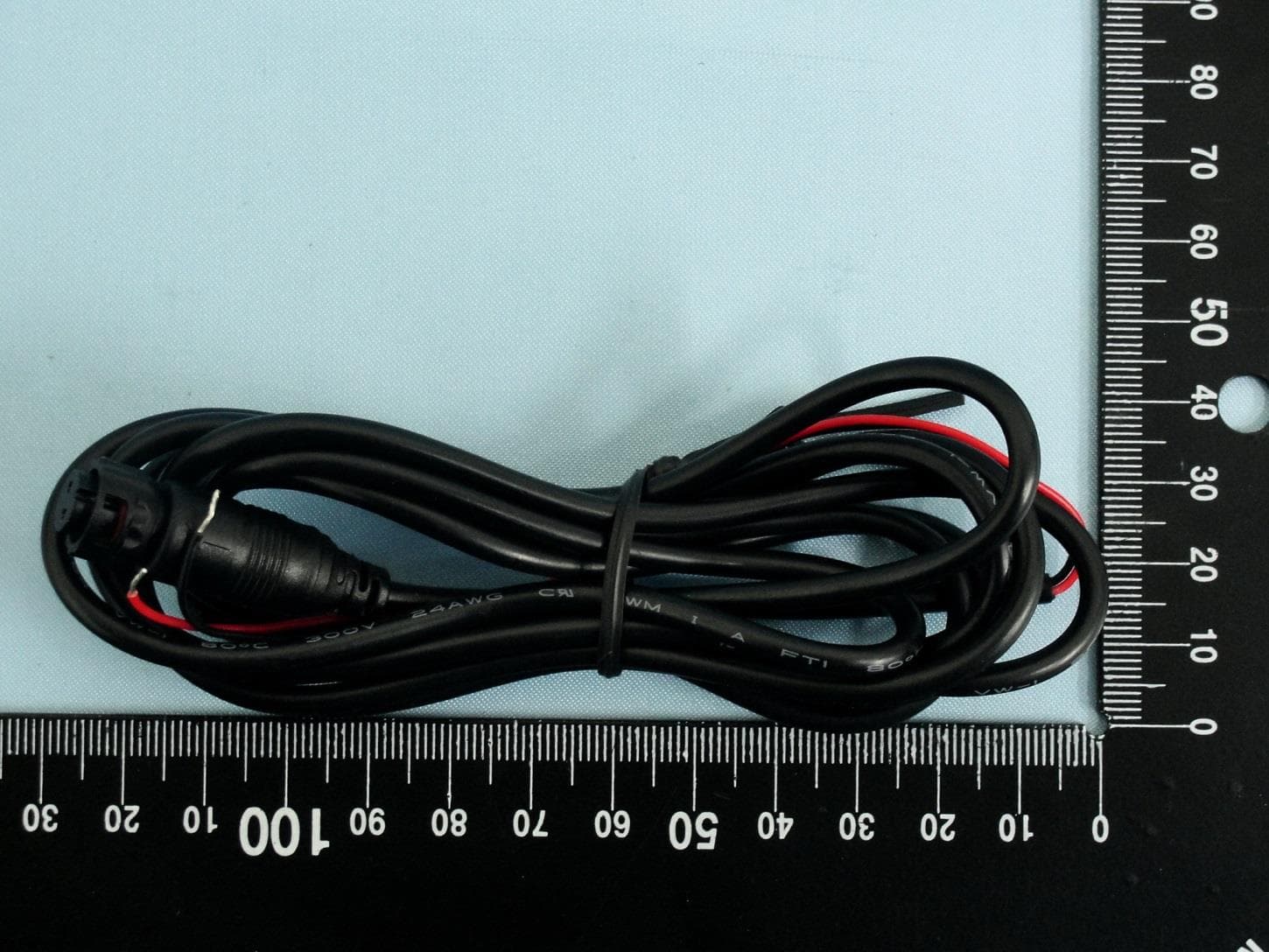

Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 1 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 1. External Photograph of EUT Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 2 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 720510 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 3 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Specification of Accessory AC Adapter Brand Name TomTom Manufacturer Phihong Model Name 4UUC6B Car Charger 1 Brand Name TomTom Manufacturer Supa / HANSEN / MilliHenry Model Name 4UUC3Z Car Charger 2 Brand Name TomTom Manufacturer Ever Win Model Name 4UUC9 Car Charger 3 Brand Name TomTom Manufacturer Ever Win Model Name 4UUC26 Car Charger 4 Brand Name TomTom Manufacturer Supatech / HANSEN / MilliHenry Model Name 4UUC25 Battery Brand Name TomTom Model Name VF3W USB Cable Brand Name TomTom Model Name 4UUC.001.04B Docking 1 (Car Dock) Brand Name TomTom Model Name 4GE02 Docking 2 (Bike Dock) Brand Name TomTom Model Name 4GE01 Bike Charge cable Brand Name TomTom Model Name 4GE0.001.04 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 4 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 5 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 AC Adapter Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 6 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 7 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 8 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Car Charger 1 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 9 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Car Charger 2 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 10 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Car Charger 3 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 11 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Car Charger 4 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 12 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Battery Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 13 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Docking 1 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 14 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 15 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Docking 2 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 16 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 17 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 720510 Bike Charge cable

Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 18 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 3. Internal Photograph of EUT Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 19 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 20 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 21 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 22 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 23 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 24 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 25 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 26 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 27 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 28 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 29 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 30 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Bluetooth Antenna Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 31 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 32 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 GPS Antenna Photographs of EUT Report No.: EP511219 Brand Name: TomTom / Model Name: 4GE40 SPORTON INTERNATIONAL INC. Page Number : 33 of 33 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: S4L4GE40 IC : 5767A-4GE40 720510

SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 ; IC ID : 5767A-4GE40 RF Exposure Evaluation Report Report No. : FA511219 RF Exposure Evaluation Report APPLICANT : TomTom International BV EQUIPMENT : GPS Navigation System BRAND NAME : TomTom MODEL NAME : 4GE40 FCC ID : S4L4GE40 IC ID : 5767A-4GE40 STANDARD : 47 CFR Part 2.1093 FCC KDB 447498 D01 v05r02 IC RSS-102 Issue 4 (March 2010) We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1093, IC RSS-102 Issue 4 (March 2010), and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 ; IC ID : 5767A-4GE40 RF Exposure Evaluation Report Report No. : FA511219 Table of Contents 1. Administration Data ........................................................................................................................... 3 2. General Information ........................................................................................................................... 3 2.1 Description of Device Under Test (DUT) ........................................................................................... 3 3. Maximum RF output power among production units ......................................................................... 4 4. RF Exposure Evaluation .................................................................................................................... 4 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA511219 Rev. 01 Initial issue of report Feb. 13, 2015 SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 ; IC ID : 5767A-4GE40 RF Exposure Evaluation Report Report No. : FA511219 1. Administration Data Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) TEL: +886-3-327-3456 FAX: +886-3-328-4978 Applicant Company Name TomTom International BV Address De Ruijterkade 154, 1011 AC Amsterdam The Netherlands Manufacturer Company Name Tech-Giant (Shanghai) Computer Co., Ltd Address C#,No.1, South Rongteng Road，Songjiang Export Processing Zone, Shanghai, China 2. General Information 2.1 Description of Device Under Test (DUT) Product Feature & Specification DUT Type GPS Navigation System Brand Name TomTom Model Name 4GE40 FCC ID S4L4GE40 IC ID 5767A-4GE40 Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode •Bluetooth v2.1+EDR Antenna Type Ground Chip Antenna HW Version PR2 SW Version 14.600 DUT Stage Production Unit Remark: The above DUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Report Issued Date : Feb. 13, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 ; IC ID : 5767A-4GE40 RF Exposure Evaluation Report Report No. : FA511219 3. Maximum RF output power among production units Mode / Band Average Power (dBm) v2.1+EDR 2.4GHz Bluetooth 4.0 4. RF Exposure Evaluation Bluetooth Max Power (dBm) mW Separation Distance (mm) Frequency (GHz) Exclusion Thresholds 4.00 3.00 5 2.48 0.94 Note: 1. Per KDB 447498 D01v05r02, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Conclusion: 1. According to KDB 447498 D01v05r02 exclusion thresholds is 0.94 < 3, RF exposure evaluation is not required. 2. For IC, according to RSS-102 Clause 2.5.1, Bluetooth Max output power is 4.00dBm, antenna gain is 1.72dBi, and EIRP is 5.72dBm, (EIRP = Average power + Gain) both conducted power and radiated power are smaller than 20mw. Therefore, stand-alone SAR is excluded, and the consideration of simultaneous transmission with Bluetooth is exempt.

SPORTON INTERNATIONAL INC. Page Number : 1 of 69 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 Report Template No.: BU5-FR15CBT Version 1.0 IC : 5767A-4GE40 Report Template No.: BU5-CR210BT Version 1.0 FCC/IC RF Test Report Report No. : FR511219 FCC/IC RF Test Report APPLICANT : TomTom International BV EQUIPMENT : GPS Navigation System BRAND NAME : TomTom MODEL NAME : 4GE40 FCC ID : S4L4GE40 IC : 5767A-4GE40 STANDARD : FCC Part 15 Subpart C §15.247 IC RSS-210 issue 8 CLASSIFICATION : (DSS) Spread Spectrum Transmitter The product was received on Jan. 12, 2015 and testing was completed on Jan. 31, 2015. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 69 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 Report Template No.: BU5-FR15CBT Version 1.0 IC : 5767A-4GE40 Report Template No.: BU5-CR210BT Version 1.0 FCC/IC RF Test Report Report No. : FR511219 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification subjective to this standard .............................................................................. 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Testing Location ................................................................................................................................ 6 1.7 Applicable Standards ......................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Descriptions of Test Mode ................................................................................................................. 8 2.2 Test Mode .......................................................................................................................................... 9 2.3 Connection Diagram of Test System ............................................................................................... 10 2.4 Support Unit used in test configuration and system ........................................................................ 11 2.5 EUT Operation Test Setup .............................................................................................................. 11 2.6 Measurement Results Explanation Example ................................................................................... 11 3 TEST RESULT .......................................................................................................................................... 12 3.1 Number of Channel Measurement .................................................................................................. 12 3.2 Hopping Channel Separation Measurement ................................................................................... 14 3.3 Dwell Time Measurement ................................................................................................................ 21 3.4 20dB and 99% Bandwidth Measurement ........................................................................................ 24 3.5 Peak Output Power Measurement .................................................................................................. 37 3.6 Conducted Band Edges Measurement............................................................................................ 39 3.7 Conducted Spurious Emission Measurement ................................................................................. 46 3.8 Radiated Band Edges and Spurious Emission Measurement ........................................................ 56 3.9 AC Conducted Emission Measurement........................................................................................... 62 3.10 Antenna Requirements .................................................................................................................... 66 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 67 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 68 6 PHOTOGRAPHS OF EUT......................................................................................................................... 69 APPENDIX A. TEST RESULT OF RA…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : A1 of A6 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 Report Template No.: BU5-FR15CBT Version 1.0 IC: 5767A-4GE40 Report Template No.: BU5-CR210BT Version 1.0 FCC/IC RF Test Report Report No. : FR511219 Appendix A. Radiated Spurious Emission Test Engineer : Donny Pang Temperature : 22~24°C Relative Humidity : 47~50% 15C 2.4GHz 2400~2483.5MHz BT (Band Edge @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH00 2402MHz 2342.63 45.64 -28.36 74 42.24 31.91 6.14 34.65 116 148 P H 2342.63 20.91 -33.09 54 - - - - - - A H * 2402 88.59 - - 85.08 31.94 6.21 34.64 116 148 P H * 2402 63.86 - - - - - - - - A H H H 2353.42 45.92 -28.08 74 42.51 31.92 6.14 34.65 325 274 P V 2353.42 21.19 -32.81 54 - - - - - - A V * 2402 85.13 - - 81.62 31.94 6.21 34.64 325 274 P V * 2402 60.4 - - - - - - - - A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A2 of A6 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 Report Template No.: BU5-FR15CBT Version 1.0 IC: 5767A-4GE40 Report Template No.: BU5-CR210BT Version 1.0 FCC/IC RF Test Report Report No. : FR511219 BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 39 2441MHz 2323.3 44.94 -29.06 74 41.59 31.9 6.1 34.65 113 120 P H 2323.3 20.21 -33.79 54 - - - - - - A H * 2441 90.69 - - 87.09 31.97 6.27 34.64 113 120 P H * 2441 65.96 - - - - - - - - A H 2491.83 44 -30 74 40.29 32 6.34 34.63 113 120 P H 2491.83 19.27 -34.73 54 - - - - - - A H 2367.76 45.22 -28.78 74 41.78 31.92 6.17 34.65 350 269 P V 2367.76 20.49 -33.51 54 - - - - - - A V * 2441 87.26 - - 83.66 31.97 6.27 34.64 350 269 P V * 2441 62.53 - - - - - - - - A V 2492.02 44.3 -29.7 74 40.59 32 6.34 34.63 350 269 P V 2492.02 19.57 -34.43 54 - - - - - - A V BT CH 78 2480MHz * 2480 88.28 - - 84.62 31.99 6.3 34.63 110 121 P H * 2480 63.55 - - - - - - - - A H 2483.5 50.25 -23.75 74 46.59 31.99 6.3 34.63 110 121 P H 2483.5 25.52 -28.48 54 - - - - - - A H H H * 2480 80.73 - - 77.07 31.99 6.3 34.63 353 270 P V * 2480 56 - - - - - - - - A V 2484.18 44.93 -29.07 74 41.27 31.99 6.3 34.63 353 270 P V 2484.18 20.2 -33.8 54 - - - - - - A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. Page Number : A3 of A6 TEL : 886-3-327-3456 Report Issued Date : Feb. 17, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : S4L4GE40 Report Template No.: BU5-FR15CBT Version 1.0 IC: 5767A-4GE40 Report Template No.: BU5-CR210BT Version 1.0 FCC/IC RF Test Report Report No. : FR511219 15C 2.4GHz 2400~2483.5MHz BT (Harmonic @ 3m) BT Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BT CH 00 2402MHz 4803 36.45 -37.55 74 54.44 34.35…
