S4LCARCONCar Connect

Tom Tom Car Con nect © 2006 TomTom International B.V., The Netherlands. Patents Pending. All rights reserved. TomTom and the TomTom logo are registered trademarks of TomTom International B.V., The Netherlands. All other trademarks are the property of their respective owners. Our limited warranty applies to this product. You can review it at www.tomtom.com/legal toc.fm Page 1 Wednesday, August 9, 2006 6:31 PM Find your way the easy way TomTom Car Connect English4 Deutsch10 Français16 Nederlands22 Italiano28 Español34 Dansk40 Svenska46 Addendum52 EN DE FR NL IT ES DA SV toc.fm Page 2 Wednesday, August 9, 2006 6:31 PM EN Before you start 4 Befo re you start Please read the following important notes before installation. Warranty TomTom Car Connect must be professionally installed to be covered by our full warranty. To ensure that the customer’s full warranty is valid they will need to have a proof of purchase and proof of professional installation. Compatibility Does the TomTom have the latest version of the application? TomTom Car Connect is compatible with TomTom GO 510, 710, 910. The application on the TomTom must be version 6.52 or above. To find the application version, tap the bottom right hand corner of the status bar in the Driving View. The version number of the application is shown in the bottom right hand corner of the next screen. To download the latest application, use TomTom HOME or visit www.tomtom.com/support Does the car have ISO-compliant connectors? The cable harness supplied in the box is for ISO-compliant cable harnesses only. If your car connectors are not ISO- compliant, you will need a different cable harness. Does the stereo have an 'Aux in' socket? If the car stereo does not have an 'AUX in' socket, you may need to use either an external amplifier or a 'CD-changer to AUX in' adaptor. Safety checklist •Preventing electromagnetic interference Car Connect and any cables attached to Car Connect must be kept as far away as possible from antennas or leads for TV, FM and AM radio, and GPS. bristol_qsg.book Page 4 Monday, September 18, 2006 2:14 PM EN Before you start 5 •Check voltage Car Connect works with 12-volt batteries with a negative grounding, so please check the battery voltage before you start. •Check the user manual To be sure all connections are correct, always refer to the user manual for details. Wiring safety • If needed use cable clamps or tape to secure all connections. • Make sure none of the leads are trapped between Car Connect and the surrounding metalwork or fittings. • Always wrap tape around wires near metal parts. • Keep wires away from moving parts or places which get hot or wet, like heater outlets or doors. • If in doubt about wire colour coding, check the user manual, as the same colours can have different functions in different systems. • Do not shorten any cables. • Never tap into the Car Connect power supply lead. Unauthorized parts Installation can vary depending on the model of the vehicle. Additional equipment may be required. Use only the parts included in the Car Connect box or recommended by TomTom, as the use of unauthorized parts can cause malfunctions. Modifications Check with the vehicle manufacturer's dealership if you have to drill holes or modify the vehicle in any way. Always check behind any place where you need to drill a hole to avoid damaging other parts. Fuse changes If you replace the fuse, use a fuse of the type specified on the fuse holder. bristol_qsg.book Page 5 Monday, September 18, 2006 2:14 PM EN What’s in the box 6 Wha t’s in the box aTomTom Car Connect bISO cable harness cTie wrapsdInstallation manual and warranty leaflet bristol_qsg.book Page 6 Monday, September 18, 2006 2:14 PM EN Installation 7 Installat ion 1. To avoid short circuits, disconnect the negative “-” battery terminal before you start dismantling the dashboard. 2. Connect the cable harness to the car stereo and then to Car Connect using the 20 pin connector. Connector shown from cable entry side. PinUse 1Power supply (12 V) 2Ignition input (12 V) 3Power earth 6Illumination (12 V) 10Audio earth 14Positive trigger mute for head unit (pull to 12 V) 16Negative trigger mute for head unit (pull to 0V) 17Microphone input for hands-free calls 18Microphone earth 19Audio out left channel 20Audio out right channel Note: The cable harness supplied in the box is for ISO- compliant cable harnesses only. If your car connectors are not ISO-compliant, you will need a different cable harness. bristol_qsg.book Page 7 Monday, September 18, 2006 2:14 PM EN Installation 8 3. Connect the line out to the 'AUX in' socket. 4. Connect the microphone lead to the 'MIC in' socket. 5. Attach Car Connect to a suitable fixed object like a cable harness using the tie wraps supplied. 6. Double-check that all connections are correct. 7. Reconnect the negative “-” cable to the negative “-” terminal of the battery. System Set-up 1. Turn on the ignition to activate Car Connect. 2. Place the TomTom in the windscreen dock and switch it on. 3. Tap Speaker Preferences in the Preferences menu. 4. Choose the sound set-up you want for Car Connect. There are two options: •Play music over external speaker •Play spoken instructions over external speaker You can select any combination of these options. Note: If the car stereo does not have an 'AUX in' socket, you may need to use either an external amplifier or a 'CD- changer to AUX in' adaptor. Note: Hands-free calls are always played using Car Connect. You must establish a Bluetooth connection between your phone and your GO, not between your phone and TomTom Car Connect. bristol_qsg.book Page 8 Monday, September 18, 2006 2:14 PM EN Installation 9 5. Tap Done. 6. The TomTom asks you to confirm that you want to use an external Bluetooth Hi-Fi speaker. Tap YES. It will then start searching for Bluetooth Hi-Fi devices. 7. Select Car Connect from the list of devices found by the TomTom. It will then try to establish a Bluetooth connection with Car Conn…

Text truncated - open the document above for the full version.

Date: 2006/09/25 Federal Communications Commission Authorization and Evaluation Division FCC ID: S4LCARCON Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Block Diagram 3. Operational Description 4. BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

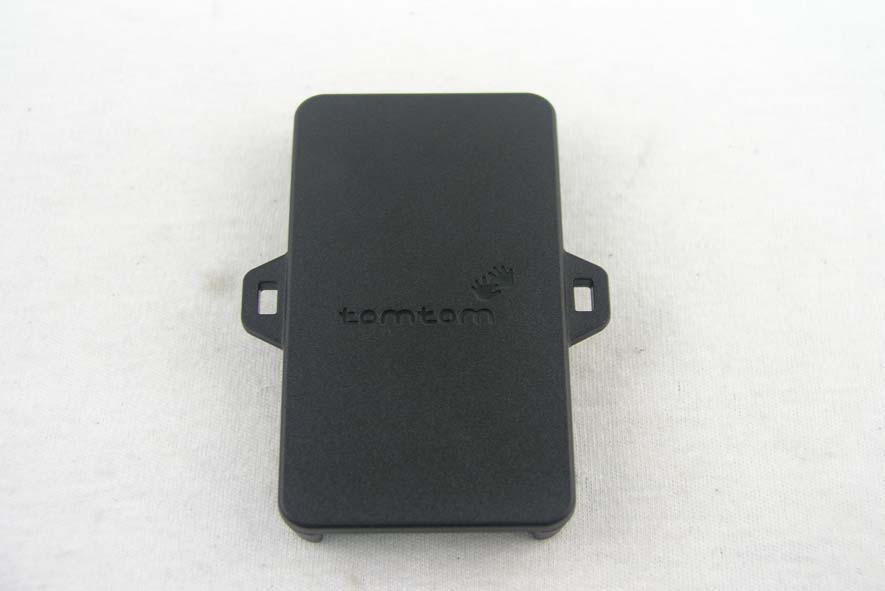

Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL OF EUT Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT Back View of EUT Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Bottom View of EUT

FCC ID / IC LABEL FORMAT AND LOCATION Applicant: TOMTOM International BV IC: 5767A-CARCON FCC ID: S4LCARCON

Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL OF EUT Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT -1 Antenna Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT-2

Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw RF EXPOSURE „ Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. „ Measurement Result: This is a portable device and the Max peak output power is 0.88dBm (0.00122mW) lower than low threshold 60/fGHz mW (24.48mW), d<2.5cm in general population category； The SAR measurement is not necessary.

Report No.: EF/2006/80016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Page: 1 of 67 Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT AND INDUSTRY CANADA RSS-210 OF Product Name: Car Connect Brand Name: TomTom Model Name: 4V00.006 IC Number: ID Number: 5767A-CARCON S4LCARCON Report No.: EF/2006/80016~17 Issue Date: Sep. 21, 2006 Rule Part: FCC Part 15C:2005 , §15.247, RSS-210 issue 6:2005, Annex 8 Prepared for TOMTOM International BV Rembrandtplein 35, 1017 CT Amsterdam, Netherlands Prepared by SGS Taiwan Ltd. No. 134, Wu Kun g Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Page: 2 Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: TOMTOM International BV Rembrandtplein 35, 1017 CT Amsterdam, Netherlands Equipment Under Test: Car Connect Brand Name: TomTom IC Number: ID Number: 5767A-CARCON S4LCARCON Model No.: 4V00.006 Model Difference: N/A File Number: EF/2006/80016~17 Date of test: Sep. 03, 2006 ~ Sep. 14, 2006 Date of EUT Received: Sep. 02, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15C:2005, §15.247 and RSS-210 issue 6: 2005 Annex 8. The test results of this report relate only to the tested sample identified in this report. Test By: Date Sep. 21, 2006 Sky Wang/Sr. Engineer Prepared By: Date Sep. 21, 2006 Elisa Chen/Asst. Supervisor Approved By: Date Sep. 21, 2006 Vincent Su/Manager Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Page: 3 Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Sep. 21, 2006 Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Page: 4 Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................7 1.1 Product Description ............................................................................................................................7 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................7 1.3 Test Methodology ...............................................................................................................................7 1.4 Test Facility.........................................................................................................................................7 1.5 Special Accessories .............................................................................................................................7 1.6 Equipment Mo…

Text truncated - open the document above for the full version.

Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No.: EF/2006/60016~17 IC: 5767A-CARCON Issue Date: Sep. 21, 2006 FCC ID: S4LCARCON Of This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. 此報告是遵循本公司訂定之通用服務條款所製作發放。請注意此條款列印於背面，將本公司之義務，免責，管 轄權皆明確規範之。此報告結果除非另有說明僅對檢驗之樣品負責。本報告未經本公司書面許可，不可部份複製。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photos
