S4LL0100Telematic Device

TomTom LINK 105 eco Installation Guide 2 Contents Before the installation 3 Welcome ............................................................................................................................................. 3 Components ....................................................................................................................................... 3 Requirements ..................................................................................................................................... 3 Installing your LINK 105 eco 5 Configuring a Bluetooth connection with WEBFLEET ...................................................................... 5 Configuring a Bluetooth connection with the Activation Tool ......................................................... 7 Installing LINK 105 eco in your vehicle ............................................................................................. 8 Diagnostics 10 Understanding your LINK 105 eco .................................................................................................. 10 Resetting your LINK 105 eco............................................................................................................ 10 Technical data ................................................................................................................................... 11 Addendum 12 3 Welcome With the TomTom LINK 105 eco TM you can retrieve fuel consumption data over the OBD-II connector in your vehicle and see this in WEBFLEET in real time. TomTom LINK 105 eco works together with the TomTom LINK 5xx/4xx via Bluetooth and therefore requires minimal installation effort. This document shows how to set up your LINK 105 eco. If you need to use your vehicle’s OBD-II connector for something else, for example, for mainte- nance purposes, simply remove your LINK 105 eco from the connector and reconnect it afterwards. Important: To remove the LINK 105 eco from the OBD-II connector, pull on the handle of the LINK 105 eco and not the device itself as this may cause damage. Components The following figure shows the different parts of the LINK 105 eco. 1. Handle 2. Reset button 3. Bluetooth LED (Blue) 4. Power LED (Green) 5. Body 6. Bluetooth address 7. OBD-II plug Requirements Before installing your LINK 105 eco make sure you fullfil the following requirements:  Your vehicle is fitted with a LINK 5xx/4xx.  The LINK 5xx/4xx must be activated in WEBFLEET.  Your vehicle has an OBD-II connector. Before the installation 4  To use the Activation Tool for your LINK 5xx/4xx, you need a laptop with the Activation Tool installed, the Mini USB cable and the activation code, which you can find in your WEBFLEET contract confirmation. Download the latest version of the Activation Tool from the Reseller section on busi- ness.tomtom.com under Software download. 5 There are two steps to setting up your LINK 105 eco: 1. Configure a Bluetooth connection between your LINK 105 eco and your LINK 5xx/4xx. There are two ways to establish a Bluetooth connection between your LINK 105 eco and your LINK 5xx/4xx:  By configuring a Bluetooth connection with WEBFLEET  By configuring a Bluetooth connection with the Activation Tool Make sure you have properly noted and entered the Bluetooth address of your LINK 105 eco, which you can find on the label on the OBD-II plug. 2. Install your LINK 105 eco in your vehicle. Important: If the LINK 105 eco has been used in another vehicle before, you need to reset the device before you start the engine of your vehicle, otherwise the calculation of the fuel consump- tion may be incorrect. Configuring a Bluetooth connection with WEBFLEET This section describes how to pair your LINK 105 eco with the LINK 5xx/4xx installed in your vehicle using WEBFLEET. You can also configure a Bluetooth connection using the Activation Tool instead. Note: Make sure your vehicle is properly fitted with a LINK 5xx/4xx according to the require- ments for the installation. 1. Log in to WEBFLEET here business.tomtom.com/login. 2. Click Vehicles. 3. Select your vehicle from the list. 4. In the details panel on the right, click Contract/Device. Installing your LINK 105 eco 6 5. Click Configure. 6. Select the Accessory tab. 7. In the TomTom OBDII-device section, select TomTom LINK 105 eco from the list. 8. Enter for TomTom LINK 105 eco the size (in cc) and the power (in kW) of the engine of your vehicle. Important: Make sure you have entered the correct engine size and power, as this infor- mation is the basis for the calculation of the fuel consumption of your vehicle. 9. Enter the Bluetooth address indicated on the OBD-II connector of the LINK 105 eco you want to install in that specific vehicle. 10. Click Save. The Bluetooth address of your LINK 105 eco is now assigned to the LINK 5xx/4xx in the vehicle you selected. Now you should install your LINK 105 eco in your vehicle. 7 Configuring a Bluetooth connection with the Activation Tool This section describes how to pair your LINK 105 eco with your LINK 5xx/4xx using the Activation Tool. You can also configure a Bluetooth connection with WEBFLEET instead. 1. Download the latest version of the Activation Tool from the Reseller section on busi- ness.tomtom.com under Software download. 1. Install the latest version of the Activation Tool to your Microsoft Windows © running PC. Use the Mini-USB cable from the LINK 5xx/4xx Service Set to connect your LINK 5xx/4xx to your computer. Alternatively, you can connect your LINK 5xx/4xx with your computer using Bluetooth. 2. To start the Activation Tool double click the icon. 3. Select the COM port to which you have connected your LINK 5xx/4xx from the list. Make sure the green LED on the LINK 5xx/4xx is solid on before you continue with the next step. 4. Click Ok. 5. Select the OBDII-device tab. 6. In the Connection status section select LINK 105 eco. 7. Enter in the engine size of your vehicle in cc. 8 8. Enter the KW of your engine. 9. Enter …

Text truncated - open the document above for the full version.

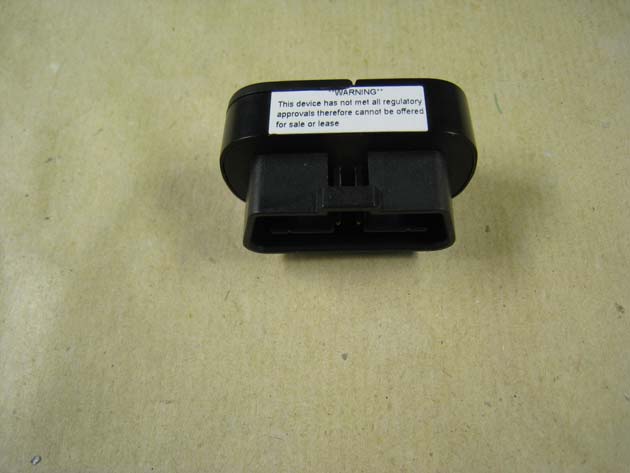

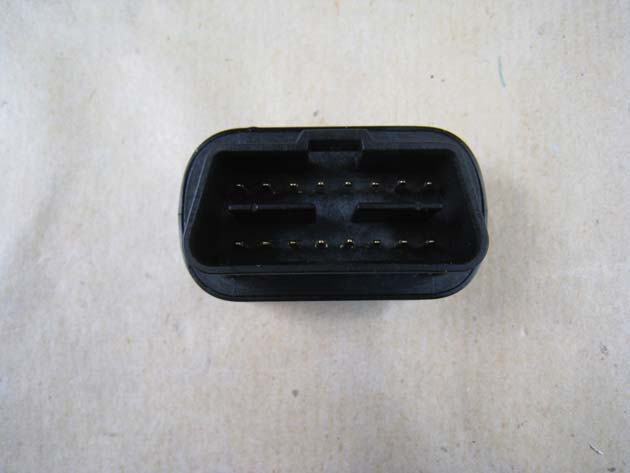

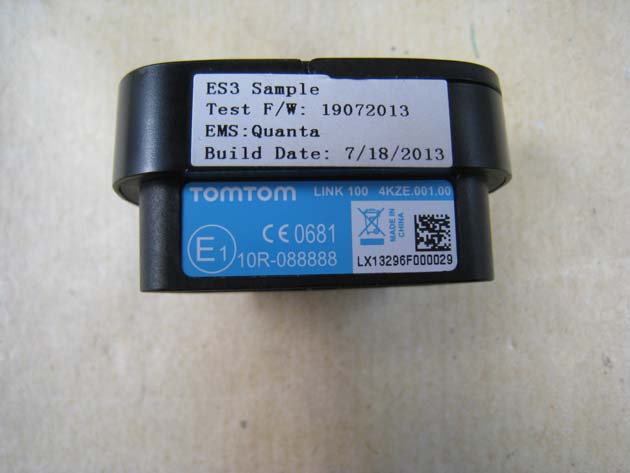

External Photos page 1 Model No.:L0100 FCC ID: S4LLINK100 IC: 5767A-LINK0100 Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany External Photos page 2 Model No.:L0100 FCC ID: S4LLINK100 IC: 5767A-LINK0100 Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany External Photos page 3 Model No.:L0100 FCC ID: S4LLINK100 IC: 5767A-LINK0100 Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

TA-2012/798 APPROVED 0681 MADE IN CHINA Model: L0100 4KZE.001.02 LZ13147G000012 00 2E 3E B3 8H 8E FF FCC ID: S4LLINK0100 IC: 5767A-LINK0100 E1 10R-047155

Label Location Model No: L0100 FCC ID: S4LLINK0100 IC: 5767A-LINK0100 (The Label is affixed on the exterior connector side) Leipzig, 2014-04-15

Internal Photos page 1 Model No.:L0100 FCC ID: S4LLINK100 IC: 5767A-LINK0100 Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38C, D-15526 Reichenwalde, Germany

Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 12 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1091 Industry Canada RSS-102 RF-Exposure evaluation of mobile equipment Report Reference No. ..................... : G0M-1402-3635-TFC091ME-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : TomTom International BV Address............................................. : Rembrandtplein 35 1017 CT Amsterdam The Netherlands Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 RSS-102, Issue 4:2010 Safety Code 6:2009 Equipment under test (EUT): Product description Telematics device with BT Model No. L0100 Additional Model(s) None Brand Name(s) LINK 100 Hardware version rbn_0_9_brd 31/2013 Firmware / Software version 0.1.1468 FCC-ID: S4LLINK100 IC: 5767A-LINK0100 Test result Passed Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 12 Version History Version Issue Date Remarks Revised by 01 2014-03-31 Initial Release Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 12 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Reference Documents 6 1.2 Radiation Sources 7 2 RESULT SUMMARY 8 3 RF-EXPOSURE CLASSIFICATIONS 9 4 ASSESSMENT 10 4.1 MPE Assessment – 47 CFR 2.1091 / RSS-102 10 Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 12 1 Equipment (Test item) Description Description Telematics device with BT Model L0100 Additional Model(s) None Brand Name(s) LINK 100 Serial number None Hardware version rbn_0_9_brd 31/2013 Software / Firmware version 0.1.1468 FCC-ID S4LLINK100 IC 5767A-LINK0100 Equipment type End product Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 12 1.1 Reference Documents Document type Document No. Issued by Date FCC 15.247 Test Report G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH 2014-03-31 Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 12 1.2 Radiation Sources Mode # Description Bluetooth Frequency range [MHz] 2402 – 2480 Channels 78 Transmission modes FHSS Modulations GFSK Maximum radiated power [dBm] 2.19 Maximum transmission duty cycle [%] 78 Antenna gain [dBi] 0.0 Antenna diameter [cm] 0.32 Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 12 2 Result Summary FCC 47 CFR Part 2.1091, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1091 Maximum permissible exposure @ 20cm below limit PASS RSS-102 2.5.2 Maximum permissible exposure @ 20cm below limit PASS Remarks: Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 12 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1402-3635-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 12 4 Assessment 4.1 MPE Assessment – 47 CFR 2.1091 / RSS-102 MPE Assessment acc. to 47 CFR 2.1091 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method FCC OET Bulletin 65 / RSS-102 & Safety Code 6 Device type mobile Exposure category General public IC Limits – Occupational / Controlled Exposure Frequency range [MHz] Electric field strength [V/M] Magnetic field strength [A/M] Power density [W/m 2 ] Averaging time [min] 0.003 – 1.0 600 4.9 N/A 6 1 – 10 600/f 4.9/f N/A 6 10 – 30 60 4.9/f N/A 6 30 – 300 60 0.163 10.0* 6 300 – 1500 3.54·f 0.5 0.0094·f 0.5 f/30 6 1500 - 15000 137 0.364 50 6 15000 - 150000 137 0.364 50 616000/f 0.5 150000 - 300000 0.354·f 0.5 9.4·10 -4 ·f 0.5 3.33·10 -4 ·f 616000/f 0.5 IC Limits – General Population / Uncontrolled Exposure Frequency range [MHz] Electric field strength [V/M] Magnetic fie…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 89 FCC TEST REPORT FCC 47 CFR Part 15C Industry Canada RSS-210 Frequency hopping systems operating within the 2400 – 2483.5 MHz band Report Reference No. ..................... : G0M-1402-3635-TFC247BT-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address ............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : TomTom International BV Address ............................................. : Rembrandtplein 35 1017 CT Amsterdam The Netherlands Test specification: Standard ........................................... : 47 CFR Part 15C RSS-210, Issue 8, 2010-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.4:2009 Equipment under test (EUT): Product description Telematics device with BT Model No. L0100 Additional Model(s) None Brand Name(s) LINK 100 Hardware version rbn_0_9_brd 31/2013 Firmware / Software version 0.1.1468 FCC-ID: S4LLINK100 IC: 5767A-LINK0100 Test result Passed Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 89 Version History Version Issue Date Remarks Revised by 01 2014-03-31 Initial Release Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 89 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 5 1.1 Photos – Equipment External 6 1.2 Photos – Equipment internal 9 1.3 Photos – Test setup 11 1.4 Supporting Equipment Used During Testing 12 1.5 Test Modes 13 1.6 Test Equipment Used During Testing 14 2 RESULT SUMMARY 16 3 TEST CONDITIONS AND RESULTS 17 3.1 Test Conditions and Results – Occupied Bandwidth 17 3.2 Test Conditions and Results – 20 dB Bandwidth 21 3.3 Test Conditions and Results – Number of hopping frequencies 25 3.4 Test Conditions and Results – Frequency hopping channel separation 29 3.5 Test Conditions and Results – Time of occupancy (Dwell Time) 31 3.6 Test Conditions and Results – Maximum peak conducted power 33 3.7 Test Conditions and Results – Band edge compliance 35 3.8 Test Conditions and Results – Conducted spurious emissions 40 3.9 Test Conditions and Results – Transmitter radiated emissions 44 3.10 Test Conditions and Results – Receiver radiated emissions 46 ANNEX A Transmitter radiated spurious emissions 48 ANNEX B Receiver radiated spurious emissions 82 Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 89 1 Equipment (Test item) Description Description Telematics device with BT Model L0100 Additional Model(s) None Brand Name(s) LINK 100 Serial number None Hardware version rbn_0_9_brd 31/2013 Software / Firmware version 0.1.1468 FCC-ID S4LLINK100 IC 5767A-LINK0100 Equipment type End product Radio type Transceiver Radio technology Bluetooth Operating frequency range 2402 - 2480 MHz Assigned frequency band 2400 - 2483.5 MHz Main test frequencies F LOW 2402 MHz F MID 2441 MHz F HIGH 2480 MHz Spreading FHSS Modulations GFSK Number of channels 79 hopping channels at all Channel spacing 1 MHz Number of antennas 1 Antenna Type integrated Model ALA321C3 Manufacturer Amotech Gain 0.0 dBi (declared by customer) Manufacturer Quanta Computer Inc. No.211, Wen Hwa 2nd Road., Kuei Shan Hsiang 33377 Tao Yuan Shien Taiwan (ROC) Power supply V NOM 12 VDC V MIN 9.0 VDC V Max 30.0 VDC AC/DC-Adaptor Model N/A Vendor N/A Input N/A Output N/A Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 89 1.1 Photos – Equipment External EUT FRONT EUT TOP Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 89 EUT BOTTOM EUT CONNECTORS Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 89 EUT OPEN Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 89 1.2 Photos – Equipment internal PCB TOP PCB BOTTOM Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 89 PCB WITH CHIP-ANTENNA Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 89 1.3 Photos – Test setup TEST SETUP Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 12 of 89 1.4 Supporting Equipment Used During Testing Product Type* Device Manufacturer Model No. Comments None *Note: Use the following abbreviations: AE : Auxiliary/Associated Equipment, or SIM : Simulator (Not Subjected to Test) CABL : Connecting cables Test Report No.: G0M-1402-3635-TFC247BT-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 13 of 89 1.5 Test Modes Mode # Description DH5-Sngl General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping stopped (single hopping channel) Modulation = GFSK Packet type = DH5 Data rate = 1 Mbps Duty cycle = 78 % Power level = Maximum DH5-Hop General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone transmit Spreading = Hopping Modulation = GFSK Packet type = DH5 Data rate = 1 Mbps Duty cycle = 78 % Power level = Maximum Receive General conditions: EUT powered by laboratory power supply. Radio conditions: Mode = standalone receive Spreading = Hopping AC-Power…
