S4LONE-CKGPS Tracking System

blankPages.fm Page 203 Tuesday, October 10, 2006 5:41 PM 3 Find your way the easy TomTom ONE Quick Start Guide TomTo mONE Quick Start Guide Contents Contenido Sommaire What’s in the box4 Getting started5 Making your first journey6 Using your TomTom ONE8 TomTom limited warranty9 Contenido de la caja10 Primeros pasos11 El primer viaje12 Utilización de su TomTom ONE14 TomTom Garantía Limitada39 Contenu du coffret16 Point de départ17 Calcul d'un premier itinéraire18 Utiliser votre TomTom ONE20 TomTom Garantie Limitée21 EN ES FR toc_US.fm Page 3 Wednesday, October 11, 2006 12:45 PM What’s in the box 4 EN What’s in the box * Not included in all products aYour TomTom ONE ATouchscreen BCharging LED COn/Off button DSpeaker EExternal antenna connector FMemory card slot GUSB connector bWindshield HoldercMemory card (SD card)* dUSB Car ChargereUSB cable fProduct code cardgDocumentation pack Edinburgh_qsg_EN.book Page 4 Tuesday, December 12, 2006 3:54 PM EN Getting started 5 Getting started Switching on Follow the instructions on the Installation Poster to mount your TomTom ONE in your car. The first time you switch on your TomTom ONE, it may take up to 20 seconds to start. To switch off your TomTom ONE, press and hold the On/Off button for 2 seconds. Setting up You have to answer a few questions to set up your TomTom ONE. Answer the questions by tapping the screen. You will use the touchscreen for everything you do with your ONE. Locating your current position Your TomTom ONE must be outdoors to locate your current position. The first time you start your ONE, it can take up to 5 minutes to find your current position. If it takes longer than 5 minutes, make sure that you are in an open place without tall buildings or trees around you. Once your ONE has located your current position, the Driving View is shown in full color and shows your position on the map. Important • Everyone loves TomTom ONE, so never leave your ONE in your car when you’re not using it - it’s an easy target for thieves. • Make sure your windshield is clean and dry before trying to attach the holder. • Place the windshield holder so it does not block your view of the road. • Make a backup of your TomTom ONE. You can make a backup using TomTom HOME. For more information, see TomTom HOME on page 8. • To make driving even safer with your TomTom ONE, use the Safety preferences in the Preferences menu. Note: Your TomTom ONE does not transmit your position. You can, however, send your position to TomTom Buddies. For more information, visit www.tomtom.com/plus Note: Some vehicles have a heat reflective shield embedded in the windshield that may prevent TomTom ONE from locating your current position. If this is a problem in your vehicle, use the TomTom External Antenna Kit (available as an accessory). Edinburgh_qsg_EN.book Page 5 Tuesday, December 12, 2006 3:54 PM Making your first trip 6 EN Making your first trip Planning a route with your TomTom ONE is very simple. To plan your first route, follow the steps below. 1. Tap the screen to bring up the main menu. 2. Tap Navigate to... 3. Tap Address. When you enter an address, you can choose from four options: •City center - tap this button to set your destination as the center of a city or town. •Street and house number - tap this button to set an exact address as your destination. •Postcode - tap this button to enter a zip code as your destination (fully supported only in UK and the Netherlands). •Crossing or intersection - tap this button to set your destination as the point where two streets meet. For your first trip, we will enter an exact address. Edinburgh_qsg_EN.book Page 6 Tuesday, December 12, 2006 3:54 PM Making your first trip 7 EN 4. Tap Street and house number. 5. Start to type the name of the town where you want to go. As you type, the names of the towns that match what you have typed are shown. 6. Start to type the name of the street. As with the name of the town, the names of the streets that match what you have typed are shown. 7. Now enter the house number of your destination and then tap Done. 8. Your ONE asks you whether you need to arrive at a particular time. Tap YES to enter an arrival time. Your ONE shows you whether you will arrive on time. 9. When the route has been calculated, tap Done. Your TomTom ONE will immediately start guiding you to your destination with spoken instructions and visual instructions on the screen. Note: Before you can plan a route in this way, your TomTom ONE must first locate your current position. Edinburgh_qsg_EN.book Page 7 Tuesday, December 12, 2006 3:54 PM EN Using your TomTom ONE 8 Usin g your Tom Tom ON E Driving View AButtons to zoom in and zoom out on your position. BYour current position. CThe name of the next major road or road sign information, if applicable. DThe next instruction. Tap this area to repeat the last spoken instruction and to change the volume. EThe name of the next street to turn onto. FInformation about your trip. GIndicator of the strength of the GPS signal. TomTom HOME Using TomTom HOME, you can, for example, do the following: • Make and restore backups of your TomTom ONE. • Manage the maps, voices, POIs and other extras on your ONE. • Buy TomTom PLUS services and manage your subscriptions. To install TomTom HOME, insert the CD supplied with your ONE into your computer. Connect your TomTom ONE to your computer using the USB cable. Switch on your ONE and TomTom HOME starts automatically. Note: The battery in your ONE will charge when connected to your computer, but it will charge slowly (4 hours). You should also switch off your ONE to charge it with the computer. Edinburgh_qsg_EN.book Page 8 Tuesday, December 12, 2006 3:54 PM EN TomTom Limited Warranty 9 TomTo m Limited Warran ty WARRANTOR U.S. and Canadian Purchases: If you have made your purchase in the United States or Canada, this Limited Warranty is granted by and this Limitation of Liability is stipulated for the benefit of TomTom Inc., 150 Baker Avenue Ext…

Text truncated - open the document above for the full version.

from application <[email protected]> hide details 5:39 am (4 hours ago) to [email protected] date Jan 3, 2007 5:39 AM subject Re:Re:TomTom BV , FCC ID: S4LONE-CK, Assessment NO.: AN06T6405, Notice#1- revised 0103 Dear Sir: Please see my reply. Thank you. Best Regards, Amanda from Tim Dwyer <[email protected]> hide details Jan 2 (15 hours ago) to [email protected] cc "[email protected]" <[email protected]> date Jan 2, 2007 7:22 PM subject Re: TomTom BV , FCC ID: S4LONE-CK, Assessment NO.: AN06T6405, Notice#1 mailed- by gmail.com Please note Item 3 has been added below. Dear CCS, The review of this application is complete. There are two minor issues that must be resolved before the grant can be issued. 1. Section 7.7.1 of the test report shows emissions at 4.82, 4.90, 4.94, and 7.44 GHz. These emissions are in the restricted bands described in 15.205. These emissions are not reported in the radiated emissions section 7.7.2. Please provide additional data of a statement to confirm that the radiated emissions at these frequencies comply with the radiated emission limits of 15.209. Ans: Attached please find the revised test report, page 39,41-42,44-45,47-48, with test plots attached. Frequencies out of 2.4~2.5GHz band would been 'filtered' by the antenna due to the unique characteristics of the antenna. 2. Section 7.7.1 of the test report reports an emission at 2.49 GHz. 2.49 GHz is outside the allocated frequency range. The probable cause for reporting this frequency is understood, however additional data or explanation is needed. For example, you may be able to use the "Marker Count" function at that frequency to provide better frequency resolution. Ans: The actual frequency is 2480MHz, we can see it in the 20dBc plot. Since the sweep points of the plots is only 601pts, the total span of the 24.97GHz is divided only for 601pts, with 41.55MHz per points, caused the frequency shifting due to inadequate frequency resolution. Conducted test was carried on without stop, so the actual frequency is confirmed as 2480MHz. 3. The "Portable <20cm" checkbox in report Appendix I has been selected. The "Mobile >20cm" box should be selected for consistency. Please correct this. This item has also been included in the related Industry Canada application review. Ans: This EUT can be handheld too, so it is considered as protable device. Please note that a review of the related Industry Canada application (AN06I1917) is in progress, and I will forward results of that soon. The items listed above may need to be addressed in the Industry Canada application also. Best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e- mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

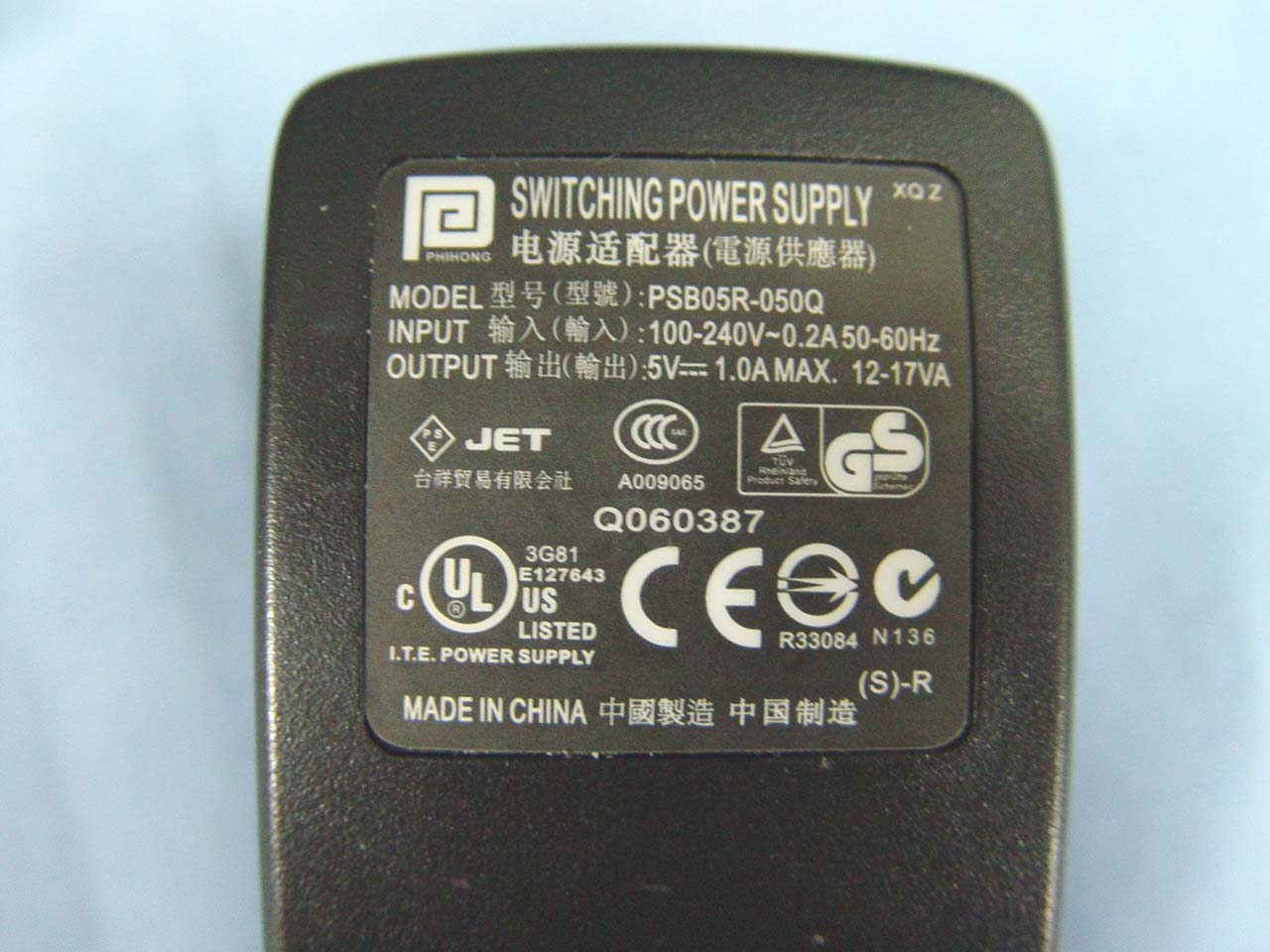

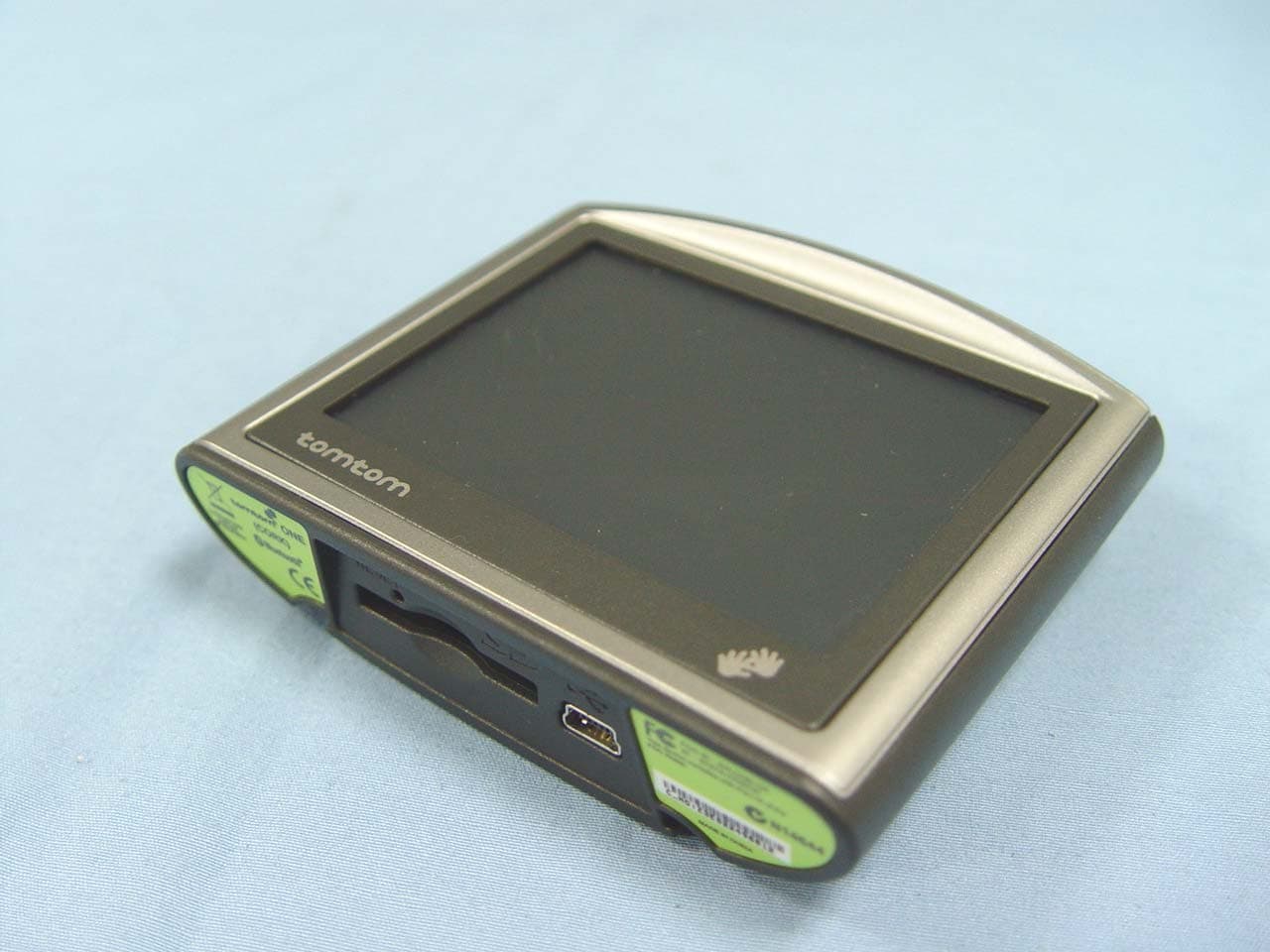

Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 1 Total Page: 9 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 2 Rev.00

LI-ION BATTERY DISPOSE OF PROPERLY ONE MADE IN CHINA N14644 S4LONE-CK 5767A-ONECK

Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 61204002 Date of Issue: December 22, 2006 Page 9 Rev.00

M e a s u r e m e n t R e p o r t M M e e a a s s u u r r e e m m e e n n t t R R e e p p o o r r t t CUSTOMER: TomTom PROJECT: xxx PRODUCT: ACA-5320A1-S REVISION: A0 DATE: 2006/5/12 Prepared by : Jacky Cheng Checked by : George_Chang . Approved by : C.K._Hsu . INPAQ TECHNOLOGY CO., LTD. No. 38 lndustry Eastern 4 th Rd., Science-Based lndustrial Park, Hsinchu, Taiwan 300, R.O.C. 30038 Tel : +886-3-563-2828 Fax : +886-3-563-6205 Web site: www.inpaq.com.tw Page: 1 1. Experimental Setup ¦ Measurement Item : a. Return loss b. Radiation pattern ¦ Return Loss : a. Instrument : vector network analyzer Agilent N5230A b. Calibration method : SOLT ¦ 3D Radiation Pattern : a. Instrument: Satimo StarLab INPAQ TECHNOLOGY CO., LTD. No. 38 lndustry Eastern 4 th Rd., Science-Based lndustrial Park, Hsinchu, Taiwan 300, R.O.C. 30038 Tel : +886-3-563-2828 Fax : +886-3-563-6205 Web site: www.inpaq.com.tw Page: 2 2. Measurement Results ¦ Return Loss : 3. Antenna Matching Circuit Diagram Antenna 8.2pF I/O 8.2nHGround INPAQ TECHNOLOGY CO., LTD. No. 38 lndustry Eastern 4 th Rd., Science-Based lndustrial Park, Hsinchu, Taiwan 300, R.O.C. 30038 Tel : +886-3-563-2828 Fax : +886-3-563-6205 Web site: www.inpaq.com.tw Page: 3 Y-Z Plane Horizontal Polarization Vertical Polarization Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -4.5 -8.76 2.45 -6.44 -10.97 2.5 -8.45 -12.63 Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -8.59 -12.86 2.45 -8.94 -12.12 2.5 -8.46 -12.51 TOTAL Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -4 -7.33 2.45 -5.93 -8.49 2.5 -7.29 -9.56 INPAQ TECHNOLOGY CO., LTD. No. 38 lndustry Eastern 4 th Rd., Science-Based lndustrial Park, Hsinchu, Taiwan 300, R.O.C. 30038 Tel : +886-3-563-2828 Fax : +886-3-563-6205 Web site: www.inpaq.com.tw Page: 4 X-Z Plane Horizontal Polarization Vertical Polarization Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -12.55 -17.91 2.45 -14.01 -17.04 2.5 -15.41 -18.55 Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -5.23 -9.58 2.45 -4.78 -9.24 2.5 -5.95 -10.24 TOTAL Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -5.2 -8.98 2.45 -4.73 -8.57 2.5 -5.89 -9.55 INPAQ TECHNOLOGY CO., LTD. No. 38 lndustry Eastern 4 th Rd., Science-Based lndustrial Park, Hsinchu, Taiwan 300, R.O.C. 30038 Tel : +886-3-563-2828 Fax : +886-3-563-6205 Web site: www.inpaq.com.tw Page: 5 X-Y Plane Horizontal Polarization Vertical Polarization Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -5.07 -10.27 2.45 -8.23 -11.4 2.5 -9.08 -12.95 Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -10.59 -16 2.45 -9.49 -14.79 2.5 -12.13 -16.33 TOTAL Frequency (GHz) Max Value (dBi) Average (dBi) 2.4 -5.05 -9.24 2.45 -6.69 -9.76 2.5 -8.13 -11.3 INPAQ TECHNOLOGY CO., LTD. No. 38 lndustry Eastern 4 th Rd., Science-Based lndustrial Park, Hsinchu, Taiwan 300, R.O.C. 30038 Tel : +886-3-563-2828 Fax : +886-3-563-6205 Web site: www.inpaq.com.tw Page: 6

Compliance Certification Services Inc. Report No.: 61204002-RP1 FCC ID: S4LONE-CK Date of Issue: December 22, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 55 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For GPS Tracking System Model: TomTom ONE Cork Trade Name: TomTom Issued to To m To m B V Rembrandtplein 35, 1017 CT Amsterdam, The Netherlands Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 61204002-RP1 FCC ID: S4LONE-CK Date of Issue: December 22, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................8 4.2 MEASUREMENT EQUIPMENT USED......................................................................................8 5. FACILITIES AND ACCREDITATIONS ...........................................................................................9 5.1 FACILITIES ......................................................................................................................................9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 PEAK POWER.................................................................................................................................12 7.2 BAND EDGES MEASUREMENT .............................................................................................13 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................18 7.4 FREQUENCY SEPARATION....................................................................................................21 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................23 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................25 7.7 SPURIO US EMISSIONS .............................................................................................................32 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................49 APPENDIX I RADIO FREQUENCY EXPOSURE ................................................................................52 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...............................................................................53 Compliance Certification Services Inc. Report No.: 61204002-RP1 FCC ID: S4LONE-CK Date of Issue: December 22, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: TomTom BV Rembrandtplein 35, 1017 CT Amsterdam, The Netherlands Equipment Under Test: GPS Tracking System Trade Name: TomTom Model: TomTom ONE Cork Date of Test: December 12 ~ 13, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Gavin Lim Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 61204002-RP1 FCC ID: S4LONE-CK Date of Issue: December 22, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product G…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61204002-RP1 FCC ID: S4LONE-CK Date of Issue: December 22, 2006 Page 53 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: 61204002-RP1 FCC ID: S4LONE-CK Date of Issue: December 22, 2006 Page 54 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 61204002-RP1 FCC ID: S4LONE-CK Date of Issue: December 22, 2006 Page 55 Rev. 00 Powerline Conducted Emissions Setup Photos
