S4PBC03RUT-01Bluetooth USB Dongle

1 CONTENTS Introduction ...................................................3 -What is Bluetooth Wireless Technology ...................3 -About BlueSoleil ...................................................3 -How to Use Your USB DONGEL ..............................4 USB DONGLE supported Bluetooth functions • AV Headphone ...................................................6 • Basic Imaging ....................................................6 • Bluetooth Synchronization .................................8 • Dial-UpNetworking ...........................................10 • FAX ................................................................11 • FileTransfer .....................................................12 • Headset ...........................................................14 • Human Interface Device .....................................14 • LAN Access .....................................................15 • Object Push .....................................................18 • Personal Area Network .....................................22 • Printer ............................................................26 • Serial Port .......................................................27 2 Additional Information Start/ Stop Bluetooth Service...................................28 USB DONGLE Specification..............................29 3 USER MANUAL BLUETOOTH USB DONGLE Introduction Congratulations and thank you for choosing Bluetooth USB DONGLE. What is Bluetooth Wireless Technology? Bluetooth is a wireless protocol for audio and data communication between devices within a small distance of about 10m (33 ft). It uses the 2.4GHz international free spectrum to make 1Mbit connection links. It is a popular solution for replacing wire connections. Products with Bluetooth technology must be qualified and pass interoperability testing by the Bluetooth Special Interest Group prior to release. About BlueSoleil BlueSoleil is a Windows-based software from IVT that allows your Bluetooth® enabled desktop or notebook computer to wirelessly connect to other Bluetooth enabled devices. BlueSoleil allows MS Windows users to wirelessly access a wide variety of Bluetooth enabled digital devices, such as cameras, mobile phones, headsets, printers, and GPS receivers. You can also form networks and exchange data with other Bluetooth enabled computers or PDAs. In order to connect and share services via Bluetooth wireless technology, two devices must support the same Bluetooth Profile(s) as well as opposite device roles (i.e., one must be the server, and the other must be the client). Bluetooth enabled devices often support multiple profiles, and if involved in multiple connections, can perform different device roles simultaneously. BlueSoleil supports the following Bluetooth functions (Profiles) in the following device roles: 4 √√ √√ √ √ √√ √√ √ √√ √√ √√ √ √√ √√ Notes: • Only one Headset or AV Headphone connection can exist at a time, since there is only one virtual Bluetooth audio device. • The Headset and AV Headphone Profiles do not work on Windows 98SE or Windows Me. How to Use USB DONGLE? Your USB DONGLE lets you connect with other devices that have integrated Bluetooth technology. Your USB DONLE allows you to: (1)Install the BlueSoleil in your PC or PDA. (2) Insert the USB dongle to your computer. (3) Start BlueSoleil. The plug in and pull out of the USB dongle can be detected by BlueSoleil. You can start BlueSoleil first and then plug in a USB dongle. (4) Source Bluetooth devices 5 (5) A connection is normally initiated from the client. • On the server side, start the service. • On the client side, initiate the connection. Start Service on Server Initiate Connection on Client 6 (6) USB DONGLE supported Bluetooth functions • AV Head phone 7 Typical Usage • • • Basic Imaging • • • 8 • Bluetooth Synchronization 9 • • • • Typical Usage • n • 10 • • Dial-Up Networking Typical Usage • • 11 • • Typical Usage • • 12 • File Transfer • • • 13 14 • Headset Typical Usage • 15 • Typical usage • • • • LAN Access 16 Typical Usage • • 17 18 • Object Push • • • • Typical Usage • 19 • • 20 • • • 21 22 • • • Personal Area Network 23 Typical Usage • 24 • 25 • • 26 • Printer • 27 • Serial Port 28 Typical Usage • • • Additional Information • START/STOP Bluetooth Service 29 Icon Meanings • • • Operations • • • 30 USB DONGLE Specification Features z Bluetooth v1.1 and v1.2 specification z Support Firmware Upgrade z Excellent compatibility with cellular telephones z Minimum external components z Built-in Antenna z Low Power Modes Available z Park,Sniff,Hold and Deep Sleep z Operation range: 10m (Bluetooth Class 2) z Frequency band: 2.4Ghz unlicensed ISM band z LED status indicator z Support Piconet,up to 7 Slaves z Weight:7.33g z Size: 52*18.4*9.8mm Product Description Bluetooth USB Dongle is a quick and inexpensive solution as a Bluetooth plug-on modules to computers. It enables computer to communicate with any Bluetooth peripherals (such as computers, PDAS, moblie phones, printer) wirelessly. 31 The Bluetooth USB Dongle is a Class 2 Bluetooth sub-system using BlueCore3-Rom chipset from leading Bluetooth chipset supplier Cambridge silicon Radio.the power by the PC.The Host Interface in USB Line. The Bluetooth USB Dongle support the following functions: — Dial-up Networking — FAX — File Transfer — LAN Access — Generic Object Exchange — Personal Area Networking — Printer — Serial Port Applications z PCs,PDAs 32 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

USBCONNECT BasebandandLogic Microcontroller DSP LDO(AME8801AME FILTER ANT BalunPA MOD RFSynthesiser BC03-ROM USBCONNECT BasebandandLogic Microcontroller DSP LDO(AME8801AME FILTER ANT Balun LNA DEMOD RFSynthesiser BC03-ROM RX TX 图(1) 图(2) CRYSTAL16MHz CRYSTAL16MHz PDF created with pdfFactory trial version www.pdffactory.com

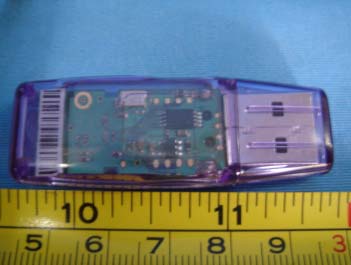

EUT – External Photos View 2.1 EUT - Front View 2.2 EUT - Back View

FCC ID Label Location This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accpt any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Mark Location This device complies with Part 15 of the FCC Rules.

FCC ID Label Sample for Model BC03RUT-01 FCC ID: S4PBC03RUT-01 Made in China This device complies with Part 15 of the FCC Rules.

2.1 PCB - Component View(1) 2.2 PCB - Component View(2)

USB DONGLE Block Diagram Description The USB DONGLE use CSR BC03-ROM as its core chip .The chip is mostly include DSPMODDEMODLNAPABase band and logicMicro controller and RF synthesiser. The external crystal that provide clock for the core chip is 16MHz .The dongle is USB interface that connected to PC. The PC’s USB port voltage is processed by LDO(AME8801AME), that provided to BC03-ROM chip operating voltage. The RF signal is transmitted and received from the external Balun filter and ANT TX block diagram description: The control signals and data in the BC03-ROM is modulated and processed and pass the PA in the chip. They output from the chip and through the Balun and Filter. Last they will be transmitted from ANT to another Bluetooth device. RX block diagram description: The RF signal from other Bluetooth device is received via ANT. And they through filter and balun into the BC03-ROM chip. They are magnified by internal LNA. the signal is transmitted to PC via USB port after demodulated.

BC03RUT-01.sch-1 - Thu Feb 24 13:30:03 2005

FCC TEST REPORT Page 1 of 37 FCC ID : S4PBC03RUT-01 Applicant : Shenzhen Micah Electronics Corp 1/F.,Bldg.M6,Middle District, High and New Technique Industrial Garden, Shenzhen, China Equipment Under Test (EUT) : Product description : USB Dongle Model No. : BC03RUT-01 Standards : FCC 15 Paragraph 15.205, Paragraph 15.207, Paragraph 15.209, Paragraph 15.31, Paragraph 15.33, Paragraph 15.35, Paragraph 15.247 Date of Test : April 21, 2005 Test Engineer : Jimmy Lee Reviewed By : PERPARED BY: Shenzhen Huatongwei International Inspection Co., Ltd Keji S,12th,Road, Hi-tech Industrial Park, Shenzhen, Guangdong, China FCC Registration Number: 662850 Shenzhen Micah Electronics Corp FCC ID:S4PBC03RUT-01 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................5 4 GENERAL INFORMATION..................................................................................................................................5 4.1 CLIENT INFORMATION............................................................................................................................................5 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................5 4.3 DETAILS OF E.U.T..................................................................................................................................................5 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................5 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................5 4.6 TEST FACILITY........................................................................................................................................................6 4.7 TEST LOCATION......................................................................................................................................................6 5 EQUIPMENT USED DURING TEST...................................................................................................................7 6 CONDUCTED EMISSION TEST..........................................................................................................................8 6.1 TEST EQUIPMENT....................................................................................................................................................8 6.2 TEST PROCEDURE...................................................................................................................................................8 6.3 CONDUCTED TEST SETUP.......................................................................................................................................9 6.4 EUT OPERATING CONDITION.................................................................................................................................9 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................10 6.6 CONDUCTED EMISSION TEST RESULT...................................................................................................................11 6.7 CONDUCTIED EMISSIONS TEST DATA...................................................................................................................12 7 RADIATION EMISSION TEST...........................................................................................................................13 7.1 TEST EQUIPMENT..................................................................................................................................................13 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................13 7.3 TEST PROCEDURE.................................................................................................................................................13 7.4 RADIATED TEST SETUP.........................................................................................................................................14 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................14 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................15 7.7 SUMMARY OF TEST RESULTS................................................................................................................................15 7.8 EUT OPERATING CONDITION...............................................................................................................................16 7.9 RADIATED EMISSIONS LIMIT.................................................................................................................................16 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................17 8 MAXIMUM PEAK OUTPUT POWER...............................................................................................................20 9 HOPPING CHANNEL NUMBER........................................................................................................................21 10 CARRIER FREQUENCIES SEPARATED.....................................…

Text truncated - open the document above for the full version.

Test Setup Photos 1. Radiation Emission Test View For 30MHz-1000MHz 2. Radiation Emission Test View For 1GHz-25GHz 2.1 Conduction Emission Test Setup View
