S4PBC03RUT1-01USB DONGLE

Bluetooth USB Adapter User Guider Unwire your life V1.4.2- 920928y 1 Index INTRODUCTION 3 CHAPTER 1 Bluetooth profile support 3 Drivers support 3 Setup for Mac 3 CHAPTER 2 Application note for Windows 98SE/ME/2000/XP 5 Icons used for Bluetooth devices and services 5 Network sharing setting for Windows 8 File transfer setting for Windows 16 Dial-up networking setting for Windows 18 FAX setting 21 PIM Item Transfer setting 22 PIM Synchronization setting 23 Serial Port setting 24 ActiveSync setting 25 Audio Gateway setting for windows 27 Personal area network setting for Windows 29 How to setup an Ad-hoc Network 30 How to setup with Bluetooth Network Access Point 32 2 FCC Regulations: zThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. zThis device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Introduction Bluetooth is an open specification for a cutting-edge technology that enables short-range wireless connections between desktop and laptop computers, personal digital assistants, cellular phones, printers, scanners, digital cameras and even home appliances — on aglobally available band (2.4GHz) for worldwide compatibility. In a nutshell, Bluetooth unplugs your digital peripherals and makes cable clutter a thing of the past. Now you can connect your PDA or PC to Bluetooth™ enabled mobile phone with this Bluetooth™ adapter. You can access e-mail & Internet no matter where you are with just a little help from your Bluetooth™ mobile phone. Plus, when you are back in the office, you can hook yourself up to your office network as well as communicate with other Bluetooth™-enabled devices. 3 Chapter 1 1.1 Bluetooth profile support includes: Generic Access Profile (GAP), Serial Port Profile (SPP), Service Discovery Application Profile (SDAP), Generic Object Exchange Profile (GOEP), Object Push Profile (OPP), File Transfer Profile (FTP), Dial-up Network Profile (DUN), LAN Access Profile (LAP), Fax Profile (FAX), Synchronization Profile, Headset Profile, Audio GatewayProfile(AG) Personal Area Network (PAN) Human Interface Device (HID) Hardcopy Cable Replacement Profile (HCRP) 1.2 Drivers support USB Bluetooth: Windows 98SE, Me, 2000, XP, Linux O.S., Mac O.S. X v10.1.2 and higher... 1.3 Mac O.S.X v10.1.2 Mac O.S. X v1.2 has build-in Bluetooth software for USB Bluetooth adapters, therefore no additional Bluetooth software is required. Simply plug in the USB Bluetooth adapter and a Bluetooth icon will appear in the System folder. Open the Bluetooth applet to configure the Bluetooth functions on your Mac system 4 Chapter 2 Application note for Windows 98SE/ME/2000/XP 2.1 Icons used for Bluetooth devices and services Bluetooth icons provide at-a-glance feedback about a device or service's status by changing appearance. The Bluetooth icon in the Windows system tray provides feedback about Bluetooth status. Basic Bluetooth Icon Device Icons for Windows 98SE, Me and 2K 5 Service Icons for Windows 98SE, Me and 2K Device Icons for Windows XP 6 Service Icons for Windows XP NOTE: Only available services are displayed in the menus 7 2.2. Network sharing setting for Windows The Network Access service permits a Bluetooth enabled PC (client) to access the Internet via another Bluetooth enabled PC (Server) that already has an Ethernet connection. Windows network sharing setting PC to PC (Windows 2000 or Windows XP) 1. To enable Internet Connection Sharing on the server PC 2. Click on Start menu-->Settings -->Network and Dial-up Connections and find your Local Area Connection (LAN) that is connected to the Internet. 3. Right click the active LAN connection to open the "Properties" dialog box. 8 4. Click on "Advanced" tab and select the "Internet Connection Sharing" checkbox to enable Internet sharing. 9 5. Click on "Settings..." button and select the services you wish to provide other Bluetooth devices. Click "OK" to save the changes. 6. Go back to the "Network and Dial-up Connections" window, right click the "Bluetooth LAN Access Server Driver" and select "Properties". 10 7. Under "General" tab, click on "Internet Protocol (TCP/IP)" and "Properties". 11 8. Under "General" tab, assign a virtual IP as shown in the picture below. Then click "OK" to save the changes. 9. This allows the server PC to act as a DHCP server towards the client PCs. NOTE: For Win98SE and WinMe, please download and install WinRoute (or similar program) on the Server PC to allow DHCP service. 10. On the client PC, launch the Bluetooth software stack by clicking the "…

Text truncated - open the document above for the full version.

BPF BALUN BC0 4 -ROM EEPROM 5 -> 3.3 VRegulator USB connector D+D- Crystal: 16 MHz Fig. Block Diagram

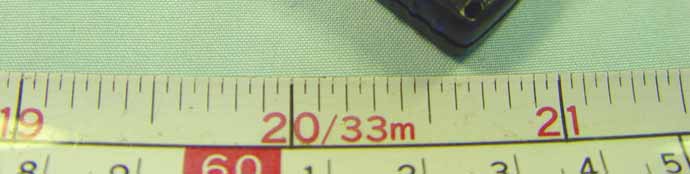

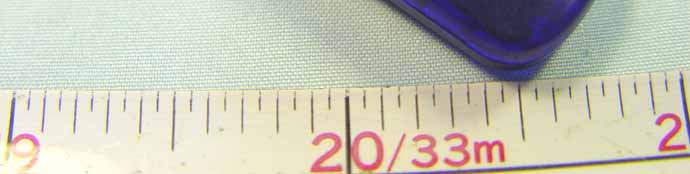

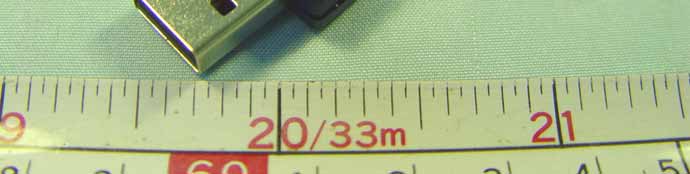

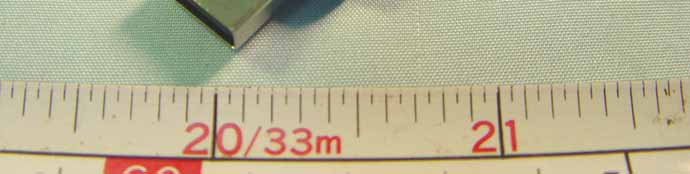

FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A1 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A2 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A3 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A4 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A5 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A6 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A7 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : A8 OF A8 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01

FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B1 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B2 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B3 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B4 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B5 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B6 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B7 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B8 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B9 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B10 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B11 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 FCC TEST REPORT REPORT NO. : FR581914 SPORTON International Inc. Page Number : B12 OF B12 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01

FCC ID: SI4-MBDC4201 Description of Operation EUT is a Bluetooth USB Adapter with 79 channels. This device provided 721kbps of transmitting speed. The device of RF carrier is GFSK. The device adapts frequency hopping spread spectrum modulation. The antenna is print on board Antenna. This Bluetooth USB Adapter is an Bluetooth 2.0 adapter. It allows your computer to connect to a bluetooth enabled products and exercise related application, such as files transfer or printing without being bound to the wires. Operation in 2.4GHz Frequency Hopping Spread Spectrum (FHSS) and GFSK radio transmission, the Bluetooth USB Adapter transfers data at speeds up to 3M bps with 128-bit encryption.

MAVIN Technology Inc. BOM Model Name :MBD-C4.20 Date2005/8/31Product name :Bluetooth version 2.0 USB Dongle Class1 ITEMITEM IDNAMESPEC COUNT LOCATION 1416-1110000001PCBPCB BC04 Class-1 Small Type (Class -1 (s)) version 3 ENG SAMP1 2301-1411430000ICIC CSR BC04 ROM BC41B143A05 6X6 84 VFBGA1 U1 3302-0418002016EEPROMEEPROM 24A16-DF26 BC04 CL-1(A05)1 U5 4306-3021020200LEDLED 19-21SYGC/TR8 GREEN 575nm 0603 1 D1 5306-0004052400TransistorRF Transistor 2.4Ghz BFP405 SOT-3431 U3 6309-2016212200CrystalCrystal 16MHZ +/-10ppm 5*3.2 (4Pad)1 X1 7304-6400500000BalunBalun LDB212G4005C-001 1 T1 8308-1024500000FilterFilter RF Band pass 2.45GHz BF2520-B2R4CAA 1 U2 9305-9167330000LDO RegulatorLDO Regulator IC RT-916733 CB1 U7 10304-1242302000Power AmplifierPower Amplifier IC 2.4GHz ALP2423L QNF-61 U9 11306-2179922500Power Switch ICPower Switch IC FET SPDT Switch 3GHZ AS179-92LF SC-701U6 12313-0030030000ConnectorConnector USB 1MM-417BR1J1 13310-0000003240ResistorResistor 0Ω 5% 0402 2 R14.47 14310-0220003240ResistorResistor 22Ω 5% 0402 3 R1.3.12 15310-0221109240ResistorResistor 2.2Ω 5% 0402 2 R2.16 16310-0100303240ResistorResistor 10KΩ 5% 0402 1 R15 17310-0220209240ResistorResistor 2.2KΩ 5% 0402 3 R5.6.7 18310-0220309240ResistorResistor 22KΩ 5% 04021 R10 19310-3000003240ResistorResistor 300Ω5% 0402 1 R9 20310-8200009240ResistorResistor 820Ω 5% 0402 1 R11 21311-2205084320Capacitor Chip Capacitor 2.2μF 10% X7R 16V 08053 C1.7.42 22311-4705224350Capacitor Chip Capacitor 4.7μF 10% X5R 16V 08051 C19 23311-1004083320Capacitor Chip Capacitor 100nF 10% X7R 16V 06031 C32 24311-0106223350Capacitor Chip Capacitor 1μF +80-20% X5R 16V 06032 C36.37 25311-0100062540Capacitor Chip Capacitor 1PF +/-0.25pF COG 50V 04021 C38 26311-1000032540Capacitor Chip Capacitor 10PF +/-5% COG 50V 0402 5 C10.16.17.18.40 27311-1211062540Capacitor Chip Capacitor 1.2PF +/-0.25PF COG 50V 04022 C12.13 28311-1500092540Capacitor Chip Capacitor 15PF 5% COG 50V 04029 C2.6.11.21.23.24.25.26.27 29311-2711062510Capacitor Chip Capacitor 2.7PF +/-0.25pf NPO 50V 04021 C20 30311-3311062540Capacitor Chip Capacitor 3.3PF +/-0.25PF COG 50V 04021 C9 31311-4711062540Capacitor Chip Capacitor 4.7PF +/-0.25PF COG 50V 04021 C39 32311-5611062540Capacitor Chip Capacitor 5.6PF +/-0.25pF COG 50V 04022 C44.45 33311-1001082540Capacitor Chip Capacitor 100PF 10% COG 50V 04021 C29 34311-1003042420Capacitor Chip Capacitor 10nF +/-10% X7R 25V 04027 C4.5.14.15.22.28.35 35311-1004082320Capacitor Chip Capacitor 100nF 10% X7R 16V 04025 C30.31.33.34.43 36312-0180206200InductorChip Inductor 1.8nH +/-0.3nH 04021 L10 37312-0220309200InductorChip Inductor 22nH 5% 04021 L1 38312-0270309200InductorChip Inductor 27nH 5% 0402 1 L9 39312-0270205200InductorChip Inductor 2.7nH +/-0.3nH 04021 L11 40312-0330309200InductorChip Inductor 33nH 5% 0402 1 L6 41312-0330205200InductorChip Inductor 3.3nH +/-0.3nH 0402 2 L2.3 42312-0390205200InductorChip Inductor 3.9nH +/-0.3nH 0402 2 L7.8 2005/9/5

Document No.: 581914 RF Exposure Test Report Date: Sep. 05, 2005 FCC ID: SI4-MBDC4201 Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for MAVIN TECHNOLOGY INC. MBD-C4.20-1 Equipment : Bluetooth USB Adapter Class1 Trade Name : Mavin Model No. : MBD-C4.20-1 FCC ID : SI4-MBDC4201 Filing Type : Certification Applicant : MAVIN TECHNOLOGY INC. 3F, No. 35, Hsin Tai Rd., Chupei City, Taiwan 302, R.O.C. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 581914 RF Exposure Test Report Date: Sep. 05, 2005 FCC ID: SI4-MBDC4201 Sporton International Inc. Maximum Permissible Exposure Test Report for MBD-C4.20-1 1.0 Introduction The report has been prepared on behalf of MAVIN TECHNOLOGY INC. Bluetooth USB Adapter Class1 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop computer, are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Motorola Corporation Indoor UWB Device with unity gain antenna is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to Document No.: 581914 RF Exposure Test Report Date: Sep. 05, 2005 FCC ID: SI4-MBDC4201 Sporton International Inc. exercise control over his or her exposure. The two categories defined are Occupational/Controlled Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Bluetooth USB Adapter Class1 is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation For this device, the calculation is as follows: ¾ No Evaluation Required if power is below this threshold: F (GHz) MW dBm 2.48 24.19 13.84 Maximum measured transmitter power for the EUT: Document No.: 581914 RF Exposure Test Report Date: Sep. 05, 2005 FCC ID: SI4-MBDC4201 Sporton International Inc. Pout (dBm) 10.98 Threshold for no RF Exposure evaluation is 13.84 dBm. Transmitter power of this device is 10.98 dBm Conclustion: No RF Exposure evaluation required since Transmitter Pout is below FCC threshold.

1 2 3 4 5 6 7 8 9 10 11 12 ABCD 12 11 10 9 8 7 6 5 4 3 2 1 D CBA Title Number Revision Size A1 Date: 1-Sep-2004 Sheet of File: D:\BillionTon\Projects\Extra_class1\Ver-0.1\C1L.ddb Drawn By: BPF in 1 out 2 gnd 3 gnd 4 U2FILTER HHM-1517 1 2 3 4 5 6 T1 HHM-1517 L122nH C1115pF +1V8 C122P2C132P2 L23n9L33n9 C615PF +1V8 C410nF +1V8 C510nF +3V3 +1V8 C72u2 R22r2 +1V8 C1410nF +3V3 C12u2 +3V3 in 1 gnd 2 out 3 gnd 4 X116MHz C93p3 C1010pF PIO_11PIO_10PIO_9PIO_8PIO_7PIO_6PIO_5PIO_4PIO_3PIO_2PIO_1/TXENPIO_0/RXENPCM_SYNCPCM_INPCM_OUTPCM_CLK SPI_CLKSPI_MISOSPI_MOSISPI_CSB D++D--UART_RXUART_TXUART_CTSUART_RTSRESETRESET_B C1510nF AIO_1AIO_0 As short as possible BC03 - ROM_6x6 RF_IN D1 TX_A F1 TX_B E1 AUX_DAC D3 VSS_VCO G1 LOOP_FILTER H2 VSS_ANA J2 VSS_RADIO D2 VSS_RADIO E2 VSS_RADIO F2 VSS_CORE E9 VSS_PADS A1 VSS_MEM A10 VSS_PADS J9 VSS_PADS K10 VDD_PRG G3 NotUsed K1 NotUsed J1 FLASH_EN B8 PIO[11] E3 PIO[10] C4 PIO[9] C3 PIO[8] C5 PIO[7] F9 PIO[6] F10 PIO[5] F8 PIO[4] E8 PIO[3] B4 PIO[2] B3 PIO[1]/TXEN B2 PIO[0]/RXEN B1 PCM_SYNC G10 PCM_IN G9 PCM_OUT G8 PCM_CLK< H10 SPI_CLK< C10 SPI_MISO B9 SPI_MOSI C8 SPI_CSB C9 USB_D+ J8 USB_D- K8 UART_RX H9 UART_TX J10 UART_CTS H8 UART_RTS H7 TEST_EN C6 RESET C7 AIO[0] H4 AIO[1] H5 AIO[2] J5 VDD_VCO H1 VDD_MEM A9 VDD_MEM K7 VDD_MEM J6 VDD_MEM H6 VDD_CORE E10 VDD_USB K9 VREG_IN K6 XTAL_OUT J3 VSS_ANA J4 XTAL_IN K3 VSS_VCO G2 VSS_PADS A2 VSS_PADS D9 VSS F3 VSS_ANA K2 VSS_MEM B5 VSS_MEM B7 VSS_MEM B10 VSS_MEM J7 RESET_B D8 VDD_MEM A7 VDD_MEM A6 VDD_PADS D10 VDD_ANA K4 VDD_PIO A3 VDD_RADIO C2 VDD_RADIO C1 VREG_EN K5 NC H3 U1CSRBC03_ROM_6X6 C215pF C8TBDC3TBD D-D+ 5VD-D+GNDSHIELDSHIELDSHIELDSHIELDSHIELD J1USB_CONNECTOR_V R1 22R R3 22R PIO_7PIO_6 A0 1 A1 2 A2 3 GND 4 SDA 5 SDL 6 WP 7 V 8 U5AT24C16A R52k2 R62k2 R72k2 C2210nF +3V3 PIO_8 R9330R PIO_0/RXEN PIO_1/TXENPIO_0/RXEN J43 PIO_1/TXEN RF_IN PIO_0/RXEN ToPA C43100nF L8 3.9nH C2415pF C46 NP R11820R C1810pF C2810nF VCTL 1 RAMP 2 RFIN 3 VCC0 4 VCC1 5 RFOUT 6 GND U9PA2423L C39 4.7pF C38 1pF C2515pF C455.6pF C2115pF C2615pF C47 0R L112.7nH C20 2.7pF L7 3.9nH C2715pF C1710pF L633nH C33100nF OUT2 3 GND 2 OUT1 1 VA 6 IN 5 VB 4 U6AS179-92 R1022K B 1 E1 2 C 3 E2 4 U3BFP405 C2315pF R12 22R C194.7uF L101.8nH C41NP C445.6pF C48NP C4010pF +3.3_PA +3.3_PA +3.3_PA C422.2uF R140R R162.2R C34100nF D-D+ C1610pF C30100nF C29100pF R1510K C32100nF C3510nF SHDN 3 IN 1 BP 4 GND 2 OUT 5 U7 RT9167-33CB L927nH +3V3 +3.3_PA C361uF C31100nF C371uF ToPA RF_IN AUX_DAC LED1LED

FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. FCC ID. : SI4-MBDC4201 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Report Issued Date : Aug. 29, 2005 Rev. 01 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant..................................................................................................................................................1 1.2. Manufacturer ...........................................................................................................................................1 1.3. Basic Description of Equipment under Test ............................................................................................1 1.4. Feature of Equipment under Test ...........................................................................................................1 2. Test Configuration of Equipment under Test ...............................................................................................2 2.1. Test Manner ............................................................................................................................................2 2.2. Test Mode ...............................................................................................................................................2 2.3. Connection Diagram of Test System ......................................................................................................2 2.4. Ancillary Equipment List ..........................................................................................................................2 3. RF Utility ...........................................................................................................................................................3 4. General Information of Test............................................................................................................................4 4.1. Test Voltage ............................................................................................................................................4 4.2. Standard for Methods of Measurement...................................................................................................4 4.3. Test in Compliance with ..........................................................................................................................4 4.4. Frequency Range Investigated ...............................................................................................................4 4.5. Test Distance .................................................................................................................. ........................4 5. Report of Measurements and Examinations ................................................................................................5 5.1. List of Measurements and Examinations ................................................................................................5 5.2. Hopping Channel Separation ..................................................................................................................6 5.3. Number of Hopping Frequency .............................................................................................................10 5.5 Dwell Time of Each Frequency within a 30 Seconds Period ................................................................16 5.6 Output Power ........................................................................................................................................36 5.7 100kHz Bandwidth of Frequency Band Edges.....................................................................................40 5.8 Conducted Emission .............................................................................................................................44 5.9 Radiated Emission Measurement .........................................................................................................47 5.10 Antenna Requirements........................................................................................................................53 6. List of Measuring Equipments Used ...........................................................................................................54 7. Uncertainty Evaluation..................................................................................................................................55 Appendix A. External Product Photograph Appendix B. Internal Photograph Appendix C. Setup Photograph FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. FCC ID. : SI4-MBDC4201 TEL : 886-2-2696-2468 Page No. : ii FAX : 886-2-2696-2255 Report Issued Date : Aug. 29, 2005 Rev. 01 History of this test report Report No.: FR581914 Report Issue Date: Aug. 29, 2005 Original Report Issue Date Description FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. FCC ID. : SI4-MBDC4201 TEL : 886-2-2696-2468 Page No. : 1 of 56 FAX : 886-2-2696-2255 Report Issued Date : Aug. 29, 2005 Rev. 01 1. General Description of Equipment under Test 1.1. Applicant MAVIN TECHNOLOGY INC. 3F, NO. 35, Hsin Tai Rd., Chupei City, Taiwan 302, R.O.C. 1.2. Manufacturer MAVIN TECHNOLOGY INC. 3F, NO. 35, Hsin Tai Rd., Chupei City, Taiwan 302, R.O.C. 1.3. Basic Description of Equipment under Test Equipment : Bluetooth USB Adapter Class1 Trade Name : Mavin Model No. : MBD-C4.20-1 FCC ID : SI4-MBDC4201 Power Supply Type : DC 3.3V 1.4. Feature of Equipment under Test Product Feature & Specification 1. Modulation Type/Data Rate GFSK 2. Frequency Range. 2400 MHz ~ 2483.5 MHz USA/Canada: 11 European: 13 Number o f Channels Japan: 13, 14 Other: 79 V 3. Carrier Frequency of each channel 2402+ n*1 MHz, n= …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. Page No. : C1 of C3 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 Conducted Emission FRONT VIEW REAR VIEW Appendix C. Set up Photograph FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. Page No. : C2 of C3 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 SIDE VIEW FCC TEST REPORT Report No. : FR581914 SPORTON International Inc. Page No. : C3 of C3 TEL : 886-2-2696-2468 Report Issued Date : Aug. 29, 2005 FAX : 886-2-2696-2255 Rev. 01 Radiation Emission FRONT VIEW REAR VIEW
