1 USER’S Guide Model 232T Thank you for purchasing the D-Mometer® 232T . Please Read this users Guide before installing batteries, and using. Please install the D-Mometer®232T according to manufacturer’s recommendations (page 5). W hen using the Tam-Network device with the D-Mometer 232T devices the D-Mometer 232T device is placed into a refrigeration unit and records the temperature and time of the temperature reading and sends a RF signal that has the data of these reading . this data transmission is received by the Tam-Network device which stores within the Tam-Network device data logger. Then the Tam-Network sends this information/data 2 through GSM signal to cellular provider . The 232T and the Tam-Network communicate between each other through RF signal . Inform - Prevent - Save The D-Mometer ® 232T is a unique device that monitors the Time and Temperature exposure of food within a refrigeration unit. To be more informed of the existence of the foods exposure to the temperature danger zone (TDZ) and its cumulative exposure is required for Time and Temperature compliance. Being informed of a possible problem will allow the user to take the necessary actions to help reduce the risk of foodborne illness. Our belief that prevention is better than a cure is behind the design and function of the D-Mometer ®232T. Being informed of a possible problem will allow the user to take the necessary actions to help reduce the risk of foodborne illness Using The D-Mometer® 232T will allow restaurants, food retailers, and homeowners while they are present or away, to know whether the temperature in the refrigeration unit is sufficient to keep the food outside of the danger zone. The D-Mometer ® 232T informs the user if the temperature of the refrigeration unit is above the recommended temperature for food, and allows the user to take the necessary actions to help prevent foodborne illness. Maintaining the food at the proper temperatures will allow the user to save product and its related costs. Follow HACCP program guidelines to monitor and control Time and Temperature of refrigerated food. The D-Mometer ®232T is ready to work 24/7. Easily and quickly the user has the opportunity to reduce the risk of foodborne illness by being informed by both audio and visual alerts if and when the refrigeration units’ contents are exposed to improper temperatures. This will allow the user to follow their local Health Departments rules and regulations on proper Time and Temperature control. Every person is at risk of foodborne illness and this risk can be reduced greatly by following the FDA Food code guidelines on Time and Temperature control. Easily 3 and quickly a user can look at the D-Mometer ® 232T and know if and how long the contents of the refrigeration unit were in the TDZ. illustrations FRONT (figure 1) Time Gauge Temperature Gauge First Stage Alert Battery Test Light Second Stage Alert Battery Test Button Top (figure 2) Battery compartment door Back (figure 3) Side (figure 4) ON / Off switch Specifications Dimensions : 6”x3”x2” ( approx.) Temperature range : 10 ºF–90 º F Accuracy +/- ½ º F Voltage : 6 volts ( 4 – AA batteries ) Certifications : NSF ,ANSI Product use :commercial/residential United States Patented Design FCC compliant 4 Battery Installation and Guidelines Battery Compartment (figure 5) Battery compartment Battery negative terminal Battery positive terminal Important Battery Recommendations 1) Use only Fresh New Batteries of the required size and type according to manufacturers recommendations. Manufacturer recommends the Use of AA Energizer Ultimate Lithium® or AA Energizer Max® Alkaline batteries. Use of any other brand and type of battery voids warranty When replacing batteries, remove all used batteries from the D-Mometer® at the same time, and then replace with all new batteries of the same brand, type, capacities and chemistry. 2) Do Not use Rechargeable batteries in the D-Mometer ®.232T 3) Be sure to install batteries properly. Open the battery compartment, place batteries in the battery compartment as Illustrated in fig 5, following the polarity symbols (+) and (-) marked inside. The supply terminals are not to be short-circuited. 4) Routinely inspect the battery compartment every 2 months, to be sure batteries are in good condition. If at any time your D-Mometer ®232T Has displayed a second stage violation , please replace all batteries with new fresh batteries. 5 5) Do Not mix batteries of different types, capacities, brands or chemistry. 6) Dispose of batteries properly according to battery manufactures guidelines and state or local government ordinances and regulations. Installation and Use Upon proper installation of batteries the device is Ready to monitor food temperature. Located on the top right side of the device is a battery power test button which has a corresponding green test light right next to it. Upon pressing the test button the green test light will illuminate, to confirm batteries have power and the system is ready. The unit can then be placed into a refrigeration unit (please refer to manufacturer recommendation’s on page6). The D-Mometer® 232T should be faced in a position that will enable a person to see the indicators on the front and top of the device. After locating the proper location within the refrigeration unit leave device in the off position for approximately 45 minutes. This will allow the device to calibrate to the proper internal temperature. Then after 45 minutes turn the D-Mometer®232T on . The temperature display should read the appropriate temperature, if the refrigeration unit is working properly. If and when the temperature reaches above the predetermined temperature, the first stage red flashing indicator light will turn on, notifying the user that the food contained in the refrigeration unit is out of temperature. If and when the temperature over the predetermined temperature for a cumulative total of 4 hours the second stage red flashing…

Text truncated - open the document above for the full version.

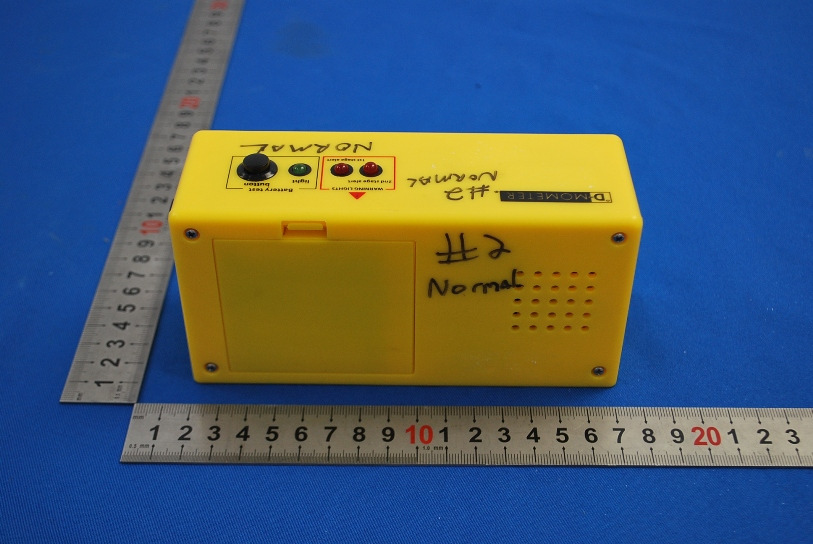

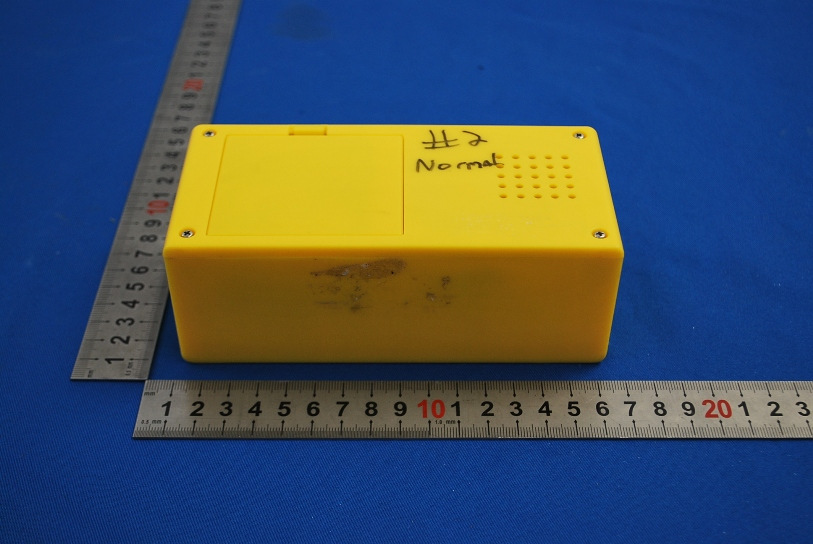

1 Photographs - EUT Constructional Details Test Model No.: D-Mometer 232T

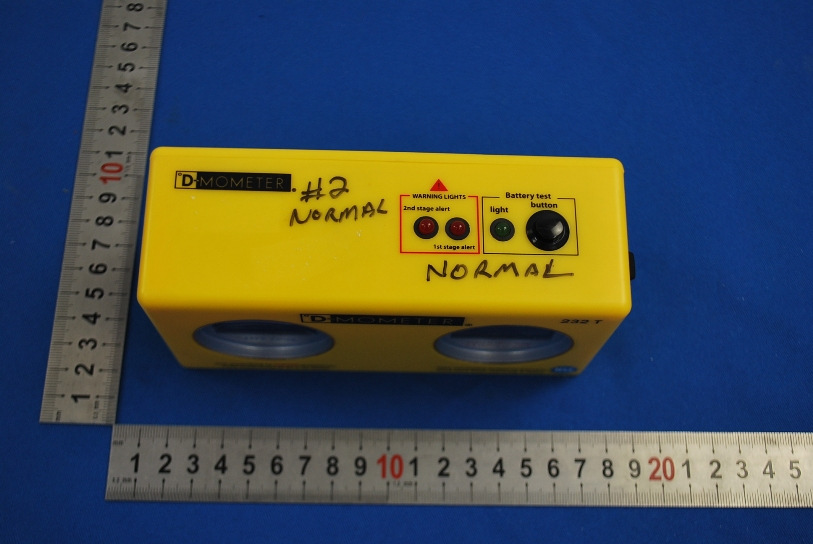

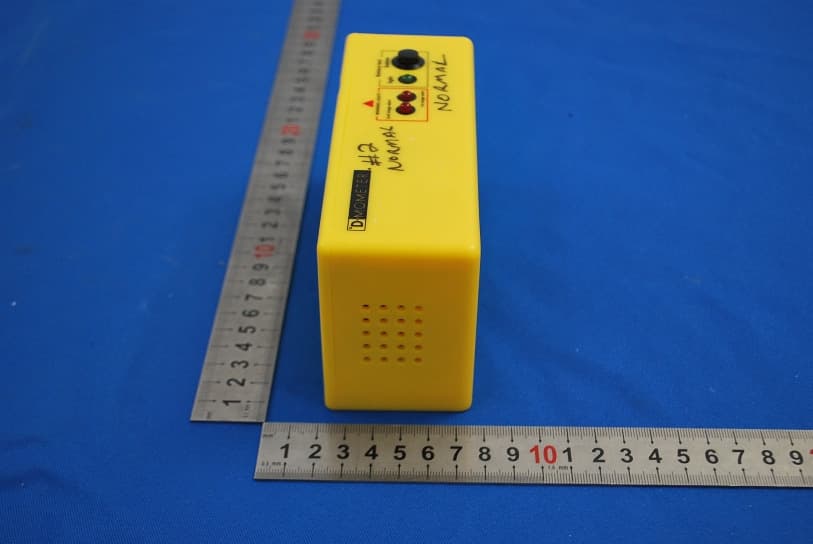

1 Photographs - EUT Constructional Details Test Model No.: D-Mometer 232T
